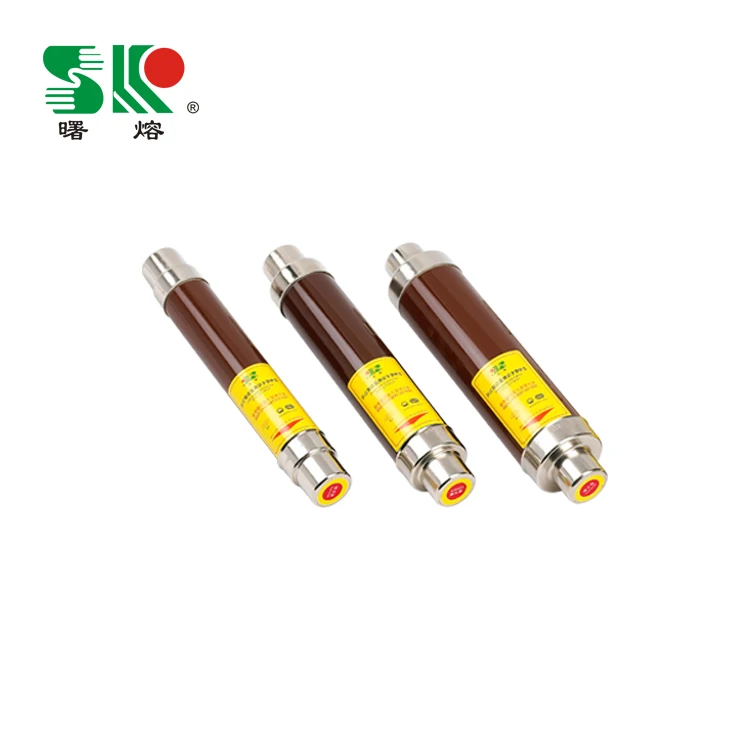

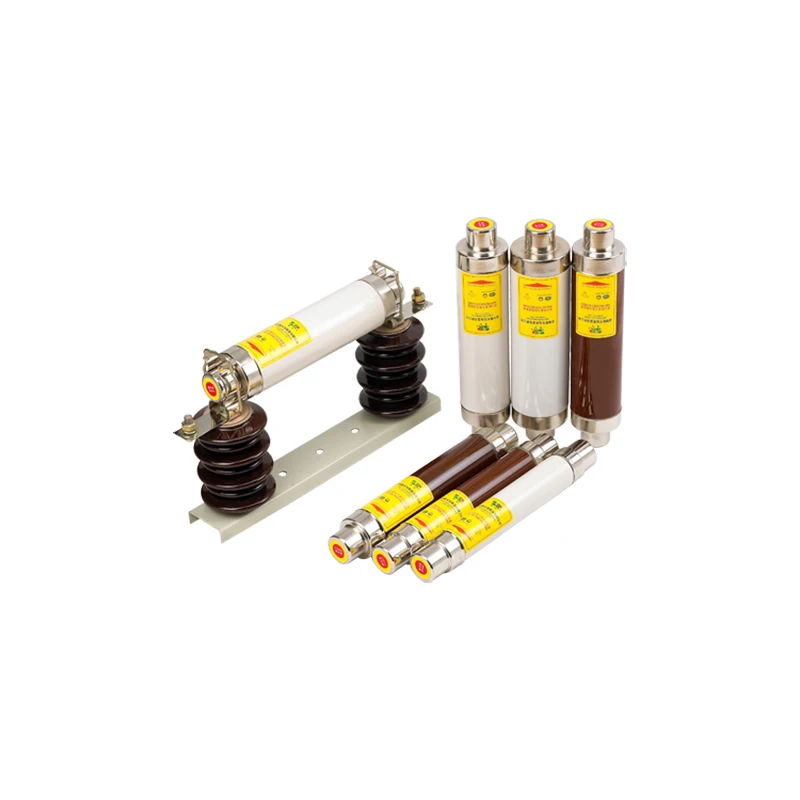

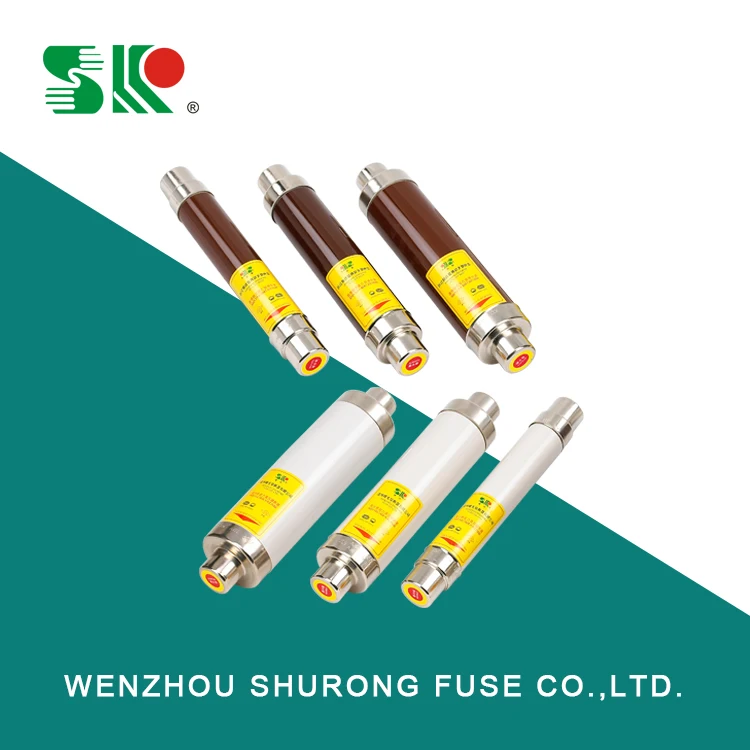

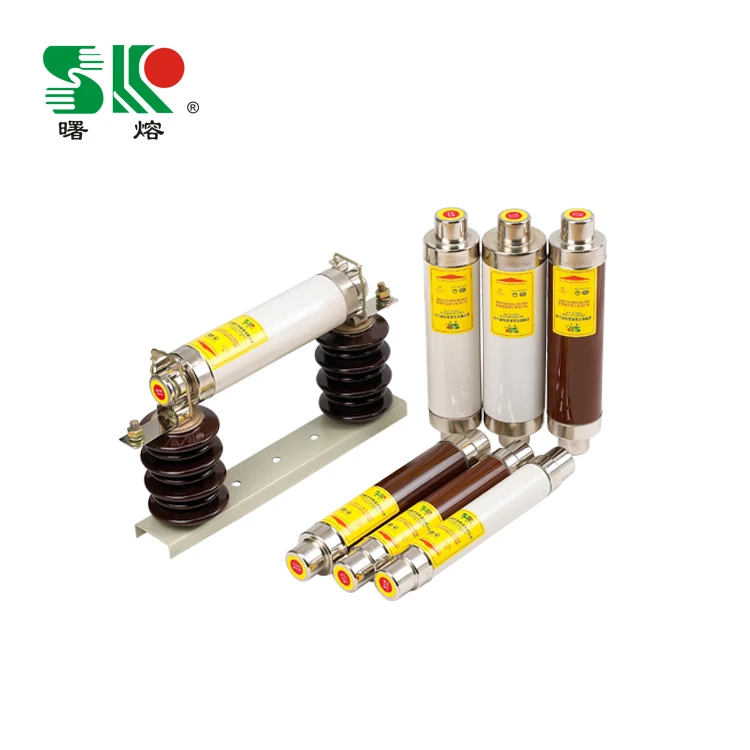

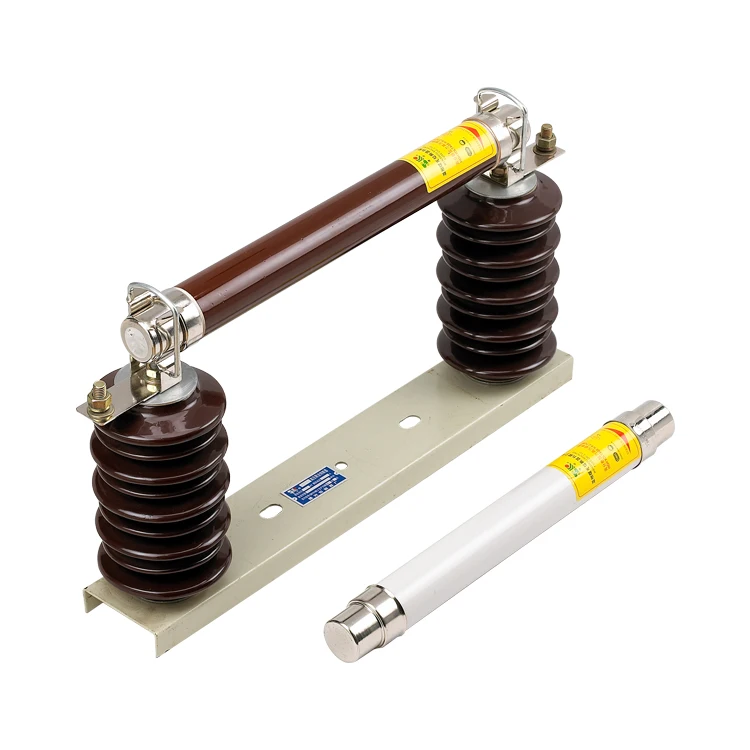

  • Middnewvoltage High Current Limiting Fuse Fuse 24KV 3.15A 6.3A 10A 16A 25A 31.5A 50A 63A 125A 160A 200A IEC XRNT
Middnewvoltage High Current Limiting Fuse Fuse 24KV 3.15A 6.3A 10A 16A 25A 31.5A 50A 63A 125A 160A 200A IEC XRNT
Middnewvoltage High Current Limiting Fuse Fuse 24KV 3.15A 6.3A 10A 16A 25A 31.5A 50A 63A 125A 160A 200A IEC XRNT
Middnewvoltage High Current Limiting Fuse Fuse 24KV 3.15A 6.3A 10A 16A 25A 31.5A 50A 63A 125A 160A 200A IEC XRNT
Middnewvoltage High Current Limiting Fuse Fuse 24KV 3.15A 6.3A 10A 16A 25A 31.5A 50A 63A 125A 160A 200A IEC XRNT
Middnewvoltage High Current Limiting Fuse Fuse 24KV 3.15A 6.3A 10A 16A 25A 31.5A 50A 63A 125A 160A 200A IEC XRNT
Middnewvoltage High Current Limiting Fuse Fuse 24KV 3.15A 6.3A 10A 16A 25A 31.5A 50A 63A 125A 160A 200A IEC XRNT
Middnewvoltage High Current Limiting Fuse Fuse 24KV 3.15A 6.3A 10A 16A 25A 31.5A 50A 63A 125A 160A 200A IEC XRNT

Middnewvoltage High Current Limiting Fuse Fuse 24KV 3.15A 6.3A 10A 16A 25A 31.5A 50A 63A 125A 160A 200A IEC XRNT

Share on (1600627106471):


Price:

Quantity:


Product Overview

Description



Product Paramenters


High quality high breaking capacity fuse XRNT——Support customization

Voltage: 6KV/12KV/10KV/24KV/20KV/36KV
Current: 1-40A/50-125A/160A/200A/250A

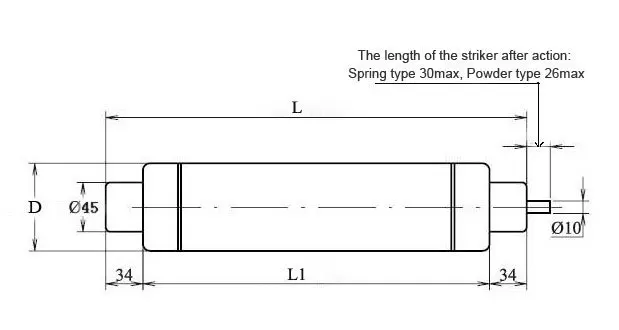

Dimension: 51*292/63*292/76*292/88*292
51*442/63*442/76*442/88*442
51*537/63*537/76*537/88*537

Support customized service, customized size, packaging, please contact sales.






Products Description


What is High- Voltage current-Limiting Fuse?
The high-voltage current-limiting fuse is one of the main protection components of electrical equipment, and it is used in series in the circuit. Protected objects include transformers, motors, voltage transformers, capacitors and power lines. When the short-circuit current or overload current passes through the circuit, the heat generated by the melt is used to fuse itself and cut off the circuit to achieve the purpose of protection. It breaks a large short-circuit current and can curb its amplitude very significantly, especially it has a quick breaking function.

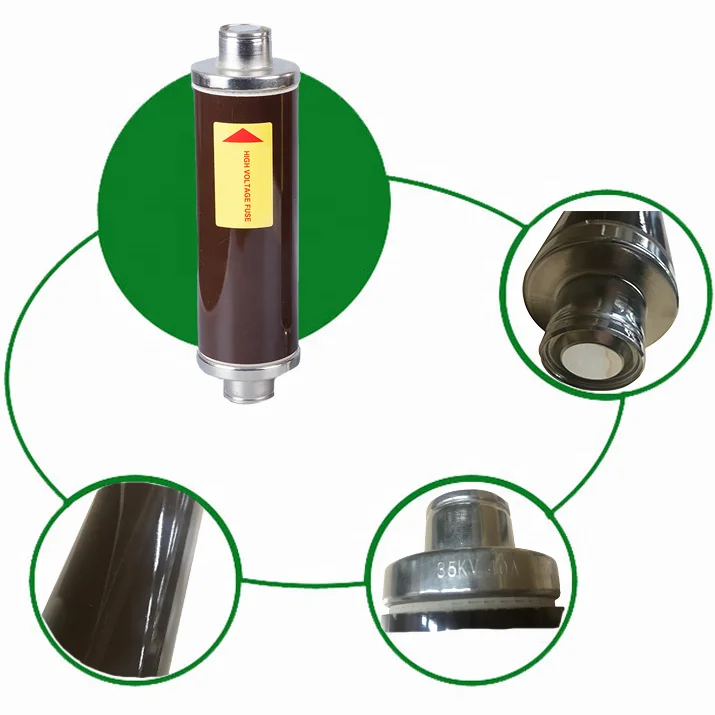

The shape and structure of various high-voltage current-limiting fuses for protection are basically the same, and are generally fixed by melting tubes and melts.Column, melt, arc extinguishing material, trigger, metal end cap and so on. Among them, melt, melting pipe and arc extinguishing medium (stone British sand) is the most critical for current-limiting fuses, and its impact mechanism (trigger) generally has two types: spring type and gunpowder formula.




The product can be used in system with AC50Hz and rated voltage of 10KV,used together with other protection facilities(such as loading switches).It can protect electric transformers and other electric facilities against overloading or circuit break.It is mainly used in American box type transformers as backup protection.


Model
Rated voltage (kv)
Fuse rated current(A)
Melt rated current(A)
XRNT-12
12
40
3.15, 6.3, 10, 16, 20, 25, 31.5, 40
XRNT-12
12
100
50, 63, 71, 80, 100, (125)
XRNT-12
12
125
125, 160, 200, 250
XRNT-24
24
200
3.15, 6.3, 10, 16, 20, 25, 31.5, 40, 50, 63, 80, 125, 160, 200
XRNT-40.5
40.5
125
3.15, 6.3, 10, 16, 20, 25, 31.5, 40, 50, 63, 80, 100, 125











Company Profile






Exhibition and Package




FAQ


Q1: What's your material?
A1: We use high-strength porcelain and silver wire to ensure that the circuit is disconnected in time when overloaded.

Q2: What sizes do you have?
A2: These are our normal size: 51*292/63*292/76*292/88*292/51*442/63*442/76*442/88*442/ 51*537/63*537/76*537/88*537. Dimension,
Color, Package can be customized.

Q3: What's your MOQ?
A3: 100PCS

Q4: How long will you delivery?
A4: If within 5 pcs for sample, we can ship the next day after payment. If bulk, please ask for sales.

Q5: Can you quote FOB?
A5: We can quote EXW, FOB, CIF, CFR. International Express Available, FedEX, UPS, DHL.
