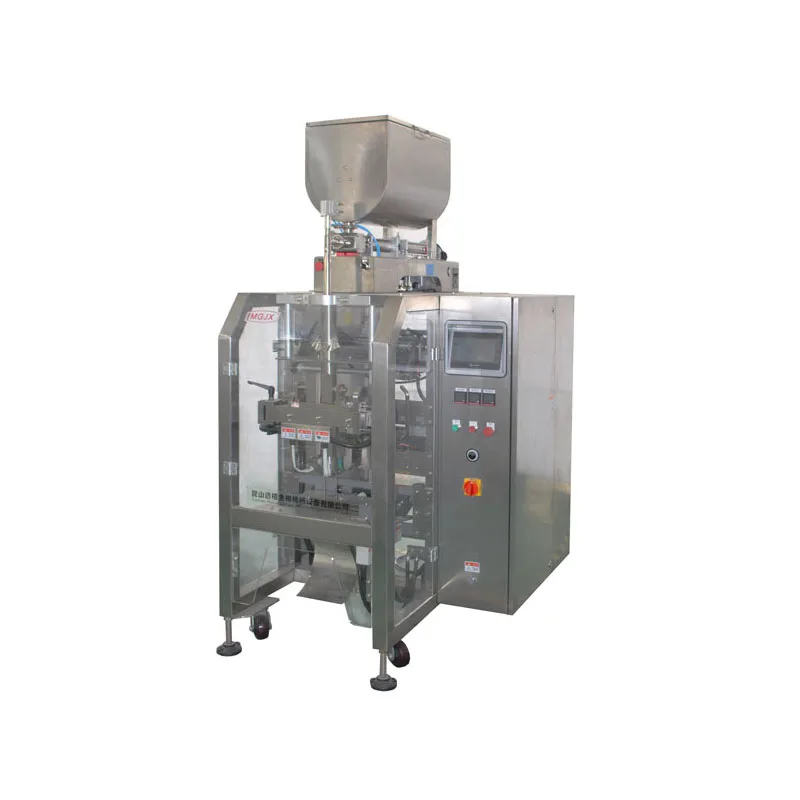

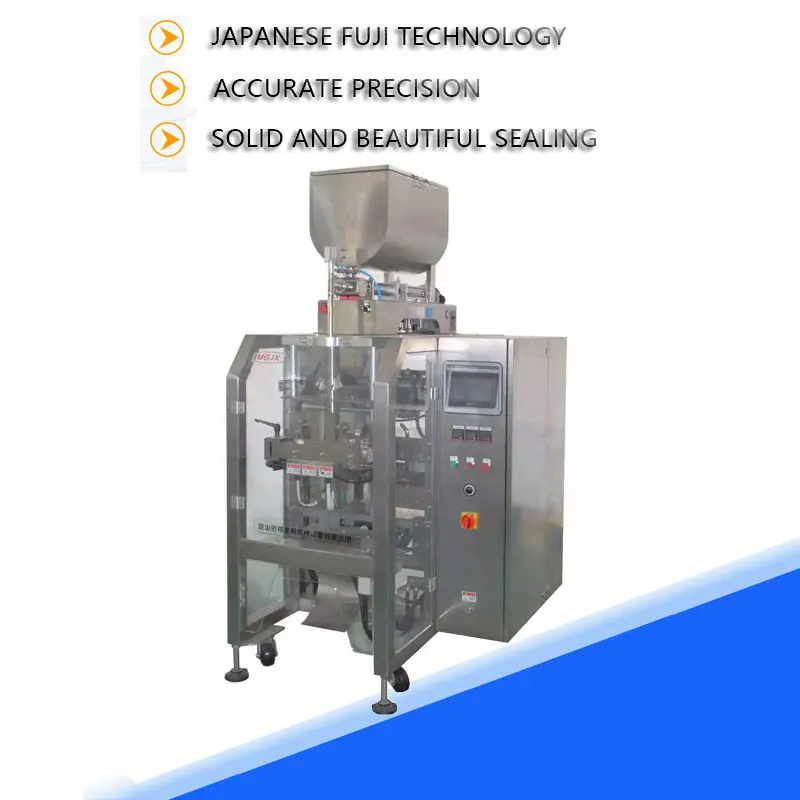

Hot Sale Vertical Plastic Bag Pack Sauce/ Jam Packing Machine Automatic Perfume Jam Liquid Blister Pack Packaging Machine
- Category: >>>
- Supplier: Kunshan Mega-Packing Machinery Equipment Co. Ltd.
Share on (1600627106811):
Product Overview
Description
Product Overview
Features:

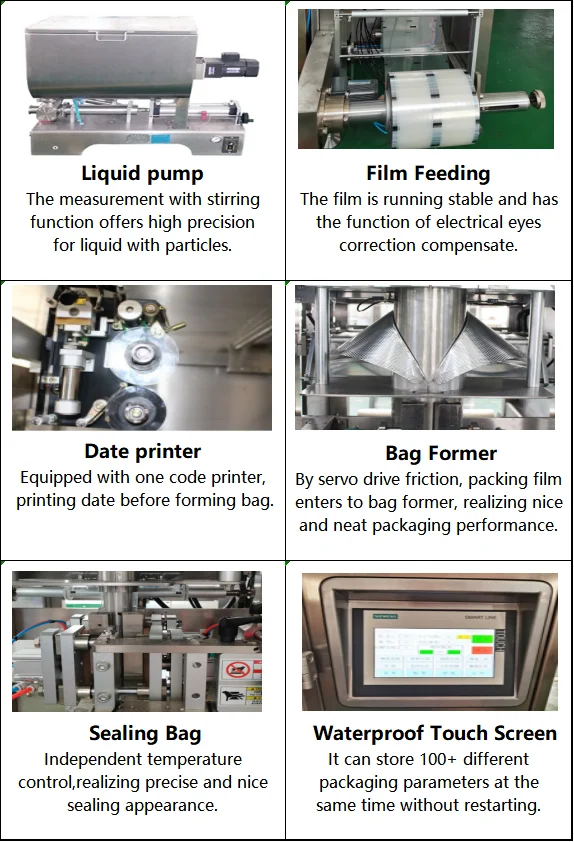

>Machine equipped with measure parts and it can automatically complete the packaging process of measuring, feeding, bag filling, date printing, air aeration (exhaust),bag conveying, and automatic bag counting;
>PLC control system, pneumatic control system and oversizetouch screen to form driving control core.Maximum control precision, reliability and intelligence of the whole machine;
>The touch screen can store the packaging process parameters for many different products.When changing the product, it can be used without resetting.
>The touch screen can store the packaging process parameters for many different products.When changing the product, it can be used without resetting.
>Adopts intelligent temperature controller and temperature control is highly accurate.Ensure that the sealing is beautiful and smooth;

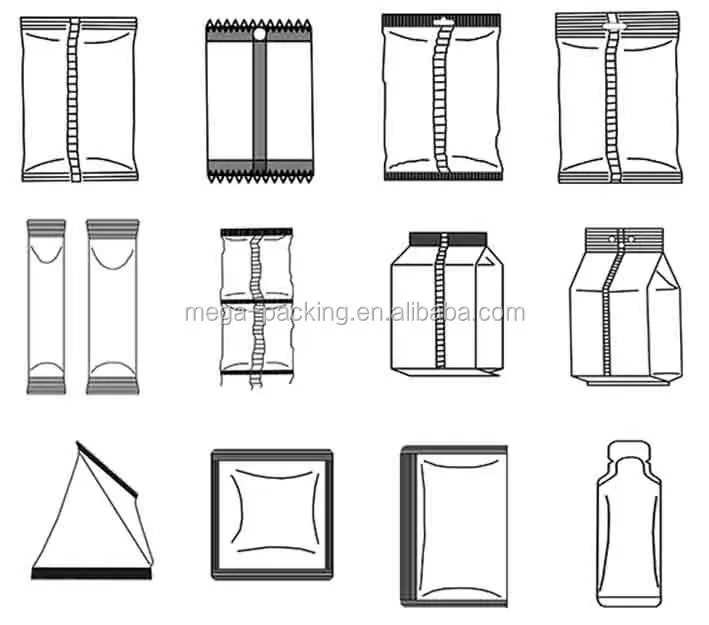

>It can make pillow-shape bag according to customers' requirement.
>Horizontal sealing part hold film for film feeding,positioning high accuracy,little friction,and less loss;
>It can select full stainless steel or carbon steel with plastic-sprayed machine structure;
>It has a error display system, which can help for troubleshoot quickly.
>It is equipped with safety protection to meet enterprise safety management requirements.
MEGA Packing Machine Parameter | ||||||||||
Model | MG320 | MG420 | MG520 | MG630 | MG760 | |||||
Bag Size | L40-240mm | L40-300mm | L80-350mm | L80-400mm | L100-450mm | |||||
W50-150mm | W50-200mm | W100-250mm | W120-300mm | W150-360mm | ||||||
Packing Speed | ≤90 Bag/Min | ≤80 Bag/Min | ≤70 Bag/Min | ≤60 Bag/Min | ≤50 Bag/Min | |||||
Compressed Air | 6Kg/m², 0.2m³/ Min | 6Kg/m², 0.2m³/ Min | 6Kg/m², 0.2m³/ Min | 6Kg/m², 0.2m³/ Min | 6Kg/m², 0.2m³/ Min | |||||
Dimensions (L*W*H)mm | 1320X980X1180 | 1350X1065X1450 | 1365X1160X1550 | 1700X1400X1900 | 1900X1400X1900 | |||||
Power Consumption | 3Kw | 3Kw | 3Kw | 3Kw | 3Kw | |||||
Weight | 350kg | 500kg | 550kg | 750kg | 850kg | |||||
Main Pneumatic&Electrical List
Packing & Delivery
Certificate
Company Workshop
FAQ
1.Q: How to find a Packing machine suitable for my product?
A:Tell me about your product details. 1. What kind of product you have. 2. The size of your product( the length, width, and height).
2.Q: Is an engineer available to serve oversea?
A:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
3.Q: Are you a factory or trading company?
A:We are the factory, and especially R&D, manufacture and sell various packing equipment. We have engaged in the packing R&D and production for over 10 years.
4.Q: What's your payment way?
A:T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, L/C, or in cash.
5.Q: How can we make sure about the machine quality after we put the order?
A:Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
6.Q:We are afraid you won't send us the machine after we send you the money?
A:Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7.Q: Why we should choose your company?
A:We are professional in packing machines for almost 20 years, and we provide better after-sales service. You guarantee no risk for our deal.
