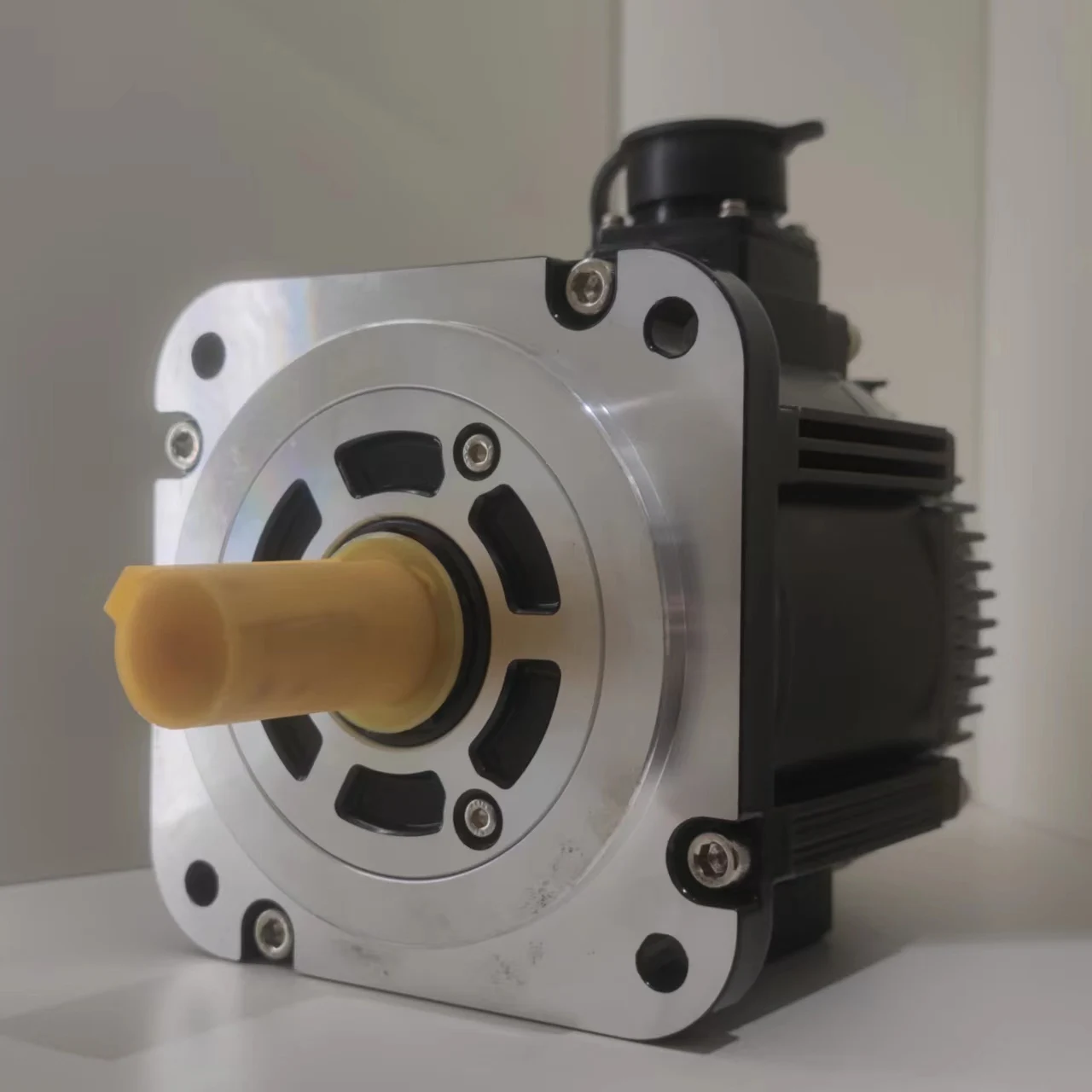

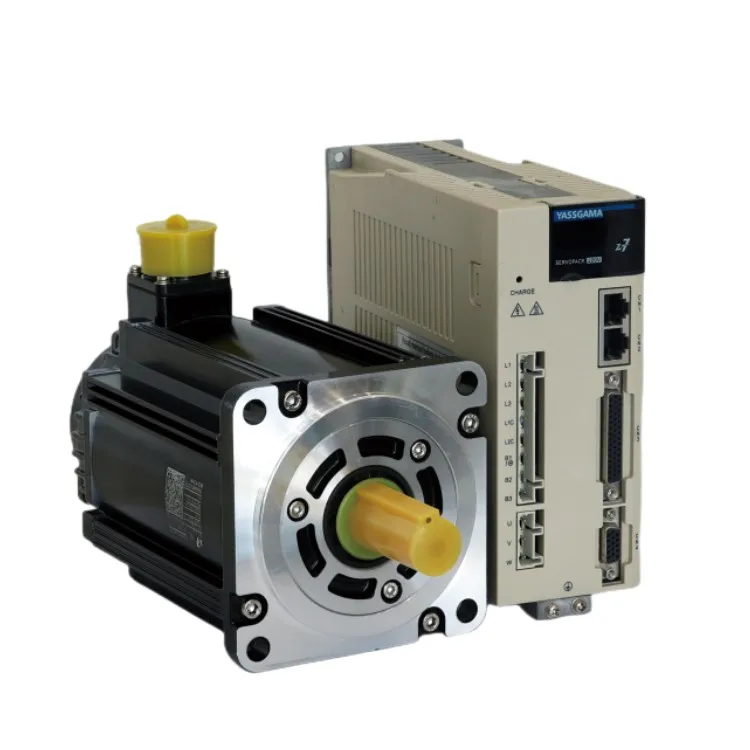

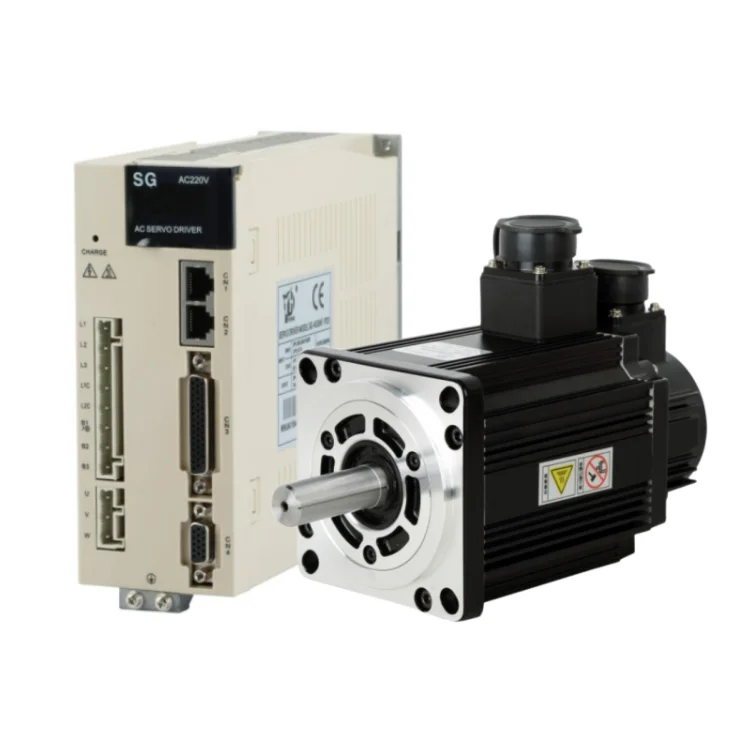

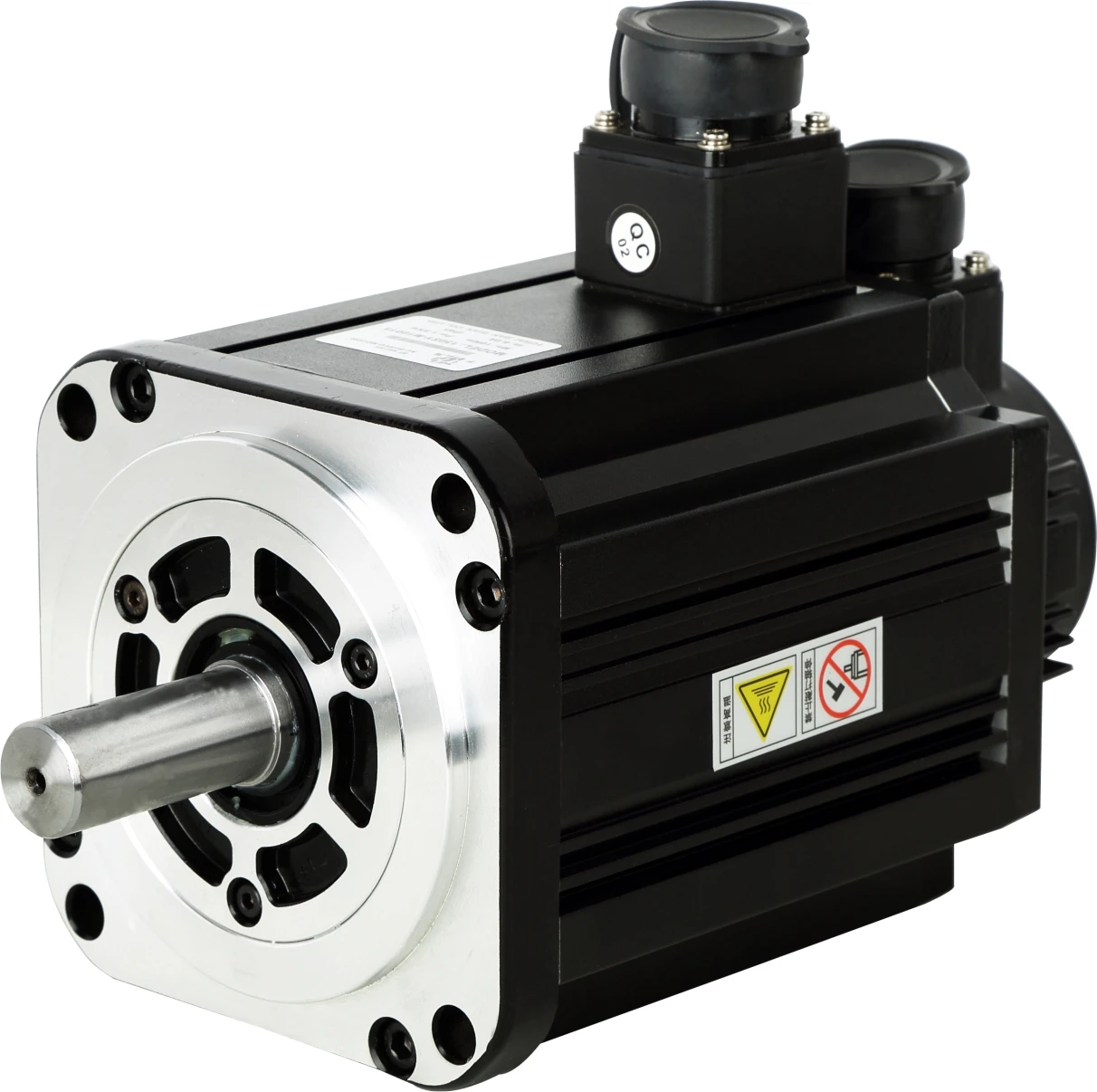

220V 0.6 1.2 1.5 1.8 2Kw 2 4 5 6 8 6 12 15 18 24N.m 3000 rpm 110mm series AC Servo Motor
- Category: >>>
- Supplier: Taizhou Xinyuhai Intelligent Technology Co. Ltd.
Share on (1600627114702):
Product Overview
Description
220V 0.6 1.2 1.5 1.8 2Kw 2 4 5 6 8 6 12 15 18 24N.m 3000 rpm 110mm series AC Servo Motor
Motor Model | 110SY-M02030 | 110SY-M04030 | 110SY-M05030 | 110SY-M06030 | 110SY-M08025 |
Rated Power(Kw) | 0.6 | 1.2 | 1.5 | 1.8 | 2.0 |
Rated Torque(N.m) | 2 | 4 | 5 | 6 | 8 |
Max Torque(N.m) | 6 | 12 | 15 | 18 | 24 |
Rated Speed(Rpm) | 3000 | 3000 | 3000 | 3000 | 2500 |
Max Speed(Rpm) | 3300 | 3300 | 3300 | 3300 | 3000 |
Rated Current(A) | 4 | 5 | 5 | 6 | 7 |
Rotor Inertia(Kg.㎡) | 0.33*10-3 | 0.65*10-3 | 0.82*10-3 | 1.0*10-3 | 1.28*10-3 |
Motor Weight(Kg) | 5 | 6.2 | 6.9 | 7.8 | 9.5 |
Due to the limited size of the table,not all model parameters are listed,we supply different type and size,for more information,please contact us,also we can customized as your requirement
1. Low noise and long life
2. Efficient and energy saving
3. Wide range of uses
4. Tamagawa incremental encoder 2500/5000PPR /10000PPR
Tamagawa absolute encoder 17bits /23 bits
2. Efficient and energy saving
3. Wide range of uses
4. Tamagawa incremental encoder 2500/5000PPR /10000PPR
Tamagawa absolute encoder 17bits /23 bits
1) Are you a manufacturer or trade company?
We are factory , we have engineers for researching & designing and workers for produce and operate etc, we could support you one-stop products and service,we produce stepper motor,servo motor,motor drive and couplings, etc..
2)Where is your factory located? How can I visit there?
Our factory is located in Wenling Taizhou Zhejiang province，it is easy to visit us through plane or railway. All our clients, from home or abroad, are warmly welcome to visit us!
3) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
4) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 15 working days.
5) About warranty?
All our products provided 24months warranty!
6)How does your factory do regarding quality control?
"Quality is priority.'' Our inspector QC will check the goods in every procedure and modify the parts once they find any problems from them. And our salesman will also check our goods and take photos for every procedure for our client to confirm.
7)Do you provide after-sale service?
Yes, of course. For the problem when using our products, we will guide you how to apply it in the machine and how to set theparameters, etc.
We are factory , we have engineers for researching & designing and workers for produce and operate etc, we could support you one-stop products and service,we produce stepper motor,servo motor,motor drive and couplings, etc..
2)Where is your factory located? How can I visit there?
Our factory is located in Wenling Taizhou Zhejiang province，it is easy to visit us through plane or railway. All our clients, from home or abroad, are warmly welcome to visit us!
3) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
4) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 15 working days.
5) About warranty?
All our products provided 24months warranty!
6)How does your factory do regarding quality control?
"Quality is priority.'' Our inspector QC will check the goods in every procedure and modify the parts once they find any problems from them. And our salesman will also check our goods and take photos for every procedure for our client to confirm.
7)Do you provide after-sale service?
Yes, of course. For the problem when using our products, we will guide you how to apply it in the machine and how to set theparameters, etc.
