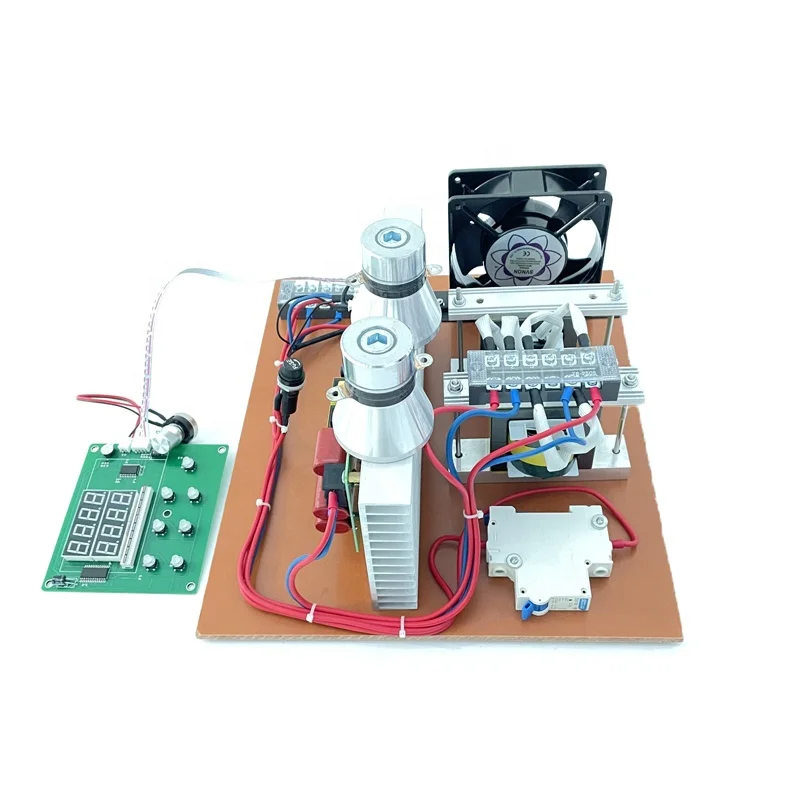

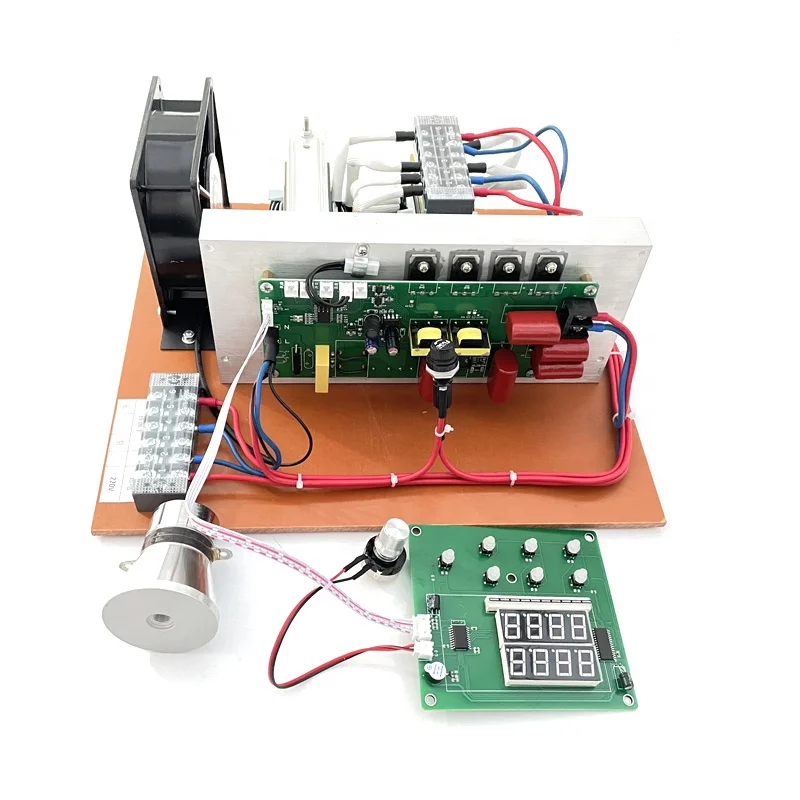

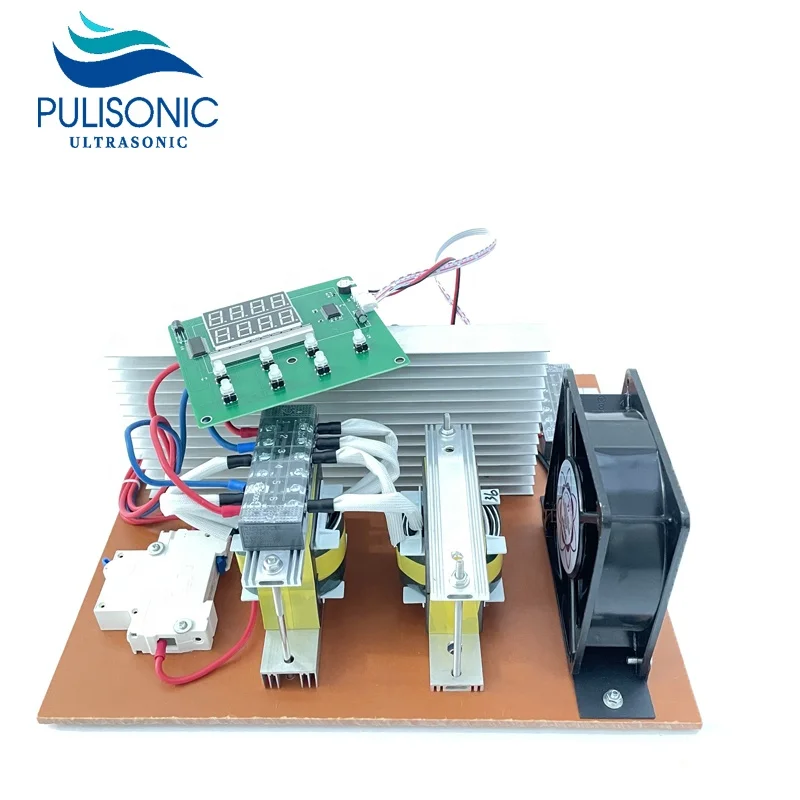

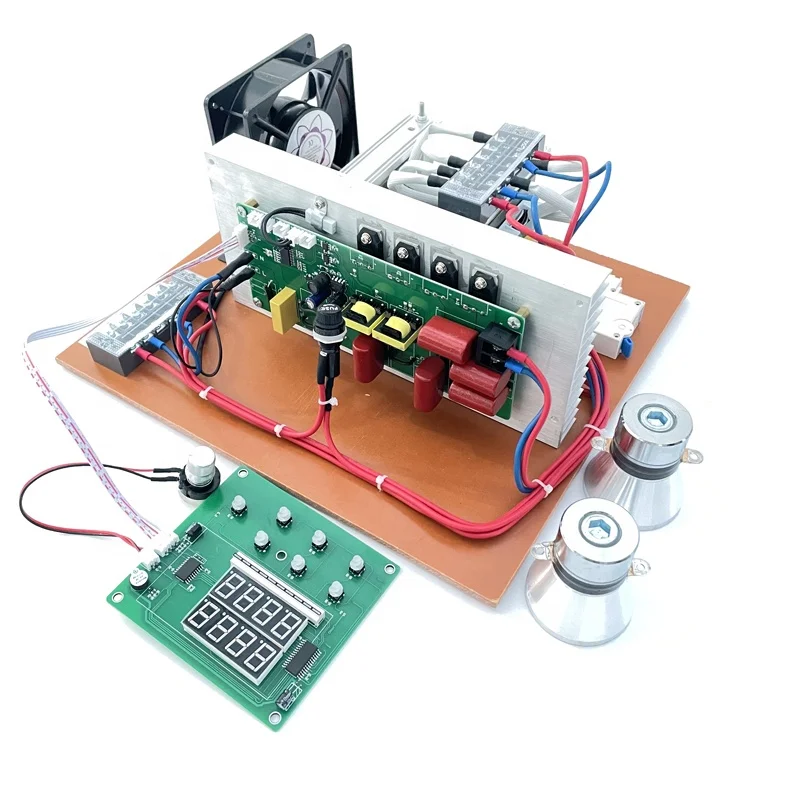

2000W 25Khz Automatic Frequency Tracking Ultrasonic Piezo Transducer Driver Circuit Ultrasonic Cleaner Generator

Product Overview

Description

2000W 25Khz Automatic Frequency Tracking Ultrasonic Piezo Transducer Driver Circuit Ultrasonic Cleaner Generator

Ultrasonic generator pcb circuit board is usually called ultrasonic power supply driver circuit. Its function is to convert electric energy into high-frequency AC signal matched with ultrasonic transducer.

The principle of ultrasonic generator pcb circuit board is that the signal generator first generates a signal of a specific frequency, which can be sinusoidal signal or pulse signal. This specific frequency is the frequency of the transducer, which is generally used in ultrasonic equipment

1. Microcomputer control and digital frequency synthesis technology are adopted to automatically track and adjust the frequency;

2. Digital display ultrasonic power, continuously adjustable, more flexible and convenient to use;

3. Design timing system, working time digital display, adjustable;

4. With frequency sweeping function, the frequency sweeping speed and width are digitally adjusted to effectively protect the steel plate;

5. Set PLC remote control interface to facilitate connection with other control equipment;

6. Constant power output stability technology, not affected by voltage and load, to protect equipment;

7. Full touch humanized key control, convenient and fast debugging operation.

8. More efficient, more environmentally friendly, output useful power of more than 98%.
