CE quality passenger elevator
- Category: >>>
- Supplier: General Elevator Co. Ltd.
Share on (1600627130400):
Product Overview
Description
Company Profile
Specification
Elevator type | Capacity | Speed | Cabin and Door Decoration | ||

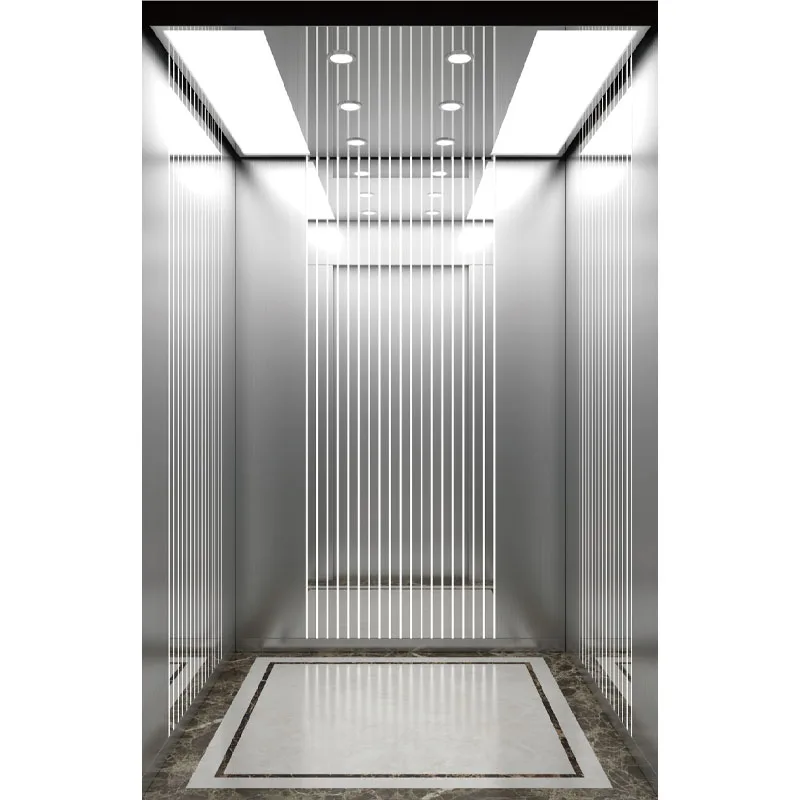

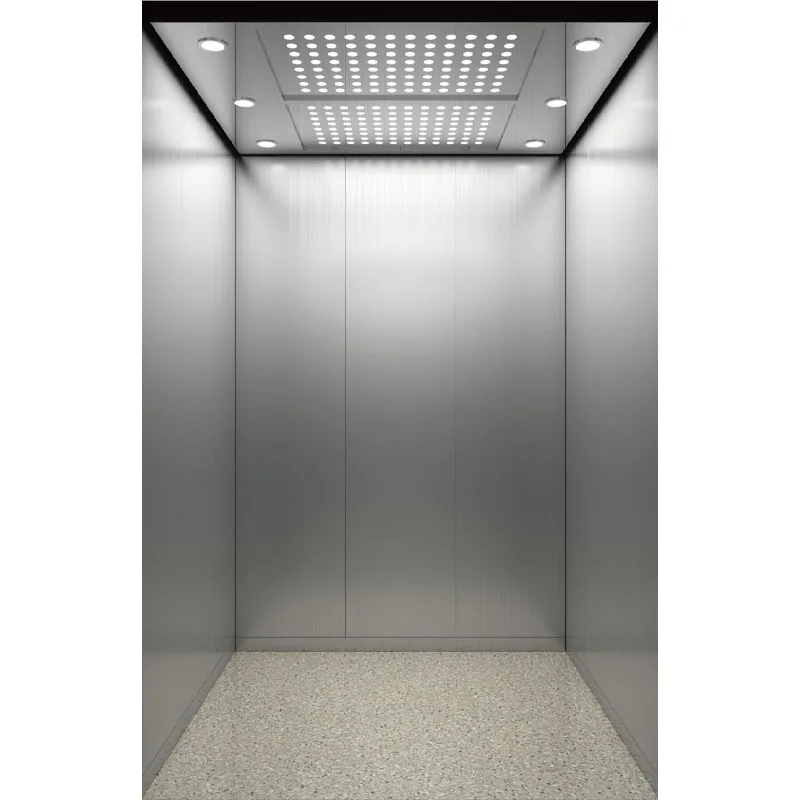

Passenger Elevator | 320~1600kg | MR:V≤8m/s MRL:V≤2.0 m/s | Standard | Car Cabin, cabin door , main landing door: Hairline Stainless steel other landing: painted steel panel | |
Option | Mirror stainless steel | ||||
etching stainless steel | |||||

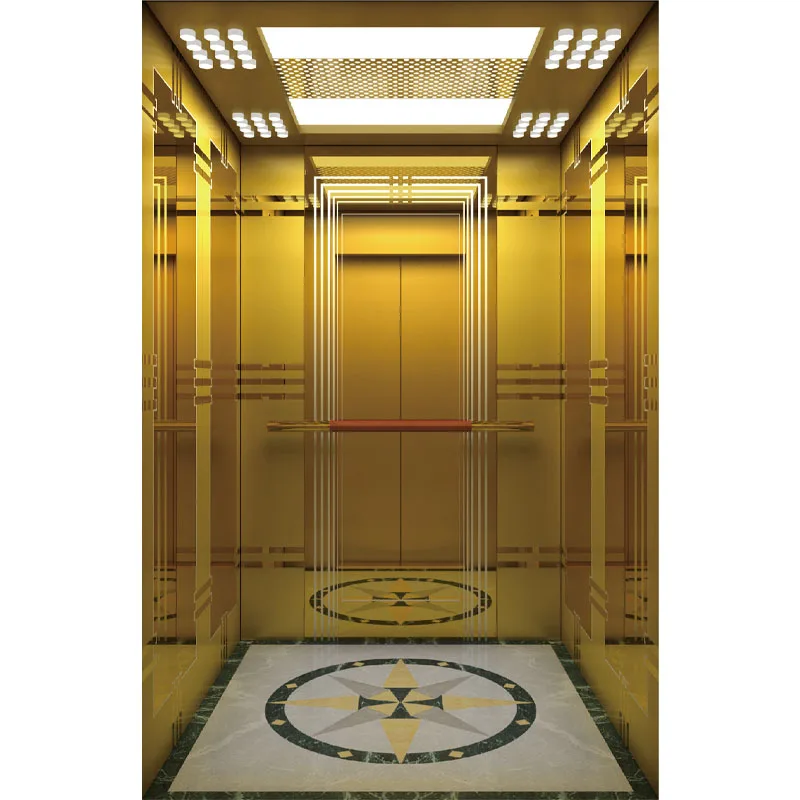

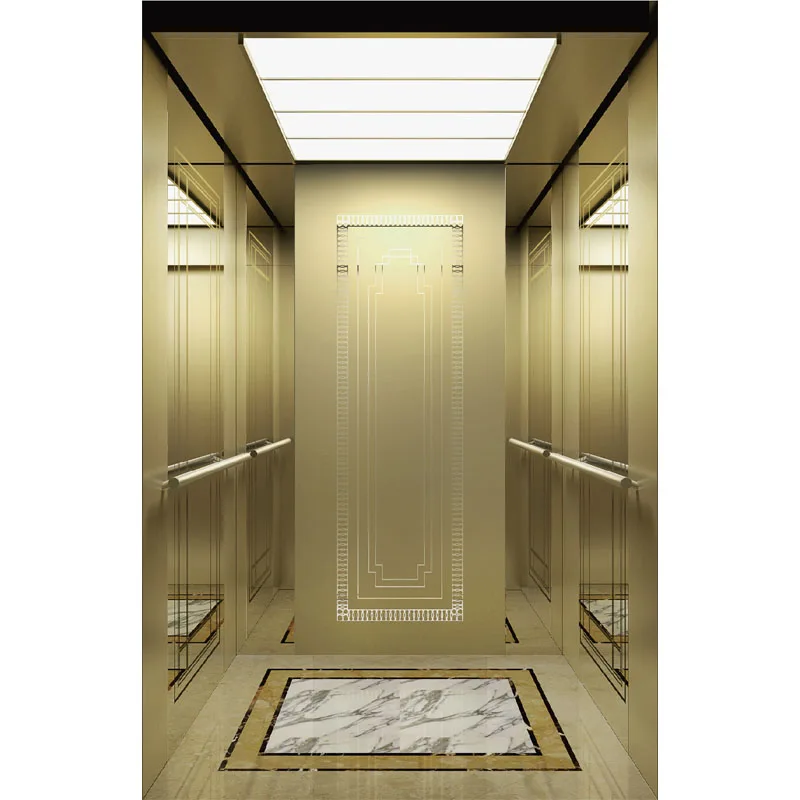

Golden mirror etching finish..etc.. | |||||
Small Machine Room Passenger Elevator
Machine Roomless Passenger Elevator
Our Advantages
Main Projects
Product Details
Elevator Function
Running Function | ||||
Vvvf drive | Motor rotating speed can be precisely adjusted to get smooth speed curve in lift start, travel and stop and gain the sound comfort. | S | ||
Vvvf door operator | Motor rotating speed can be precisely adjusted to get the more gentie and sensitive door machine start/stop. | S | ||
Independent running | The lift can not respond to outer calling, but only respond to the command inside the car through the action switch. | S | ||
Automatic pass without stop | When the car is crowded with the passengers or the load is close to preset value, the car will automatically pass the calling landing in order to keep maximun travel efficiency. | S | ||
Automaticlly adjust door opening time | Door-open time can be automatically adjusted according to the difference between landing calling or car calling. | S | ||
Reopen with hall call | In the door shutting process, press reopen with hall call button can restart the door. | S | ||
Express door closing | When the lift stops and opens the door, press door-shut button, the door will be closed immediately. | S | ||
Car stops and door open | The lift decelerates and levels, the door only opens after the lift comes to a complete stop. | S | ||
Car arrival gong | Arrival gong in the car top announces that the passengers arrive. | S | ||
Command register cancel | If you press the wrong floor command button in the car, twice continuous pressing of the same button can cancel the registered command. | S | ||
Anti-nuisance | In the light lift load, when three more commands appear, in order to avoid the unnecessary parking, all the registered callings in the car will be cancelled. | O | ||
Open the door in advance | When the lift decelerates and enters into door open zone, it automatically opens the door to enhance the travel efficiency. | O | ||
Direct parking | If completely accords with distance principle with no crawling in the leveling. It greatly enhances the travel efficiency. | O | ||
Group control function | When three or more same model lift groups are controlled in use, the lift group can automatically choose the most appropriate response. It avoids the repeated lift parking, reduces the passengers' waiting time and increases the travel efficiency. | O | ||
Duplex control | Two sets of same model lifts can unanimously respond the calling signal through the computer dispath. In this way, it reduces the passengers' waiting time to the greatest extent and enhances the travel efficency as well. | O | ||
On-duty peak service | Within the preset on-duty time, upward transport fromthe home landing is extremely busy. The lifts are continuously dispatched to the home landing in order to satisfy on-duty peak service. | O | ||
Off-duty peak service | Within the preset off-duty period, the lifts are continuously dispatched to top floor in order to satisfy off-duty peak service. | O | ||
Door open time extending | Press special button in the car, the lift door keeps open for certain period of time. | O | ||
Human-machne interface | ||||
Micro-touch button for car call and hall call | Novel micro-touch button is used for operation panel command button in the car and landing calling button. | S | ||
Floor and direction indicator inside car | The car shows the lift floor location and current travel direction. | S | ||
Floor and direction indicator in hall | The landing shows the lift floor location and current travel direction. | S | ||
Voice announcer | When the lift normally arrives, voice announcer informs the passengers about the relevant information. | O | ||
Car assistant operation box | It is used in the large loading weight lifts or the lifts with crowded passengers so that more and more passengers can use the car. | O | ||
Operation box for the handicapped | It is convenient for the wheelchair passengers and those who have vision problems. | O | ||
Intelligent calling sevice | The car command or hoist-way calling can be locked or connected through special intelligent input. | O | ||
IC card control function | All(partial) landings can only input car commands through IC card after the authorization. | O | ||
Safety Function | ||||
Photocell Protection | In the door open and shut period, infrared light that covers the whole door height is used to probe the door protection device of both the passengers. | S | ||
Designated stop | If the lift can not open the door in the destination floor out of some reason, the lift will close the door and travel to the next designated floor. | S | ||
Overload holding stop | When the car is overload, the buzzer rings and stops the lift in the same floor | S | ||
Anti-stall timer protection | The lift stops operation due to slippery traction wire rope. | S | ||
Start protection control | If the lift does not leave door zone within the designated time after it gets started, it will stop the operation. | S | ||
Inspetion operation | When the lift enters into inspection operation, the car travels at inching running. | S | ||
Fault self-diagnosis | The controller can record 62 latest troubles so as to quickly remove the trouble and restore the lift operation. | S | ||
Repeated door closing | If the lift can not close the door due to certain obstacle or interference, the lift will reopen or re-shut the door until sundries are eliminated. | S | ||
Up/down over-run and final limit protecion | The device can effectively prevent from the lift's surging to the top or knocking the bottom when it is out of control. It results in more safe and reliable lift travel. | S | ||
Down over-speed protection device | When the lift downs 1.2 times higher than the rated speed, this device will automatically cut off control mains, stop the motor running so as to stop lift down at over-speed. If the lift continues to down at over-speed, and the speed is 1.4 times higher than rates speed, safety tongs act to force the lift stop in order to ensure the safety. | S | ||
Upward over-speed protection device | When the lift up speed is 1.2 times higher than rates speed, the device will automatically decelerate or brake the lift. | S | ||
Energy saving | ||||
Car ventilation, light automatic shut off | If there is no calling or command signal within the stipulated time, the car fan and lighting will be automatically closed in order to save the energy. | S | ||
Remote shut-off | The lift can be called to main landing(after finishing the service) through the key switch and automatically exists the service. | S | ||
Emergency function | ||||
Emergency car lighting | Emergency car lighting automatically activated once power failure. | S | ||
Inching running | When the lift enters into emergency electric operation, the car travels at low speed inching running. | S | ||
Five way intercom | Communication amid car, car top, lift machine room, well pit and rescue duty room through walkie-talkie | S | ||
Bell | In emergency conditions, if bell button above car operation panel is continuously pressed, electric bell rings on top of the car. | S | ||
Fire emergency return | If you start key switch in main landing or monitor screen, all the callings will be cancelled. The lift diectly and immediately drives to the designated rescue landing and automatically opens the door. | S | ||
Leveling when power failure | In normal power failure, the chargeable battery supplies the lift powerr. The lift drives to the nearest landing. | O | ||
Monitor function | ||||
Remote monitor | The lift long-distance monitor and control can be fulfilled through modem and telephone. It is convenient for the factories and service units to timely know the travel conditions of every lift and promptly take the corresponding measures. | O | ||
Remote control | The lift can have independent travel according to the specific requirements through operation monitor screen(optional). | O | ||
Camera function in the car | The camera is installed in the car to monitor the car conditions. | O | ||
Packing & Delivery
The packing material will be made of wooden crates as an standard export packing
12-20 packages for each elevator
1-2 elevator fit in 1*20ft container
3-5 elevator fit in 1*40ft container
1-2 elevator fit in 1*20ft container
3-5 elevator fit in 1*40ft container
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2003,sell to Domestic Market, Southeast Asia, Africa, Mid East, North America, South America, Europe, Oceania, Eastern Asia, South Asia etc.
We are based in Jiangsu, China, start from 2003,sell to Domestic Market, Southeast Asia, Africa, Mid East, North America, South America, Europe, Oceania, Eastern Asia, South Asia etc.
2.How long can i get the feedbacks after we sent the inquiry?
We will reply you within 24 hours in working day.
3. What products can you offer?
3. What products can you offer?
Passenger elevator, Cargo Elevator, Home elevator, Escalator and Moving walks,…etc
4. How many employees of your comany ? what about the technicists?
There are total about 301-500 people in our factory, including 20 engineers and 30 technicians.
5. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency:USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency:USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
