Automatic Multihead Weigher Weighing Sealing Cherry Plum Packaging Machine Plastic Box Tray Filling Line
- Category: >>>
- Supplier: Hangzhou Zon Packaging Machinery Co. Ltd.
Share on (1600627289995):
Product Overview
Description
Products Description
It is suitable for weighing /filling /packing for different products, such as nuts / seeds/candy /coffee Beans , Even can count / weighing packing for the vegetables / Laundry beads / Hardware into Jar / bottle or even case
Technical Specification | ||
Model | ZH-BC10 | |
Packing speed | 20-45 jars/Min | |
System Output | ≥8.4 Ton/Day | |
Packaging Accuracy | ±0.1-1.5g | |
For Target packing , we have weighing and counting Option | ||
Technical Feature | ||||||||
1.This is automatically packing line , just need one operator, save more cost of labor | ||||||||
2. From Feeding / weighing (Or counting ) / filling /capping /Printing to Labeling , This is fully automatic packing line , it more efficiency | ||||||||
3. Use HBM weighing sensor to weighing Or Counting product , It with more high accuracy ,and save more material cost | ||||||||
4. Using fully packing line , the product will packed more beautiful than Manual packing | ||||||||
5.Using fully packing line , product will be more safe and clear in the packaging process | ||||||||
6.Production and cost will be more easy to control than manual packing | ||||||||

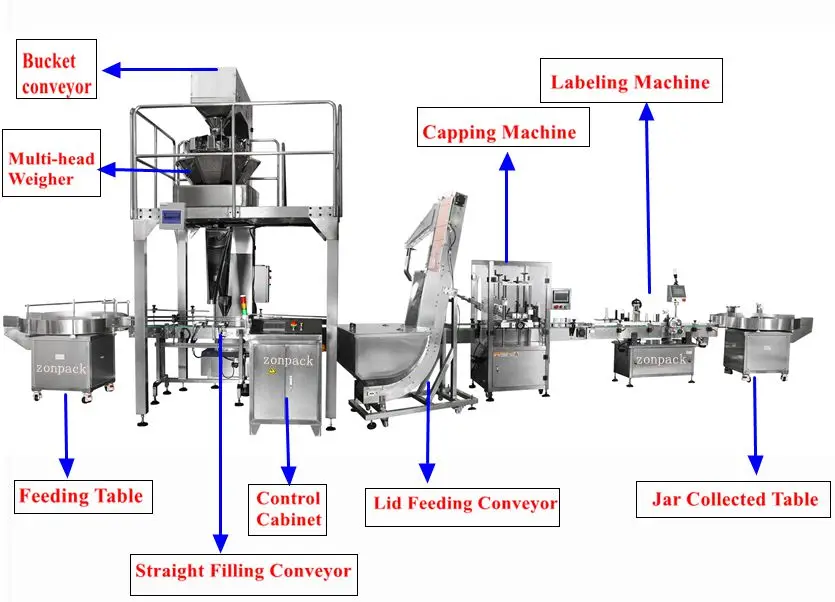

Working Process Of Whole Packing Line | ||||||
Item | Machine Name | Working Content | ||||
1 | Feeding Table | Collect the empty jar / bottle /Case, make it line up, and waiting for the filling one by one | ||||
2 | Bucket Conveyor | Feeding product into Multi-head weigher continuously | ||||
3 | Multi-head Weigher | Use high combination from multi weighing heads to weighing or counting product with high accuracy | ||||
4 | Working Platform | Support the Multi-head weigher | ||||
5 | Filling Machine | We have a Straight filling machine and Rotary Filling machine option , Filling product into jar / bottle one by one | ||||
6 (Option) | Capping Machine | Lids will line up by conveyor , and it will capping automatically one by one | ||||
7 (Option) | Labeling Machine | Labeling for the Jar/ bottle /case due to your demand | ||||
8 (Option) | Date Printer | Print the date or QR code / Bar code by printer | ||||
Main Parts
1.Bucket Conveyor | ||
1. | VFD Control the speed | |
2. | Easy to operate | |
3. | Save more space | |

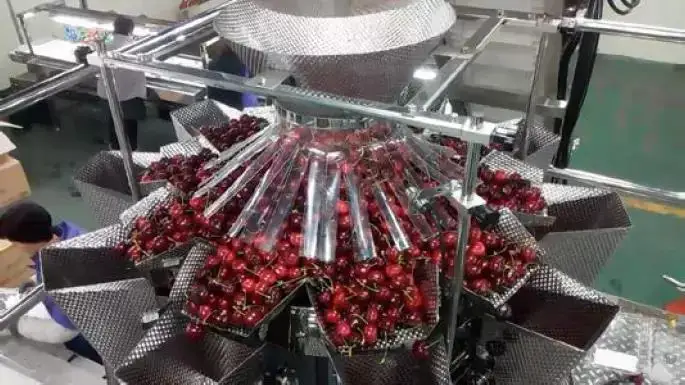

2.Multi-head Weigher | ||
1. | we have 10/14 heads Option | |
2. | We have more than 7 different Language for different counties | |
3. | It can measure 3-2000g product | |
4. | High Accuracy :0.1-1g | |
5. | We have weighing / counting Option | |

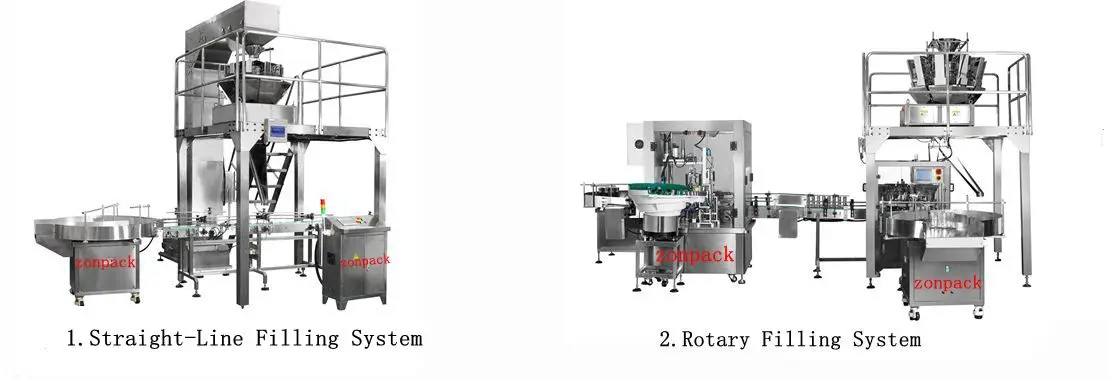

3.1 Rotary Filling Machine
1.It with 10 /12 filling cups option
2.Filling speed more high
3.Filling more stable for product
4.This just suitable for Jar / bottle
3.2 Straight Filling Line
1.More easy to adjust
2.More cheap than Rotary filling machine
3.It will be more easy when it change other size jar /bottle /case
4.Capping Machine | ||
1. | Lid feeding automatically | |
2. | Sealing have rotating-seal and Glanding-seal option | |
3. | More easy to adjust for different size of jars | |
4. | High speed and accuracy of capping | |
5. | Sealing more closed | |
5.Labeling Machine | ||
1. | We have circular and Square labeling machine Option | |
2. | Labeling with high accuracy | |
3. | Speed more fast than Manual | |
4. | Labeling more beautiful than manual | |
5. | Working more stable | |
6.Feeding Table /Collected Table | ||
1. | It can be used for the empty jar feeding and Finished-product collection | |
2. | VFD control the speed , working more stable | |
3. | Diameter is 1200mm , more space to collected jars | |
4. | Easy to adjust for different jars / bottles | |
You May Like
Packing & Service
Packing:
Outside packing with wooden case,inside packing with film.
Delivery:
We usually need 40 days about it.
Shipping:
Sea,air,train.
Pre-sale service
1.Over 5,000 professional packing video,give you direct feeling about our machine.
2.Free packing solution from our chief engineer.
3.Welcome to viste our factory and discuss face to face about packing solution and testing machines.
2.Free packing solution from our chief engineer.
3.Welcome to viste our factory and discuss face to face about packing solution and testing machines.
After-sale service
1.Installing and Training services: We will train your engineer to install our machine. Your engineer can come to our factory or we dispatch our engineer to your company.
2.Trouble shooting service: Some times if you can not fix the problem in your country,our engineer will go there if you need us to support.Of course, you need to afford the round trip flight ticket and accommodation fee.
3.Spare Parts replacement: For machine in guarantee period, if spare part are broken, we will send you the new parts free and we will pay the express fee.
Company Profile
FAQ
Q:How long of the warranty period?
Whole machine 1year. In warranty period, We will send the part free to replace the one that is broken
Q:What’s the Payment terms?
Our payment is T/T and L/C.40% is paid by T/T as deposit.60% is paid before shipment.
Q:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance
service. it will protect your money during the whole stage of transaction.
