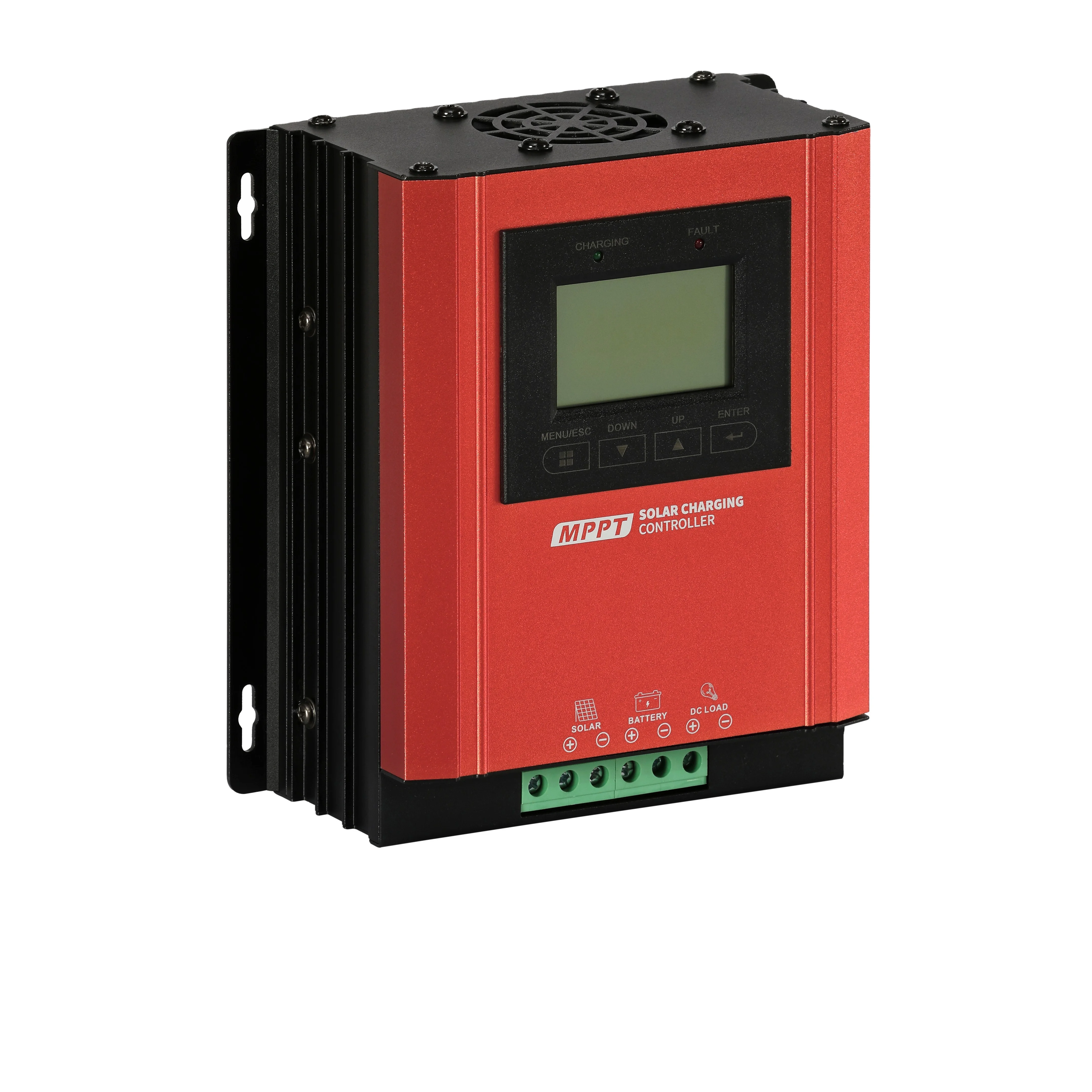

Контроллер заряда солнечной батареи 60A 80A 100A для домашнего использования
- Category: Solar Energy Products >>>
- Supplier: Foshan,Nanhai,Senhu,Photoelectric,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Feature
Product Paramenters
12V/24V/36V/48V | 20A | 30A | 40A | 50A | 60A | |||||||
Product Category | Controller Properties | MPPT(Maximum Power Point Tracking) | ||||||||||
MPPT efficiency | ≥99.5% | |||||||||||
Standby power | ≤3W | |||||||||||
System voltage | 12V/24V/48V Auto-recognition (36V Manual setting) | |||||||||||
Heat-dissipation | Fan-cooling, the fan speed is regulated by temperature | |||||||||||
Input Characteristics | Max.PV Input Volt Point | DC150V | ||||||||||
Start charge Volt Point | 12V System: DC18V 24V System: DC34V 36V System: DC48V 48V System: DC65V | |||||||||||
Low Input Volt Protection Point | 12V System: DC16V 24V System: DC30V 36V System: DC45V 48V System: DC60V | |||||||||||
Over Voltage Protection Point | DC150V | |||||||||||
PV Maximum Power | 12V System | 280W | 420W | 570W | 700W | 900W | ||||||
24V System | 550W | 840W | 1130W | 1400W | 1700W | |||||||
36V System | 820W | 1230W | 1700W | 2100W | 2550W | |||||||
48V System | 1100W | 1650W | 2270W | 2800W | 3400W | |||||||
Charging Characteristics | Battery Types | Sealed lead-acid batteries, colloidal lead-acid batteries,open lead-acid batteries,lithium batteries | ||||||||||
Rated Charge Current | 20W | 30W | 40W | 50W | 60W | |||||||
Charge Method | 3 stages: CC(Constant Current),CV(Constant Voltage),CF(Floating Charge) | |||||||||||
Load Characteristics | Load Voltage | same as battery voltage | ||||||||||
Rate Load Current | 30A | 60A | ||||||||||
Load Control Mode | On, Off, PV control, Dual time control, PV+Time control | |||||||||||

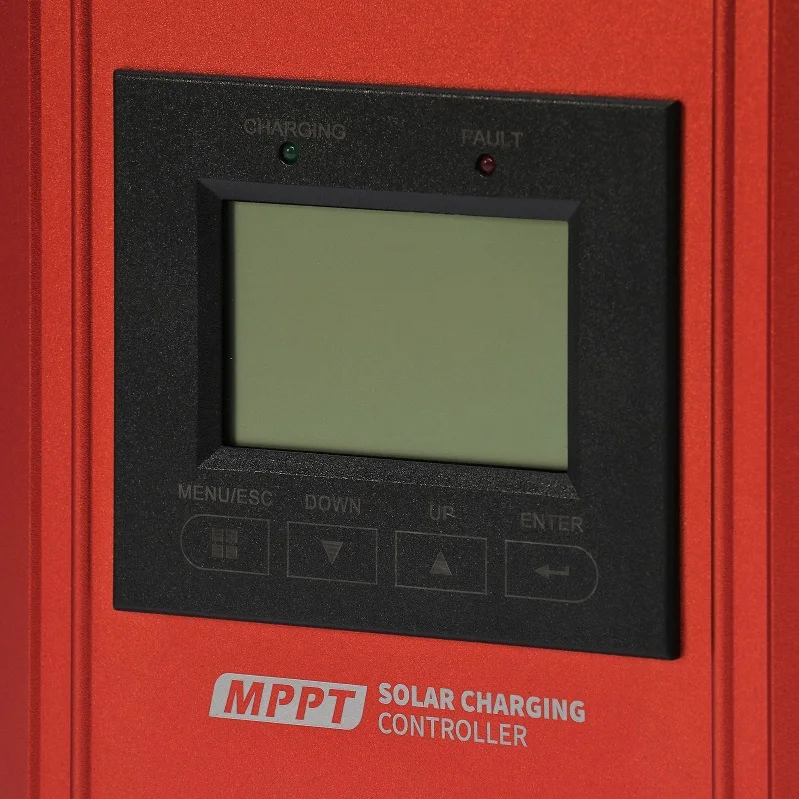

Display & Communication | Display | Hd LCD dot matrix display | ||||||||||
Communication | Rs485(Marching) | |||||||||||
Others | Protections | Input/output overvoltage, undervoltage,reverse connection, overcharge, short circuit protection | ||||||||||
Operation Temperature | -20℃~+50℃ | |||||||||||
Storage Temperature | -40℃~+70℃ | |||||||||||
IP(Ingress Protection) | IP21 | |||||||||||
Max. Connection Cable | 16mm² | 25mm² | ||||||||||
Net Weight(KG) | 1.76 | 2.5 | ||||||||||
Gross Weight(KG) | 2.05 | 3.0 | ||||||||||
Product Size(mm) | 196*182*86 | 250*197*92 | ||||||||||
Packing Size(mm) | 265*203*130 | 340*238*155 | ||||||||||
Product Description
Recommend Products
Company Profile
Packing & Delivery
FAQ
Q1: May I take some samples to test before placing the order ?
A1: Yes, welcome to take some sample to test!
Q2:How about the delivery time?
A2: 7 days for sample; 20 days for bulk order.
Q3: Can I get a lower price if I order large quantities?
A3: Yes, cheaper prices with bulk orders.
Q4: How to solve the technical problems?
A4: 24 hours after-service consultancy just for you and to make your problem to be solved easily.
Q5: What payment methods do your company support?
A5: T/T, Western Union, Paypal, L/C etc.
Q6: What are the price terms can you offer for us?
A6: We can accept EXW, FOB and so on.
Q7: Do you have any certifications for your products?
A7: We have ISO9001, CE, RoHS, certificates for all of our products.
