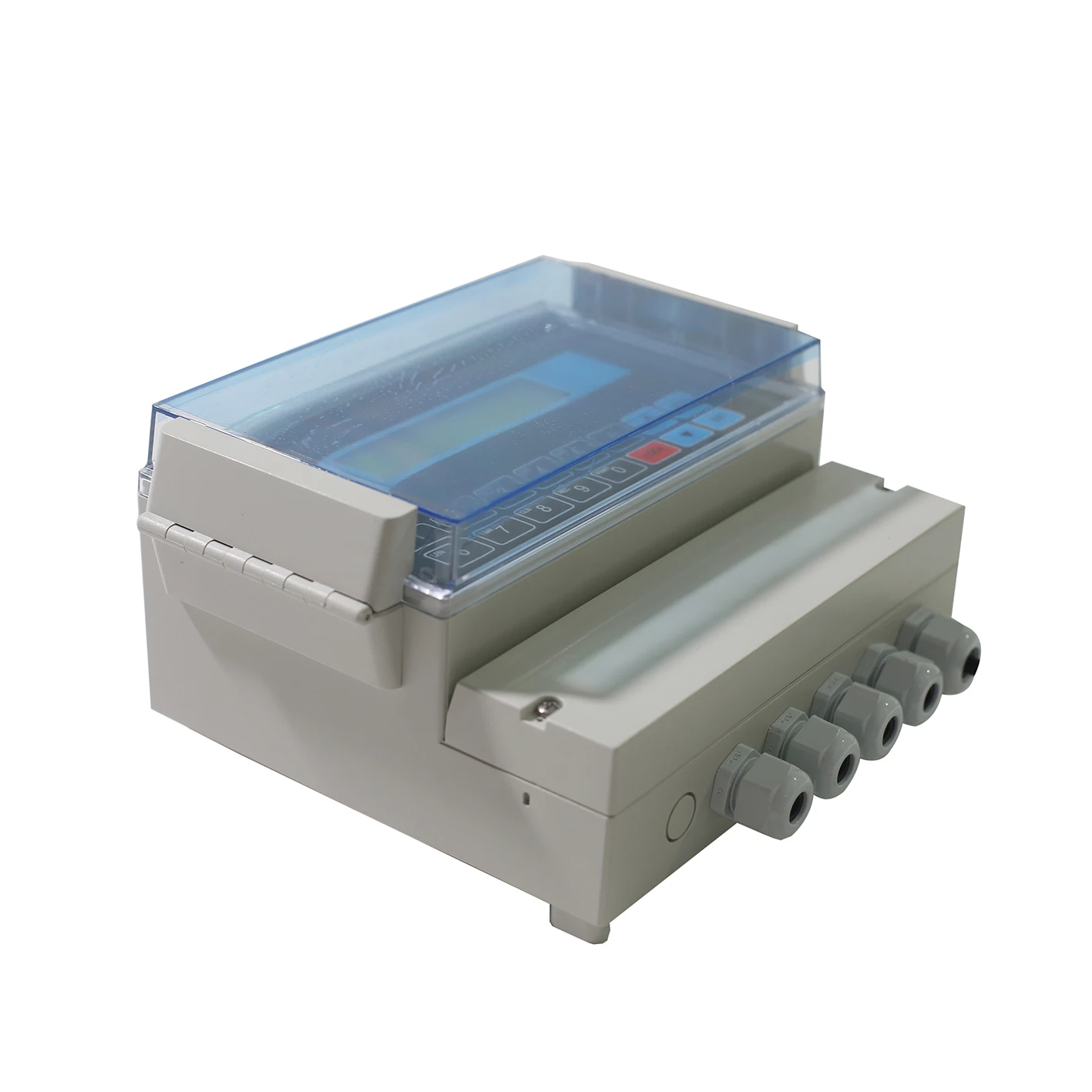

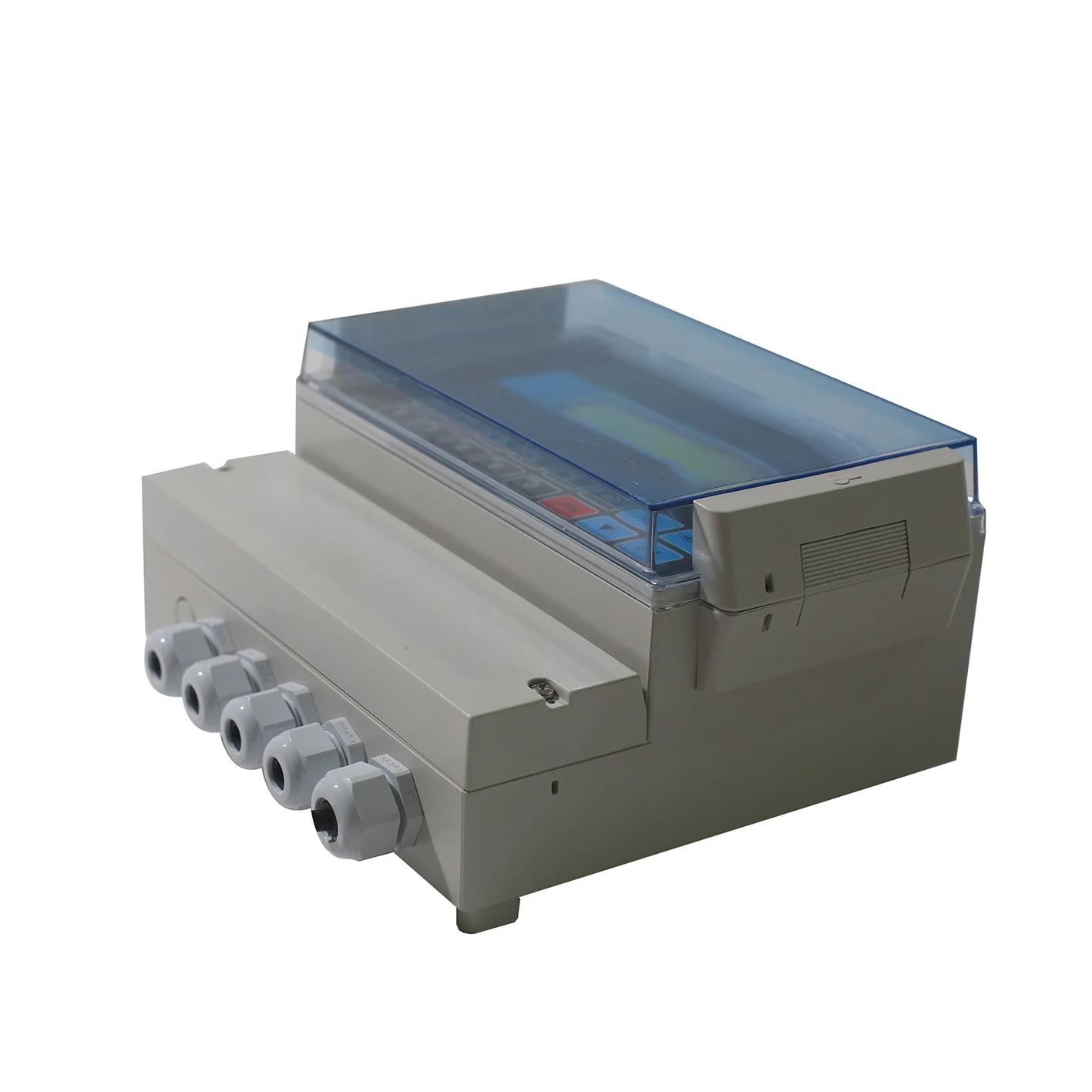

Supmeter Digital Weighing Meter Belt Scale Controller BST100 D52 Belt Weighing Machine Indicator
- Category: >>>
- Supplier: Changsha Supmeter Technological Co. Ltd.
Share on (1600627323345):
Product Overview
Description
Product Description
Main Features
1.EMC design with high anti-jam for industrial environment.
2.32-bit ARM CPU with 72MHz clock & high arithmetic speed.
3.160×32 LCD display screen with yellow-green background.
4.24-bit ∑-△ADC with internal resolution 1/1,000,000.
5.Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
6.Definable COM[Communication Port].
1.High sampling frequency 400Hz.
2.'External Speed' or 'Inner Speed' working modes.
3.Zero Calibration & Auto Zero Tracking.
4.Span Calibration & Segmenting Correction.
5.Speed Calibration & Belt Length Calibration.
6.Queryable Records per shift/day/month of a year.
[MENU] | Enter Main Menu /Exit. |
[ENT] | Enter/Save. Return to the initial display interface. |
[▲] | Cursor shifts up or left. Display the previous interface or option. |
[▼] | Cursor shifts down or right. Display the next interface or option. |
[0~9] | Digit Input. |
[LOCK] | Key-locking. Key-unlocking. |
[F1] | Static Span Calibration with Hanging Weight. |
[LEN] | Belt Length Calibration. | ||||
[TIME] | Date/Time Setting. | ||||
[CLS] | Clear Screen. | ||||
[REC] | Query and Print Weight Record | ||||
[CAL1] | Dynamic Span Calibration. | ||||
[CAL2] | Static Span Calibration with Chain Weight. | ||||
[SEG] | Segmenting Span Correction. | ||||
[SPD] | Speed Calibration. | ||||
[PRINT] | Print. | ||||
Detailed Images
Dimensions | ||
Outline Size W×H×D[mm] | 235.5×227.5×119.5 | |
Mounting Size W×H[mm] | 196×144 | |
Mounting Hole Size [mm] | Ф4,Ф5.5 | |

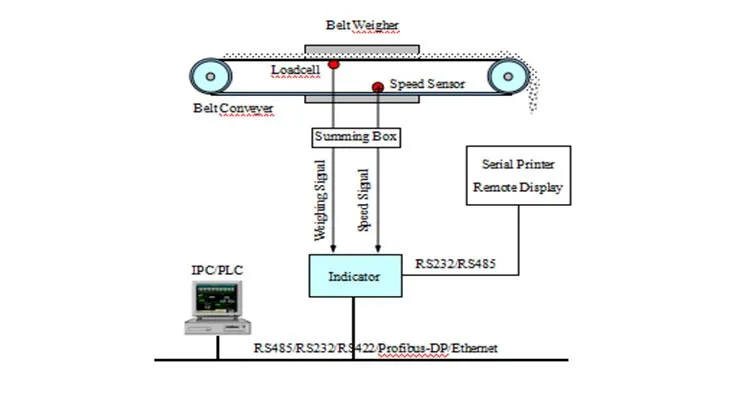

Belt Weighing System
Warranty
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
Packing & Delivery
Handling:
Multiple purchases saving plan: Please make sure single payment for each item you won. We will combine the shipping when you make multiple purchases.
Certification
Related Products
Material Level Weighing Controller
Ration Packing Controller
Wheel loader Weigher
FAQ
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
