Yarn Tensioner Manufacturer Textile Yarn Tensioner Digital Tension Meter LTTS range 0 50kg 0 490N
- Category: >>>
- Supplier: Guangzhou Landtek Instruments Co. Ltd.
Share on (1600627348952):
Product Overview
Description
Product Description
Digital Line Tension Meter LTTS-200/500/1k/2k/5k/10k/20k/50k
Applications:

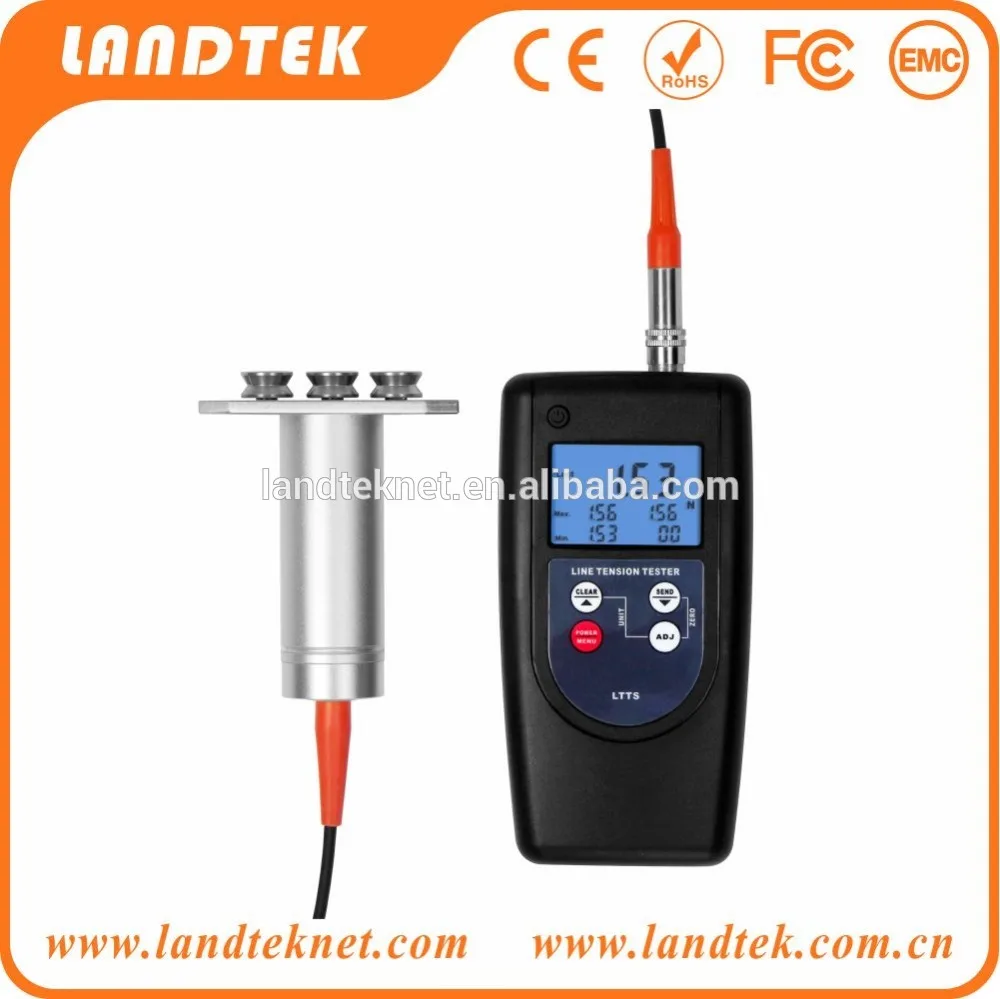

The LTTS Digital Tension Meter is a hand-held device which accurately measures the running as well as statictensions of a wide variety of process materials including yarns, fibers, wires, optical fibe.
Features:

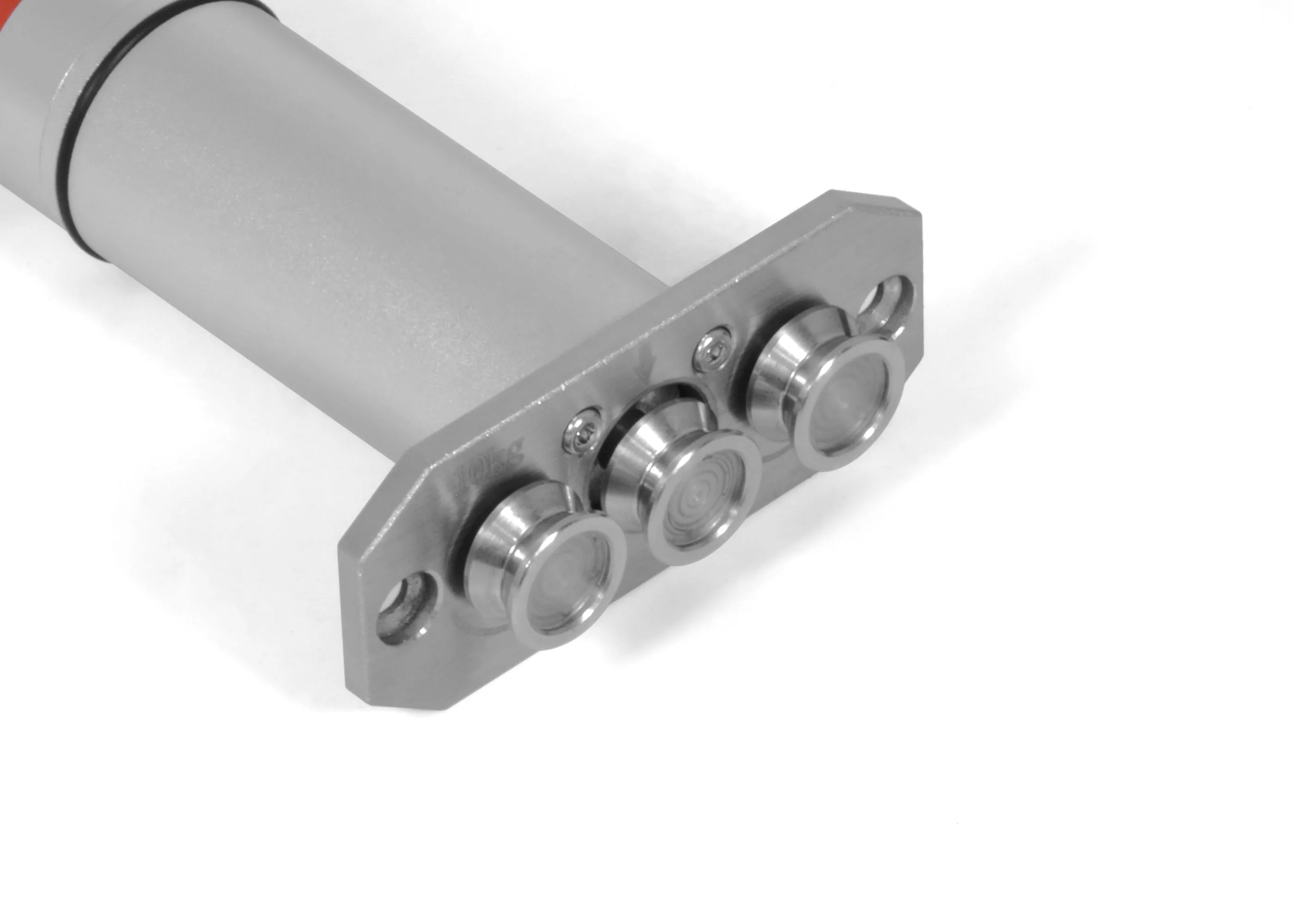

*It employs the ‘three-roller principle’ of tension test.
*High accuracy and high resolution.

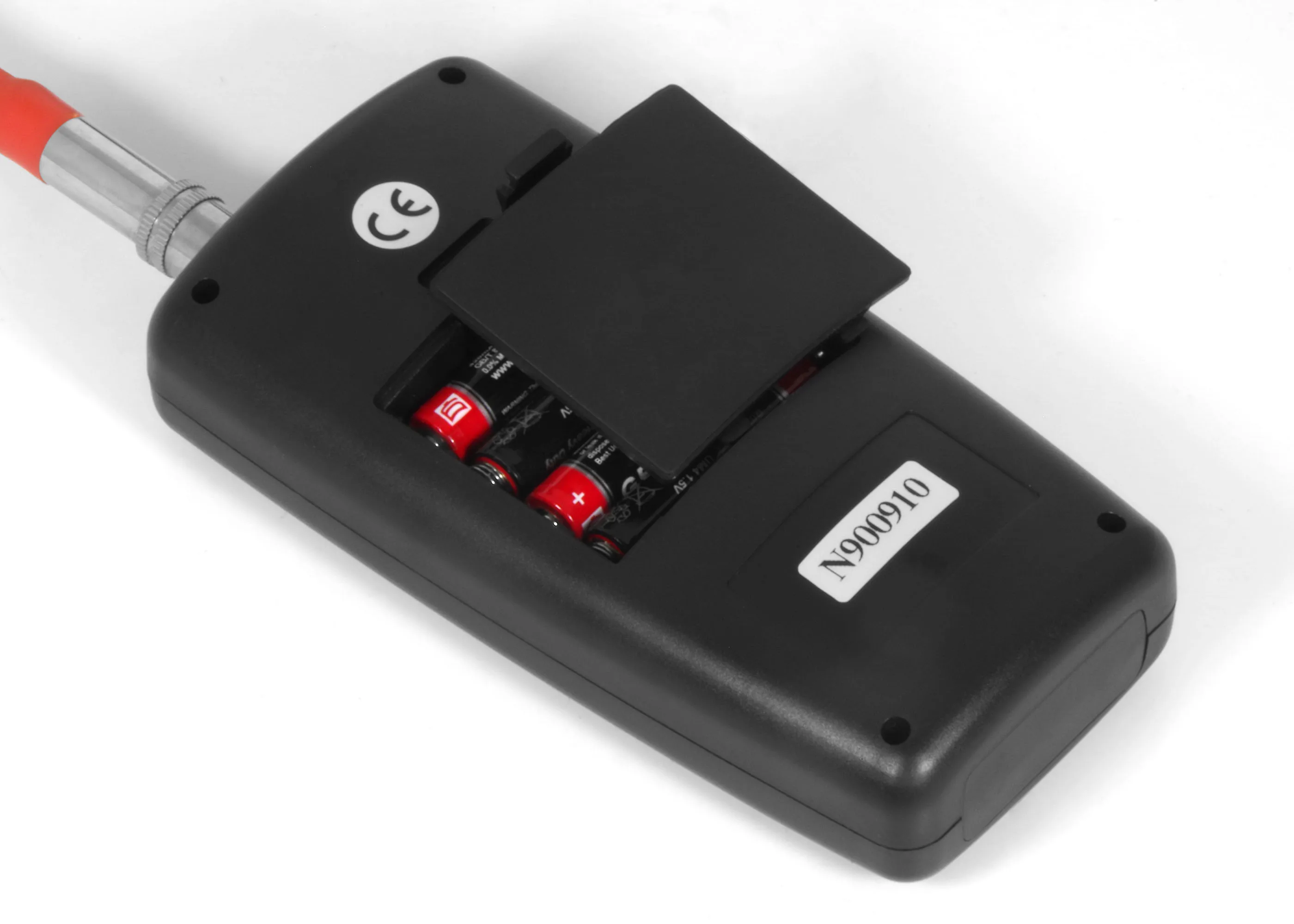

*Power is supplied by 4xAAA alkaline battery.
*With 4 measurement unit for selection, N, kg, lb, g.
*Current Value, Max. Value, Peak Value, Min Valuevcan be displayed at the same time.
*With 10 minutes auto power off and manual power off.
*The Meter takes 62 tension measurements per second and displays the average of these measurements.
*With data output, by USB cable or Bluetooth adapter.
Details:
Measuring Range:
LTTS-200
Tension Range:0~0.2kgf Resolution:0.001kgf
Tension Range:0~200gf Resolution:1gf
Tension Range:0~1.96N Resolution:0.001N
Tension Range:0~0.44Lbf Resolution:0.001Lbf
Accuracy:±1.0% or better
LTTS-500
Tension Range:0~0.5kgf Resolution:0.001kgf
Tension Range:0~500gf Resolution:1gf
Tension Range:0~4.9N Resolution:0.001N
Tension Range:0~1.1Lbf Resolution:0.001Lbf
Accuracy:±1.0% or better
LTTS-1K
Tension Range:0~1.0kgf Resolution:0.001kgf
Tension Range:0~1000gf Resolution:1gf
Tension Range:0~9.8N Resolution:0.001N
Tension Range:0~2.2Lbf Resolution:0.001Lbf
Accuracy:±1.5% or better
LTTS-2K
Tension Range:0~2.0kgf Resolution:0.001kgf
Tension Range:0~2000gf Resolution:1gf
Tension Range:0~19.6N Resolution:0.001N
Tension Range:0~4.4Lbf Resolution:0.001Lbf
Accuracy:±1.5% or better
LTTS-5K
Tension Range:0~5.0kgf Resolution:0.01kgf
Tension Range:0~5000gf Resolution:1gf
Tension Range:0~49N Resolution:0.001N
Tension Range:0~11Lbf Resolution:0.01Lbf
Accuracy:±1.5% or better
LTTS-10K
Tension Range:0~10.0kgf Resolution:0.01kgf
Tension Range:0~98N Resolution:0.001N
Tension Range:0~22Lbf Resolution:0.1Lbf
Accuracy:±1.5% or better
LTTS-20K
Tension Range:0~20.0kgf Resolution:0.01kgf
Tension Range:0~196N Resolution:0.001N
Tension Range:0~44Lbf Resolution:0.1Lbf
Accuracy:±1.5% or better
LTTS-50K
Tension Range:0~50.0kgf Resolution:0.01kgf
Tension Range:0~490N Resolution:0.001N
Tension Range:0~110Lbf Resolution:0.1Lbf
Accuracy:±1.5% or better
Unit | Kgf , gf , N , Lbf |
Measuring Principle | Strain gauge |
Measuring Frequency | 16 msec (62.5 samples / sec) |
Sensing Roller | Deflection of Sensing Roller ( max. ) 0.2 mm |
Overload Capacity | 150 % of Full Scale |
Temperature Coefficient | Zero : less than ±0.3% FS/ °C |
Span : less than ±0.01% FS/ °C | |
Display | Blue Back light LCD |
Display Update Rate | 0.5 , 1.0 , 2.0 or 4.0 seconds , selectable |
Memory System | Current Value , Max. Value , Peak Value , Min Value |
Overrange Indicator | Buzzer Alarm |
Power Off | 10 Minutes Auto , Manual |
Data Output | USB , Bluetooth |
Roller Material | Stainless Steel ( Standard ) |
Plastic ( Optional ) | |
Maximum Speed | 2000 m/min |
Power Supply | 4 x 1.5 AAA( UM-4 ) Battery |
Operation Temperature | 0 ~ 40 °C |
Operation Humidity | < 80 % |
Weight | 400 g |
Size | Main Unit : 149 x 70 x 30 mm |
Sensor : 102 x 81 x 34 mm |
For more details,please feel free to contact us.Thank you!
Packaging & Shipping
1 unit, the gross weight is 1.5kg. carton size: 27*23*8cm , the volume weight is 1.0kg.
10pcs, the gross weight is 12.0kg. carton size: 45*28*33cm , the volume weight is 9.0kg.
20pcs, the gross weight is 23.0kg. carton size: 45*28*58cm , the volume weight is 16.0kg.
ship by DHL, FEDEX , UPS, AIR, SEA
Our Services
Quality assurance for one year,and forever maintainence.
