Product Overview

Description



Product Description





0102








Product Feature







Inverter Feature


1. 3 times peak power, excellent loading capability.


2. Combine inverter/solar controller/battery all in one.


3. Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.


4. Working mode AC prior/ECO mode/Solar prior selectable.


5. AC charging current 0-10A selectable.


6. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery


7. Adding fault code to monitor real-time work situations.


8. Continuous stable pure sine wave output with inbuilt AVR stabilizer.


9. Added fault codes query function,facilitate user to monitor the operation state in real time;


10. Digital LCD and LED for visualization of operation status of the equipment.


11. Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.

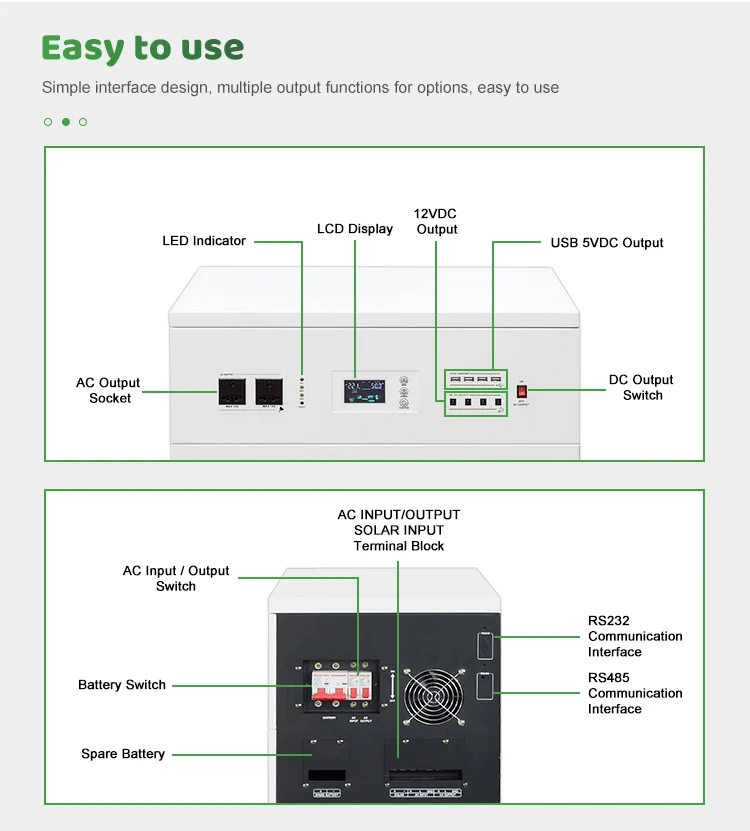

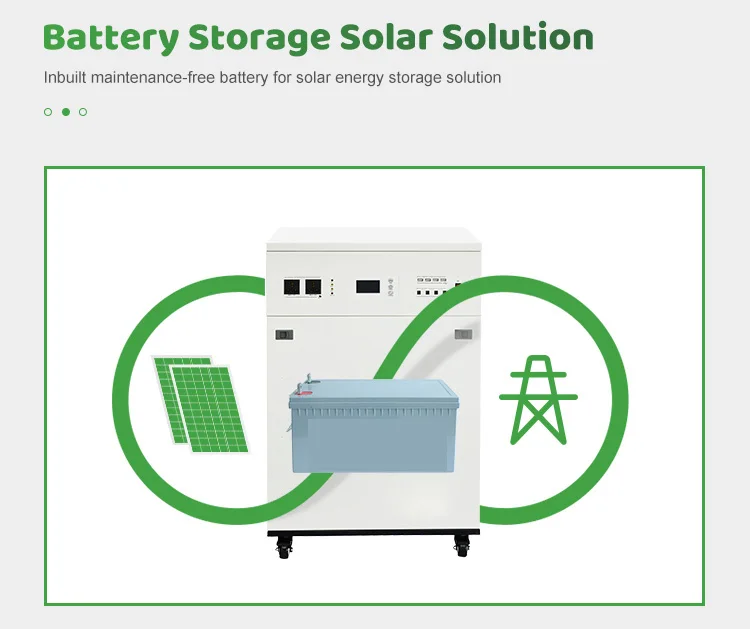

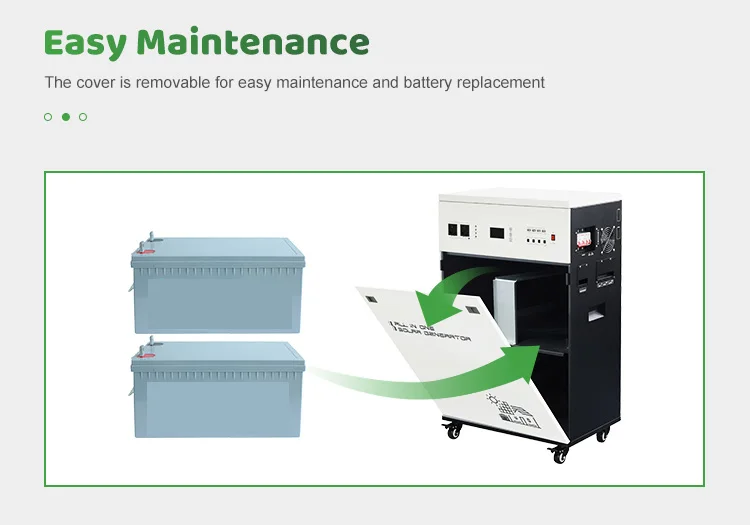

03040506

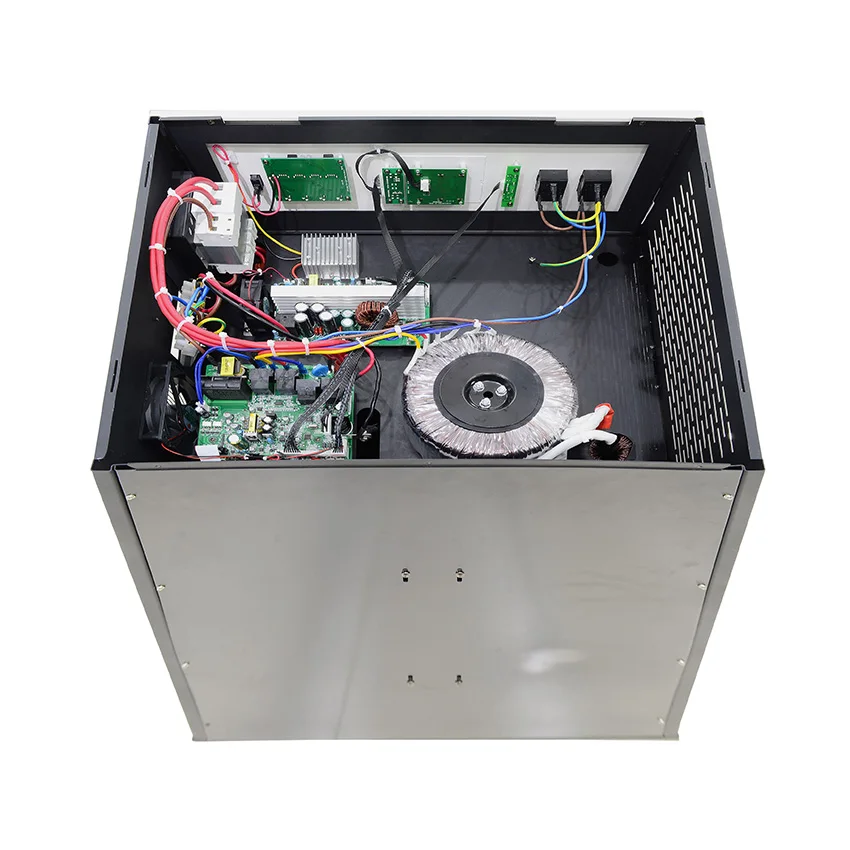

Product Details

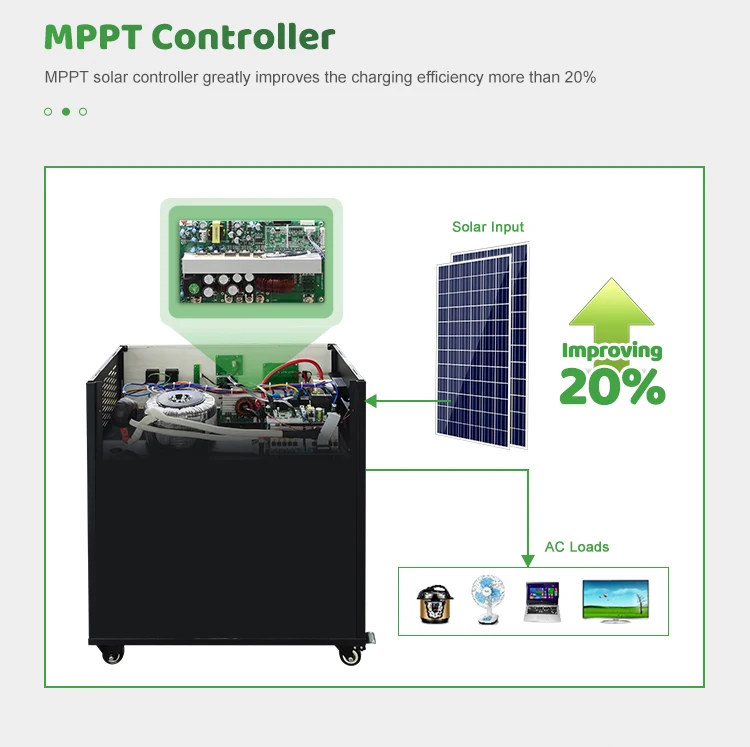

0708





Product Parameters







Inverter Technical Parameters









































































































































































































Specification
Model : ESS 6000W152P8/W8202P8/W8302P8/W8402P/W502P/W602P/W702P/W
CapacityRated power1500W2000W3000W4000W5000W6000W7000W
Peak power(20ms)4500VA6000VA9000VA12KVA15KVA18KVA21KVA
InputStardard battery voltage48VDC
AC input voltage range85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/
180VAC~285VAC (230VAC)/ 190VAC~295VAC (240VAC)
AC input frequency range45Hz~55Hz(50Hz);55Hz~65Hz(60Hz)
OutputConversion efficiency≥85%(Battery mode); >99%(AC mode)
AC Output voltage110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode);
110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode)
AC Output frequency50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)
AC Output waveformPure Sine Wave
THD≤3%(Linear load)
DC Output voltage 4*DC 12V; 4*USB(5V)
AC chargerAC charging current0~30A(Depends on model)
AC charging methodThree-stage(constant current, constant voltage, floating charge)
solar charger  (Optional)Charging modePWM/MPPT
Max PV input voltage(Voc)
(At the lowest temperature)		PWM: 100V; MPPT: 150V
PV input voltage rangePWM: 60V-88V;   MPPT: 60V-120V
Charge & discharge current60A
Max PV input power3360W

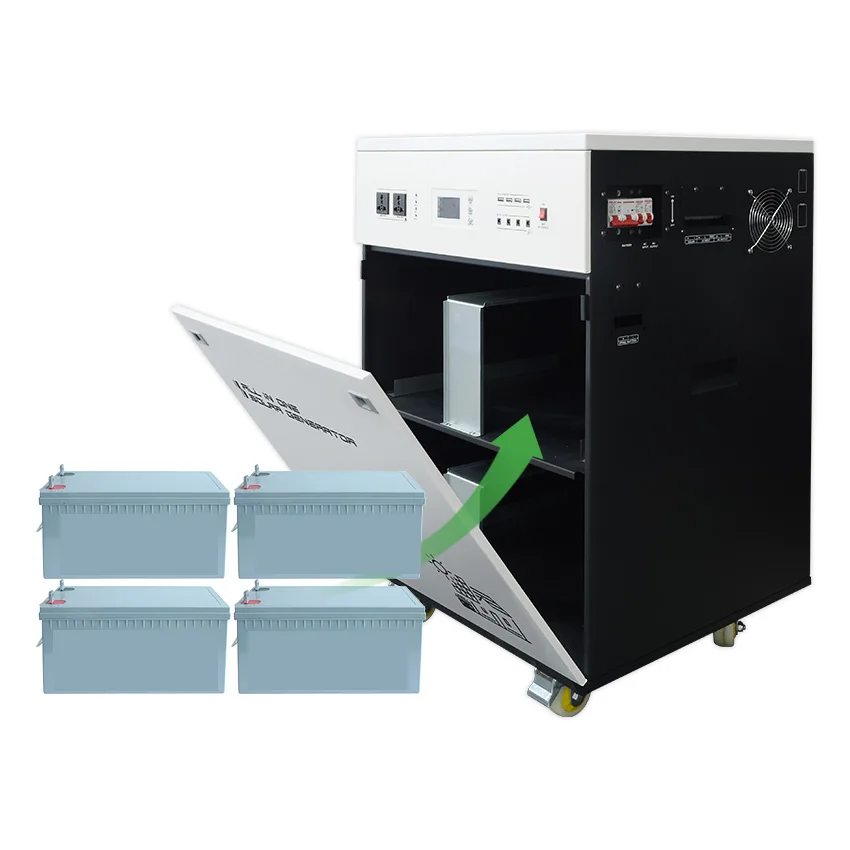

Inbuilt batteryCapacity4*200AH
Battery size(LxWxH)/pcs522*240*218(244)
OtherTransfer time≤4ms
Protectionwith over-voltage, low-voltage, overload, short circuit, high tempreature protections
DisplayLCD & LED
Cooling wayCooling fan in intelligent control

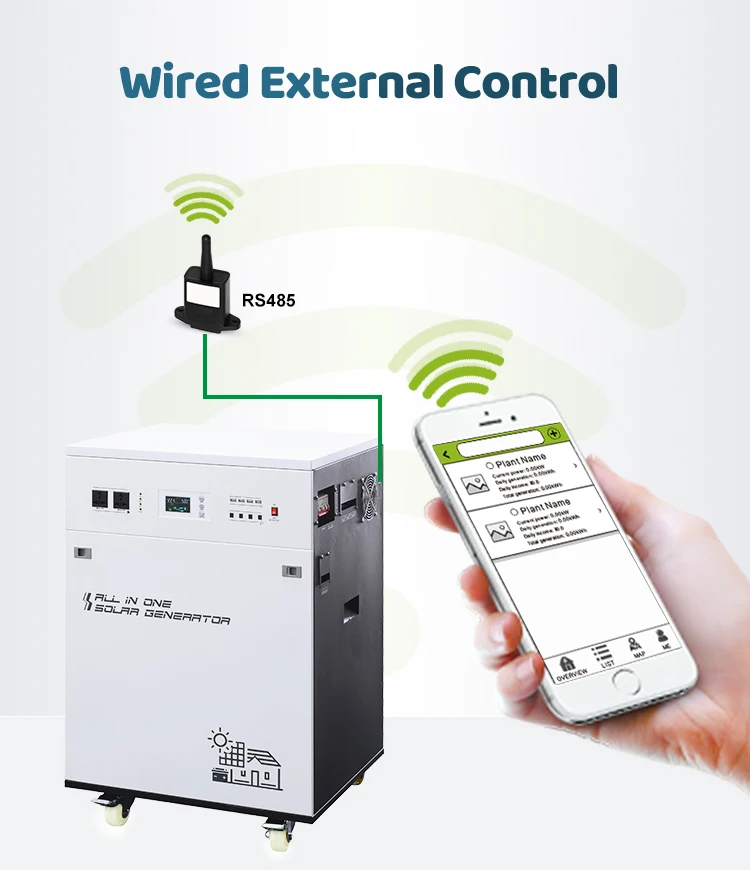

Communication(Optional)RS485/APP(WIFI monitoring or GPRS monitoring)
Working mode
(selectable)		d1AC priority mode
d2ECO mode
d3Solar priority mode
Work
environment		Operating temperature-10℃~40℃
Storage temperature-15℃~60℃
Elevation2000m(More than derating)
Humidity0%~95% ,No condensation
PhysicalDimention L x W x H(mm)610*535*960
Net weight(kg)(without battery)53555961636466
PackingDimention  L x W x H(mm)688*612*1093
Gross weight(kg)(without battery)68707476787981
Quantity/CTN1pcs per wooden case




*ESS series power is from 300w~7000w, If you want to get other watts information , Please contact us

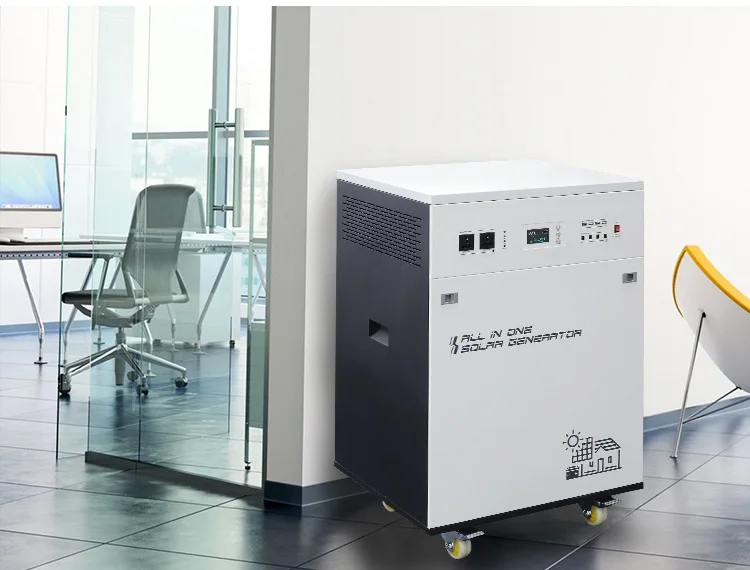

Product Uses

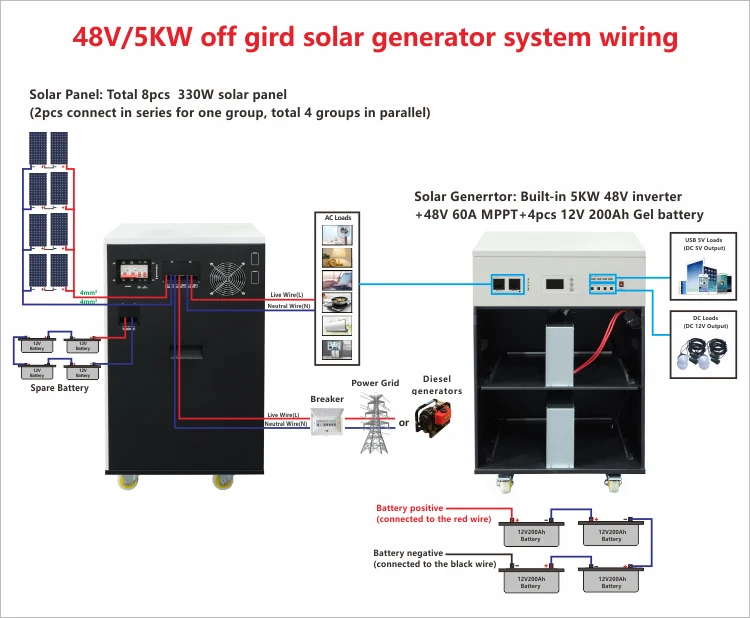

Wiring Diagram

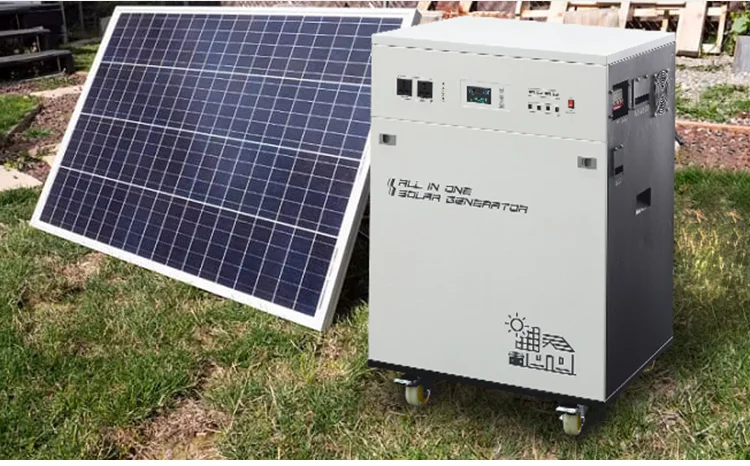

091011





13





17





1415






Packing & Shipping


Packing:


1. Attach the color sticker and label of the controller.


2. Put the controller and instruction manual into the color box.
3. Put into export carton.
4. Enter the warehouse and wait for shipment.





Kraft box packaging, Chinese and English manual, screwdriver, transparent bag, PE bags, OPP bags, Foam Cotton, Custom bags+carton case+carton box or as your requirement.





Main port:
Guangzhou/Shenzhen/Hongkong or as required.



Express Company:
DHL, TNT, UPS, FedEx, etc.










FAQ






Q1: Do you support Ready To Ship OEM&ODM?










A1: Yes, we are a powerful factory, one piece can also be shipped, and we can also customize products for you,the MOQ is much lower than many factories.\\



Q2. What is our advantage ?

A2.We have professional R&D team, can customized the products you want. We have 10,000 square meters and more than 100 staffs. Pass ISO9001.



Q3. How can we guarantee quality?

A3. Always a pre-production sample before mass production; and 38 quality inspections before packing. All of our products have passed certification of CE,CCC,UL PSE and RoHS. Supply MSDS shipping documents.



Q4. What can you buy from us?

A4. Solar tied inverter, Solar off grid hybrid inverter, Pure sine wave inverter, Modified sine wave inverter, MPPT/PWM solar controller, Battery charger, Solar lighting system, Power converter and so on.



Q5. How to select a suitable products?

A5. Visit our website and do not hesitate to contact with our sales, we will supply free technology info and competitive price.
