spherical roller bearing lubricating bushing copper bushing
- Category: >>>
- Supplier: Shanghai Nansen Industry Co. Ltd.
Share on (1600627405488):
Product Overview
Description
spherical roller bearing lubricating bushing copper bushing
Product Description
Bimetal Bearing – Factory Direct & Fast Shipping, These high-performance bimetal bushings bearing materials solve a host of problems that plague sliding parts.

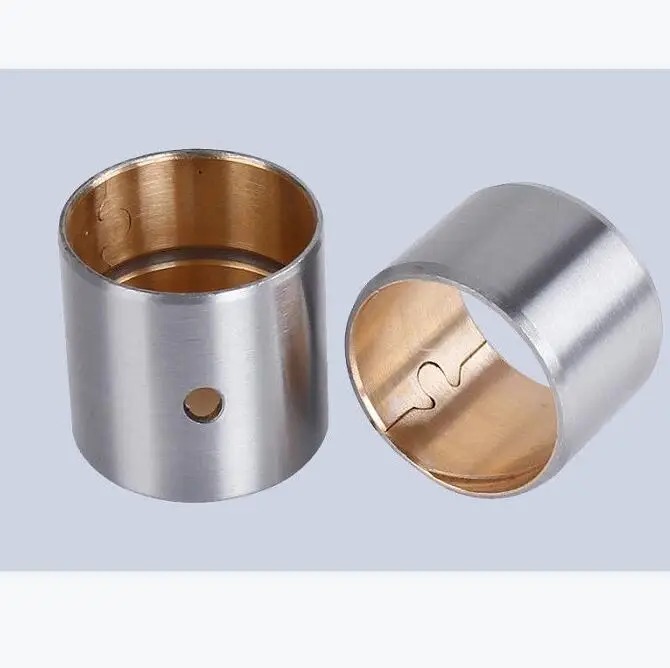

Bimetal Bearing Bushing -steel-backed bronze alloy composite bearings with high-quality low carbon steel as substrate, the surface of the sinter with low friction properties of copper alloy (CuPb10Sn10 CuPb6Sn6Zn3 CuPb24Sn4, CuPb30, AlSn20Cu, CuSn8Ni) as a wear-resisting layer of bearing, can need according to the operating conditions of copper alloy surface processing of various types of the oil tank, oil hole, hole, etc., in order to suit to cannot continue to go hard or go occasion. The material can get good bonding strength and best bearing capacity through secondary sintering and secondary extrusion.
Categories: Bimetal Bearings, Bushings, thrust washers and stripsTags: Cylindrical Bushes, Plain Bushing
Physical and Mechanical Performance
| Performance Index | Data | |
| Max Load P | 140N/mm? | |
| Linear Velocity V | Grease Lubrication | 2.5m/s |
| Oil Lubrication | 5m/s | |
| Max PV value | Grease Lubrication | 2.8N/mm? ·m/s |
| Oil Lubrication | 20N/mm? ·m/s | |
| Alloy Hardness | HB 60~90 | |
| Mating Axis | Hardness | ≥53HRC |
| Roughness | Ra=0.16~0.63 | |
| Working Temperature | Grease Lubrication | 150℃ |
| Oil Lubrication | 250℃ | |
| Friction Coefficient | 0.05~0.15 | |
| Heat-conducting Coefficient | 47W/(m·k) | |
| Heat-expansion Coefficient(Axial) | 18×10-6/K | |
Detailed parameters:
Related Products:
Product Application:
Company Information
NANSEN INDUSTRY Company have testing equipment precision is highest among the same industry at home, type of the most complete varieties, the main testing equipment are from Japan, the United States and other countries the introduction of good analysis ability can be very good to test the product raw materials, production process, control and analysis, to ensure the quality of products has played a key role.
Packaging & Shipping
Our Services
Q: Why choose NANSEN?
A: Professionally provide package solution for customers from over 20 countries.
Q: What can we expect from NANSEN?
A: Superior quality, reasonable price, exclusive service, and good after sale guarantee.
Q: Can you do customized design and size?
A: Yes, ODM &OEM are available.
Q: Can I have some samples?
A: Of course, samples are (1-3 pcs) or 2-3 kg.
Q: When can we get samples and goods?
A: Samples will be sent immediately if have stock, make new will take 2-3days.
Goods will be shipped within 30days after order confirmed.
Q: What's kind of payment can you offer?
A: We can offer:LC T/T, Western Union, Paypal etc.
We agree with flexible payment and flexible transactional mode.
If any question or problems,welcom contact us freely, we will reply to you within 24 hours.
