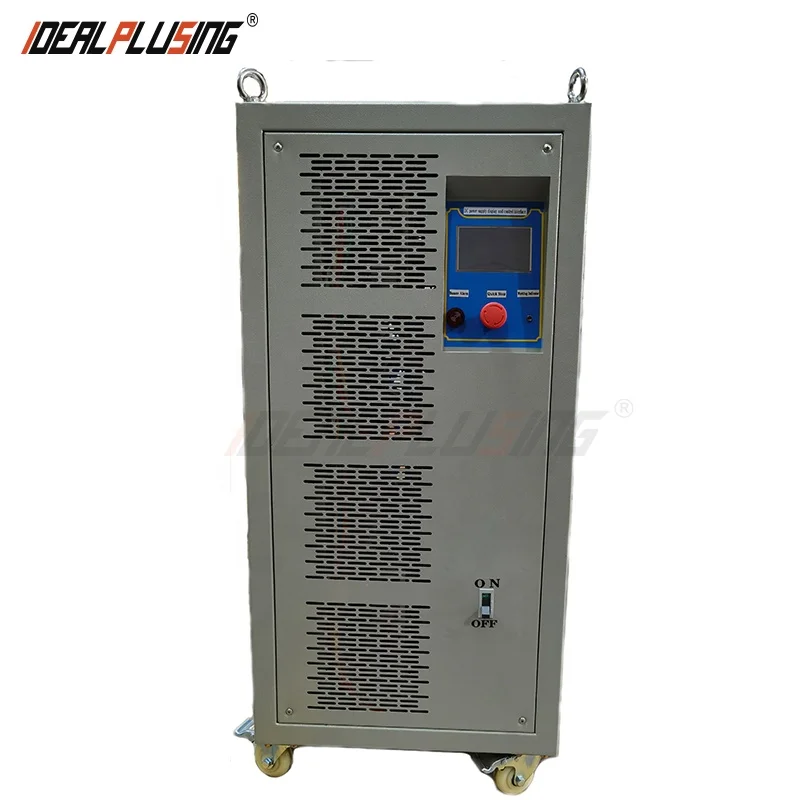

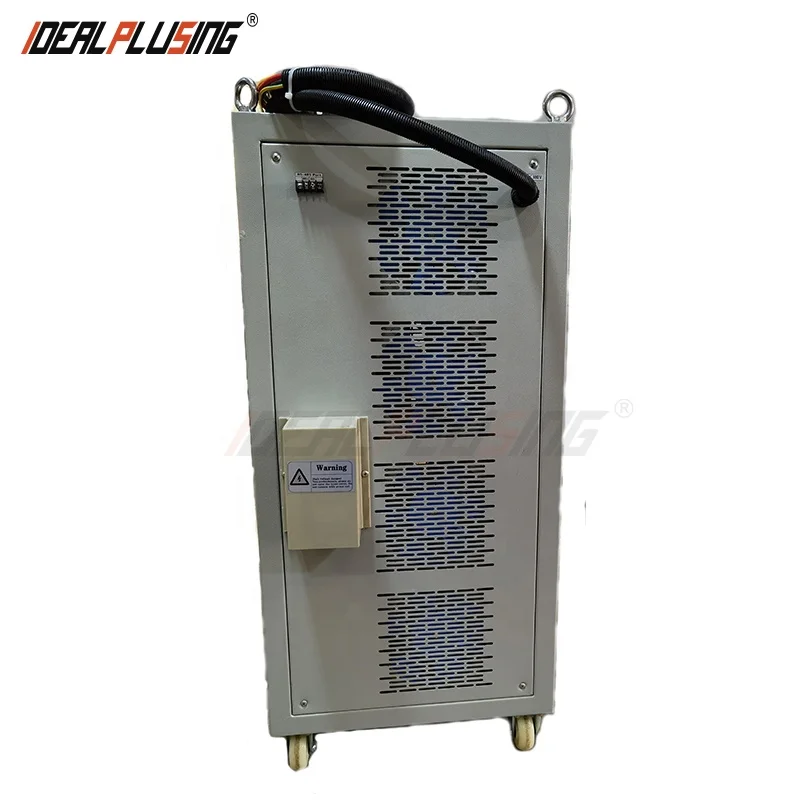

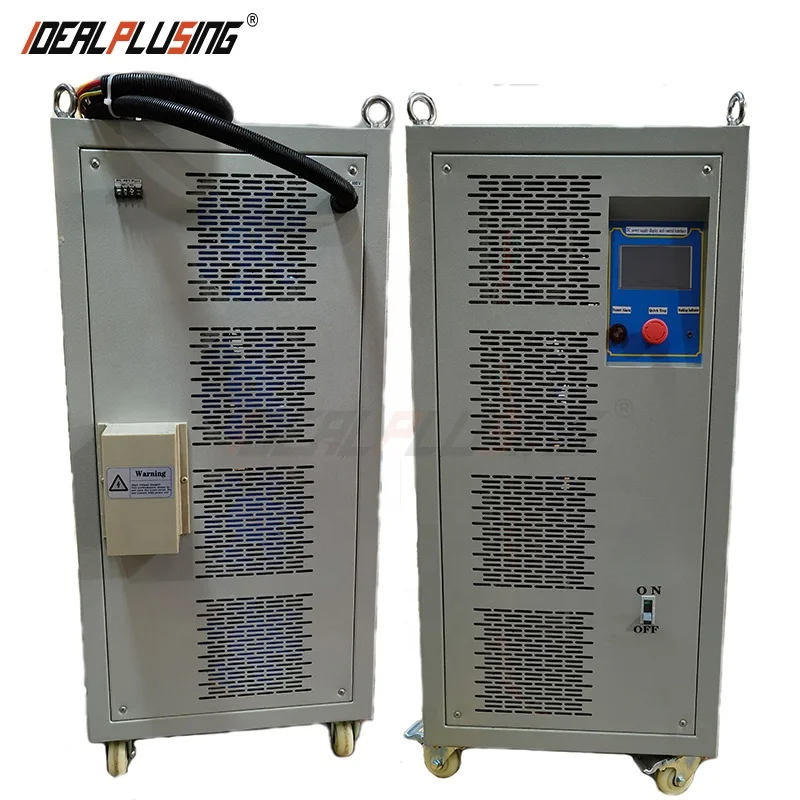

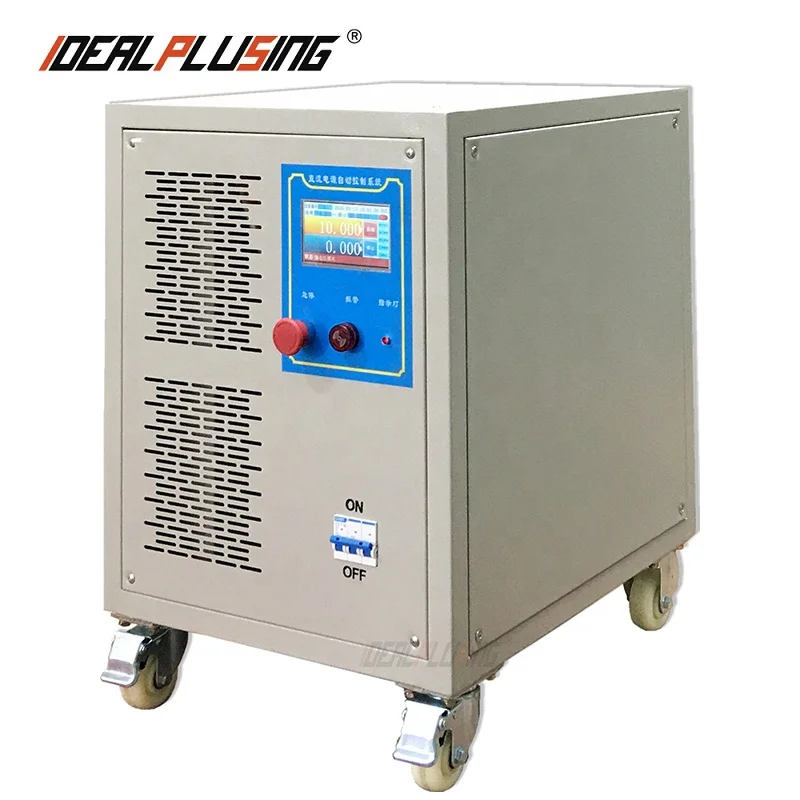

Factory price electroplating rectifier 12V 1000a 2000a 3000a 5000 amp variable dc power supply for electroplating electrolysis

Brand

IDEALPLUSING

Model

IPS-ATDH125000

DC INPUT

3 phases 380VAC±15% 50/60HZ

DC OUTPUT VOLTAGE

0~12VDC

OUTPUT CURRENT

0~5000A

Output characteristic

Constant voltage and constant current switchable

Output power

60KW

Voltage output accuracy

0.5%FS

Current output accuracy

0.5%FS

Source effect

≤0.2%FS

Load effect

≤0.2%FS

Voltage Display resolution

0.1V

Current Display resolution

0.1A

ripple factor(Vrms)

≤2% FS

Operating characteristics

Support (24*7) long time

Work Efficiency

>90%

Power factor

>93%

Adjustment accuracy

<0.1%

Protection mode

Lack phase

Over-heating

Over-voltage

Over-current

Short-circuit

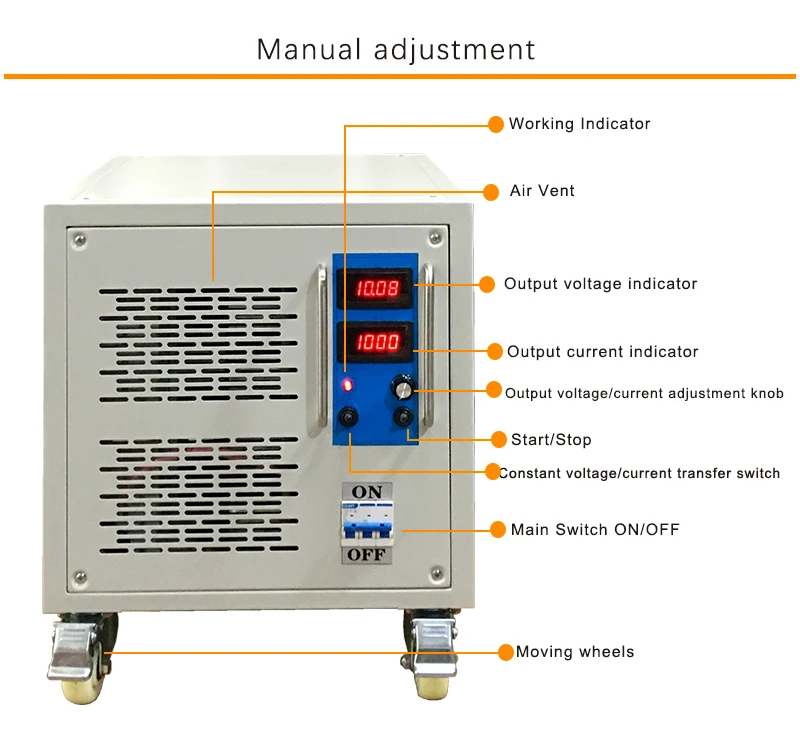

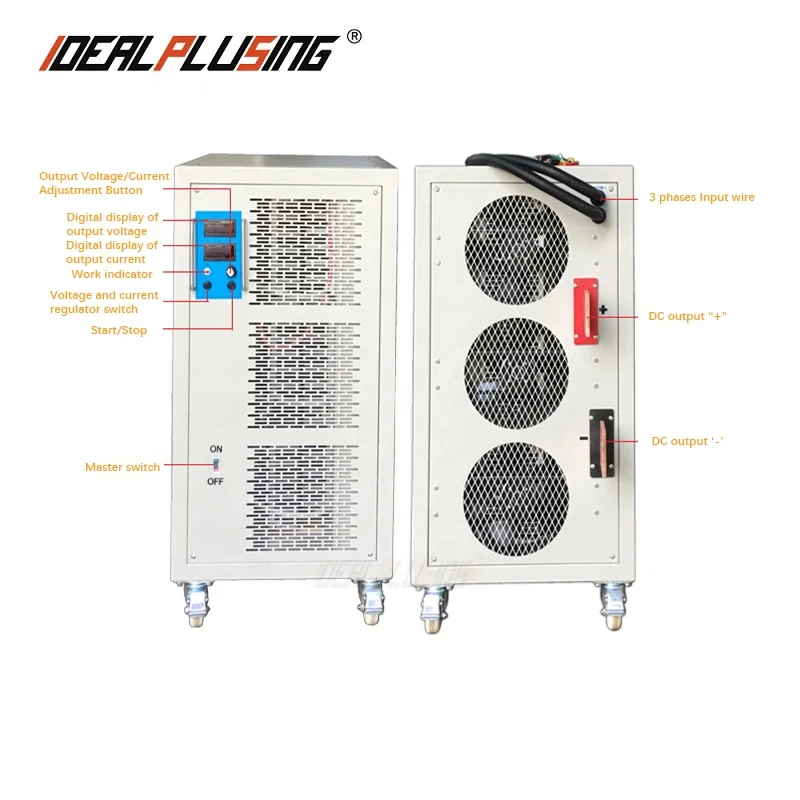

Output indicator

LED digital voltage and current display

Cooling fan

Force cooling

Ambient temperature

-10~+40 degree

Insulation strength

Input-output; Input-chassis; AC200V, 10mA, 1min

Insulation resistance

Input-output; Input-chassis; Output-chassis: > 20m

Insulation grade

B

Waterproof Level

IP20

Protect Level

IP20(Instructions for ordering protective levels for equipment in special environments)

Dimension

According to the model

NW/GW

According to the model

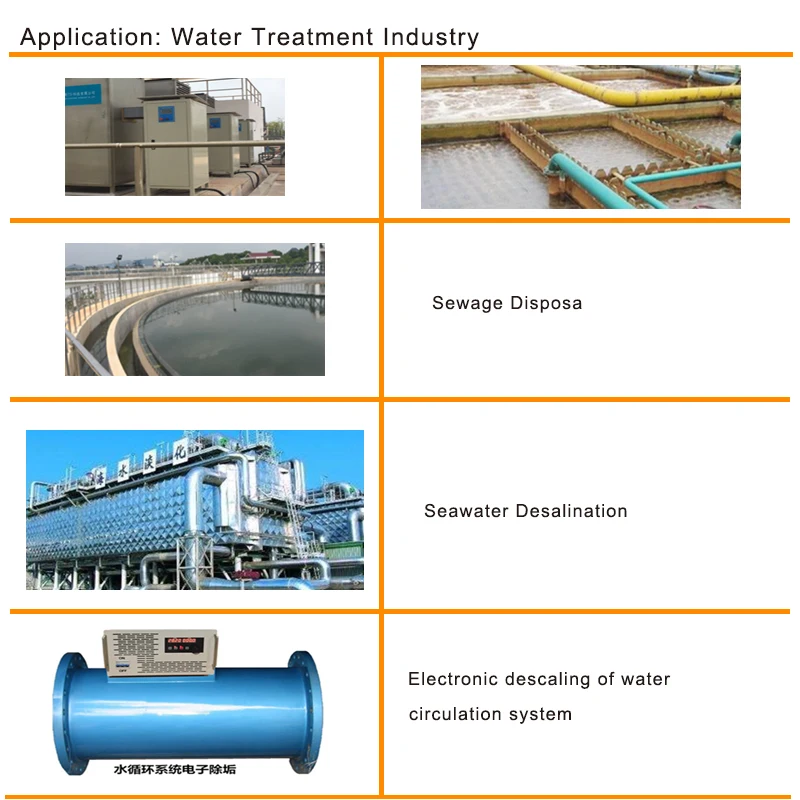

Application

Testing aging of electronic and electrical products, testing of new energy vehicles, scientific research institutions or school laboratories and experiments, etc.

Special Function Customization

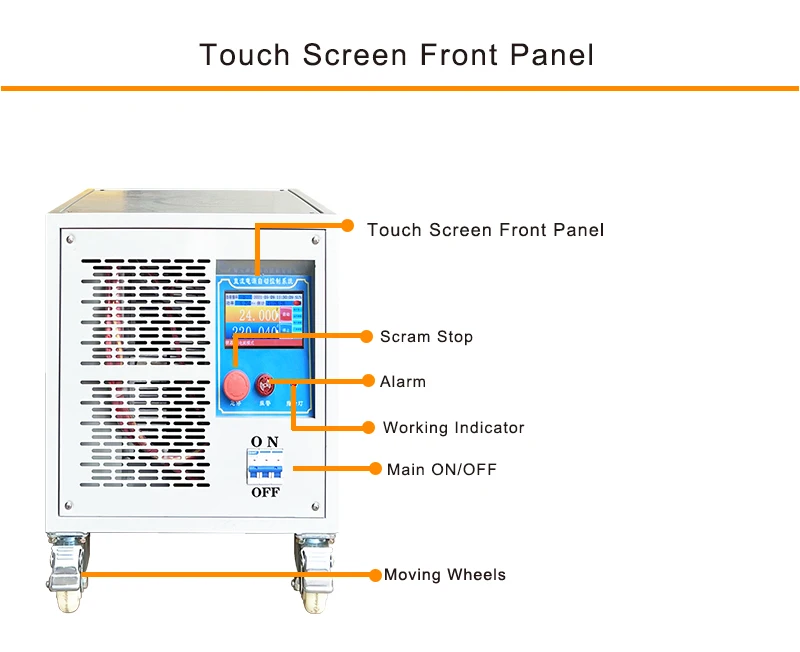

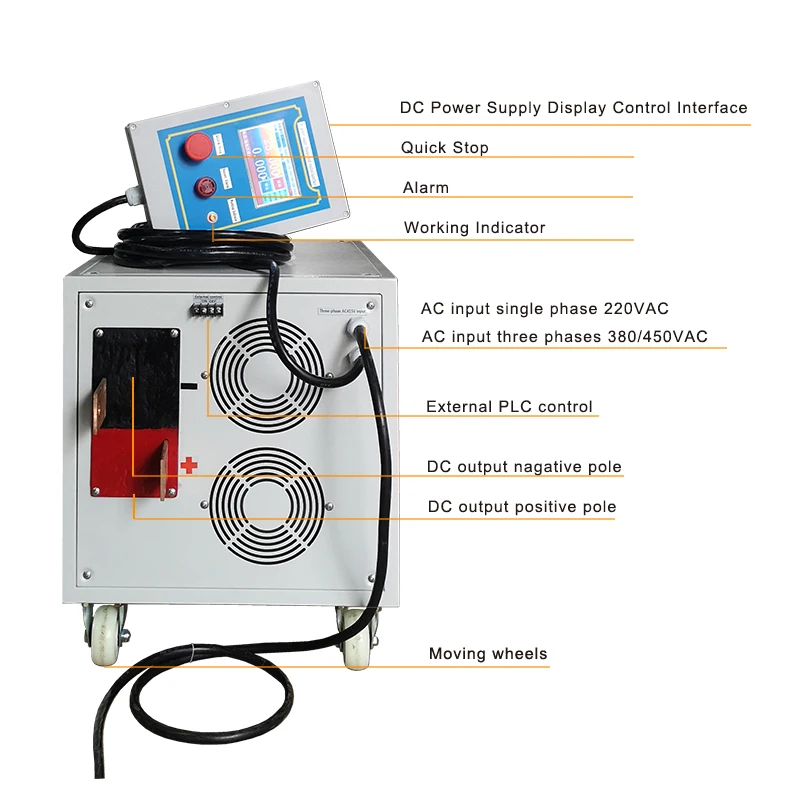

Time control function, ampere hour meter function, intelligent temperature control function. Intelligent computer touch screen display operation interface. RS-485,PLC or RS232 communication port , LC Filtering function
