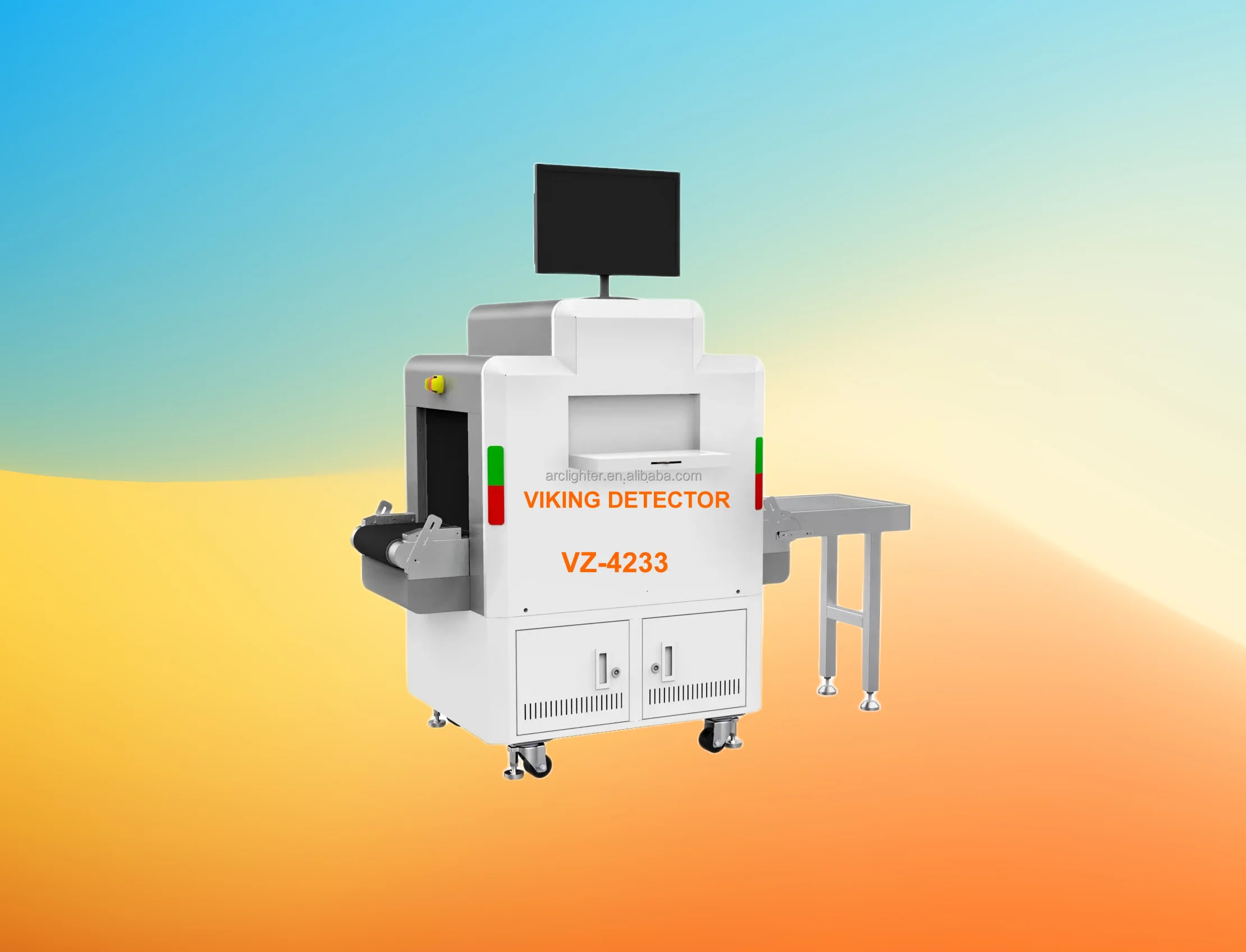

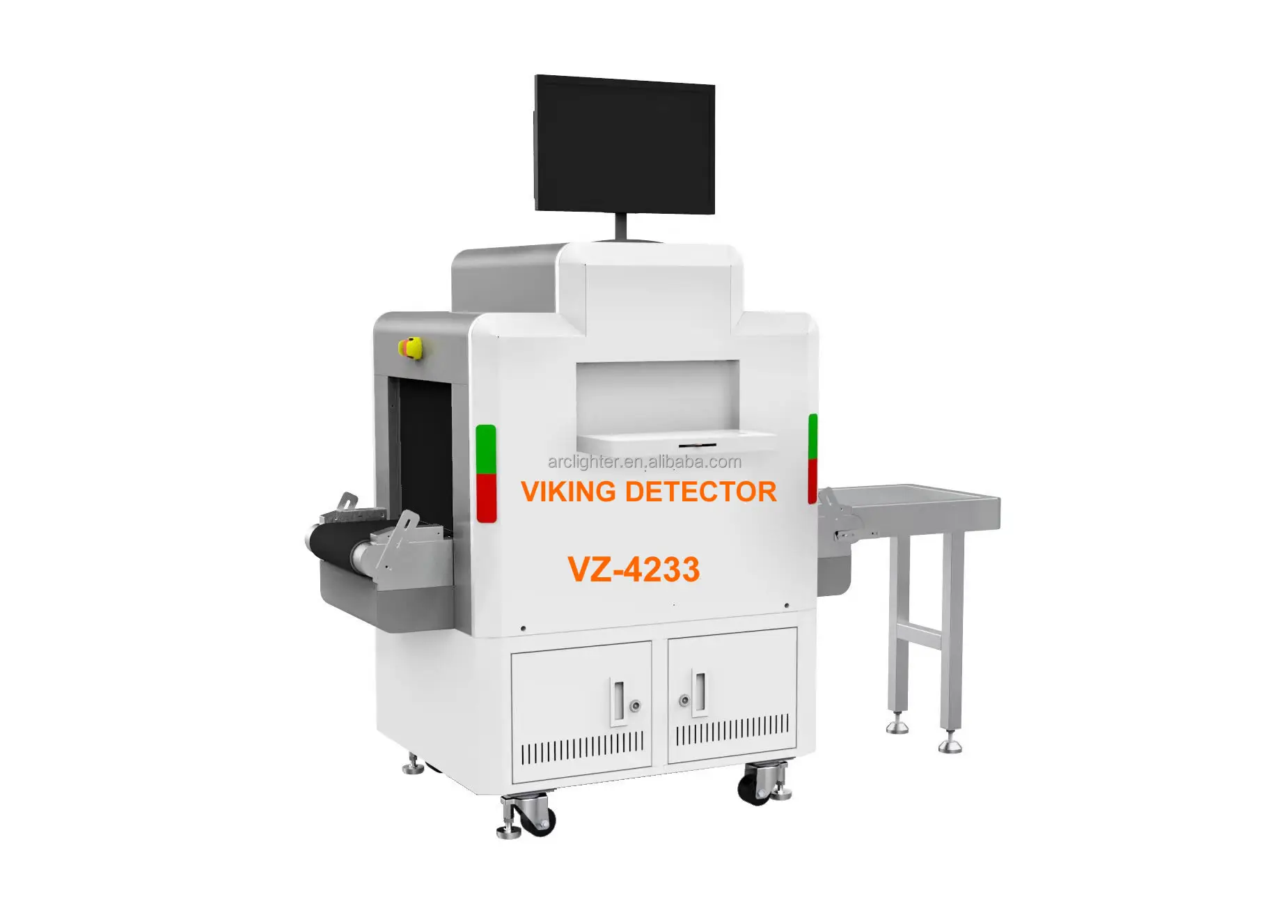

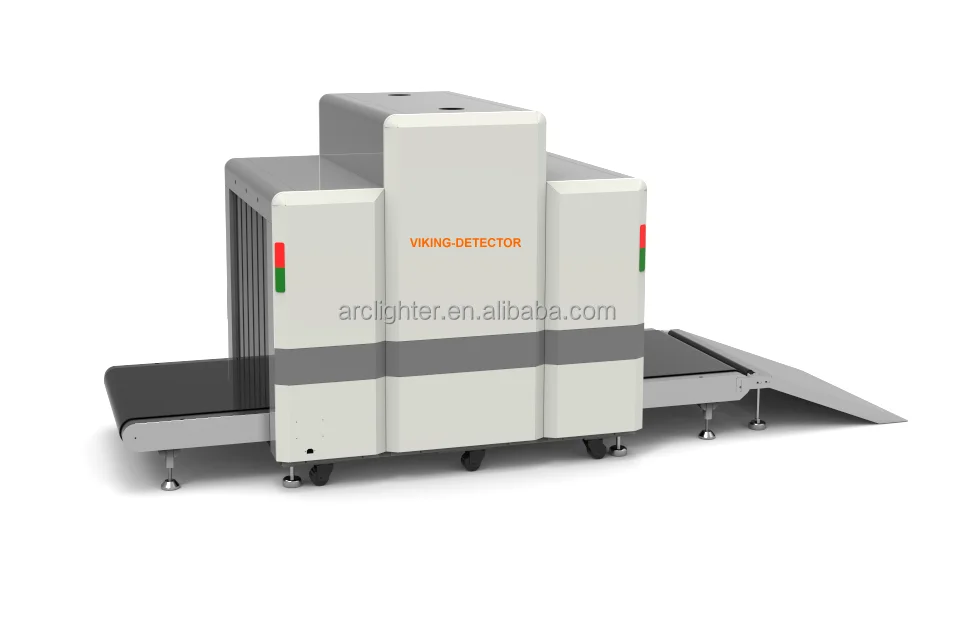

Latest model of x ray baggage scanner 34 mm penetration Security baggage luggage screening airport x ray scanner machine

Tunnel Size : W506mm x H300mm

Speed : 0.20 m/s

Height of Transmission Belt : 664 mm

Maximum Load : <100 kg (Adequate distribution)

Wire Resolution : 38 AWG (0.0787mm metal wire)

Space Definition : Horizontal a. 1.0mm \\ Vertical b.1.0mm

Penetrate Definition : 34 AWG

Penetration : 8mm Steel board

Monitor : 19 inch LED

System Function : High density alarm, Explosive/Drug auxiliary detect, TIP, Luggage counter.

System running timer, X-ray emitting timer.

Training, 64 times continuous zoom in

Film Safety : ASA/ISO1600 standard of film safety

X-ray System

Tube Voltage : 80Kv

Cooling : Seal oil cooling /100%

Single Inspection Dosage Rate : <1.0(i Gy

Radiation Leak Dosage : 0.1  Gy/h (5cm from the surface)

Installation Specification

Package Size :  1475mm (L) * 784mm (W) * 1100mm (H)

Console Desk Size :1690mm (L) * 870mm (W) * 1330mm (H)

Package Weight: 220KG Consumption : 0.5kVA

Noise : 53.8 dB(A)

 Use ploywooden case package

by air or by sea is ok

 1 year warranty
