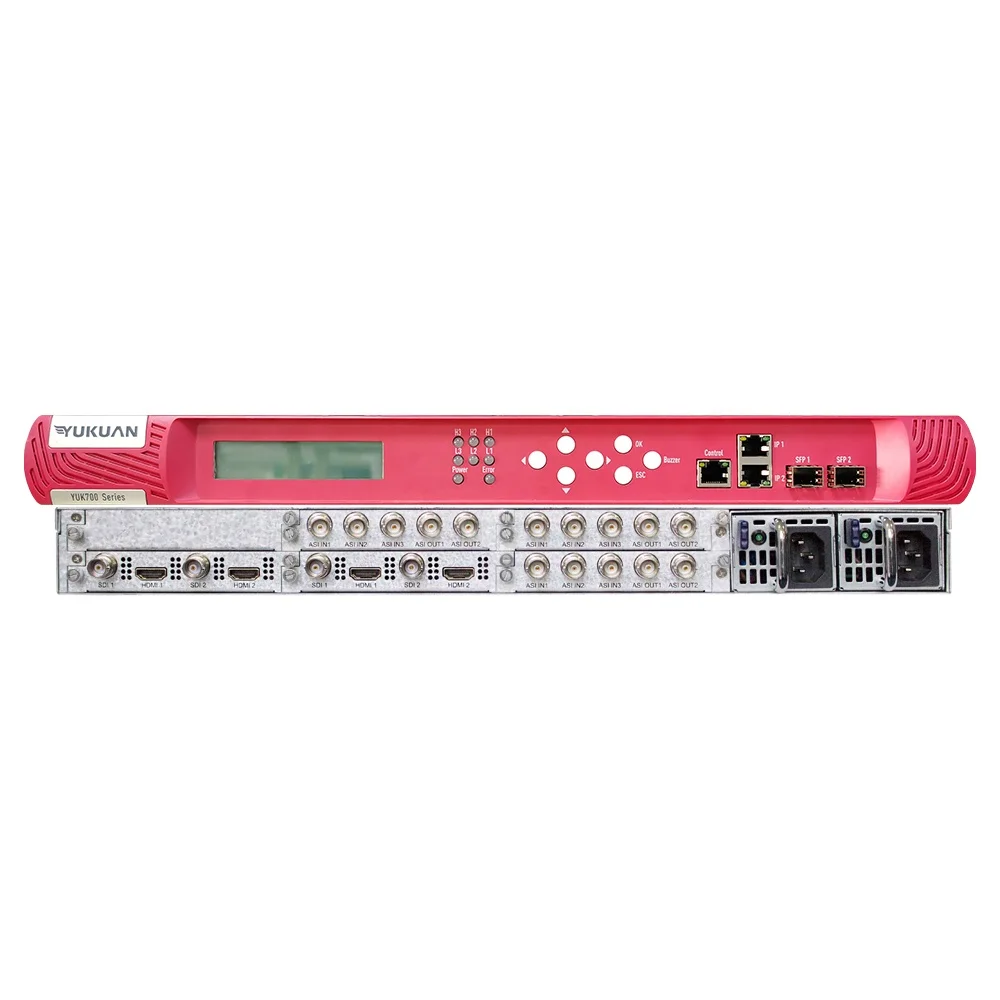

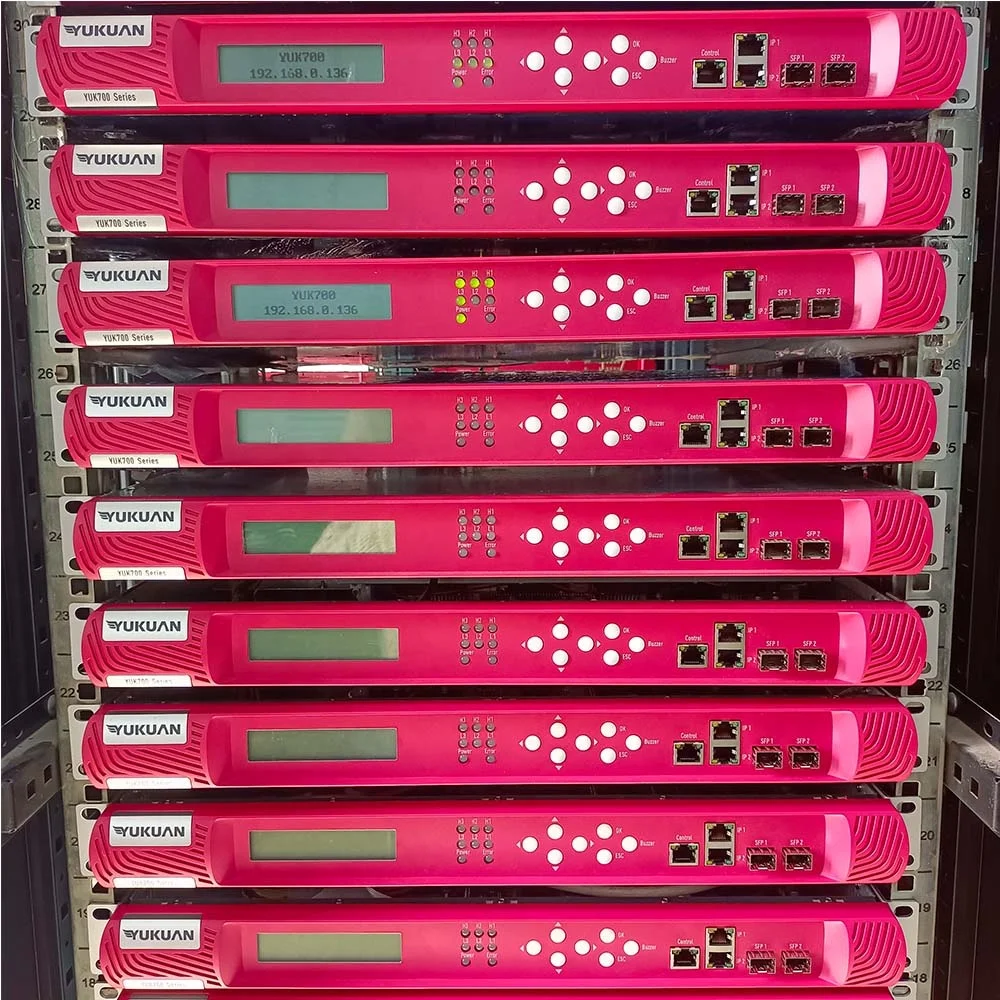

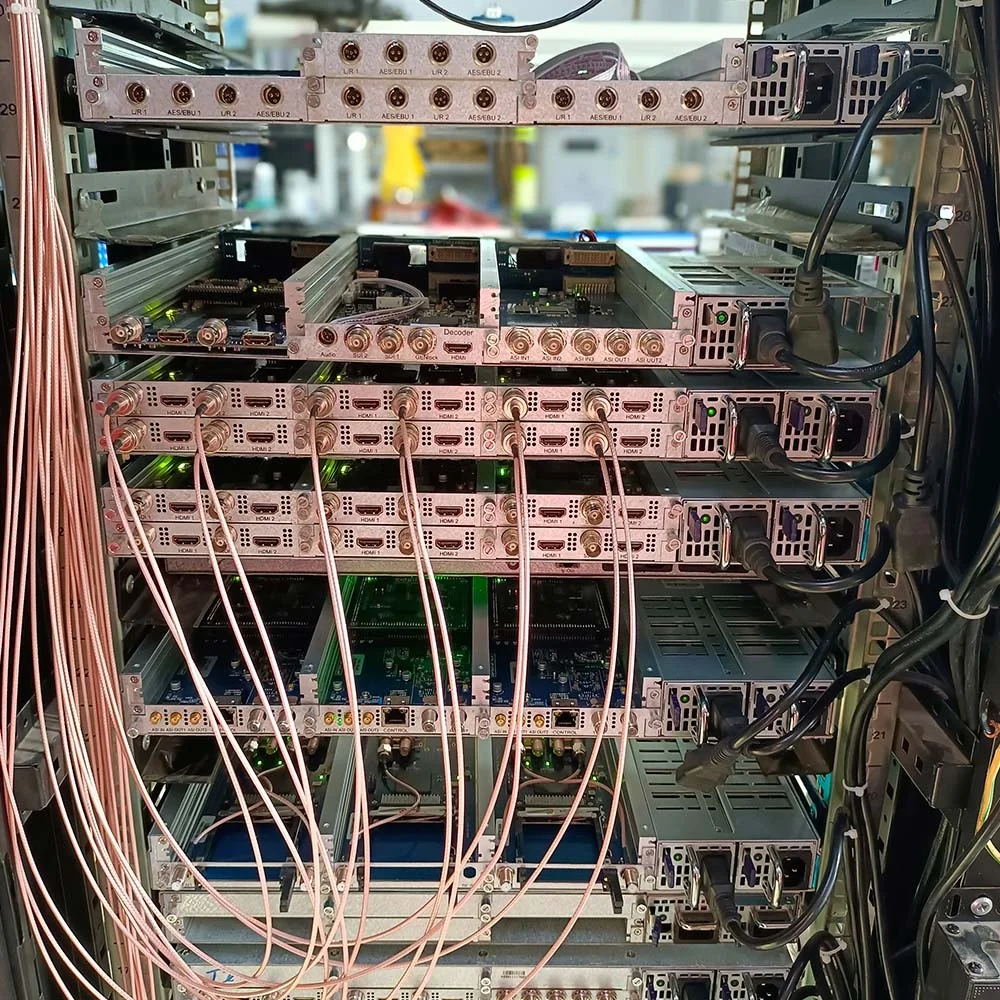

YUK700-2000HD
Digital Cable TV Broadcast Multi Channel SDI HD MI Video Encoder HD MPEG2H264
Product Overview
YUK700 Integrated digital content processing platform is designed with board module structure and 1U rack mount. It integrates a variety of advanced video processing functions, including encoding, decoding, multiplexing, satellite cable terrestrial receiving, adaptation, modulation, fiber transmission, distribution etc. The platform supports maximum 12 channel HD/SD-SDI HDMI signal or 12 channel analog stereos or 12 channel digital audio signal encoding. And it supports maximum 18 channel ASI input multiplexing and 12 channel ASI output, 12 channel unidirectional or 6 channel bidirectional HD/SD-SDI/ASI transmission over fiber, 24 frequency modulation,12 channel DVB-C/T/T2/S/S2/S2X ISDB-T ATSC signal RF receiving, 12 channel analog stereo and 12 channel digital audio decoding, 2 channel Gigabit IP input output and 2 channel SFP fiber input output.
Product Feature
* Each device supports 6 module slots
* Support program multiplexing output and modulated RF signal output
* Support ASI input/output, SDI output can choose any input and output function
* Gigabit IP input/output and SFP fiber output
* Support HD input and SD output(with down-transformation function)
* Support logo superposition and signal generator automatic output
* IP input support RTP or UDP, support 8 MPTS and 64 SPTS input
* IP output support RTP or UDP, support 8 MPTS and 64 SPTS output
* Local monitoring: button and LCD display
* Remote control: TCP/IP, XML
* Suppport power cut memory function
* Standard 1U rack (485mm×450mm×44mm)
* Plug in Module, dual power supply, buzzer alarm
* Support program multiplexing output and modulated RF signal output
* Support ASI input/output, SDI output can choose any input and output function
* Gigabit IP input/output and SFP fiber output
* Support HD input and SD output(with down-transformation function)
* Support logo superposition and signal generator automatic output
* IP input support RTP or UDP, support 8 MPTS and 64 SPTS input
* IP output support RTP or UDP, support 8 MPTS and 64 SPTS output
* Local monitoring: button and LCD display
* Remote control: TCP/IP, XML
* Suppport power cut memory function
* Standard 1U rack (485mm×450mm×44mm)
* Plug in Module, dual power supply, buzzer alarm
Specification

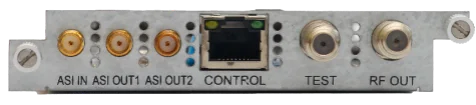

YUK700 Integrated Digital Content Process Platform | ||||
YUK700 Chassis | IP/Fiber | 2×RJ45 10/100/1000Mbps IP data port（input/output） | ||
2×SFP, synchronize with the IP output | ||||
Web Network Management | 1×RJ45 10/100/1000Mbps Base-T (only network management) | |||
Module Option | ||||
4K Encoder Module | Input | 1×12G-SDI or 4×3G-SDI(4K) or 1×3G/HD-SDI | ||
Encoding Format | H.265 | |||
4K Decoder Module | Output | 4×3G-SDI, 1×12G-SDI, 1×HD-MI | ||
Decoding Format | H.265, H.264, MPEG-2, AVS2, AVS+ | |||
HD/SD Encoder Module | Input | 2×HD/SD-SDI, 2×HD-MI, BNC/HD-MI, 75Ω | ||
Encoding Format | MPEG-2/H.264 | |||
Video Decoder Module | Output | 2×HD-SDI, 1×HD-MI, 1×analog/digital audio,1×GENlock | ||
Support Function | 1 channel decoding | |||
DVB Reception Module | Input | 2×RF (DVB-C/T/T2, DVB-S/S2) | ||
Descrambling | 2×CAM card slots to descramble two different signal, support BISS-1 and BISS-E decryption | |||
ASI Multiplexer Module | Input | 3×ASI, BNC, 75Ω | ||
Output | 2×ASI, BNC, 75Ω | |||
SDI to Fiber Transmission Module | Input | 2×12G/HD/SD-SDI/ASI, BNC/HD-MI, 75Ω | ||
Fiber | Single mode single fiber | |||
Fiber Connector | LC/PC(standard) | |||
Analog Audio Video Encoder Module | Video | 2×CVBS, BNC, 75Ω | ||
Audio | 2×stereo | |||
Audio Encoder Module | Audio | 2×AES/EBU or 2×analog stereo | ||
Audio Decoder Module | Output | 2×analog stereo and 2×AES/EBU | ||
Distributor Module | Input | 1×12G/HD/SD-SDI/ASI | ||
Output | 4×12G/HD/SD-SDI/ASI，one of them can also output when power off | |||
Modulator Module | Interface | 1×ASI input, 2×ASI loop out, 1×RF output ,1×-20BD RF-TEST | ||
DVBC | Support 4 adjacent channel modulation, support ASI and IP input, bandwidth of each frequency point 38.0M | |||
DVBT | Support 4 adjacent channel modulation, support ASI and IP input, bandwidth of each frequency point 31.7M | |||
DMBT | Support 4 adjacent channel modulation, support ASI and IP input, bandwidth of each frequency point 31.2M | |||
Physical Specification | ||||
Physical Parameter | Dimension | 19 inches standard 1U chassis(485×450×44mm) | ||
Power | Dual power supply redundancy hot standby AC 100V~240V 50/60HZ | |||
Weight | 5KG | |||

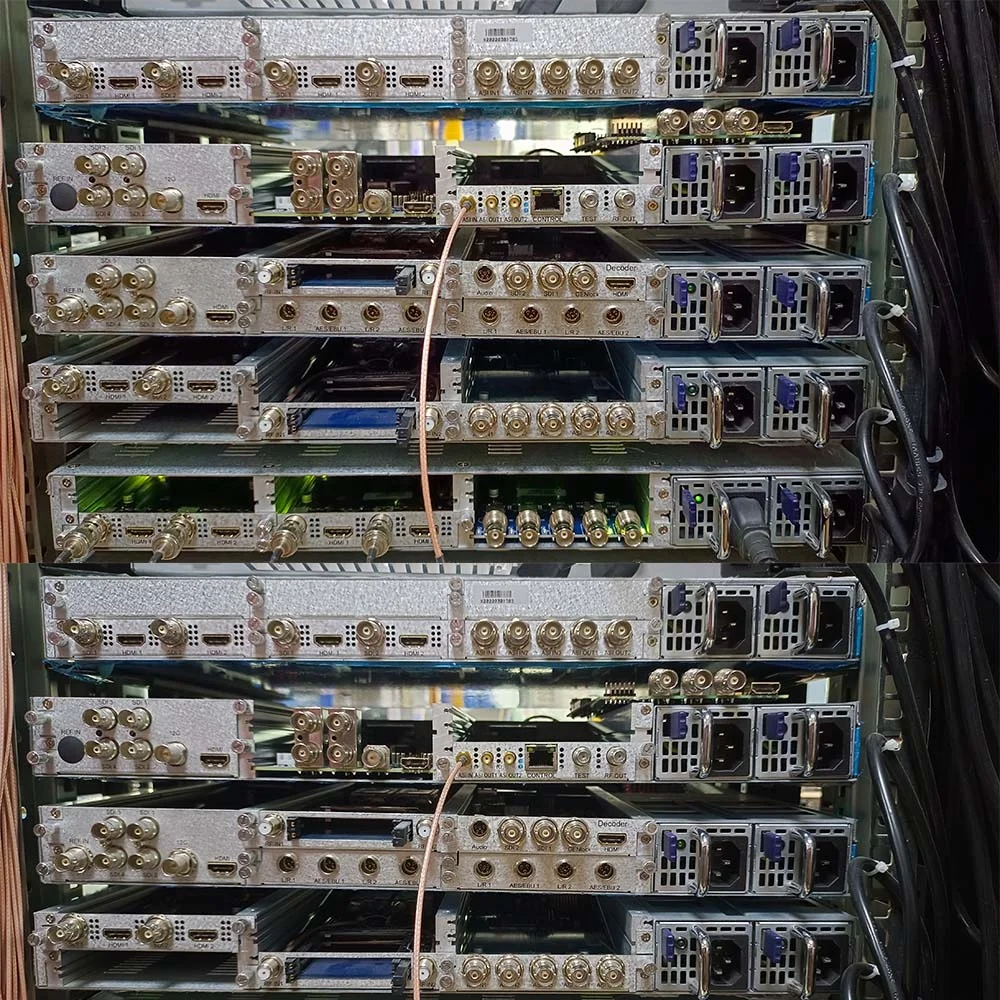

Module Option

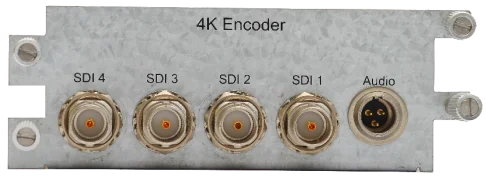

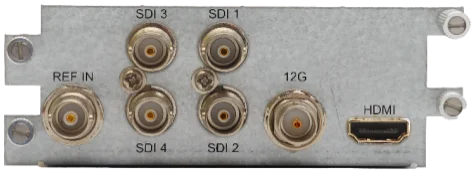

4K Encoder Module
* Support 1×12G-SDI or 4×3G-SDI(4K) or 1×3G-SDI
video encoding
* Encoding format: H.265
* Input resolution: 4K 1080P@50/59.94/60
720P@50 /59.94/60/ 576I/50 480I/60
* Output bitrate: VBR, CBR
* Audio input: SDI embedded audio
4K Decoder Module
* Output: 4×3G-SDI, 1×12G-SDI, 1×HD-MI
* Support 1×12G-SDI or 4×3G-SDI and 1× HD-MI 2.0
decoding
* Decoding format: H.265, H.264, MPEG-2, AVS2, AVS+
2-ch HD/SD Encoder Module
* Input: 2×HD/SD-SDI, 2×HD-MI
* Video input format: NTSC/PALadaptive
* Input resolution:1080I@50/59.94/60
720P@50/59.94/60/576I/50 480I/60
* Encoding: MPEG-2 H.264 optional
* Output bitrate: VBR, CBR
* Video bitrate: HD 8-20M, SD 2-15M
* Audio input：SDI HD-MI embedded audio
* Encoding rate：64Kto 384K
* Video input format: NTSC/PALadaptive
* Input resolution:1080I@50/59.94/60
720P@50/59.94/60/576I/50 480I/60
* Encoding: MPEG-2 H.264 optional
* Output bitrate: VBR, CBR
* Video bitrate: HD 8-20M, SD 2-15M
* Audio input：SDI HD-MI embedded audio
* Encoding rate：64Kto 384K
* Each module support 2 channel encoding
2-ch Audio Encoder Module
* Support 2×analog stereo, 2×AES/EBU
* Audio encoding: MPEG-1 LayerII, AAC-HE, AAC-LC
* Sampling frequency: 48KHz
* Audio interface: small XLR
* Audio bitrate: 64 to 384K
* Audio encoding: MPEG-1 LayerII, AAC-HE, AAC-LC
* Sampling frequency: 48KHz
* Audio interface: small XLR
* Audio bitrate: 64 to 384K
* Each module support 2 channel encoding

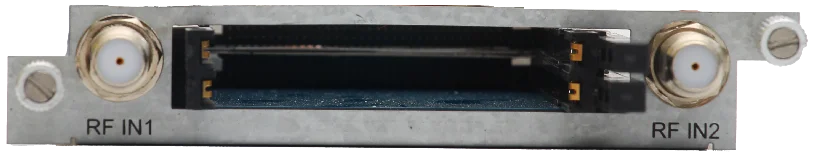

DVB-C/T/T2 ISDBT ATSC Reception Module
* Input: 2xRF
* Support 2 channel DVB-C/T/T2 ISDBT ATSC input
* Support 2 sets decoding cards to descramble the signal
* Support 2 channel DVB-C/T/T2 ISDBT ATSC input
* Support 2 sets decoding cards to descramble the signal
DVB-S/S2/S2X Reception Module
* Input: 2xRF
* Support 2 channel DVB-S/S2/S2X input
* Support 2 sets decoding cards to descramble the signal
* Support BISS-1and BISS-E decryption
* Support 2 channel DVB-S/S2/S2X input
* Support 2 sets decoding cards to descramble the signal
* Support BISS-1and BISS-E decryption

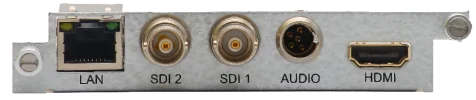

1-ch Video Decoder Module
* Output: 2×HD-SDI, 1×HD-MI, 1×analog/digital audio,
* Decoding format: H.265, H.264, MPEG-2, AVS2, AVS+
* Each Module support 1 channel decoding
* Decoding format: H.265, H.264, MPEG-2, AVS2, AVS+
* Each Module support 1 channel decoding

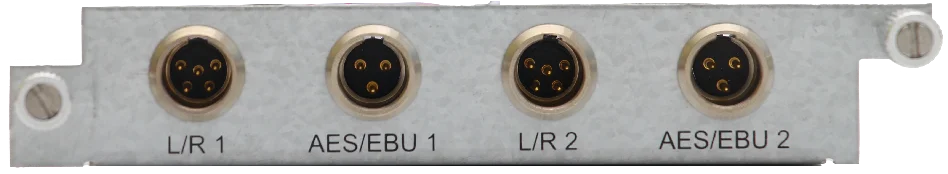

2-ch Audio Decoder Module
