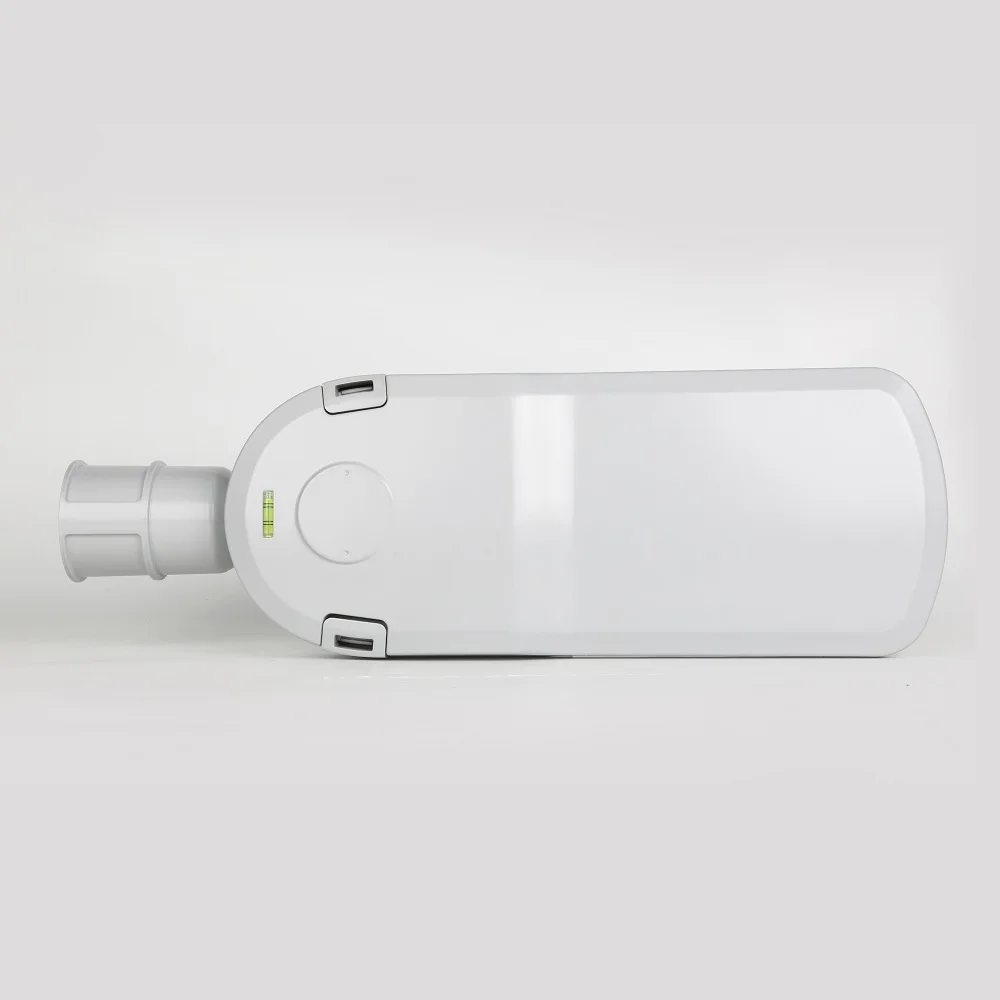

New trends smart street light controller LORA street light LED 30W 50W with intelligent street light control

Product Overview

Description

New trends smart street light controller LORA street light LED 30W-250W with intelligent street light control



Product Features of L36 LED Street Light

1.High pressure die-cast aluminum alloy housing from 30W to 250W.
2.Substantial friction resistant powder spraying process surface treatment.
3.Adopt multi-chips package 5050 LEDs. Stable performance,single unit’s damage won't affect others' normal work.

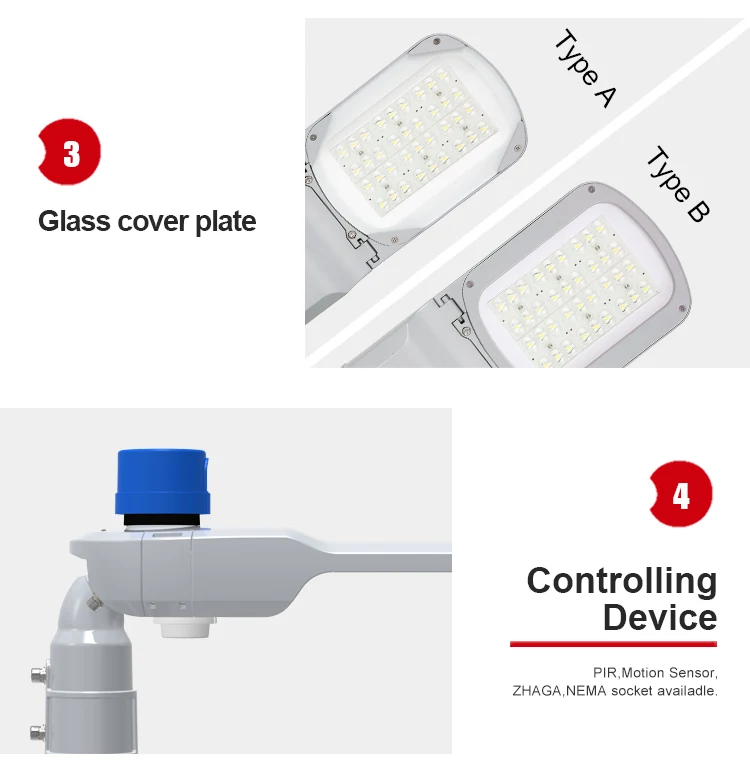

4.Smooth back,self-cleaning deisgn tempered glass cover.

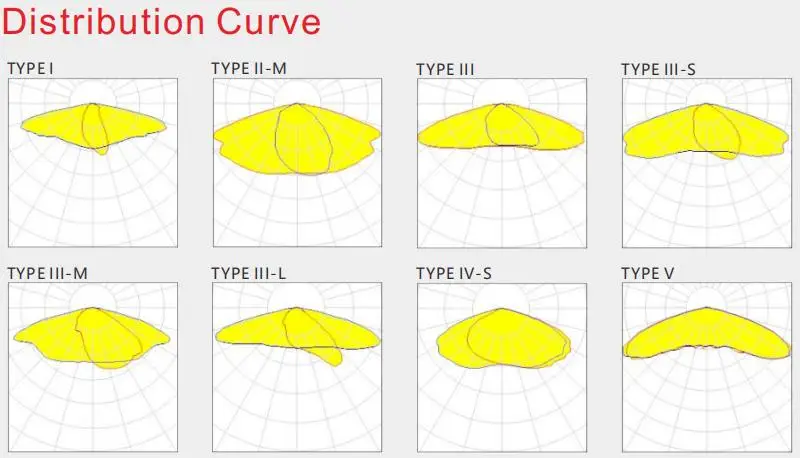

5.Optical lens design.Type I,II-M,III,III-S,III-M,III-L,IV-S,V optional.Uniform lighting distribution apply to different lighting projects.
6.Excellent operating temperature -40~50°C

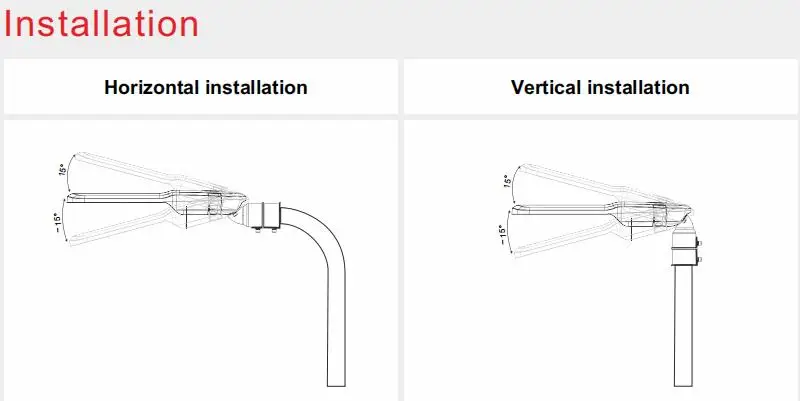

7.-15~15° adjustable bracket applicable different mounting arm.
8.With excellent housing design reach IP66/IK08 rating.

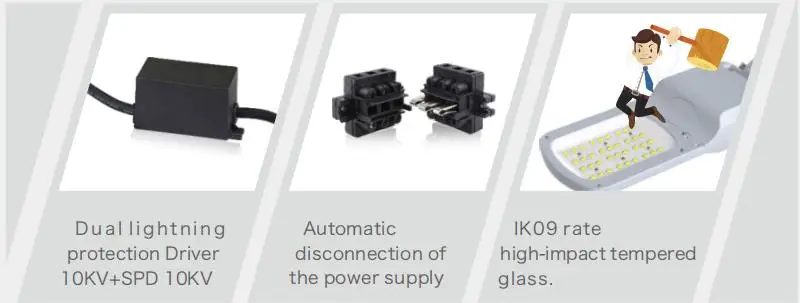

9.Automatic cut-off design.10KV/20KV SPD.
10.Dimming and smart lighting system available upon request.
11.Long service life over 100,000 hours, 5 years warranty.



Specification of L36 LED Street Light

Name	Nominal Value
Type	LY-L36-30	LY-L36-50	LY-L36-80	LY-L36-100	LY-L36-120	LY-L36-150	LY-L36-180	LY-L36-200	LY-L36-250
Power	30W	50W	80W	100W	120W	150W	180W	200W	250W
Luminous Efficiency	150-170lm/w
CCT	3000K/4000K/5000K/6000K
Brand of driver	MOSO/Sosen/Inventronics/Tridonic
Brand of Chips	Lumileds 5050/Lumileds 3030
LED Qty.	24pcs	36pcs	48pcs	54pcs	72pcs	72PCS	120PCS	120PCS	120PCS
Beam Angle	Type I,II-M,III,III-S,III-M,III-L,IV-S,V
IP Rate	IP66
Voltage	AC 90-305V
Inclination Angle	-15~15°
Working Environment	-40℃~50℃,20%~90% RH
Storage Temperature	-40℃~85℃10%~90% RH
Driver Efficacy	0.92
PF	>0.98
Lifetime	>50,000 Hours
Size of light pole	φ40-60mm
SPD	10KV/20KV

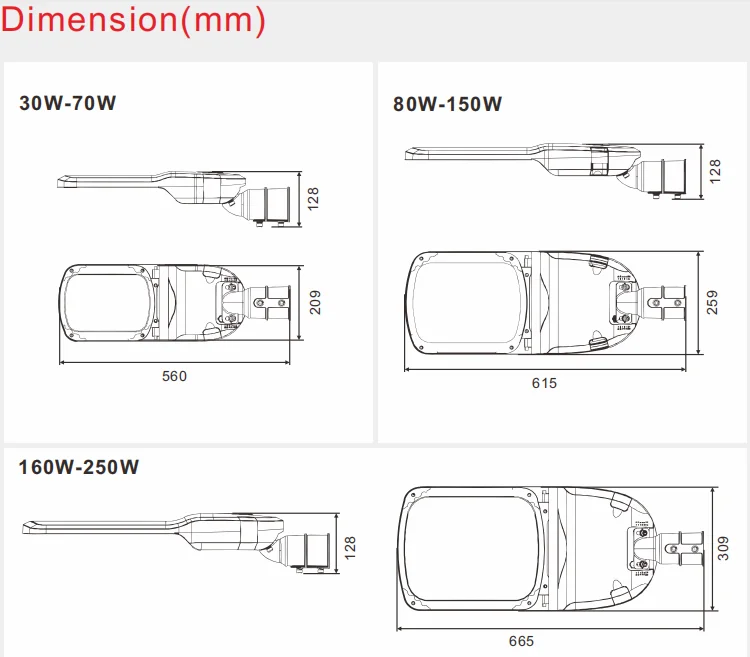

Size of Lamp	560x209x128mm		615x259x128mm				665x309x128mm
N.W.	3.3KG		5.2KG	5.3KG	5.6KG	5.7KG	7.1KG	7.1KG	7.1KG

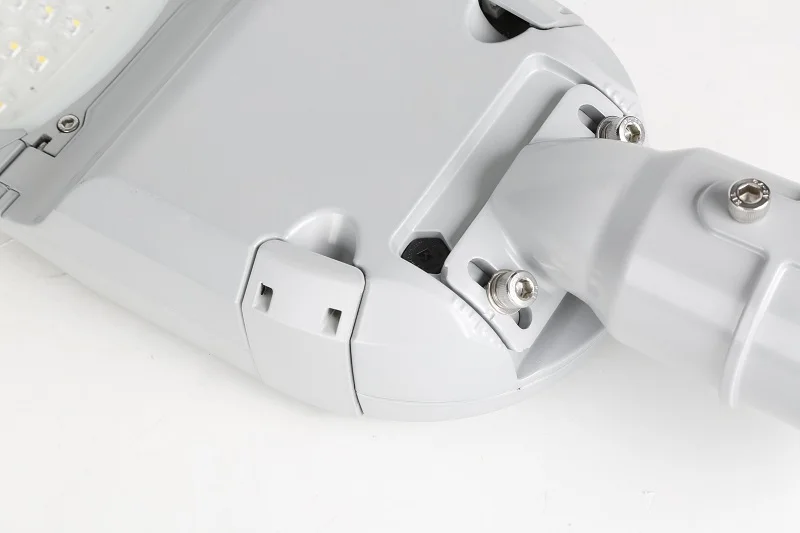

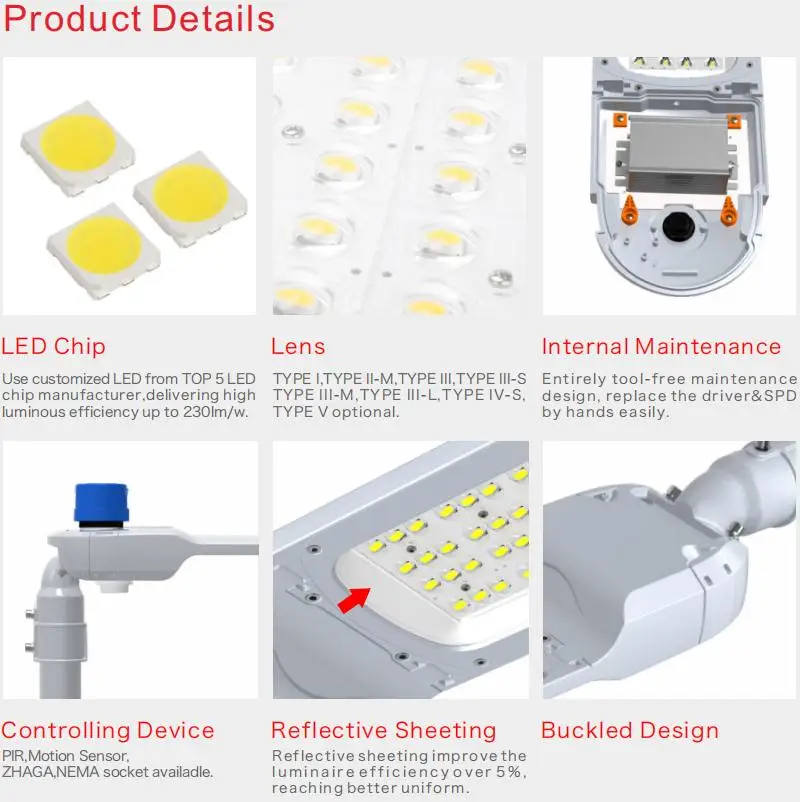

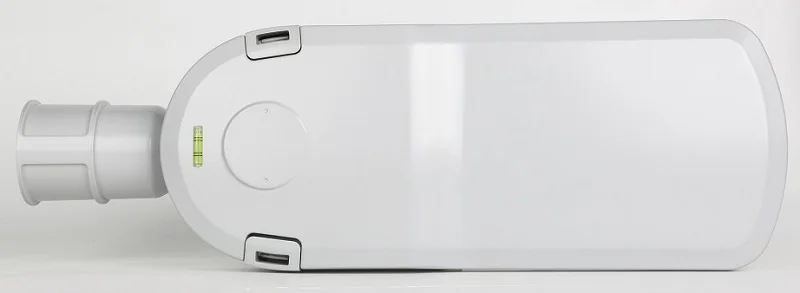

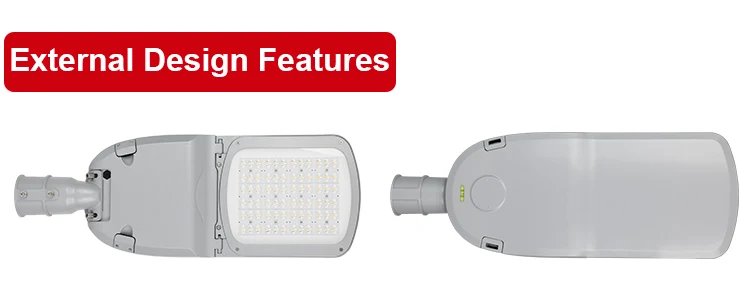

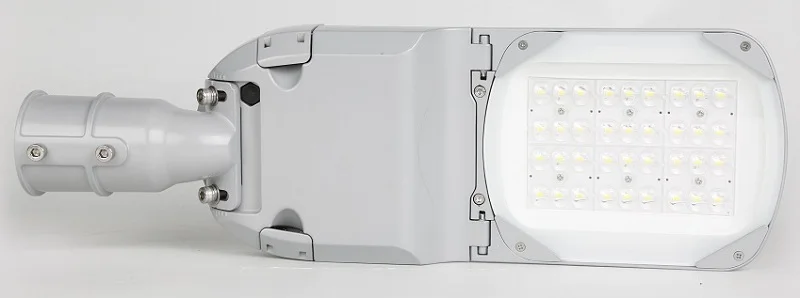

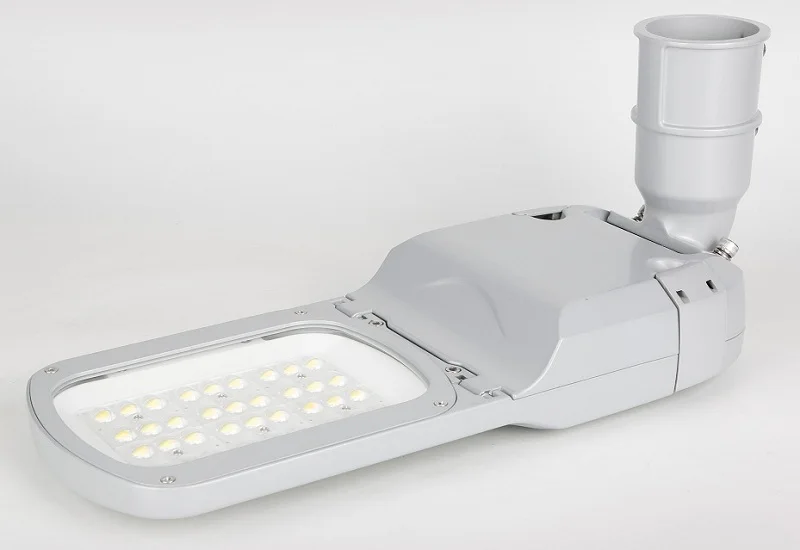

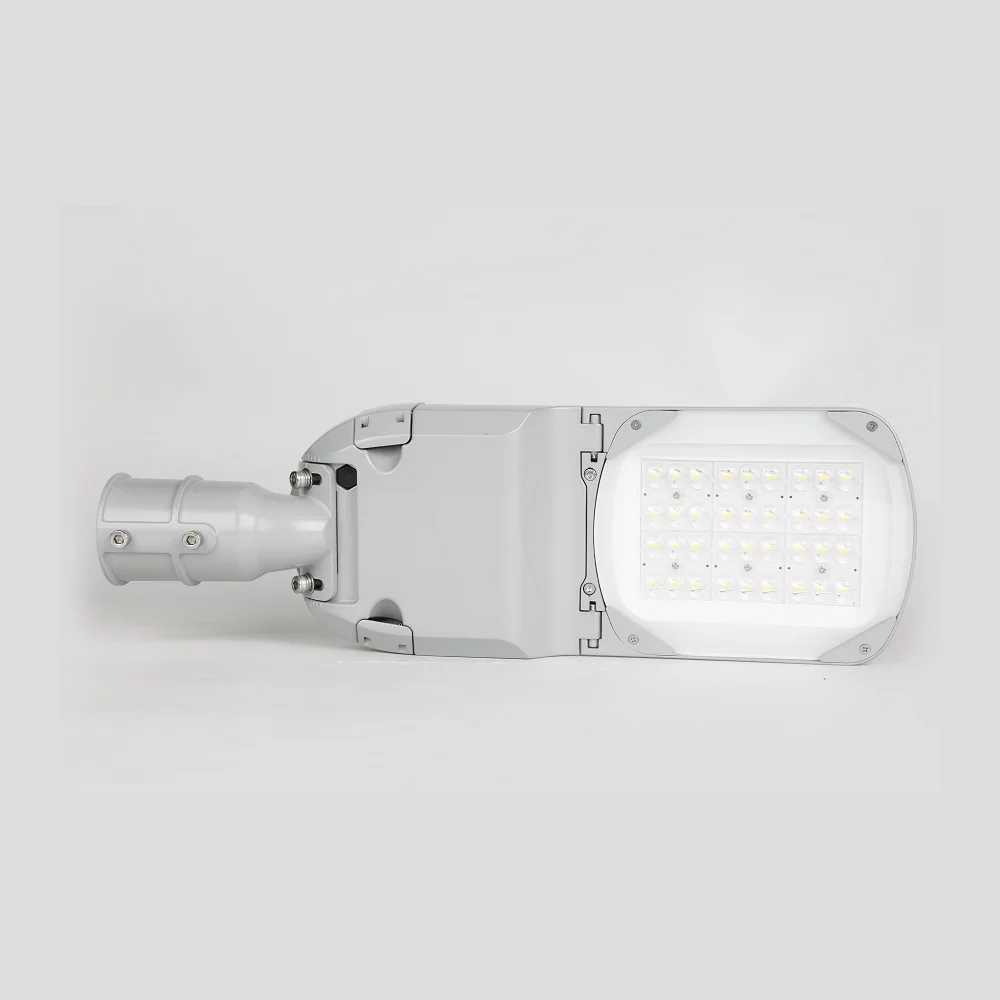

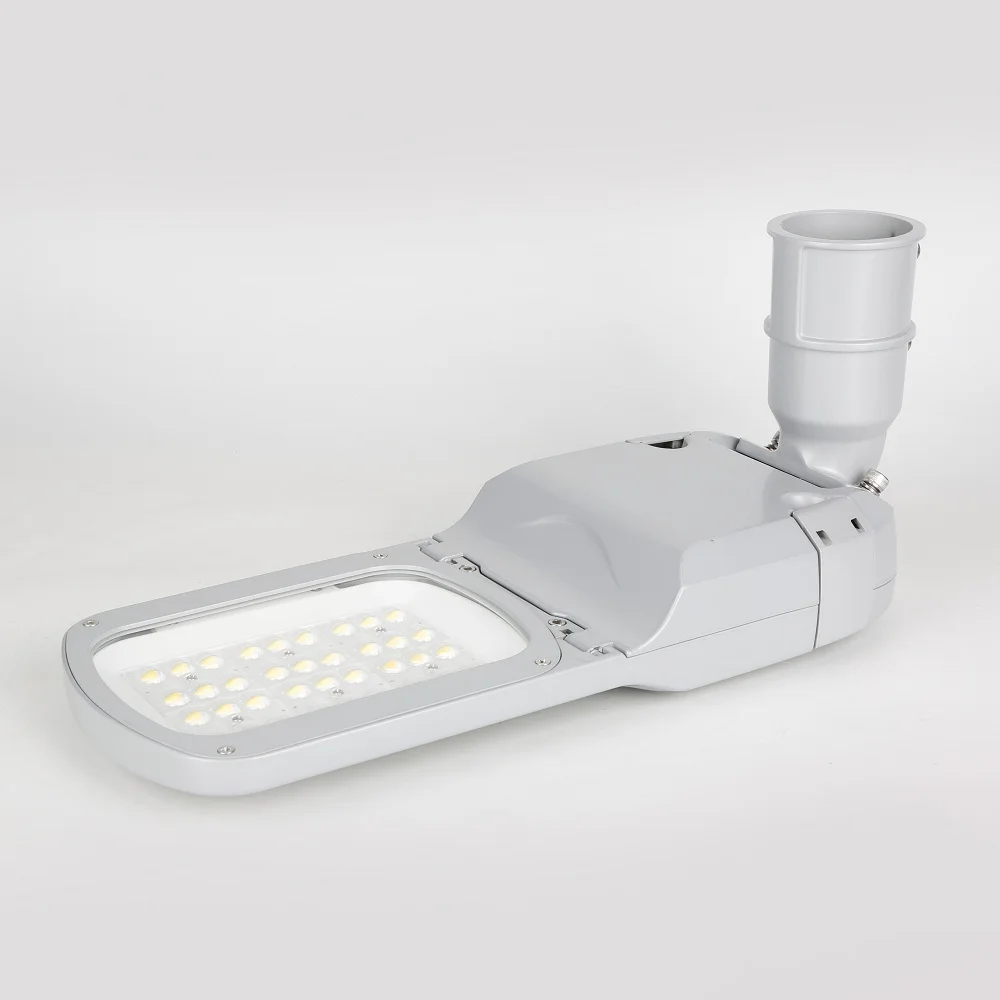

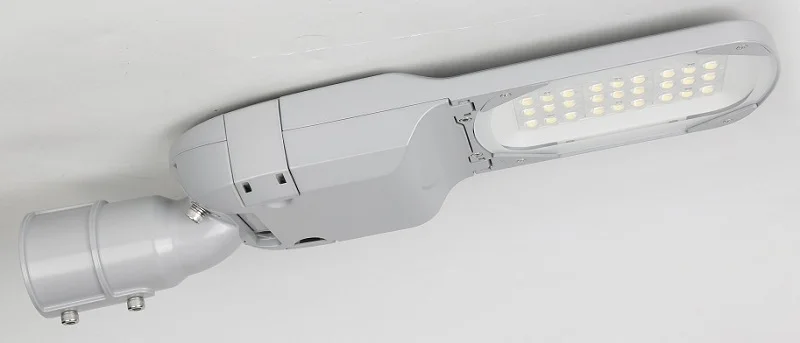

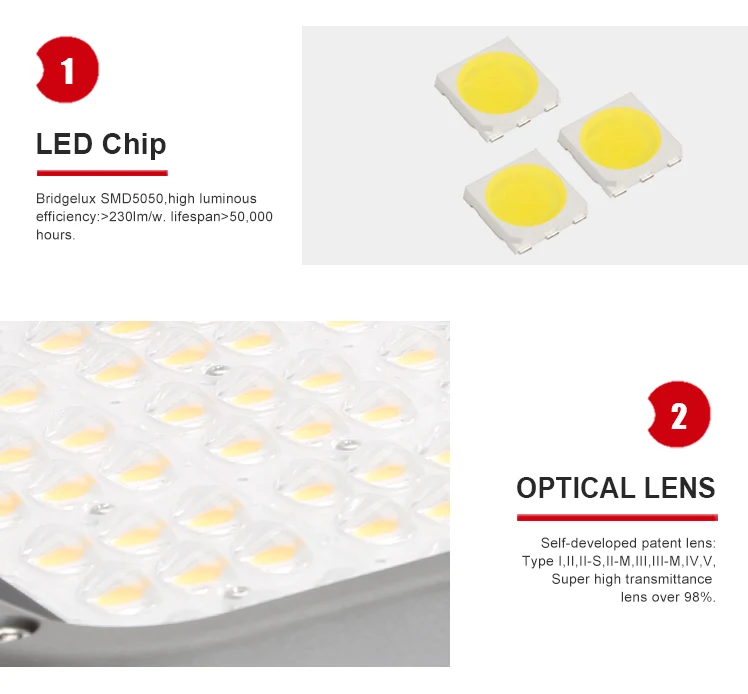

The detail pictures of LED street light 30w-250w series.

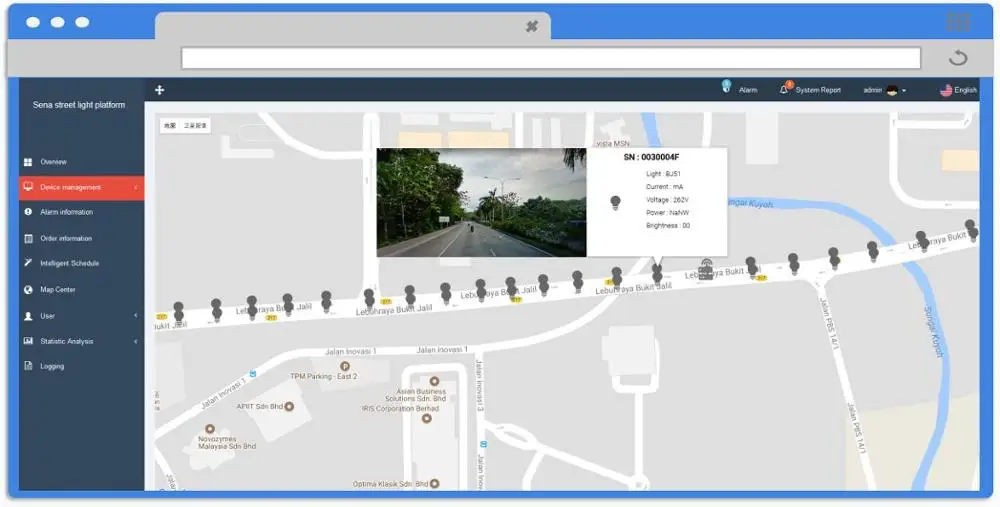

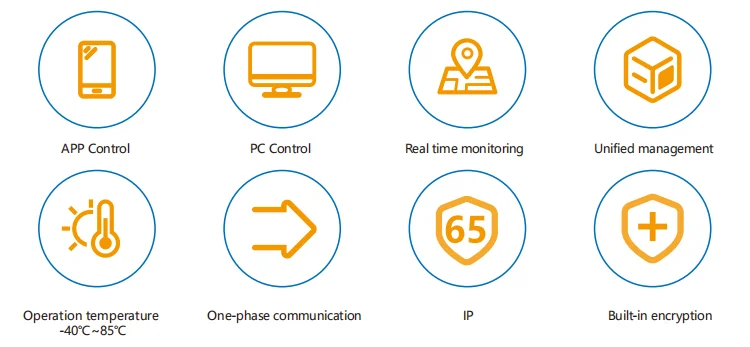

Smart LORA control system ready







Shenzhen Lepower Opto Electronics Corp.,Ltd (STOCK CODE:838452) founded in 2008, is a professional comprehensive LED lighting enterprise engaged in high power LED encapsulation,optical design and LED lighting researching and developing It has been honored as Chinanational high-tech enterprise,China Top 100 LED Lighting Application Enterprise, Forbes China Top 100 Up-and-Comer Private Unlisted Company.



Lepower, with more than 16,000 square meters modern productionplant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R&D and innovation capability in China’s LED industry. Lepower has got many national patents, which is able to offer customers professional LED lighting solutions.Lepower strictly carry out ISO9001:2008 quality management system, and most of the products got UL,ETL,DLC,SAA,CB,CE,ROHS,LM-80,LM-79,CQC certification etc.





Trading Conditions

1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.

2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.

3. Samples time: 5 days.

4. Shipping terms: FOB Shenzhen.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.



Quality Control

1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.

2. We will be tracing the different phase of production from the beginning.

3. Every LED lights quality checked & cleaned before packing.

4. Before delivery clients could send one QC or point the third party to check the quality.

5. We will try our best to help clients when problem occurred.



Warranty terms

1. 3/5 years warranty.

2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents

3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.

4.  ENEC/CE/RoHS/CB//ETL/DLC



FAQ:

Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.



Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,

electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.



Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.



Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide  you the best solution.

And if you have the tech to make design yourself , we can provide the IES files for you.



Q5.I have a street/high way ,what's your suggestion?

Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.
