Product Overview
Description
Products Description

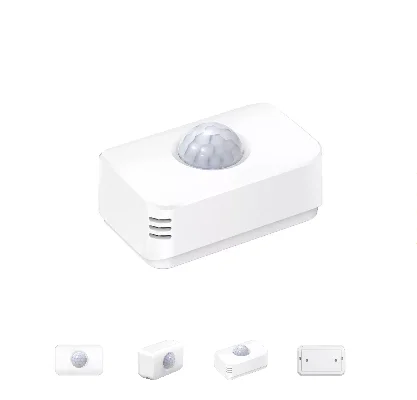

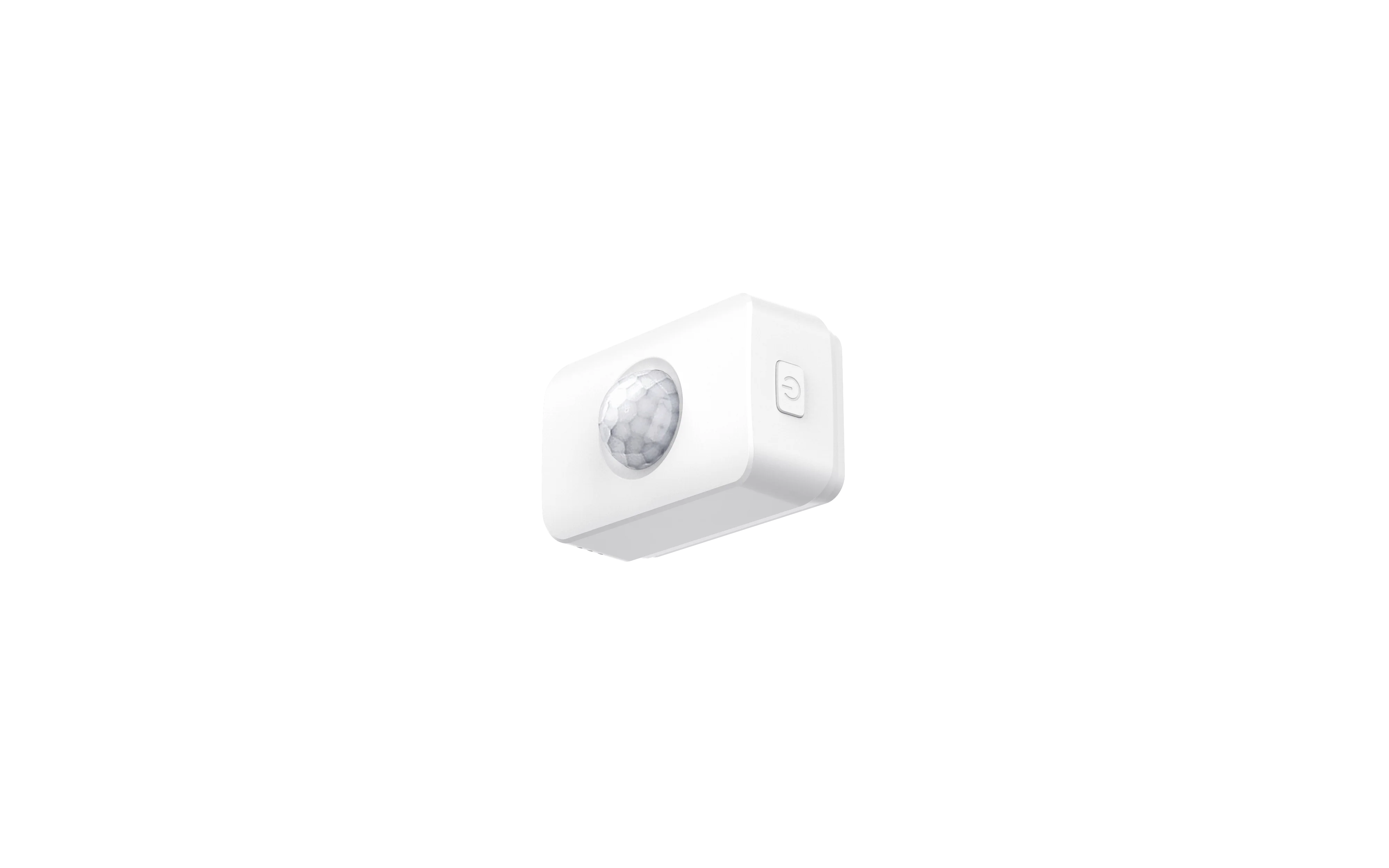

The LW007-PIR is a passive infrared-based LoRaWAN PIR sensor used to detect motion or occupancy. It can send the change of status over the LoRaWAN network once it detects there’s movement within the detection range. In addition, it also supports door status detection and temperature and humidity monitoring functions, making it widely used in office, residential, industrial building and other scenarios.

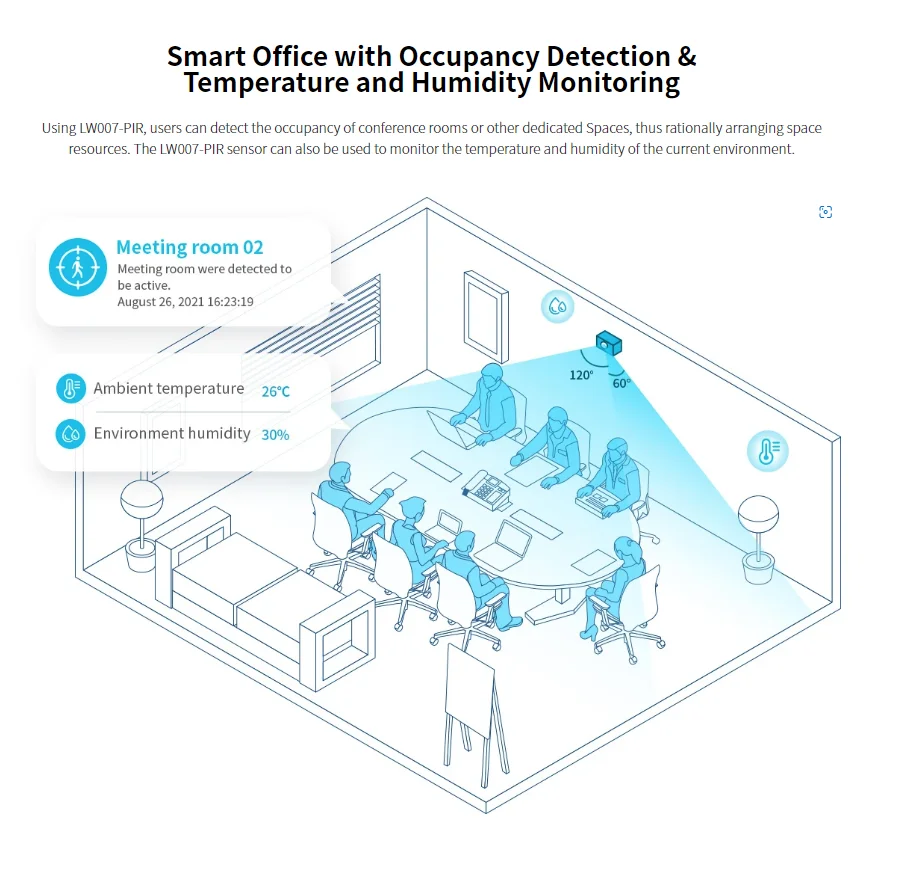

Smart Office Solution
Technical Specifications
LoRa Protocol | LoRaWAN V1.0.3 |
Dimensions | 70mm*50mm*38mm |
LoRa Frequency | EU868/AU915/US915/AS923/IN865/KR920/ EU433/CN470/CN779/RU864 |
LoRa Communication Distance | Up to 7 km (in urban open space) |
PIR Detection Range | Max. 8M |
PIR Detection Angle | Horizontal 120°, vertical 60° |
Temperature Measure Accuracy | ±0.3℃(0℃-60℃); ±0.5℃(-20℃-0℃); ±1℃(-30℃- -20℃) |
Humidity Measure Accuracy | ±3% RH (10% RH - 90% RH); ±4.5% RH - ±3% RH (0% RH - 10% RH); ±3% RH - ±3.8% RH (90% RH - 95% RH) |
BLE Communication Distance | Up to 50m in free space |
Installation Ways | Double-sided tape/Screws |
Color | White |
Shell Material | ABS+PC |

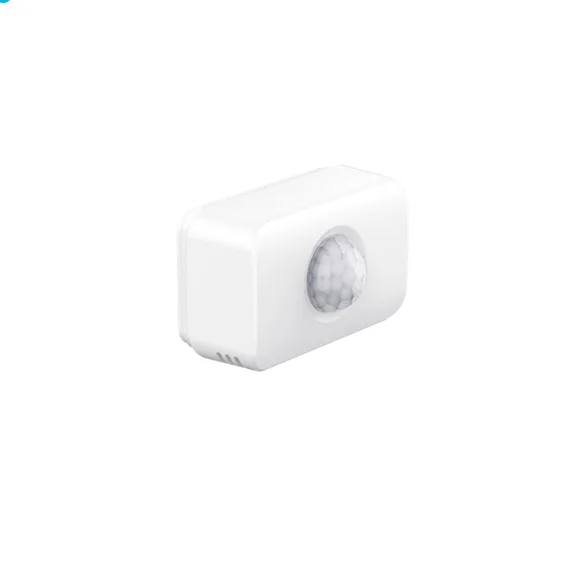

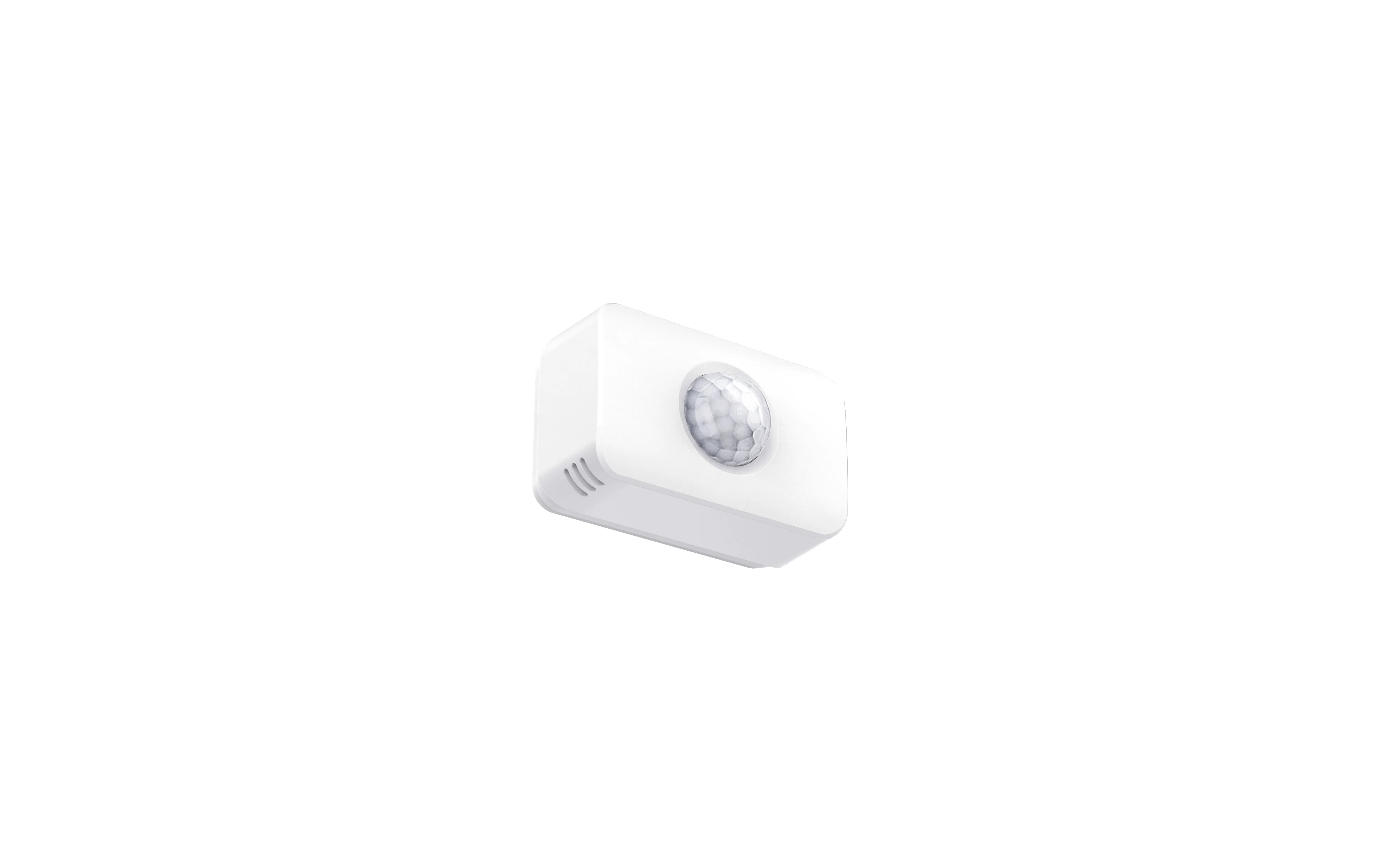

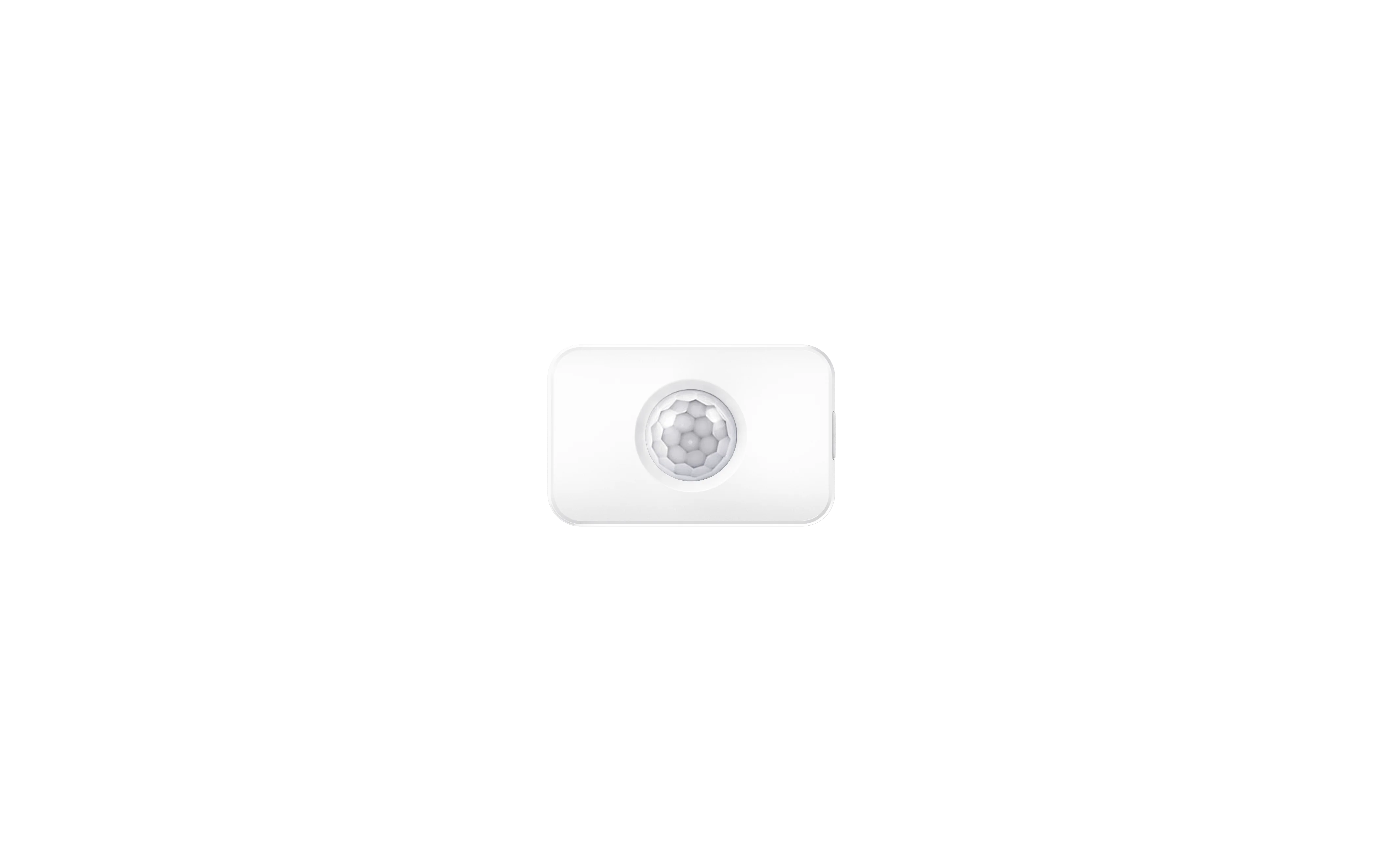

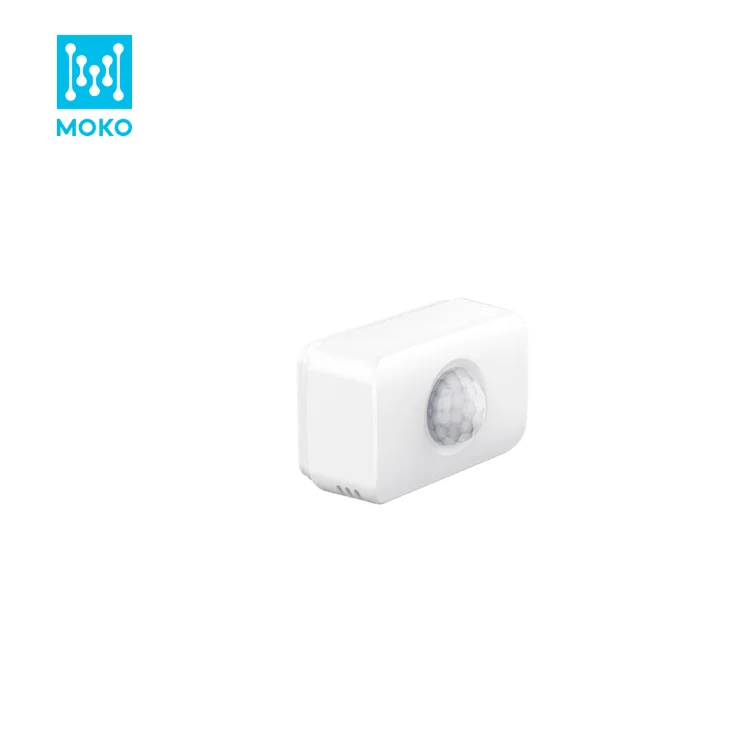

Details Images
Product Features
Occupancy Detection, Door Status Detection, Temperature and Humidity detection
> Occupancy or motion detection based on passive infrared and Fresnel Lens
> Long detection range(Max. 8m) and wide detection angle(Horizontal 120°, vertical 60°)
> Door status detection
> High sensitive temperature & humidity Sensor with exterior ventilation holes design
> Long detection range(Max. 8m) and wide detection angle(Horizontal 120°, vertical 60°)
> Door status detection
> High sensitive temperature & humidity Sensor with exterior ventilation holes design
> Ultra low power consumption with 5200mAH lithium sub-battery,which can stand up to five years
> CE and FCC certification are pending

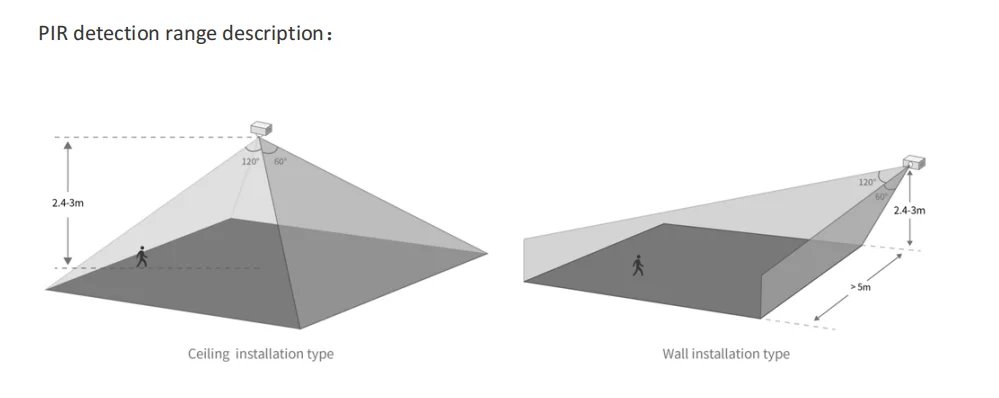

Detection angle: Horizontal 120°, vertical 60° Detection Range: Max. 8M

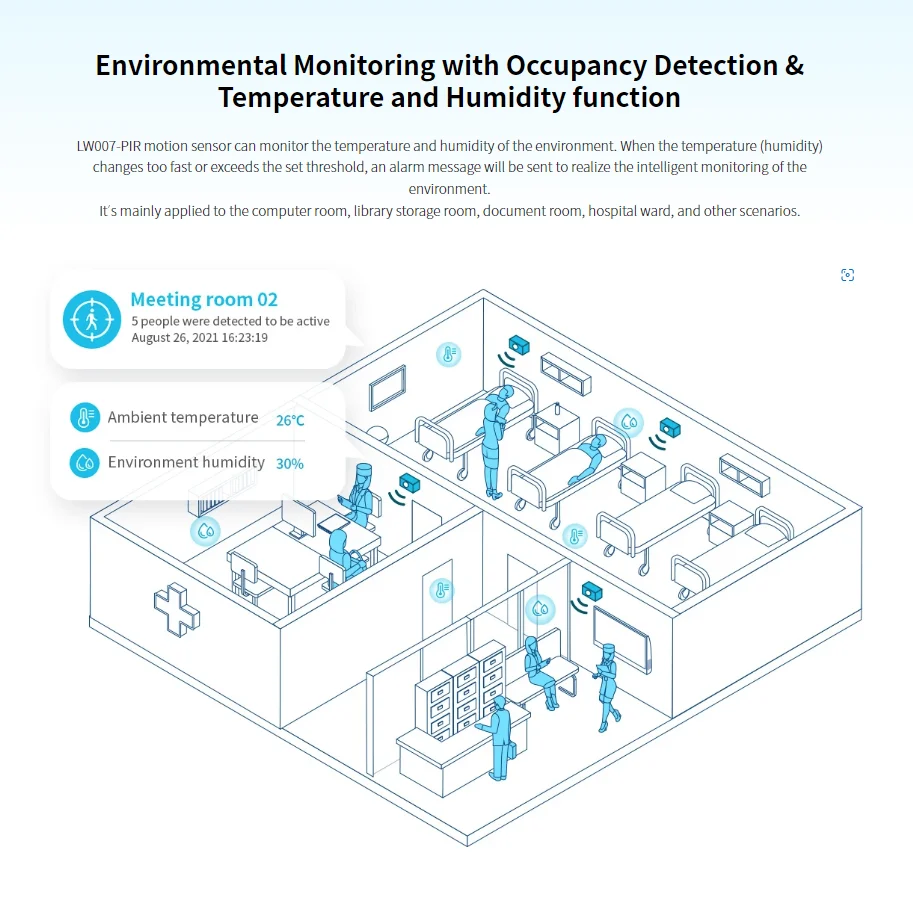

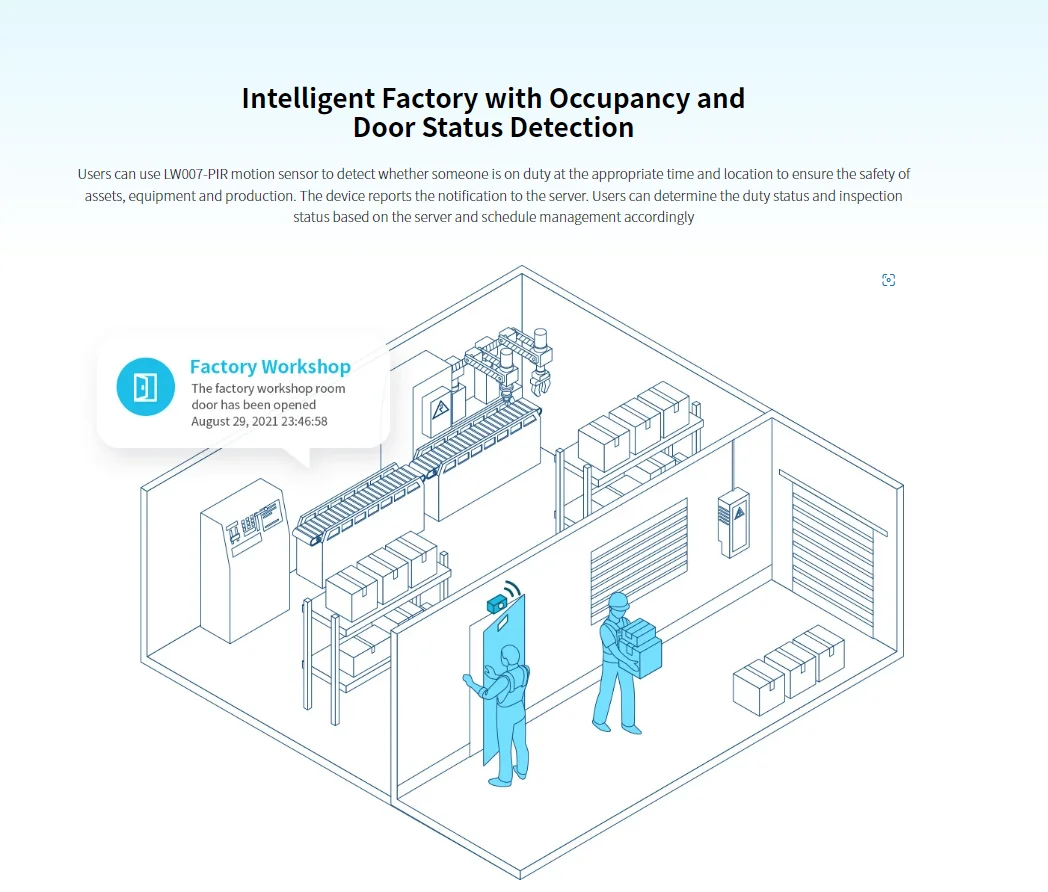

Product Application

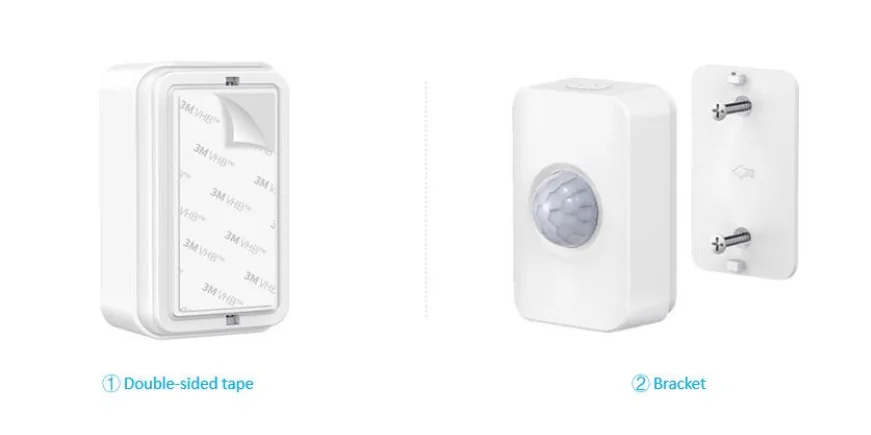

Multiple installation options
▶ Double-sided sticker
▶ Hanging with screws
Recommend products
Company Profile
MOKOSmart is a professional and experienced manufacturer dedicated to the research, development and manufacturing of smart IOT devices. We offer a range of programs for our potential partners which include electronic engineering, firmware customized, wholesale program, white-label solution, EMS(Electronics Manufacturing Service) and ODM program. Basically, we can offer mature products for you to directly sell and additionally provide you with a custom-made service to meet your requirement. Currently, our company has over 400+ employees, of which over 70 engineers concentrate on LoRaWAN products, Bluetooth beacon and smart plug switch, etc., with one-stop service includes design, development, production, and after-sales service. We have built sophisticated production lines which is equipped with advanced manufacturing technology to ensure high quality. So that We can also do OEM/contract manufacturing for high quality LoRaWAN products as you need.
FAQ
1.Are you a manufacturer or a trading company?
-We are the manufacturer with more than 15 years experience in Shenzhen, China.
2. Can you do ODM or OEM for us?
-We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
3. Do you offer sample order?
-We are the manufacturer with more than 15 years experience in Shenzhen, China.
2. Can you do ODM or OEM for us?
-We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
3. Do you offer sample order?
-Yes, we offer samples for testing.
4.What about the network architecture for device working?
-It would be composed of Lorawan sensor+Lorawan gateway+Lorawan server(Platform).
5.Can you provide the datasheet and user manual for LW007-PIR motion sensor?
-Yes we will provide them with PDF format if you need.
6.What's the lead time of your products?
-1-3 working days for sample order, around 15 days for mass production orders (based on different quantities).
7.How long is your products quality warranty?
-We offer one-year quality warranty.
8.Does it work with my loRaWAN gateway?
-Yes it is compatible.
4.What about the network architecture for device working?
-It would be composed of Lorawan sensor+Lorawan gateway+Lorawan server(Platform).
5.Can you provide the datasheet and user manual for LW007-PIR motion sensor?
-Yes we will provide them with PDF format if you need.
6.What's the lead time of your products?
-1-3 working days for sample order, around 15 days for mass production orders (based on different quantities).
7.How long is your products quality warranty?
-We offer one-year quality warranty.
8.Does it work with my loRaWAN gateway?
-Yes it is compatible.
