New Ningxia Factory 10KW Power Wall Install 48v 200ah Solar Lifepo4 Lithium Ion Phosphate Battery Pack With Bms 48V 200ah
- Category: >>>
- Supplier: Ningxia,Dongzhiyuan,New,Energy,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Features:
• 3000 times deep cycle charge and discharge .
• Iron phosphate-lithium power battery .
• Higher energy density, smaller prismatic cells for household.
• Support connected in parallel mode for expansion.

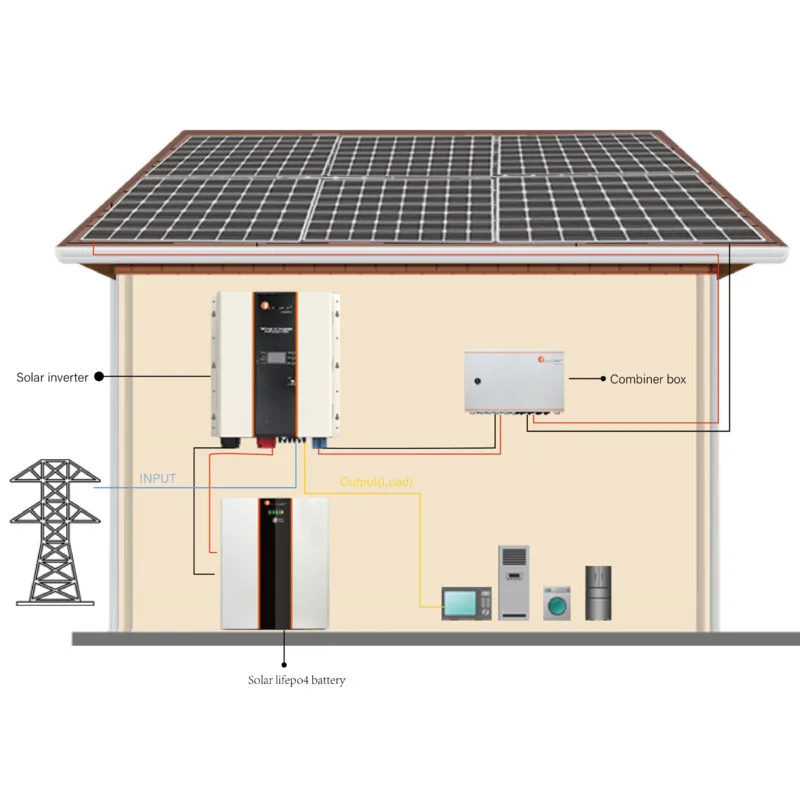

• Photovoltaic system: This battery pack is designed for household photovoltaic systems.

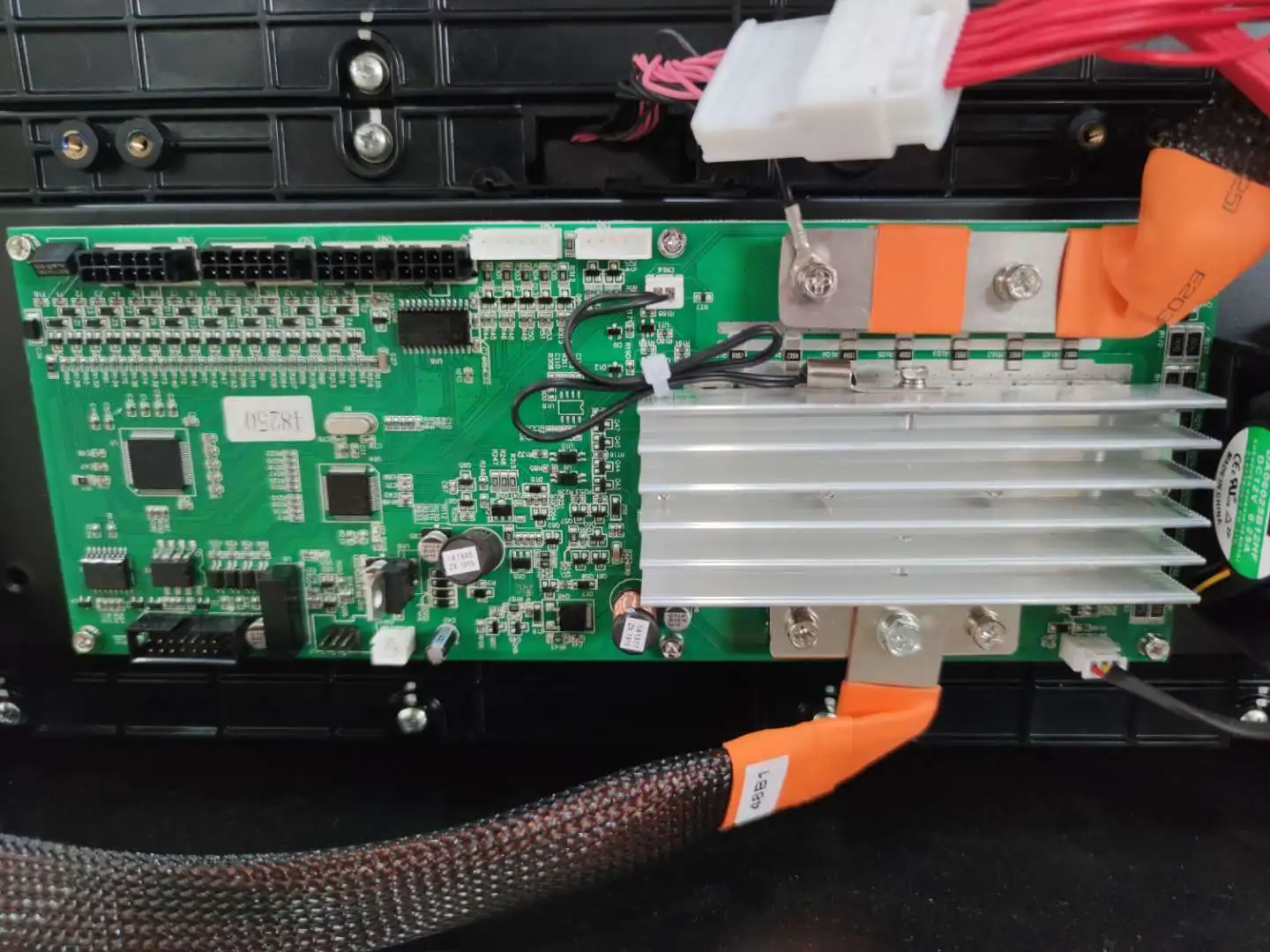

• Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
• Iron phosphate-lithium power battery .
• Higher energy density, smaller prismatic cells for household.
• Support connected in parallel mode for expansion.
• Photovoltaic system: This battery pack is designed for household photovoltaic systems.
• Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
Product Paramenters

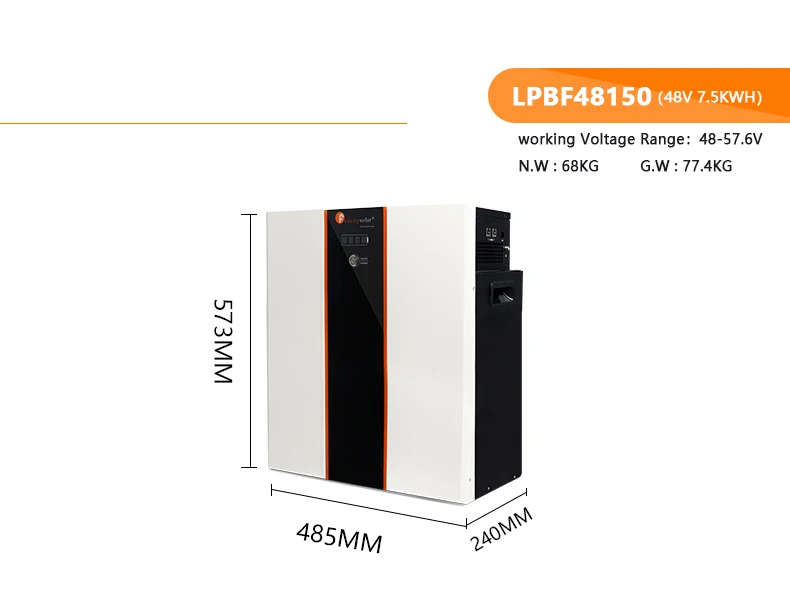

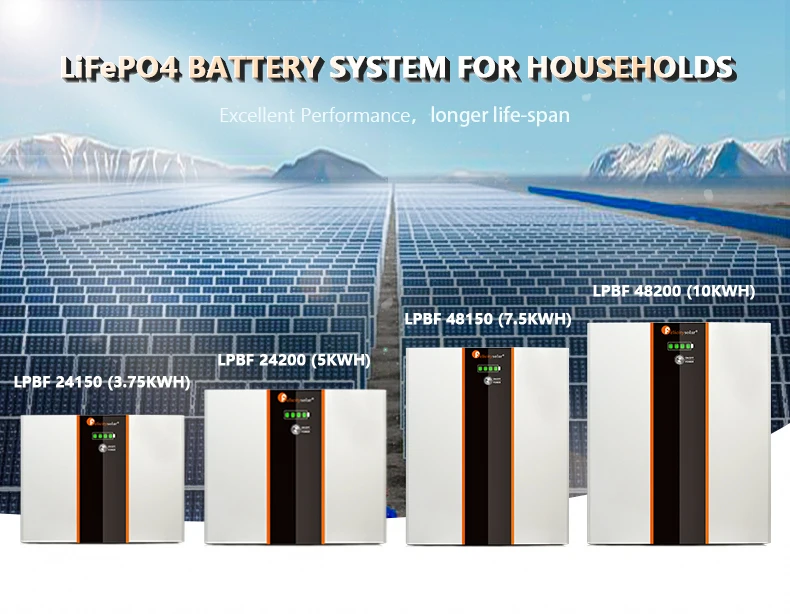

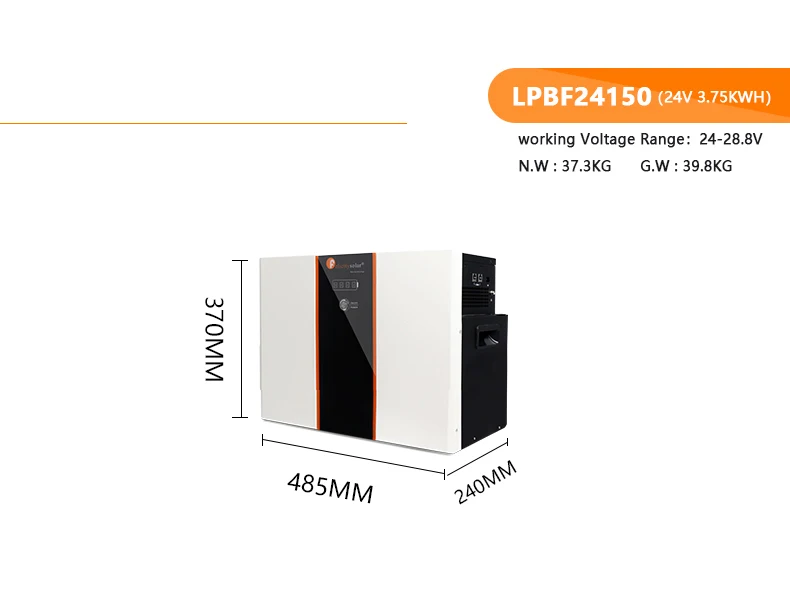

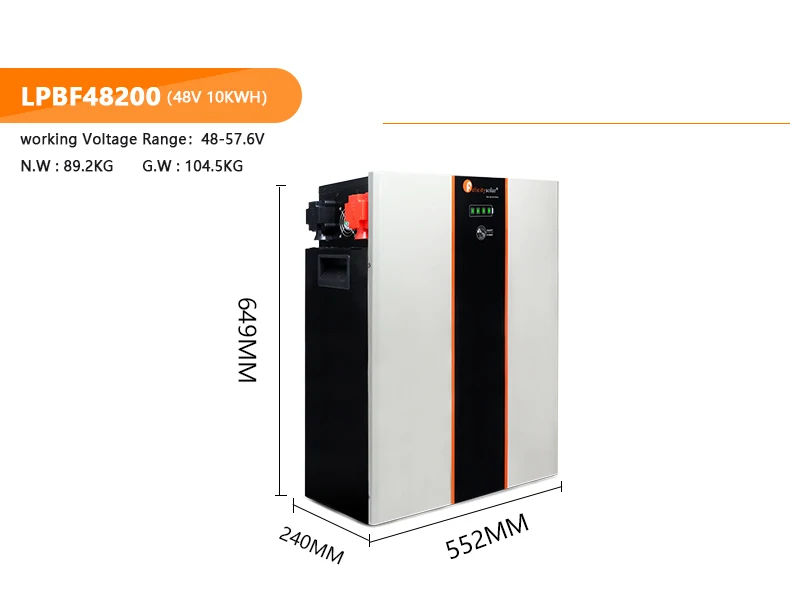

Model | LPBF24150 | LPBF48150 | LPBF24200 | LPBF48200 | |||||||||||||
Usable Capacity | 3.75KWH | 7.5KWH | 5KWH | 10KWH | |||||||||||||
Voltage | 24V | 48V | 24V | 48V | |||||||||||||
Rated Voltage | 25.6V | 51.2V | 25.6V | 51.2V | |||||||||||||
Charge Voltage | 28.8V | 57.6V | 28.8V | 57.6V | |||||||||||||
Discharge Voltage Range | 24-28.8V | 48-57.6V | 24-28.8V | 48-57.6V | |||||||||||||
MAX. Charge & Discharge Current | 120A | ||||||||||||||||
Rated Charge & Discharge Current | 80A | ||||||||||||||||
MAX. Output Power | 2500W | 5000W | 2500W | 5000W | |||||||||||||
Rated Output Power | 1250W | 2500W | 2000W | 4000W | |||||||||||||
DOD | 0.95 | 0.95 | 0.95 | 0.95 | |||||||||||||
Modules Connection | 1-6 in parallel | ||||||||||||||||
Communication | CAN&RS485 | ||||||||||||||||
Ingress Protection | IP21 | ||||||||||||||||
Cycle Life | >3000 times, @25℃ | ||||||||||||||||
Working Temperature Range | Discharge:-20°C to +60°C, Charge:+0°C to +55°C | ||||||||||||||||
Gross Weight(kg) | 39.8kg | 77.4kg | 54.6kg | 104.5KG | |||||||||||||

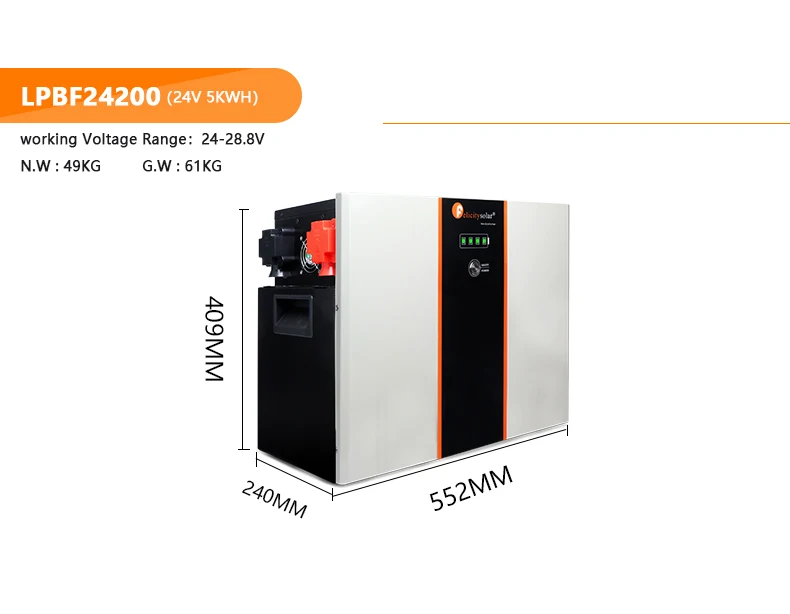

Product Dimension(MM) | 485*370*240mm | 485*573*240mm | 552*409*240mm | 552*649*240mm | |||||||||||||
Package Dimension(MM) | 615*550*365mm | 615*750*365mm | 685*590*365mm | 685*830*365mm | |||||||||||||

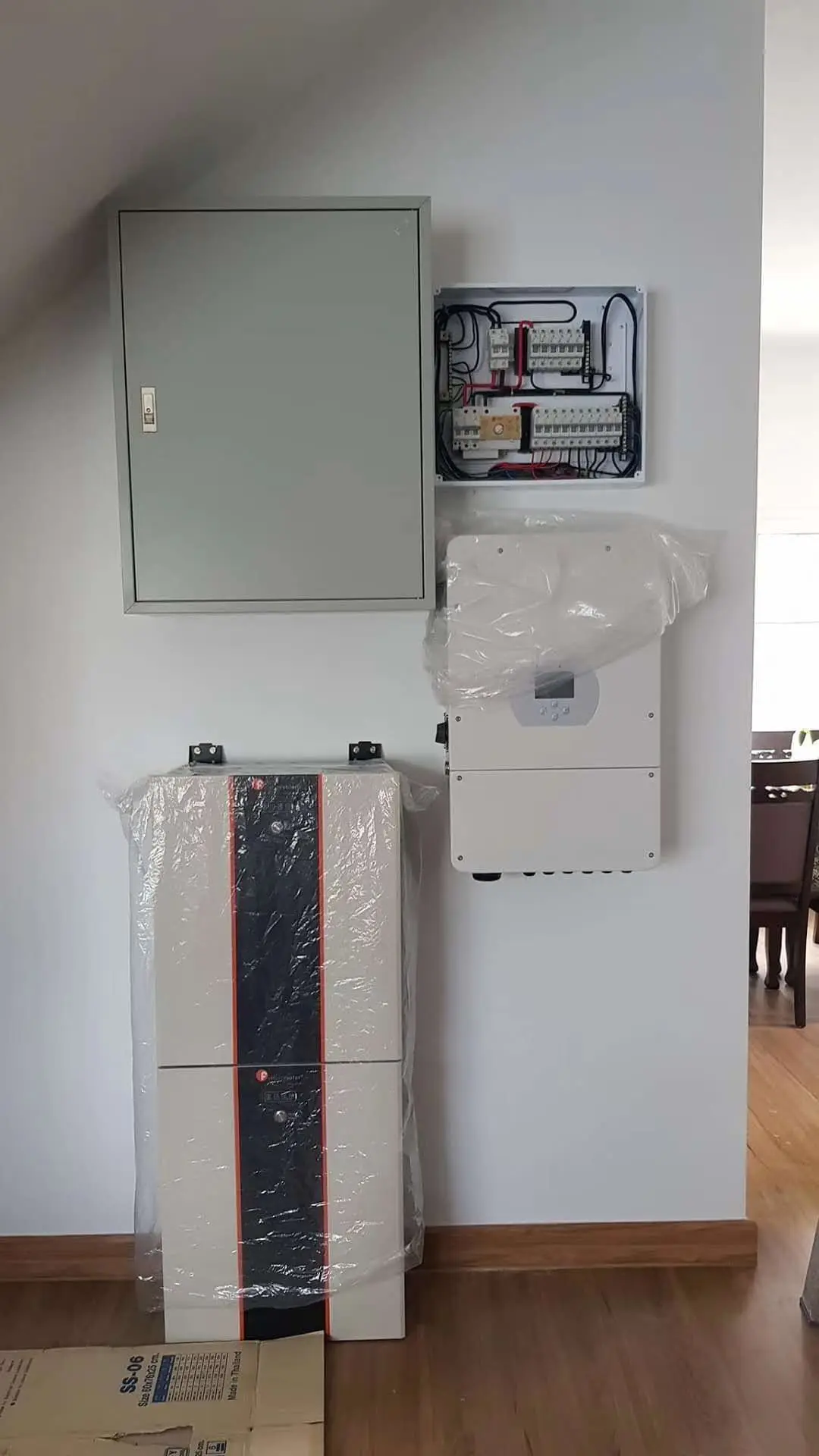

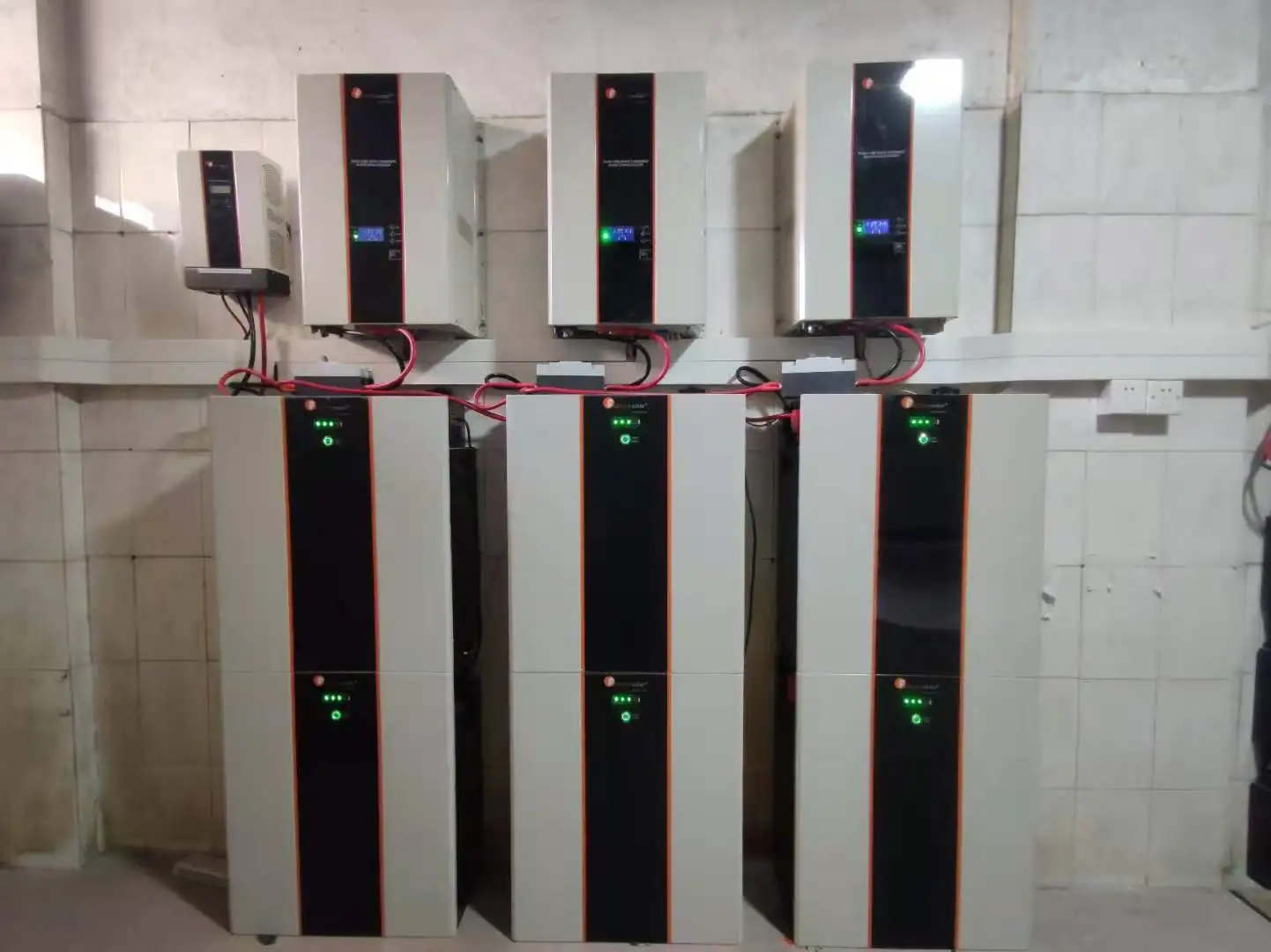

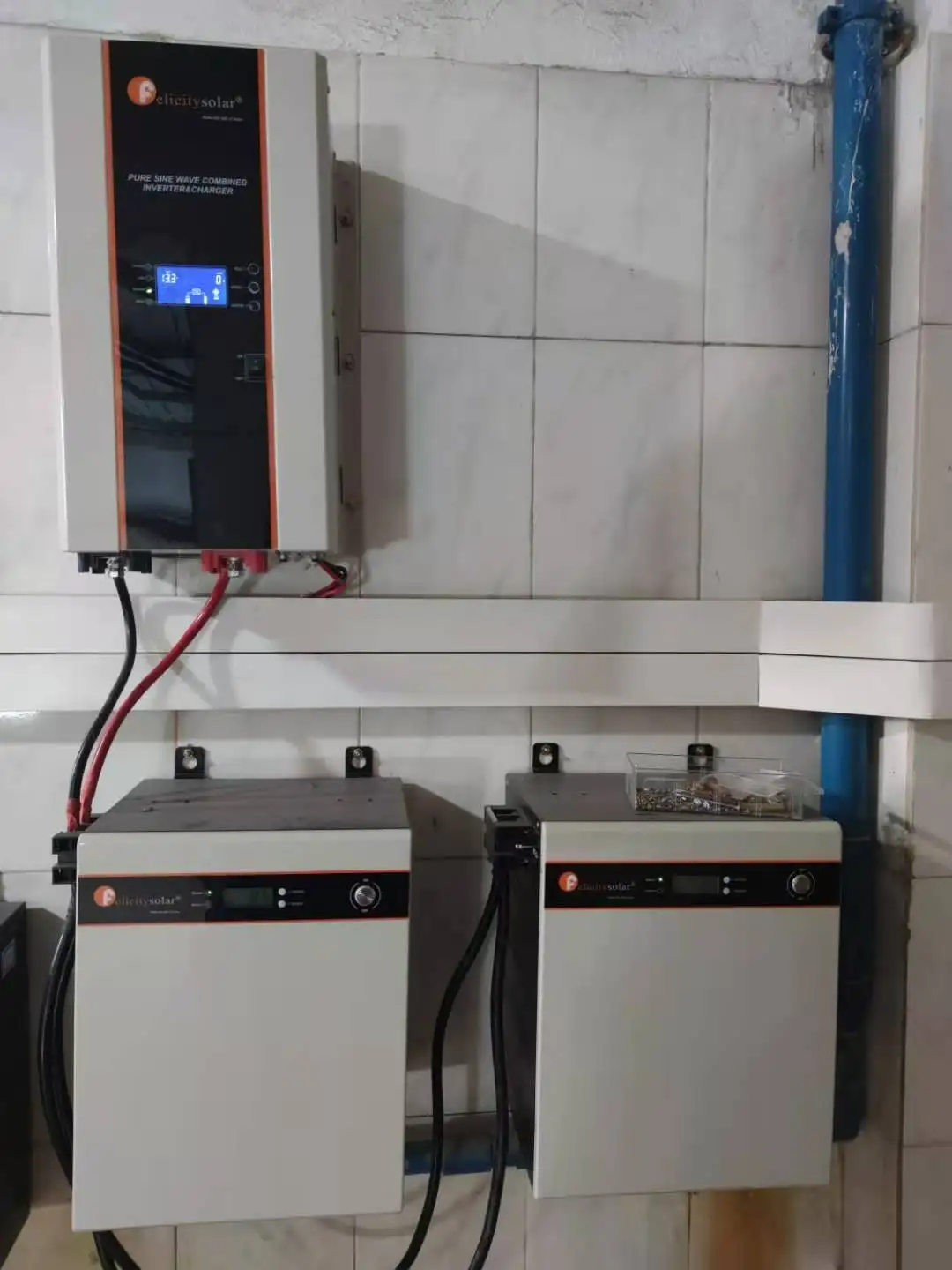

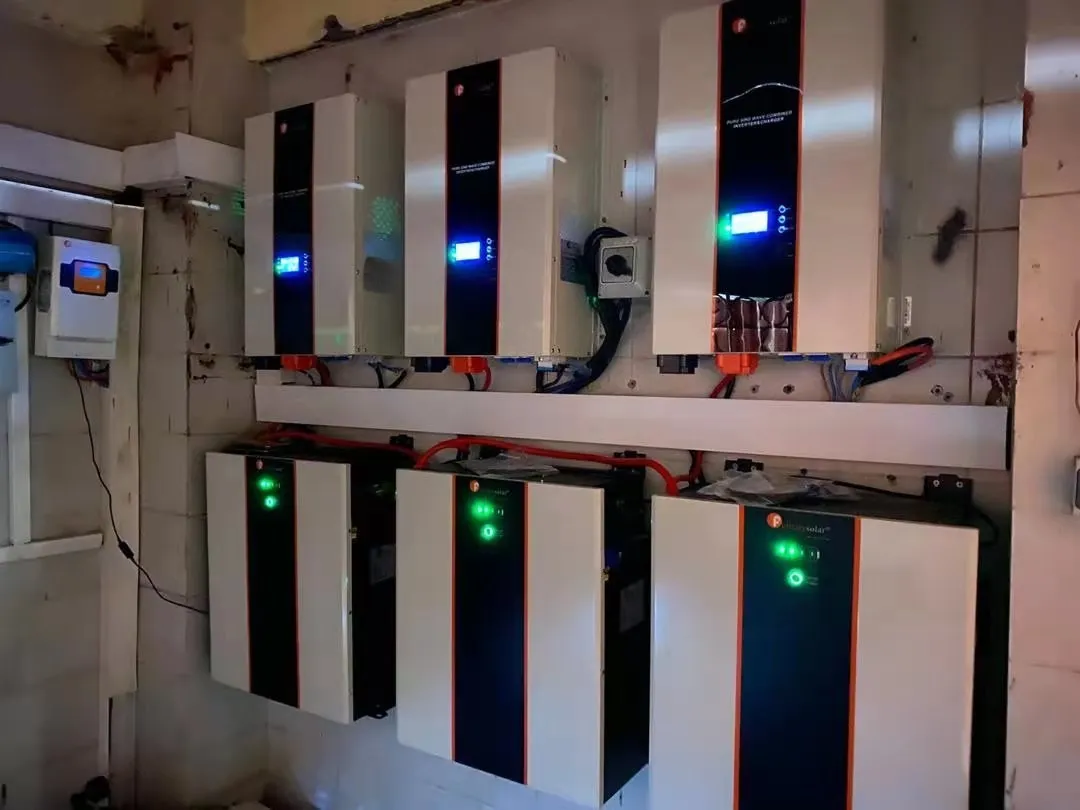

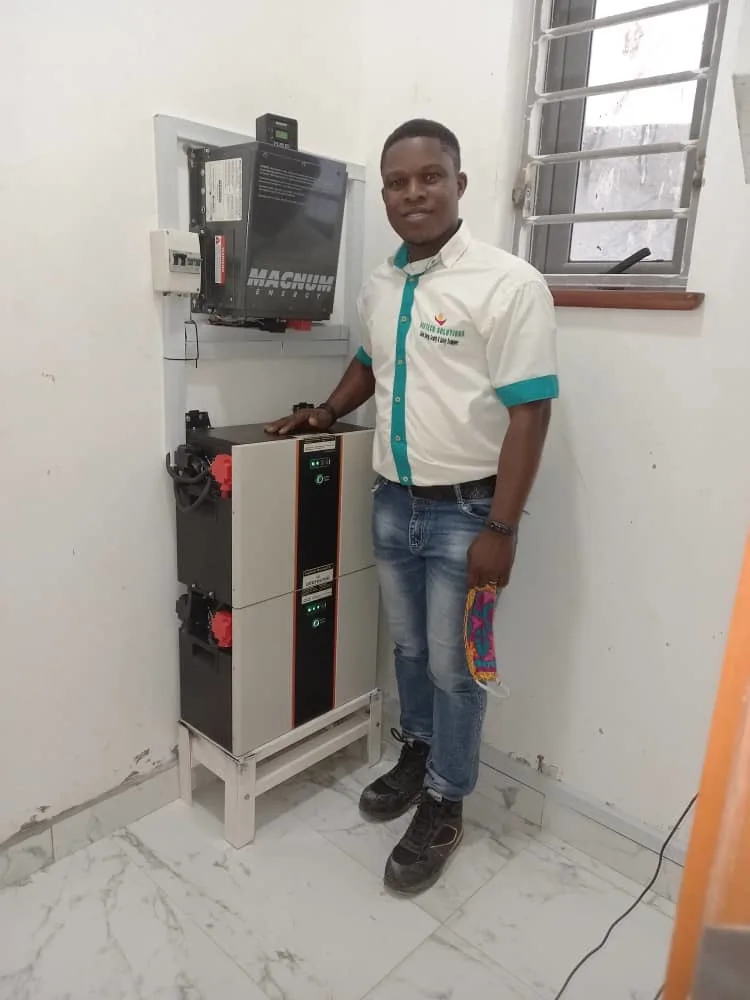

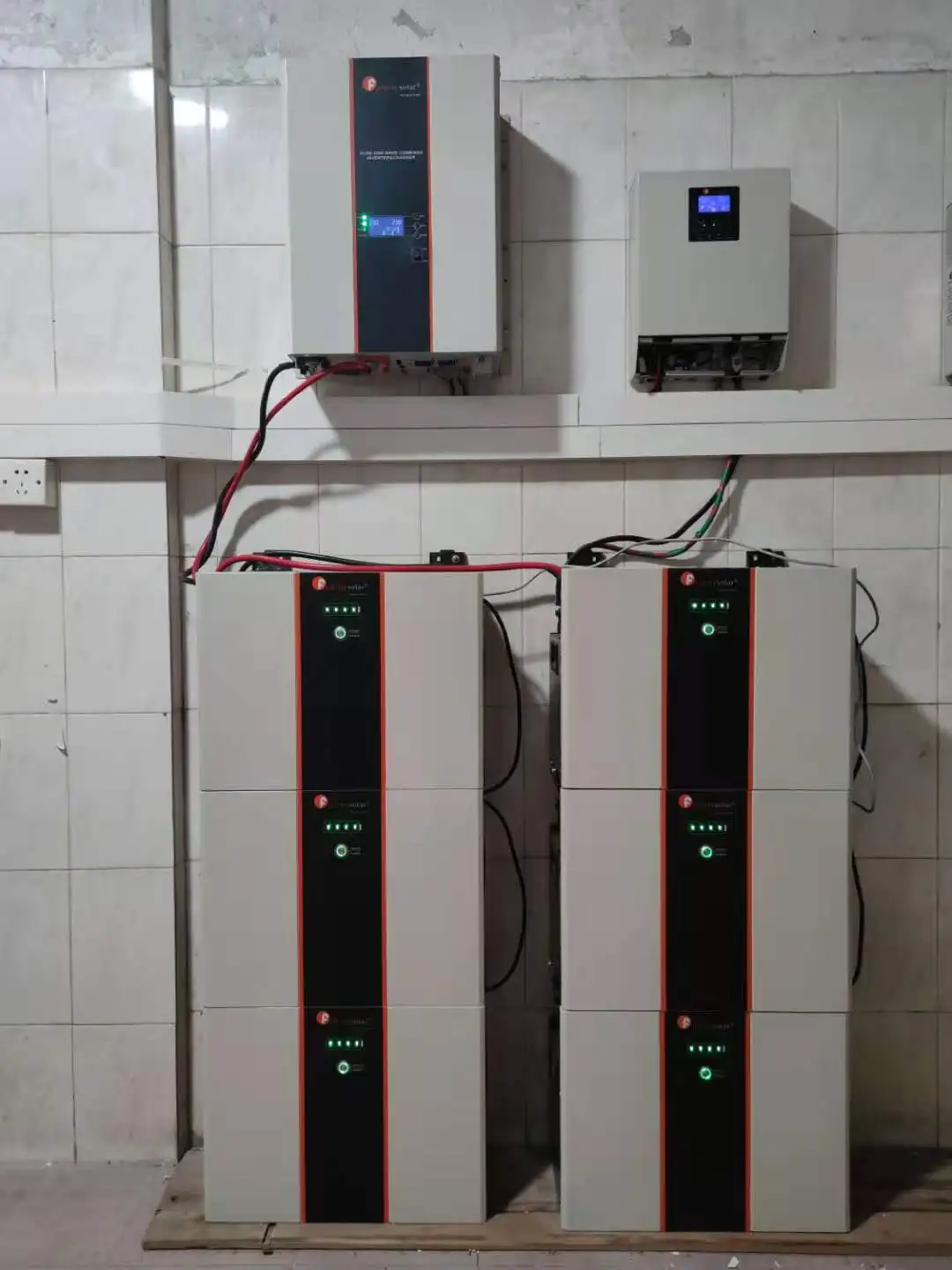

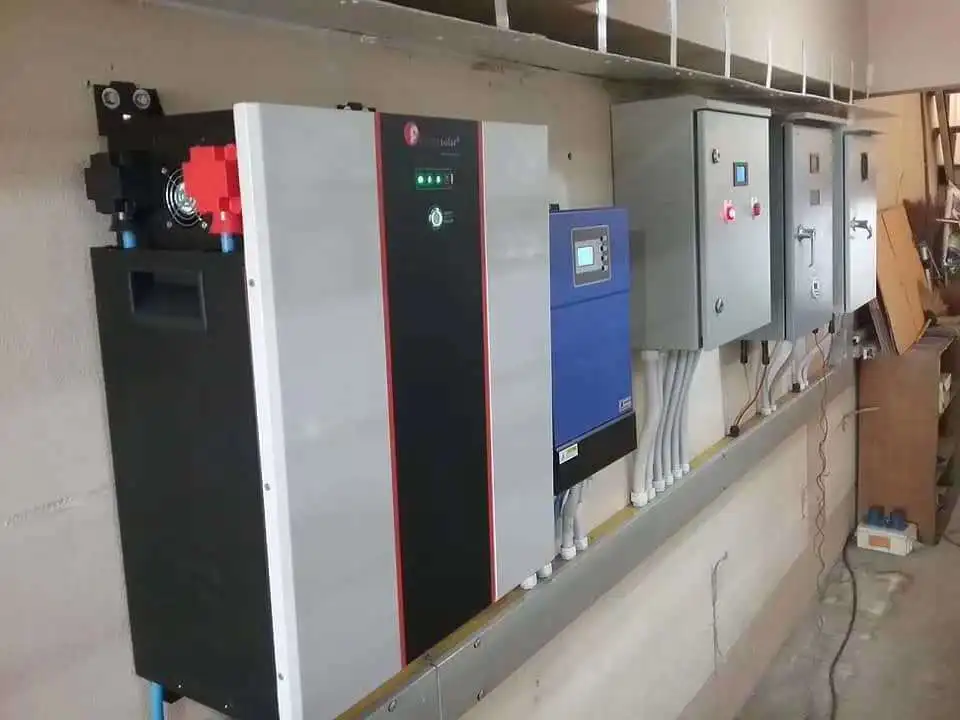

Parallel connection show

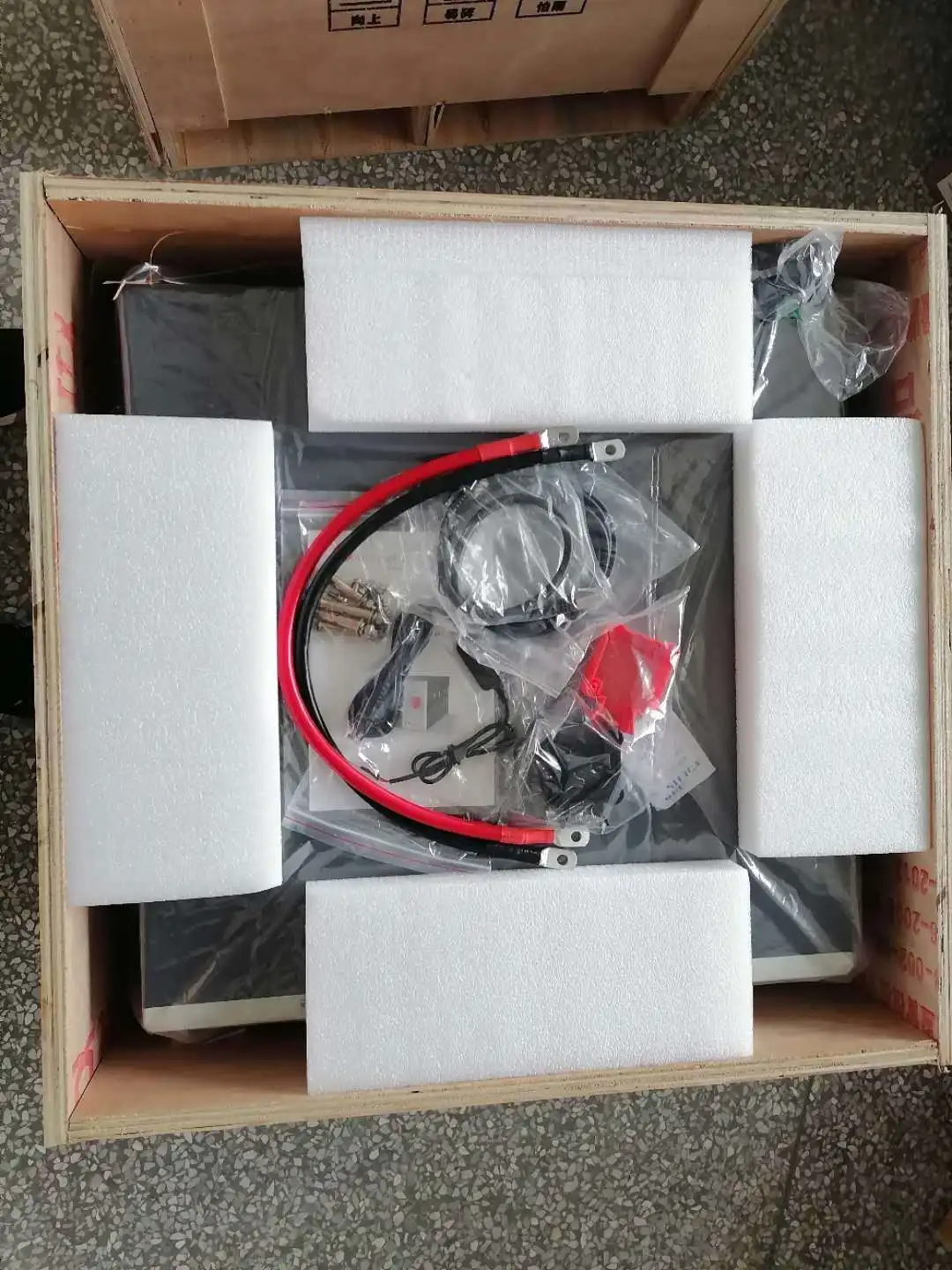

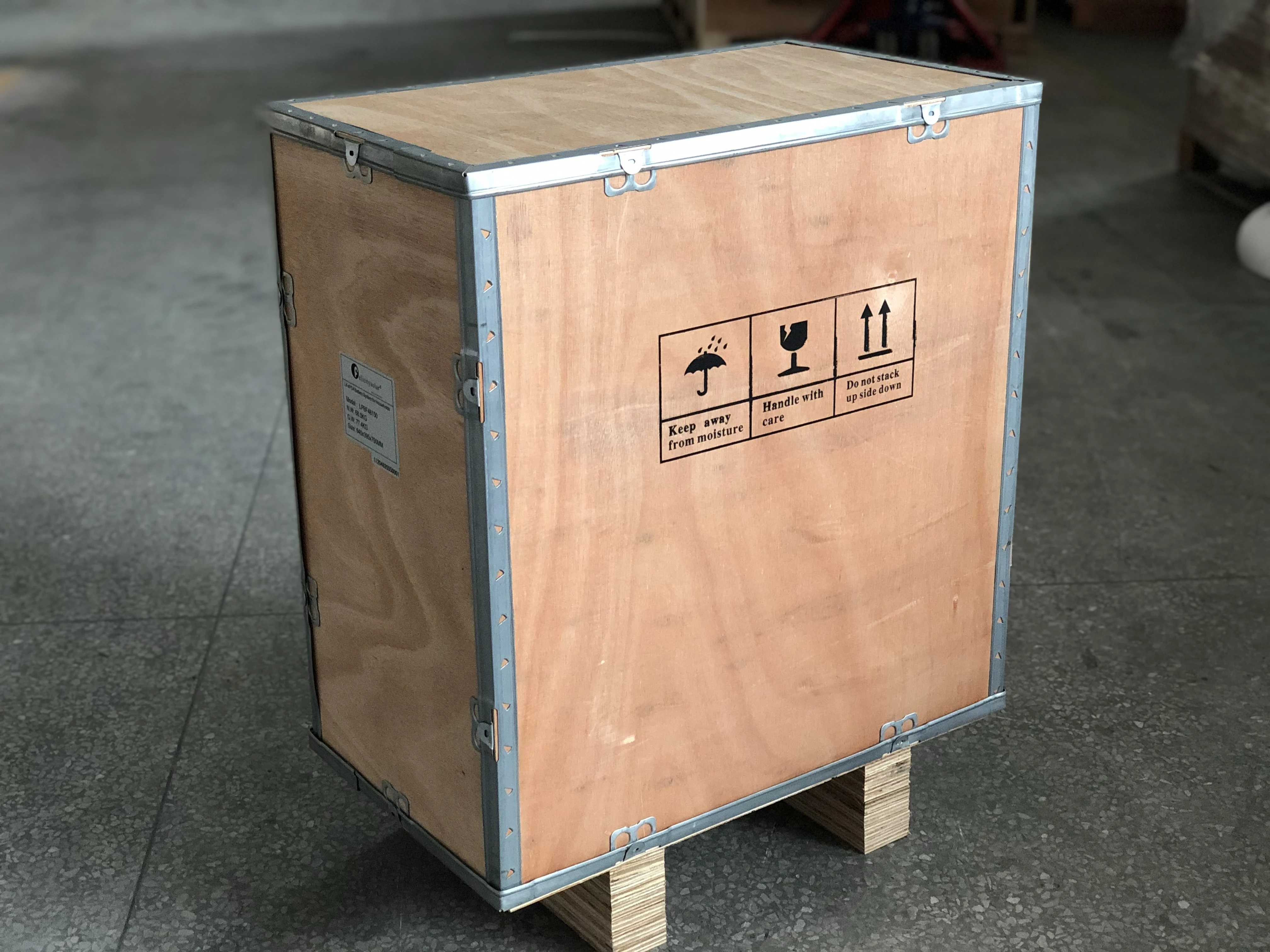

Packing & Delivery
