Amitiem Erp A WIFI Full DC Inverter R32 Spit Air To Water Heat Pump
Amitiem Erp A+++ WIFI Full DC Inverter R32 Spit Air To Water Heat Pump
Amitiem Erp A+++ WIFI Full DC Inverter R32 Spit Air To Water Heat Pump
Amitiem Erp A+++ WIFI Full DC Inverter R32 Spit Air To Water Heat Pump
Amitiem Erp A+++ WIFI Full DC Inverter R32 Spit Air To Water Heat Pump
Amitiem Erp A+++ WIFI Full DC Inverter R32 Spit Air To Water Heat Pump
Amitiem Erp A+++ WIFI Full DC Inverter R32 Spit Air To Water Heat Pump

Amitiem Erp A WIFI Full DC Inverter R32 Spit Air To Water Heat Pump

Share on (1600627812804):


Price:$2,557.50 - $3,410.00

Quantity:


Product Overview

Description





Product Paramenters


Model
AVH-06V1FBA
AVH-09V1FBA
AVH-12V1FBA
AVH-15V4FBA
AVH-19V4FBA
Power Supply / Refrigerant
V/Hz/Ph
220-240/50/1 - R32
380-420/50/3 - R32
Energy class （35℃ SCOP）
A+++
A+++
A+++
A+++
A+++
Max. Heating Capacity (1)
kW
6.5
9.2
11.6
15.35
18.5
C.O.P (1)
W/W
4.61
4.38
4.3
4.78
4.47
Heating Capacity Min./Max.(1)
kW
3.5 / 6.5
4.3/9.2
5.5 / 11.6
6/15.35
9.2/18.5
Heating Power Input Min./Max.(1)
W
758 / 1410
927/2097
1107 / 2683
1222/3209
1834/4142
C.O.P Min./Max.(1)
W/W
4.5 / 4.7
4.38/4.71
4.3 / 4.9
4.78/5.06
4.47/5.01
Max. Heating Capacity(2)
kW
6
8.6
11.2
14.26
18.2
C.O.P (2)
W/W
3.46
3.37
3.45
3.64
3.6
Heating Capacity Min./Max.(2)
kW
3.15 / 6
3.9/8.6
4.9 / 11.2
5.6/14.26
8.5/18.2
Heating power input Min./Max.(2)
W
943 / 1732
1162/2550
1401 / 3263
1551/3913
2248/4998
C.O.P Min./Max.(2)
W/W
3.34 / 3.56
3.37/3.58
3.3 / 3.5
3.64/3.82
3.6/3.82
Max. Cooling Capacity (3)
kW
7.45
9.5
9.8
18.57
22.5
E.E.R (3)
W/W
4.05
4.23
3.9
3.78
3.58
Cooling Capacity Min./Max.(3)
kW
6.22/7.45
6.7/9.5
7.0 / 9.8
7.23/18.57
8.5/22.5
Cooling Power Input Min./Max.(3)
W
1400/1863
1679/2242
1728 / 2510
1334/4917
1660/6285
E.E.R Min./Max.(3)
W/W
4.05/4.45
4.0/4.6
4.0 / 3.8
3.78/5.42
3.58/5.12
Max. Cooling Capacity (4)
kW
4.5
7.2
8.25
13
16
E.E.R (4)
W/W
2.7
2.8
2.9
2.96
2.85
Cooling Capacity Min./Max.(4)
kW
3.5/4.5
4.9/7.2
4.9 / 8.25
4.46/13
5.5/16
Cooling Power Input Min./Max.(4)
W
1330/1680
1451/2366
1358 / 2444
2592/4390
2970/5510
E.E.R Min./Max.(4)
W/W
2.5/2.74
2.8/3.1
2.6 / 3.5
2.96/3.29
2.85/3.2
Workable Ambient Temperature Range
℃
-25~43
Max. System Water Temperature (Heating)
60
Min. System Water Temperature (Cooling)
℃
7
Noise Level (sound power)
Indoor/Outdoor
dB(A)
44/52
44/53
44/52
44/59
44/61
Note: (1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃;
(2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃;
(3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB 35℃/WB 24℃;
(4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB 35℃/WB 24℃;
(5) The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the
stickers on the unit.


Details Images

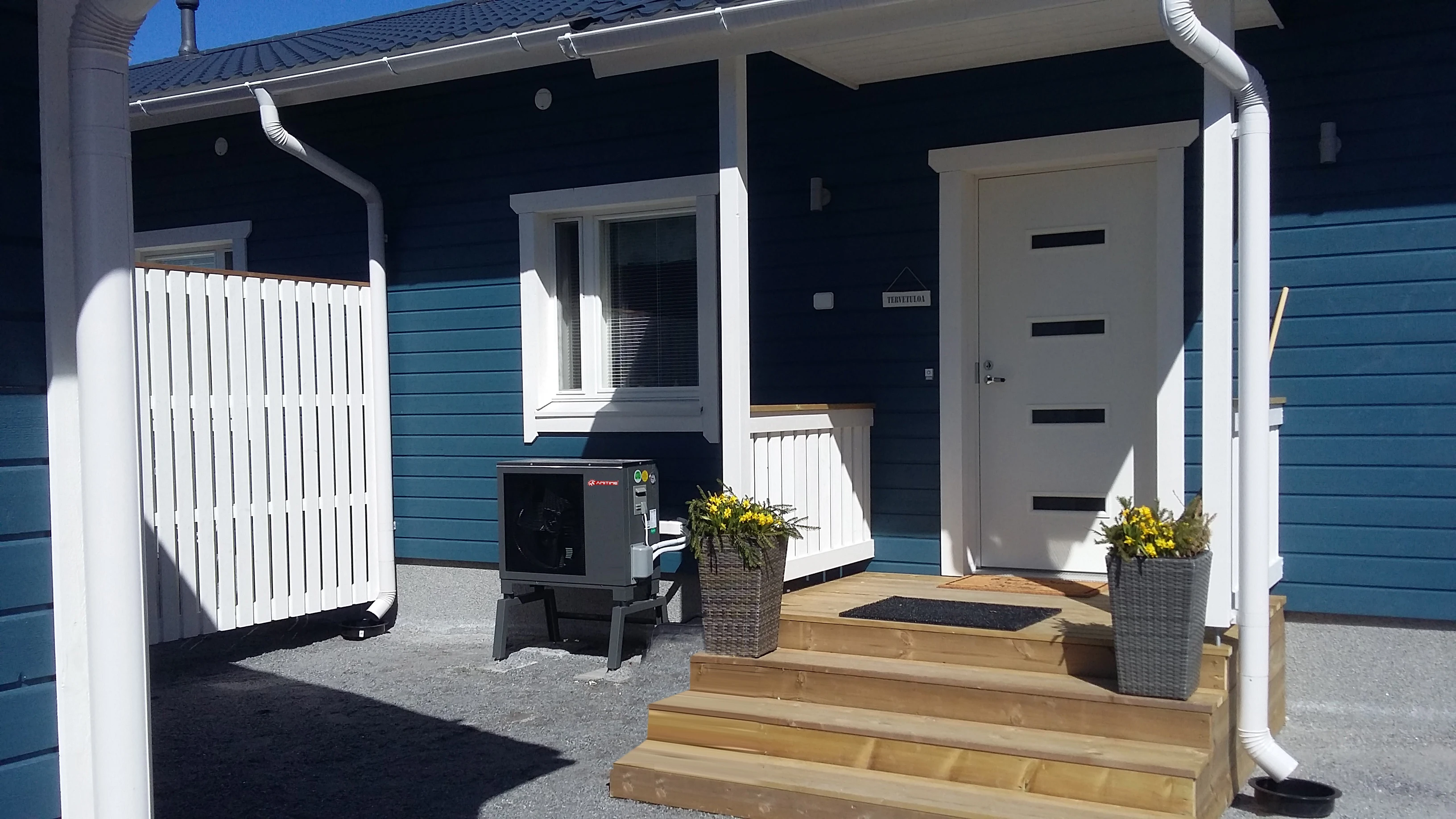

Project Cases
