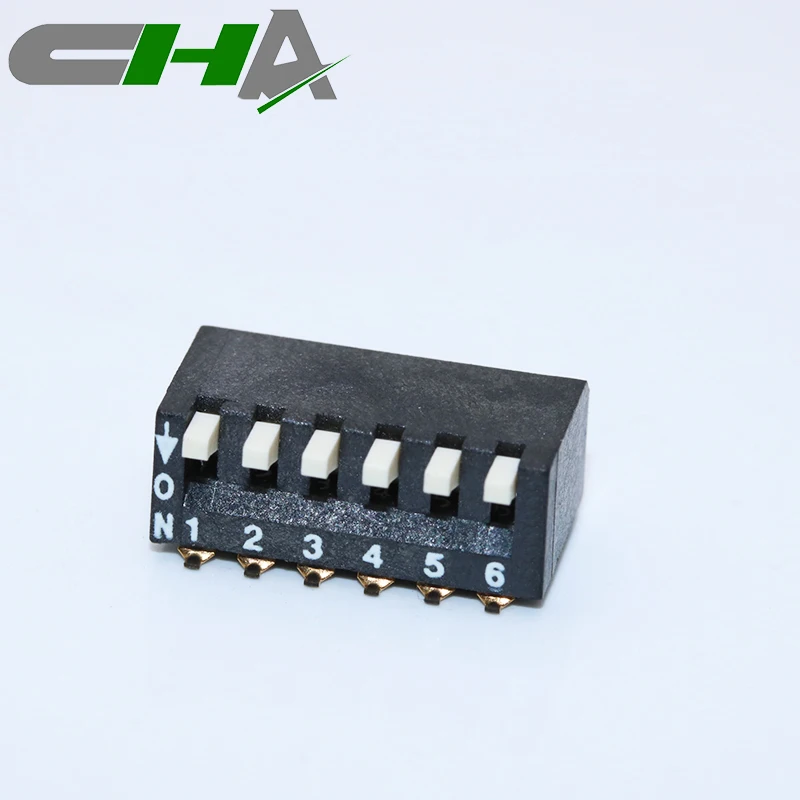

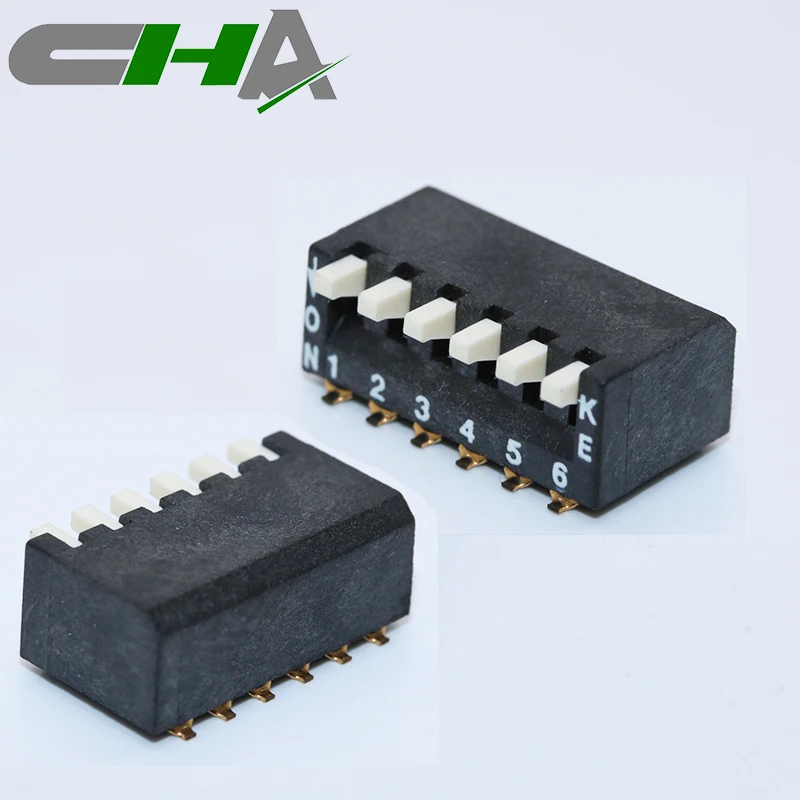

CHA Dial switch DIP switches CDM series SMD code DIP switch for rf remotes control
- Category: DIP Switches >>>
- Supplier: Zhaohua,Hongye,Technology,(shenzhen),Co.,Ltd.
Share on:
Product Overview
Description
CHA Dial switch DIP switches CDM series SMD code DIP switch for rf remotes control
| EPH/EPM Series DIP Switch | |
| Specifications | |
| Contact Rating: | 25 mA @ 24 VDC(switching) 100 mA @ 50 VDC(non-switching) |
| Initial: | 50mΩ Max |
| After Life: | 100mΩ max. |
| Insulation Resistance: | 100mΩ max.Min at 100 VDC |
| Dielectric strength: | 300 VAC for 60 seconds |
| Switch Capactiance | 5pF Max at 1MHz |
| Operating Temperature: | -30℃ to +85℃ |
| Storage Temperature: | -40℃ to +85℃ |
| Operating force: | 500gf Max |
| Mechanical Life: | 2000 cycles operations |
Q1. What is your terms of package?
A: Different product packaging is different, there are mainly four kinds. Including bags, Tubes, Reel, carton box.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
