Dust suppression good quality sprinkler water tank truck price
US $30000-$35000
25000 Liters Howo 6x4 water tank truck sprinkler water truck Ready To Ship
- Category: Watering Cart >>>
- Supplier: Newindu,Construction,Engineering,(Shanghai),Co.,Ltd.
Share on:
Product Overview
Description
Contact way
Sales Manager
Christine Wu
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Skype/Wechat: +86-17839610746
Christine Wu
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Skype/Wechat: +86-17839610746
Email: christine@newindu.com
Web: www.newindu.com
Web: www.newindu.com
Products Description

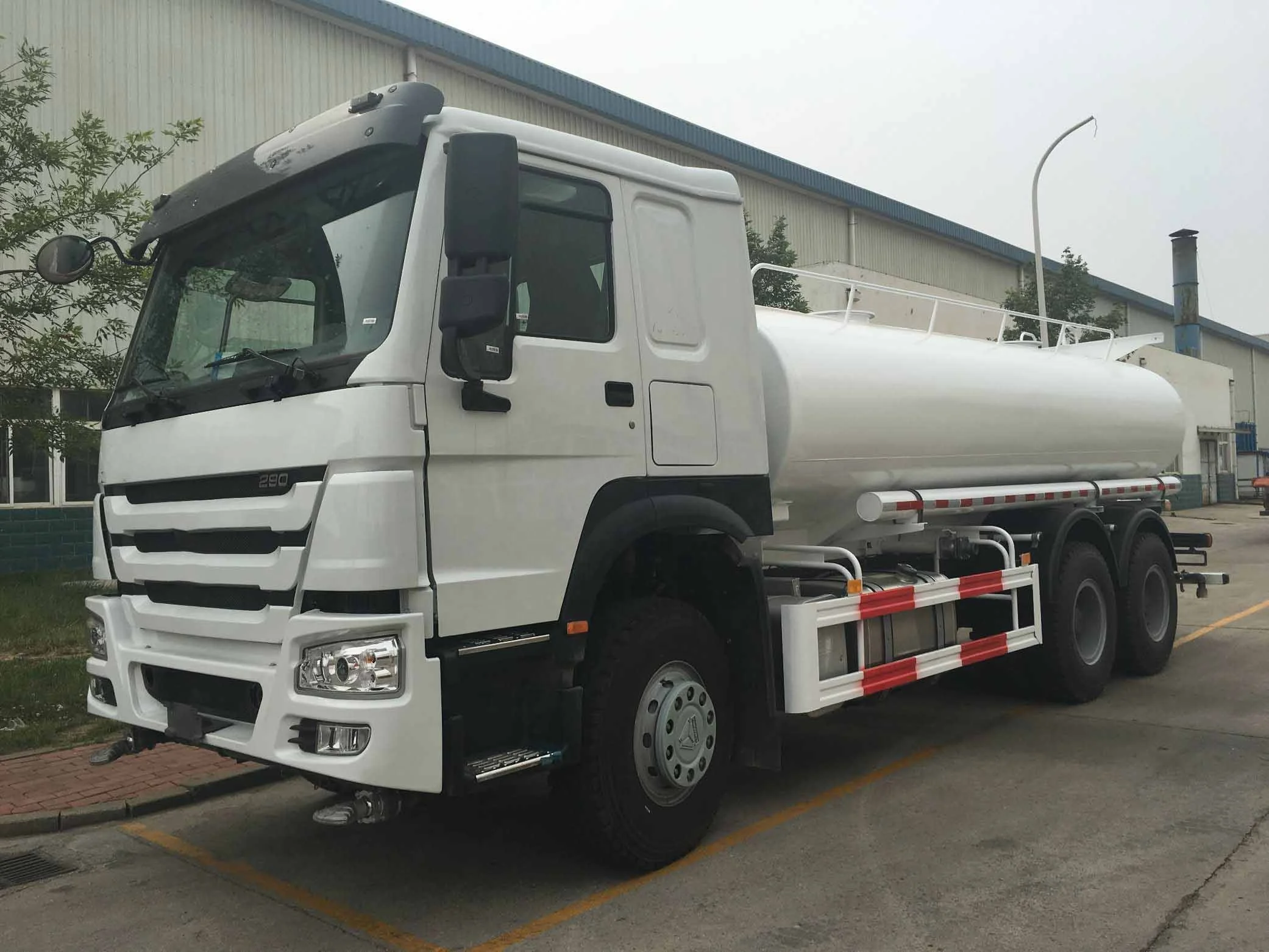

Sinotruk HOWO 6x4 25000L water tank truck stainless steel water tank truck for sale
Multi-functional green sprinkler
* Used in urban roads, large factories, troops, gardens and other units to clean the road, sanitation, dust, watering, spraying
pesticides, to achieve the role of beautifying the environment.
* Used for temporary emergency fire sprinkler, each sprinkler is equipped with special fire interface.
Selling points
* Engine drives the gearbox, the force extractor drives the sprinkling pump, which generates the main power, and the liquid inside the tank is sprayed through the pipe network.
* Self-suction height :≤7m, sprinkler width :≥20m, maximum range :≥28m;Can be adjusted into a columnar, range ≥28m;Can also be adjusted into fog, range ≥5m.
* Spray before and spray after, before installing duck nozzle or round head nozzle, after installing cylinder to open sprinkler nozzle or showerhead nozzle
* The rear working platform is equipped with water cannon.8 nozzles (optional)
* The sprinkler is used to wash the street fog gun sprinkler, the anti-fog long distance air spray machine, can atomize the tap water and spray water mist 600 meters away, on the haze, dust is bigger construction site dust and cooling effect
* Vehicle-mounted large fog gun can spray 120 meters far, 70 meters high water mist, compared to the ordinary sprinkler, fog gun car ejected water mist particles are very small
* The new 10-ton water cannon can spray for one hour, covering an area of more than 30,000 square meters, greatly improving the utilization rate of water resources.
pesticides, to achieve the role of beautifying the environment.
* Used for temporary emergency fire sprinkler, each sprinkler is equipped with special fire interface.
Selling points
* Engine drives the gearbox, the force extractor drives the sprinkling pump, which generates the main power, and the liquid inside the tank is sprayed through the pipe network.
* Self-suction height :≤7m, sprinkler width :≥20m, maximum range :≥28m;Can be adjusted into a columnar, range ≥28m;Can also be adjusted into fog, range ≥5m.
* Spray before and spray after, before installing duck nozzle or round head nozzle, after installing cylinder to open sprinkler nozzle or showerhead nozzle
* The rear working platform is equipped with water cannon.8 nozzles (optional)
* The sprinkler is used to wash the street fog gun sprinkler, the anti-fog long distance air spray machine, can atomize the tap water and spray water mist 600 meters away, on the haze, dust is bigger construction site dust and cooling effect
* Vehicle-mounted large fog gun can spray 120 meters far, 70 meters high water mist, compared to the ordinary sprinkler, fog gun car ejected water mist particles are very small
* The new 10-ton water cannon can spray for one hour, covering an area of more than 30,000 square meters, greatly improving the utilization rate of water resources.
Specifications
Truck Brand | SINOTRUK—HOWO | ||
Driving Type | Left hand driving | ||
Dimension(Lx W xH) | 9896×2500×3680 | ||
Approaching angle/Departure angle(°) | 10/12 | ||
F/R track base(mm) | 1939/1958 | ||
Tank capacity( m3 ) | 20 | ||
Medium | Diesel | ||
Wheel base (mm) | 4600+1350 | ||
Max speed(km/h | 90 | ||
Curb weight(kg) | 8000 | ||
Loading Weight(kg) | 11890 | ||
Engine (Steyr technology, made in China) | Model | WD615.62,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | |
Fuel type | Diesel | ||
Horse Power, max(kw/rpm) | 266HP | ||
Emission | EURO II | ||
Fuel tanker capacity (L) | 350 | ||
Transmission | Model | HW13710,10 forward&2 reverse | |
Brake system | Service brake | Dual circuit compressed air brake | |
Parking brake | spring energy, compressed air operating on rear wheels | ||
Auxiliary brake | Engine exhaust brake | ||
Steering system | Model | JL80Z | |
Front axle | Steering with double T-cross section beam | ||
Rear axle | Pressed axle housing, central double reduction with differential locks between axles and wheels | ||
Color | Optional | ||
Tire | 11.00-20 | ||
Tire quantity | 10+1 spare | ||
Electrical system | Battery | 2X12V/165Ah | |
Alternator | 28V-1500kw | ||
Starter | 7.5Kw/24V | ||
Cab | L2000 cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers HOWO76 cab with one sleeper and air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||
