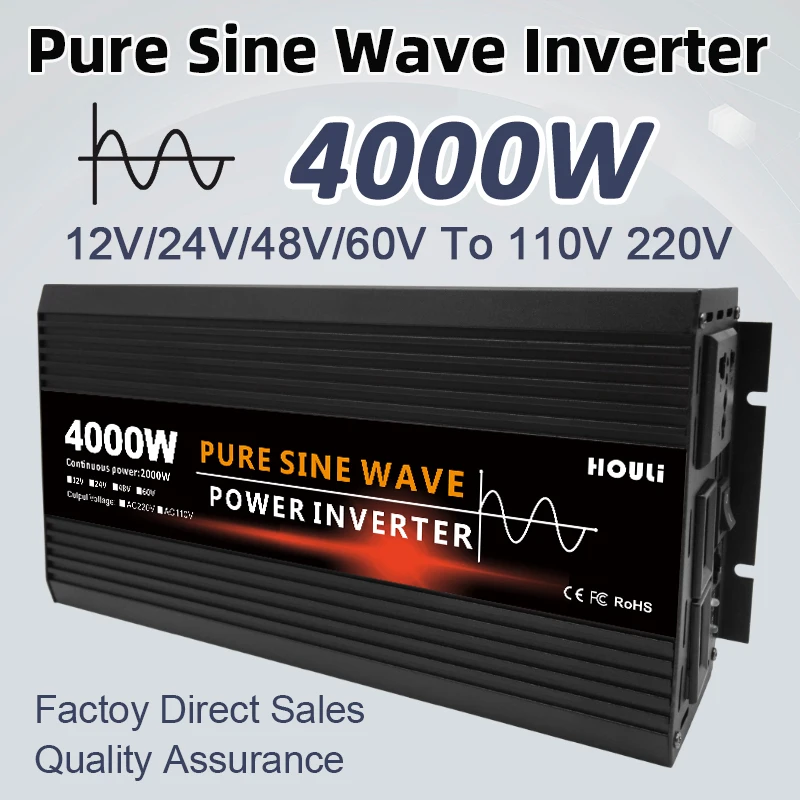

Инвертор немодулированного синусоидального сигнала HOULI 12 в 230 В 4000 Вт Инвертор домашний автомобильный генератор инвертор
- Category: >>>
- Supplier: Shenzhen Shenpu Photoelectric Co. Ltd.
Share on (1600627841730):
Product Overview
Description
Products Description
Model | HL-P-L2000 | ||||||
Input DC Voltage | 12V | 24V | 48V | 60V | |||
Output AC Voltage | AC220V/AC110V | ||||||
Continuous Power | 2000W | ||||||
Surge Power | 4000W | ||||||
Waveform | Pure Sine Wave (THD<3%) | ||||||
Efficiency | >90% | ||||||
Frenquency | 50HZ/60HZ±3HZ | ||||||
Working temperature | 0~70℃ | ||||||
Storage temperature | -30℃~+70℃ | ||||||
Note:
The continuous power is the actual power of the inverter. ( Inverter 4000W, actual power(continuous power) is 2000W ) When purchasing an inverter, you must first understand the voltage and frequency used in your country. Buying an inverter according to the frequency of your country will greatly improve the conversion efficiency of the inverter. If you have any questions, please contact us before purchasing. Thank you!
Feature:

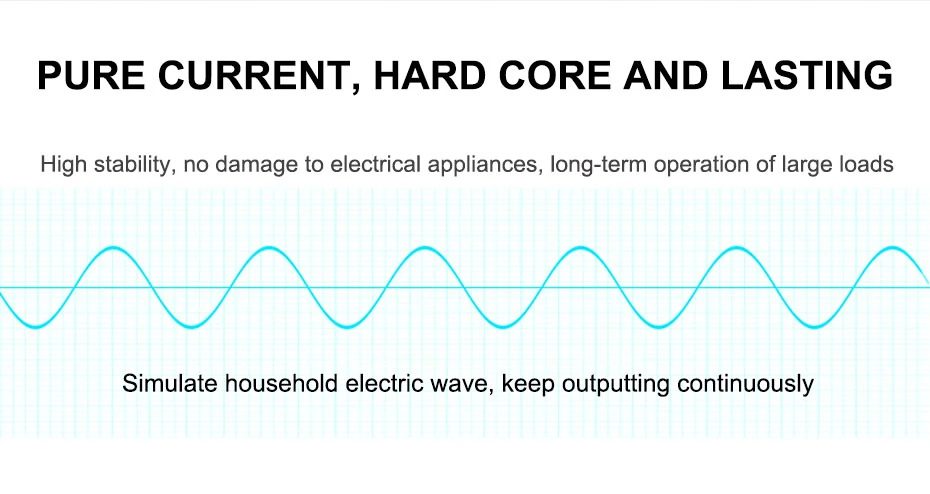

1. Pure sine wave, intelligent filter, does not interfere with electrical appliances, protects electrical appliances. With high conversion efficiency (up to 95%), the low power consumption of the product itself can greatly extend battery life.
2. You can use electrical equipment, including TV / LED lights / LCD displays, especially inductive load appliances such as refrigerators, freezers, induction cookers.
3. Pure sine wave inverter, 110V / 220V for city power supply and power quality, so it has.

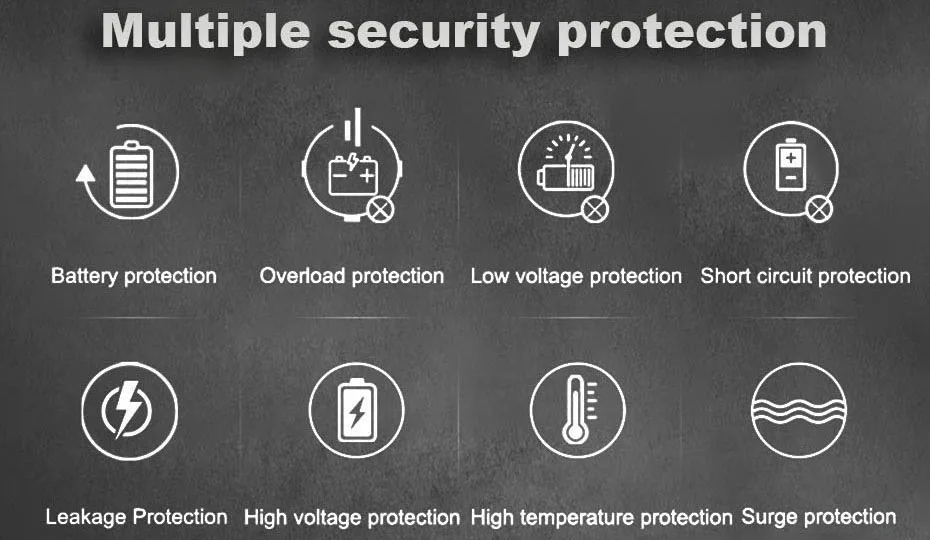

4. Eight-bit intelligent protection: overload protection, high voltage protection, low voltage protection, overheating protection, reverse connection protection, short circuit protection, overcurrent protection, insurance protection,Intelligent chip control, perfect protection.
1. Pure sine wave, intelligent filter, does not interfere with electrical appliances, protects electrical appliances. With high conversion efficiency (up to 95%), the low power consumption of the product itself can greatly extend battery life.
2. You can use electrical equipment, including TV / LED lights / LCD displays, especially inductive load appliances such as refrigerators, freezers, induction cookers.
3. Pure sine wave inverter, 110V / 220V for city power supply and power quality, so it has.
4. Eight-bit intelligent protection: overload protection, high voltage protection, low voltage protection, overheating protection, reverse connection protection, short circuit protection, overcurrent protection, insurance protection,Intelligent chip control, perfect protection.

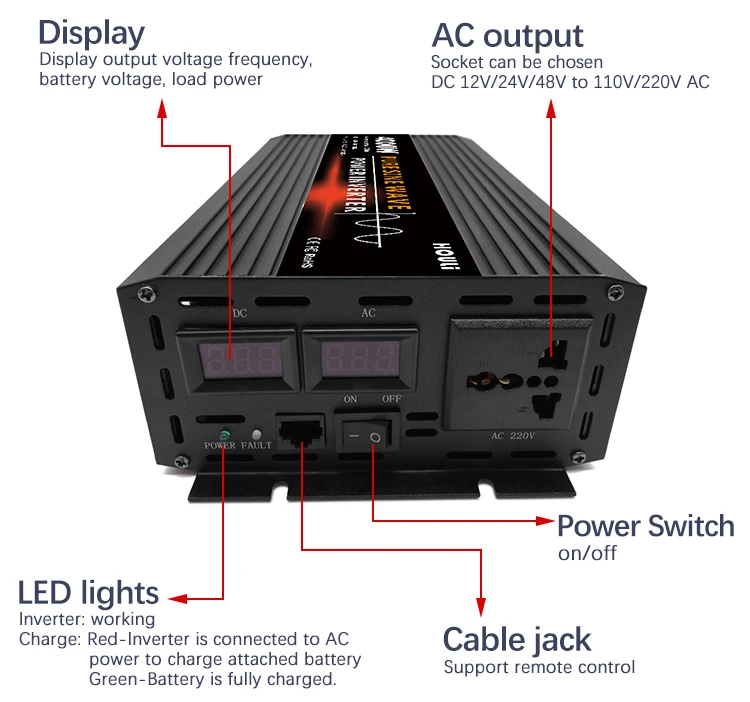

Details Images

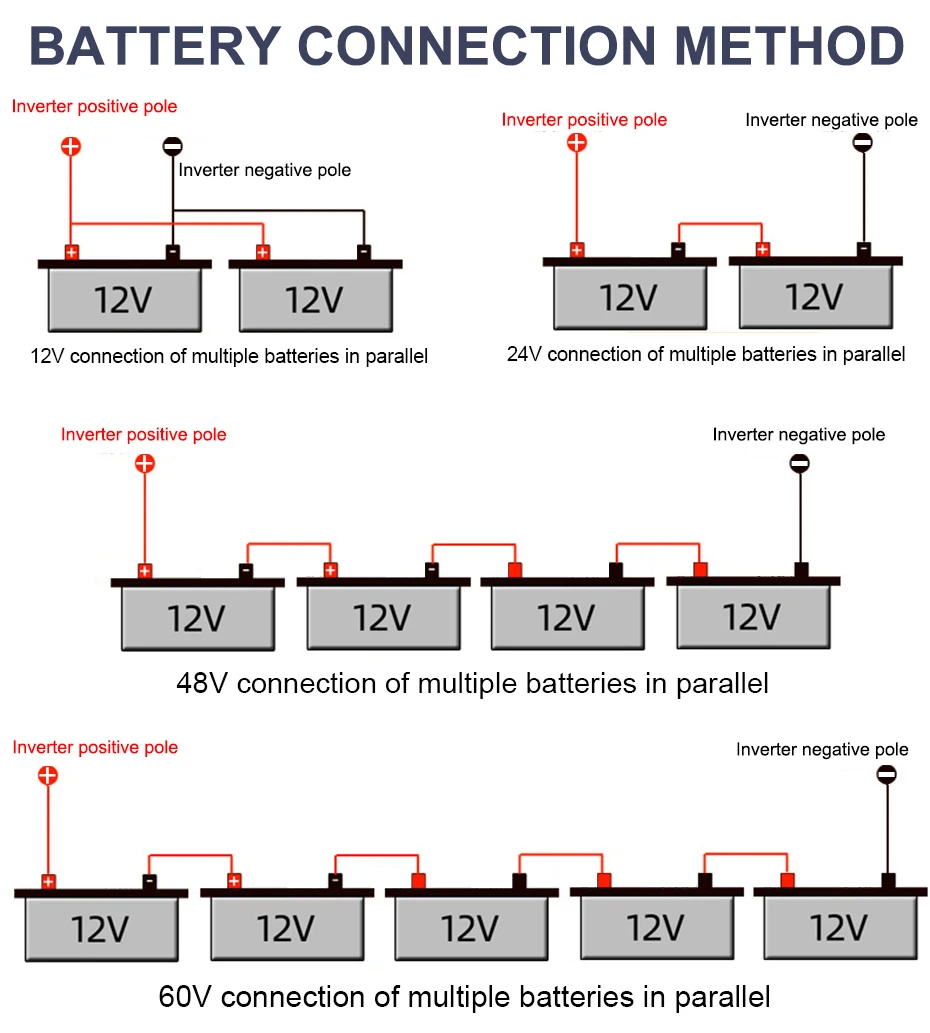

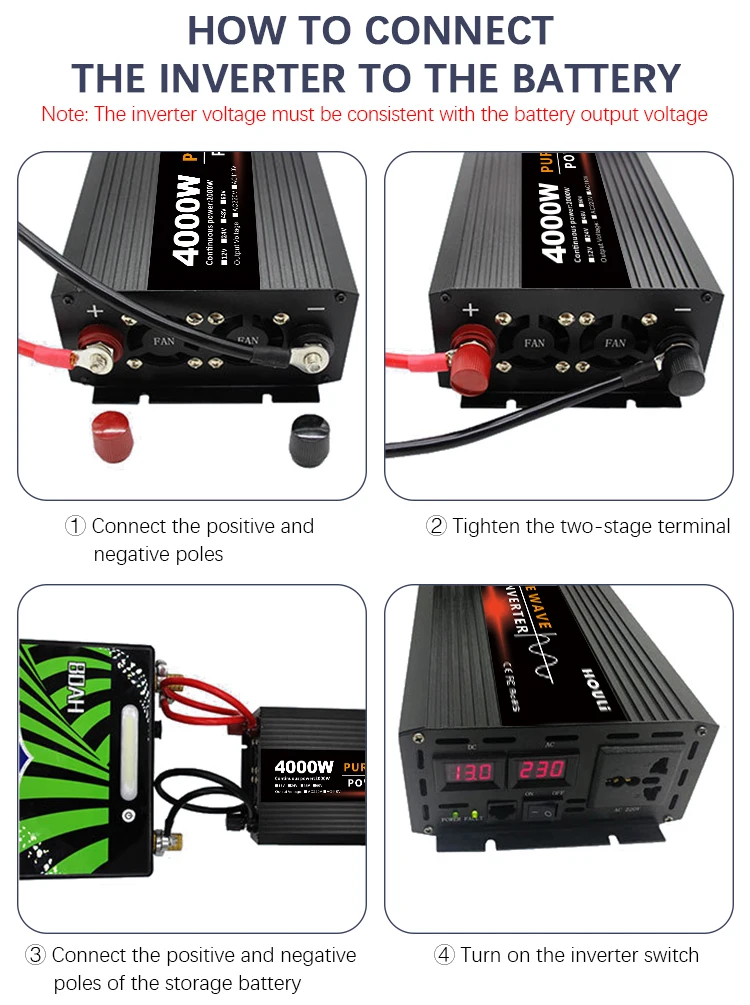

Usage Method
Product Advantage
Application

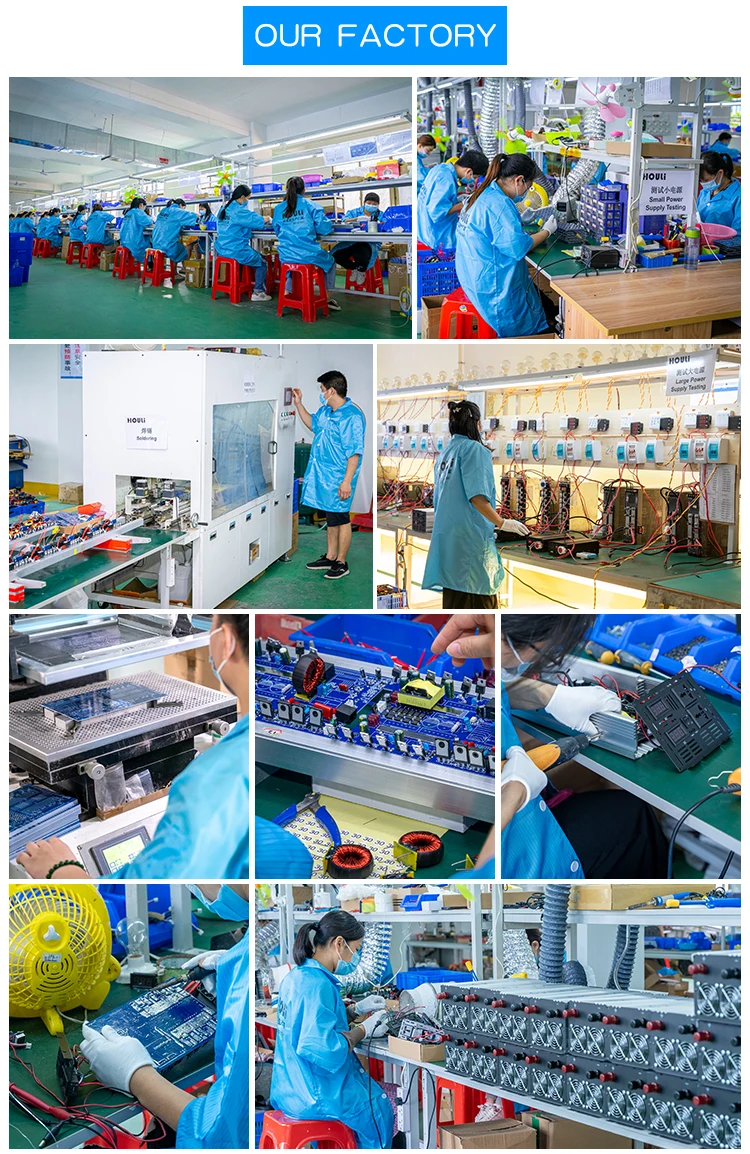

Company Profile

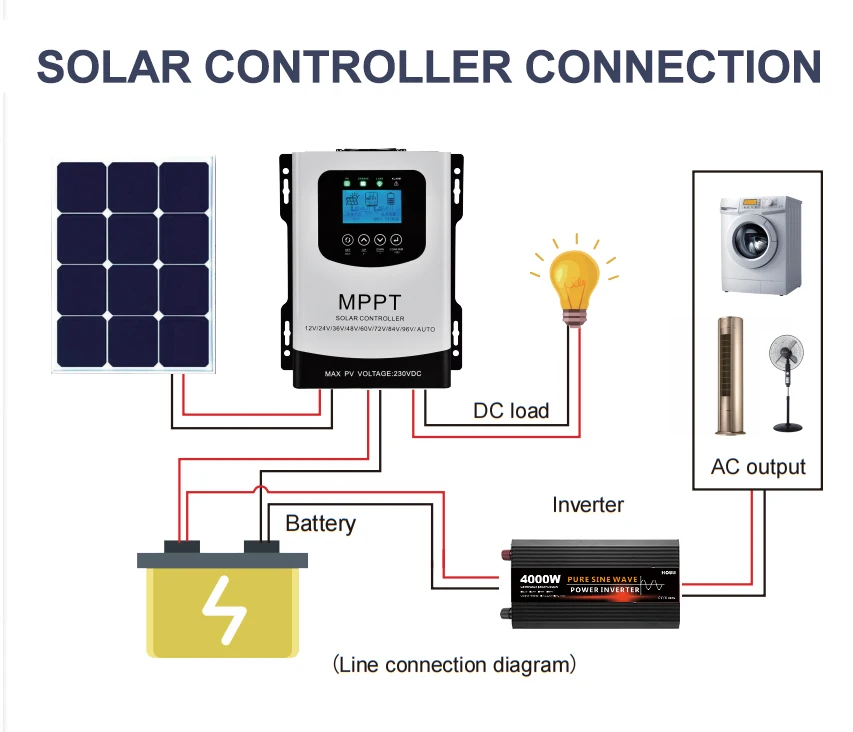

Shenzhen Shenpu Photoelectric Co., Ltd is a technology company 8 years professional manufacturer, Main products Including Solar power generation products, like Power inverter, MPPT, and PWM Solar charger. Product has passed CE ROHS UKCA FCC certification.
Factory has a rofessional R&D team to support OEM ODM service. Professional sales team provide 24 hours pre-sales and after-sales service. Nearly 100 employees on production department to ensure fast delivery and timely response to customer requirements. Welcome to contact us for advice or more details.
FAQ
How to choose an inverter?
1.Determine what the battery voltage is, and what is the capacity of the battery?
If your battery output voltage is 12V.you have to choose a 12V inverter. The size of the battery will directly affect the size of the charger. The laeger the battery,the more electrical appliances it can carry.
Such as 12Vbattery *60AH capacity *0.8 conversion rate + 576W or less can be brought.

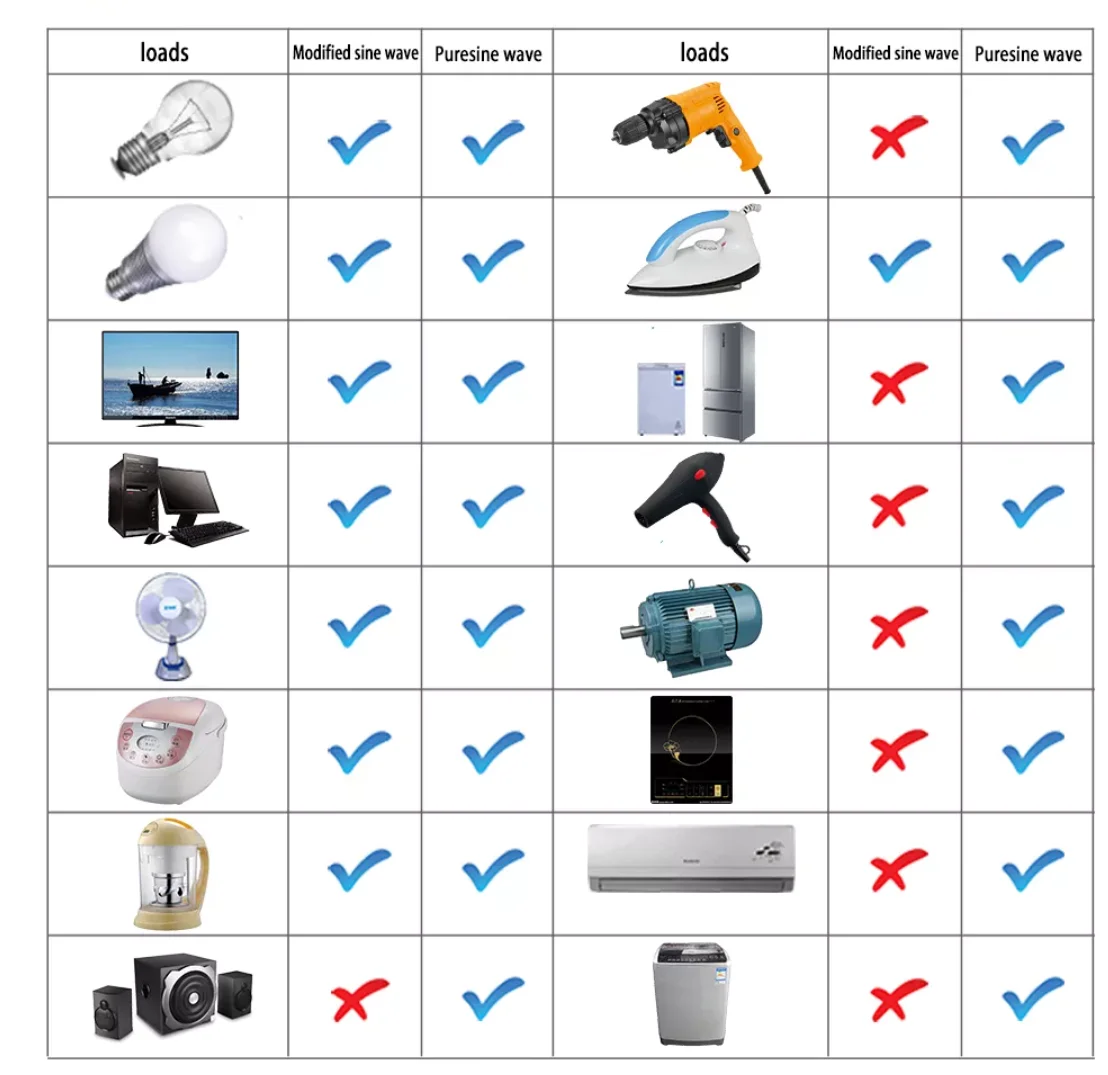

2.What kind of electrical appliances can I bring?
Electrical appliances are divided into resistive loads and inductive load appliances.
Resisstive appliances:
computers,televisions,fans,electric lights and other household appliances.
Inductive appliances:
refrigerators,washing machines,jce machines,hand drills,pumps,sanders,etc.
Resistive appliances do not have starting power,and inductive appliances have starting power,which is generally between 3 and 7 times.
Therefore, it is necessary to detemine whether the appliances is a resistive appliances or an inductive appliance.
However, the inductive load appliance has a starting power of 3-7 times, the continuous power meets the condition, and the starting power must also meet the conditions before it can be driven.
FOR EXAMPLE
FOR EXAMPLE
If the battery is 12V/60AH,can you use a 2000W inverter with a 500W hard drill ?
1.First look at the maximum battery charger is :12*60*0.8 = 576W,>500W.
2.Determine whether the electrical appliance is a resistive electrical appliance or an inductive electrical appliance: the hand drill is an inductive electric drill.
3.The continuous power of the hand drill is 500W,and the duration of 2000W is 1000W,>500W.
The starting power is generally about 3 times (the starting power of dofferent electrical appliances is different) so 500W X 3 = 1500W, the starting power of the 2000W inverter is 2000W,>1500W Therefore,the 500W hand drill can be used with a 12V/60AH battery and a 2000W inverter.
Other appliances can also be judged by this method.
Common problems and Solutions
Outside interference
Outside interference
A: The frequency converter may be disturbed by some strong electromagnetic waves in use, such as the strong magnetic field of the nearby motor and power frequency converter, which will affect the use effect.
Inverter does not respond
1.The connection between the battery and the inverter is incorrect, please re connect.
2. The polarity of the battery is reversed and the fuse is blown. Replace the fuse.
Low output voltage
Low output voltage
1. Overload, load current exceeds rated current, turn off part of load and restart.
2. The input voltage is too low. Ensure that the input voltage is within the nominal voltage range.
Low voltage alarm
1. The battery is dead and needs to be charged.
2. If the battery voltage is too low or the contact is poor, please charge the battery, check the battery terminal or clean the terminal with dry cloth
No output of inverter
1. The battery voltage is too low, please recharge or replace the battery.
2. If the load current is too high, turn off part of the load and restart the inverter.
2. If the load current is too high, turn off part of the load and restart the inverter.
3. Inverter over temperature protection. Let the inverter cool down for a period of time and place it in a ventilated place.
4. If the inverter cannot be started, restart.
5. If the terminal is reversed and the fuse is blown, replace the fuse.
5. If the terminal is reversed and the fuse is blown, replace the fuse.
Inverter does not work
1. Check the power switch, fuse, battery connection line or smoke.
If you have problems, do not understand the operation, you can also consult customer service, thank you!
If you have problems, do not understand the operation, you can also consult customer service, thank you!
