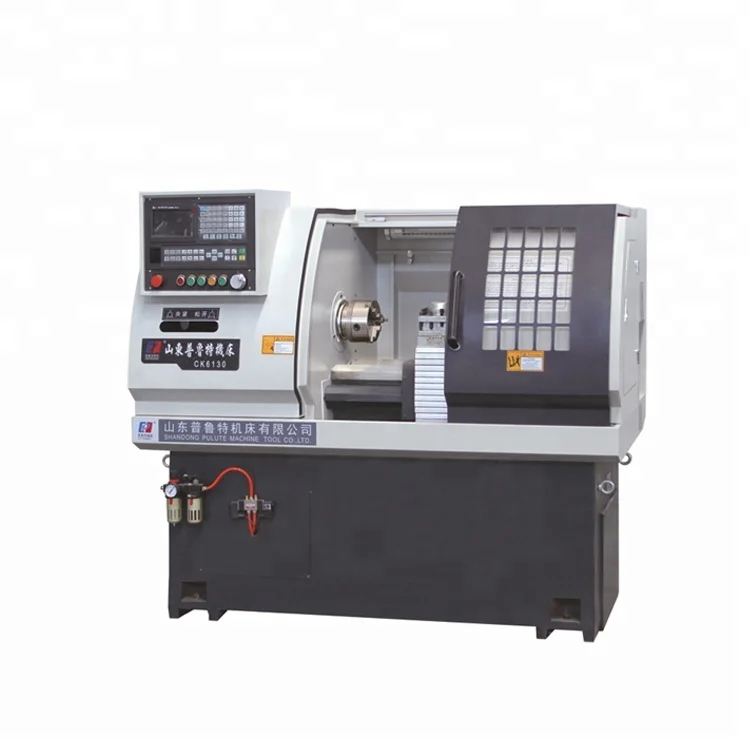

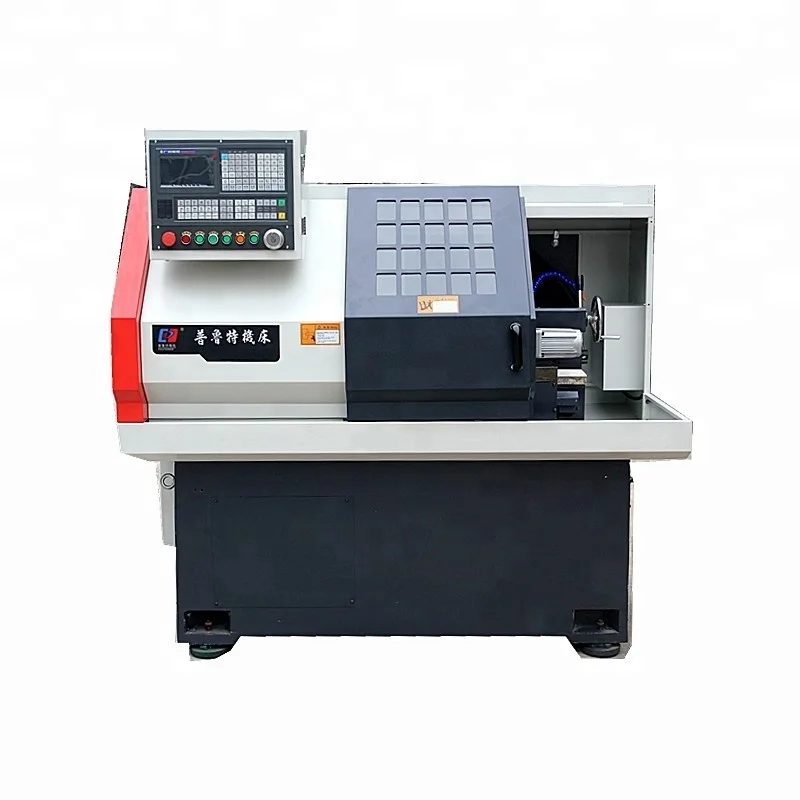

Mini Cnc Lathe Machine Price Small Cutting Metal Lathe Ck6130
- Category: >>>
- Supplier: Shandong Pulute Machine Tool Co. Ltd.
Share on (1600627897219):
Product Overview
Description
SPECIFICATION AND CONFIGURATION OF CK6130 SMALL CNC LATHE MACHINE
processing capacity | max. swing over bed | 300mm |
max. swing over cross slide | 100mm | |
max. processing length | 200（(chuck)/320 (collect chuck)mm | |
X axis travel | 300mm | |
Z axis travel | 350mm | |
spindle | spindle transmission type | infinitely variable frequency |
spindle speed | 2500 rpm | |
spindle nose | A2-5 | |
spindle bore | 48 mm | |
spindle motor | 4kw | |
X and Z axes | ball screw diameter and pitch on X axis | 2506 |
ball screw diameter and pitch on Z axis | 2506 | |
feeding motor torque on X axis | 4 N.m | |
feeding motor torque on Z axis | 4 N.m | |
X/Z axis rapid traverse | 6/8 m/min | |
X/Z axis repeatability | +/-0.005 mm | |
processing accuracy | processing accuracy | IT6-IT7 |
work piece surface roughness | Ra 1.6 | |
tail stock | tail stock quill diameter | 52 mm |
tail stock quill traverse | 90 mm | |
tail stock quill taper | MT4# | |
others | cutting tool size | 20X20 mm |
machine dimension | 1600X1100X1650 mm | |
N.W. | 950 kgs |
MAIN ADVANTAGES
castings of CK6130 CNC LATHE
guide hardness is more than 50-degree HRC.
machine bed of CK6130 CNC LATHE
48 mm spindle bore
work table of CK6130 CNC LATHE
6-inch chuck as optional
6-inch manual or hydraulic chuck are optional.
4 station electric turret and 2 pcs gang type tool post as standard
GSK NC controller as standard
Siemens 808D and 828d, Fanuc 0i TF, Mitsubishi E80 and M80, Fagor 8055, Syntec 6TA and 21TA, etc are optional.
finished work piece on CK6130
CERTIFICATES AND HONORS
Since PULUTE company was founded in the year of 2008, Shandong Pulute Machine Tool Co., Ltd. has won many honorary certificates every year.
COMPANY INTRODUCTION
Shandong Pulute Machine Tool Co., Ltd. was established in 2008, specializing in the production of CNC lathes, machining centers,gantry and other CNC machine tools. The company has more than 200 employees, covers an area of 120,000 square kilometers, and has 5 workshops. The average monthly output is more than 180 machines, and the annual sales are more than 140 million CNY.
Machining center assembling workshop
Machining center assembling workshop

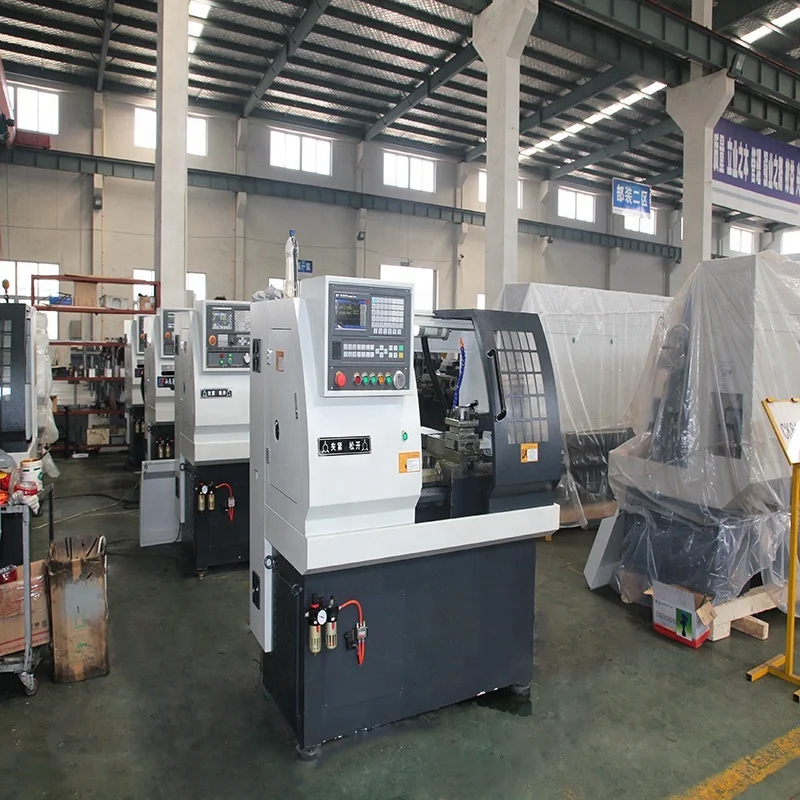

cnc lathe assembling workshop
