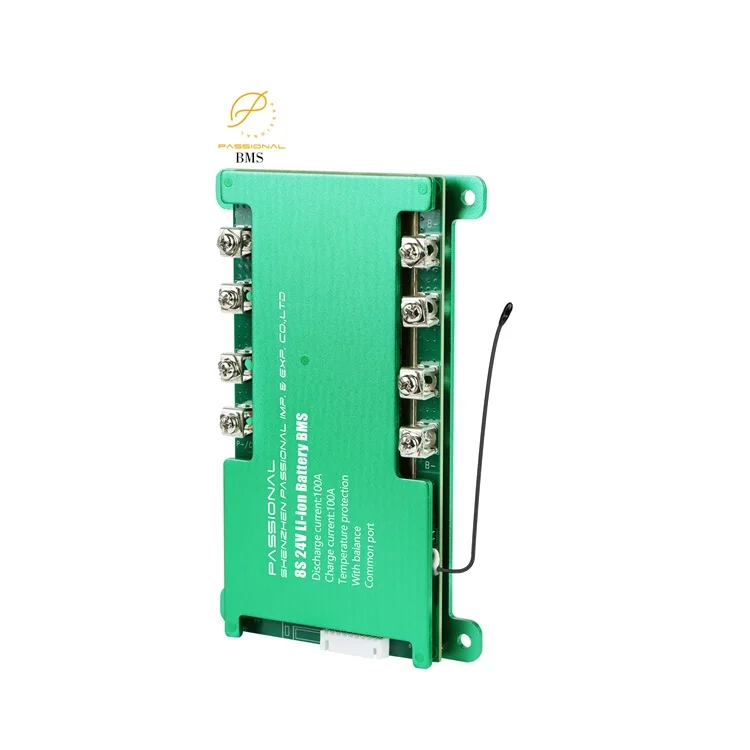

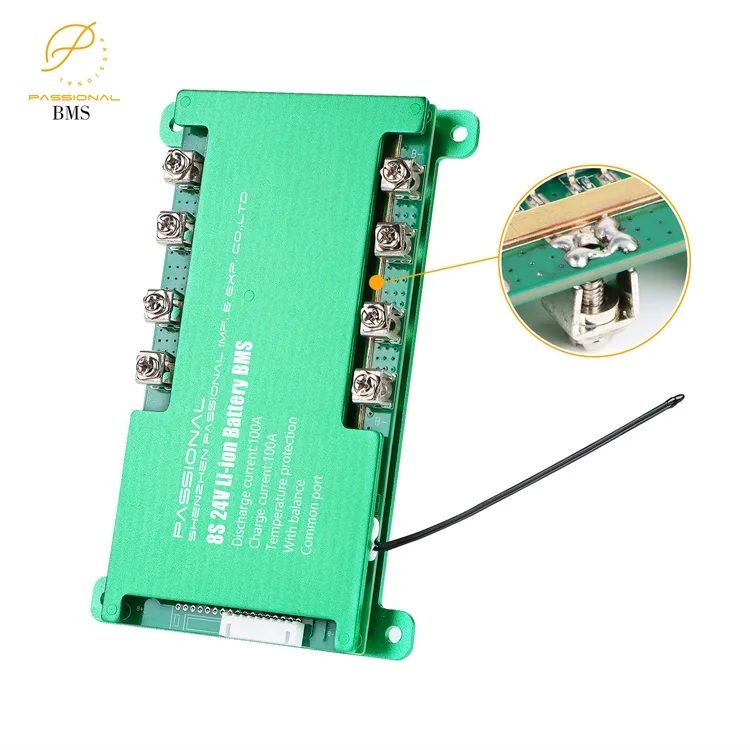

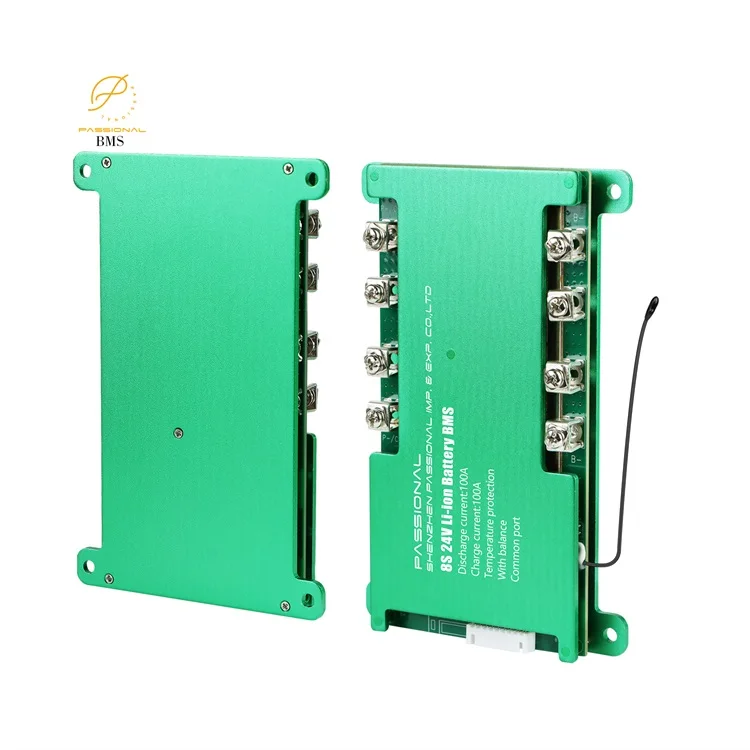

8S 24V 100A Lithium battery BMS board 3.2V LFP PCB protection for battery electric vehicle ebike scooter EV Energy storage
- Category: >>>
- Supplier: Shenzhen Passional Import And Export Co. Ltd.
Share on (1600627898876):
Product Overview
Description
Product Description
Lithium battery protection board 16S 48V 100A common port with balance
Size： 170MM*108MM*19MM Weight: 440g/pc

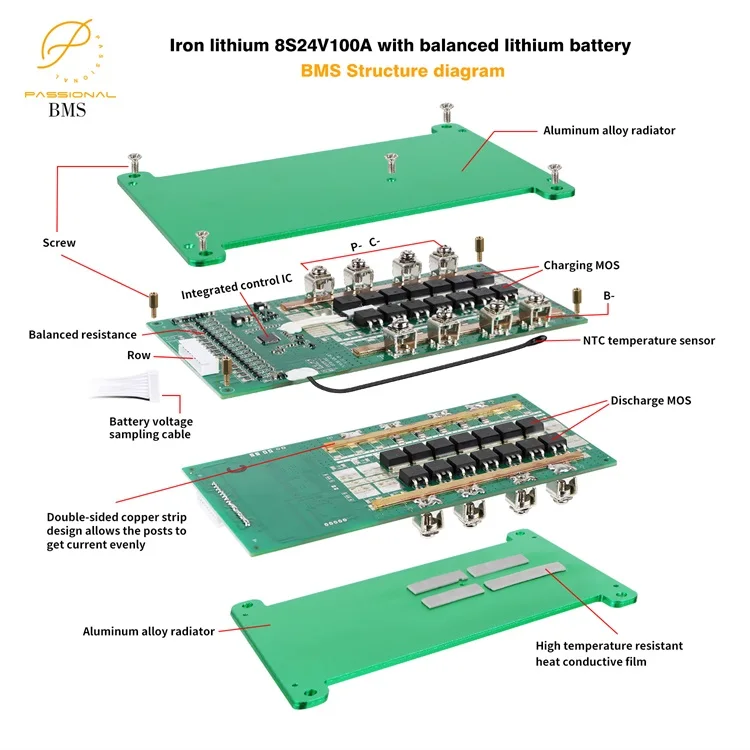

High quality MOS in super low resistance
With high withstand voltage.just in order to make more safe protection board for you
The more detail data FYI
Content | Specification | Unit | Remark | |
Discharge | Continuous Discharge current | 100 | A | |
Pluse Discharge Current | 300±50 | A | ||
Charge | Charge cut-off voltage | 29.6 | V | |
Max charge current | 100（MAX） | A | ||
Over Charge protection | Overcharge detection voltage | 3.75±0.05 | V | |
Overcharge detection delay time | 600±300 | MS | ||
Overcharge release voltage | 3.6±0.05 | V | ||
Balance Portection | Balance Detection voltage | 3.5 | V | |
Balance release detection voltage | 3.5 | V | ||
Balance current | 30±0.05 | mA | ||
Overdischarge Portection | Overdischarge detection voltage | 2.2±0.05 | V | |
Overdischarge detection delay time | 1000±200 | MS | ||
Overdischarge release voltage | 2.7±0.05 | V | ||
Overcurrent Portection | ||||
Overcurrent protection current | 300±50 | A | ||
Overcurrent detection delay time | 800±300 | MS | can set as per your request | |
Release condition | Cut short load | |||
Short Protection | Detection condition | Out load short cycles | ||
Detection delay time | 500±150 | uS | ||
Release condition | Cut load | |||
MOS Temp. protection | Over Charge protection temp. | 85 | ℃ | can set as per your request |
Over Disharge protection temp. | 85 | ℃ | ||
Battery high temperature protection | Charging protection temp. | 55 | ℃ | |
Battery high temperature protection | Discharging protection temp. | 75 | ℃ | |
Battery low temperature protection | Charging protection temp. | -20 | ℃ | |
Discharging protection temp. | -40 | ℃ | ||
Interior resistance | Main loop electrify resistance | ≤30 | mΩ | |
Current consumption | Current consume in normal operation | ≤100 | uA | |
Sleep current（over discharge） | ≤20 | uA | ||
Working Temp. | Temp.range | -20/+50 | ℃ |

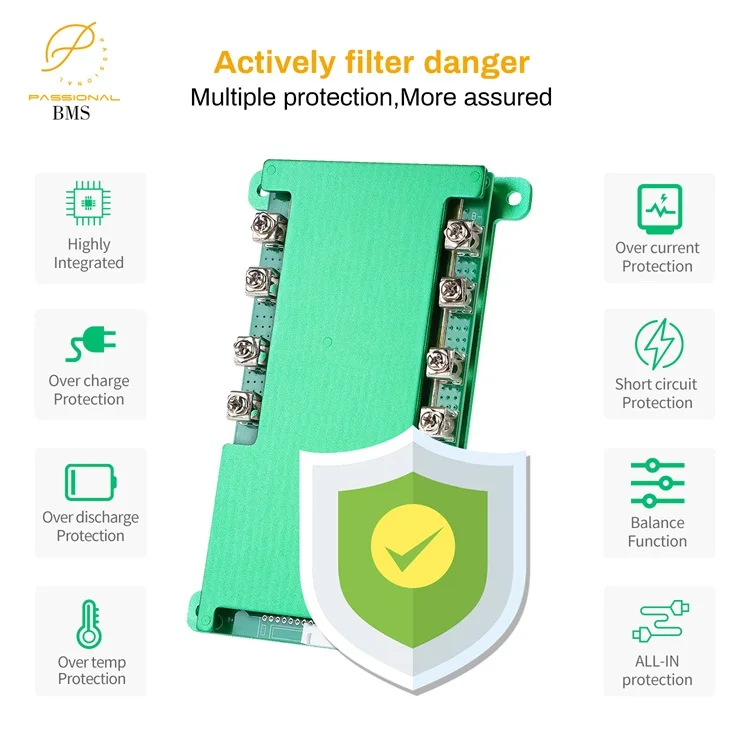

Why we need the BMS board for the battery ????
Battery protection board, as the name implies, lithium battery protection board is mainly an integrated circuit board that protects rechargeable (usually lithium batteries).
determined by its own characteristics. Because the material of the lithium battery itself determines that it cannot be
overcharged, over-discharged, over-current, short-circuited, and ultra-high temperature charging and discharging,
The three basic functions of the lithium battery protection board are
short-circuit protection, Overcharge protection and over-discharge protection.
short-circuit protection, Overcharge protection and over-discharge protection.
Everyone can understand the significance of the BMS board to the lithium battery..
Product Usage
If need help ,contact with our sales,Our team will help you to find the best solutions

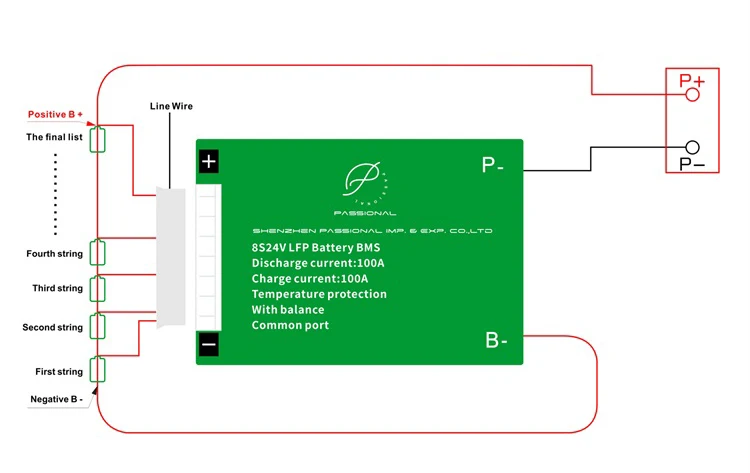

How to connect the BMS to the battery pack
1 Start from the B- line to the battery negative terminal (the B- line needs to be welded with a short wire first), and then connect the flat cable (before connecting the flat cable, you need to unplug the flat cable from the board).
2 Start wiring from B0, connect B0 to the total negative electrode of the battery (name this string not numbered 1), connect the cable B1 next to B0 to the positive electrode of No.1 series, and connect the third cable B2 to the positive electrode of No. 2 series. The fourth cable B3 is connected to the positive terminal of battery number 3 ------ and so on.
3 After connecting the cable, measure the voltage between each two adjacent cables from the header. The voltage of the Li-ion battery should be less than 4.2V, and the voltage of the LiFepo4 battery should be less than 3.5V.
4 Connect the negative pole of the charger and the negative pole of the load to C-. B negative wire and C negative wire need to be welded with thick wires. The wiring method has nothing to do with the color, only the correct order is required.
5 Then measure whether the total battery voltage is equal to the output voltage of the protection board,if it is equal then means the BMS works normally
2 Start wiring from B0, connect B0 to the total negative electrode of the battery (name this string not numbered 1), connect the cable B1 next to B0 to the positive electrode of No.1 series, and connect the third cable B2 to the positive electrode of No. 2 series. The fourth cable B3 is connected to the positive terminal of battery number 3 ------ and so on.
3 After connecting the cable, measure the voltage between each two adjacent cables from the header. The voltage of the Li-ion battery should be less than 4.2V, and the voltage of the LiFepo4 battery should be less than 3.5V.
4 Connect the negative pole of the charger and the negative pole of the load to C-. B negative wire and C negative wire need to be welded with thick wires. The wiring method has nothing to do with the color, only the correct order is required.
5 Then measure whether the total battery voltage is equal to the output voltage of the protection board,if it is equal then means the BMS works normally
Related Products
Packing&Shipping
Company Introduction
Our Services & Strength
We offers We provide customers with one-stop procurement services
Here you can find all the main accessories related to lithium batteries
Save time and energy for customers
Here you can find all the main accessories related to lithium batteries
Save time and energy for customers
FAQ
1.Do you have current sample in stock?
A: Most regular one we have.usually we will ship out in 3 days after you paid
2. What's the delivery time for mass production?
A: Usually 3-7days, it depends on the quantity, specially function and etc.we suggest to check delivery time case
by case.
3.OEM&ODM are available?
A:Sure, OEM&ODM are welcome and Logo can be customized too.
4.What is your MOQ?
A: 1pc is OK. small order also welcome
10. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with
voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no
discharge, no discharge while the battery has voltage.
11.Why choose Passional?
A: 1) A professional sales team which provide consultant service and the most competitive battery solutions.
2) Wide-range battery products to satisfy different customer's requirement.
3) Quick response, every inquiry will be replied within 24 hours.
4) Good after-sale service, long product warranty and continual technique support.
5) With 10 years-experience for manufacturing lithium battery.
A: Most regular one we have.usually we will ship out in 3 days after you paid
2. What's the delivery time for mass production?
A: Usually 3-7days, it depends on the quantity, specially function and etc.we suggest to check delivery time case
by case.
3.OEM&ODM are available?
A:Sure, OEM&ODM are welcome and Logo can be customized too.
4.What is your MOQ?
A: 1pc is OK. small order also welcome
5.What is the common port and separate port? what is the difference?
We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same
point end(our P-), charge cathode and discharge cathode are used in the common connection
port, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.
6.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage (Li-ion 4.25V, Life PO4 3.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functioning.well
7.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on
continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery
capacity.
8. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
9. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below 500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.
We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same
point end(our P-), charge cathode and discharge cathode are used in the common connection
port, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.
6.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage (Li-ion 4.25V, Life PO4 3.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functioning.well
7.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on
continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery
capacity.
8. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
9. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below 500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.
10. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with
voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no
discharge, no discharge while the battery has voltage.
11.Why choose Passional?
A: 1) A professional sales team which provide consultant service and the most competitive battery solutions.
2) Wide-range battery products to satisfy different customer's requirement.
3) Quick response, every inquiry will be replied within 24 hours.
4) Good after-sale service, long product warranty and continual technique support.
5) With 10 years-experience for manufacturing lithium battery.
