Strong and safe Excavator quick hitch coupler
- Category: >>>
- Supplier: Weihai Diyi Hydraulic Machinery Co. Ltd.
Share on (1600627934516):
Product Overview
Description
Product Overview

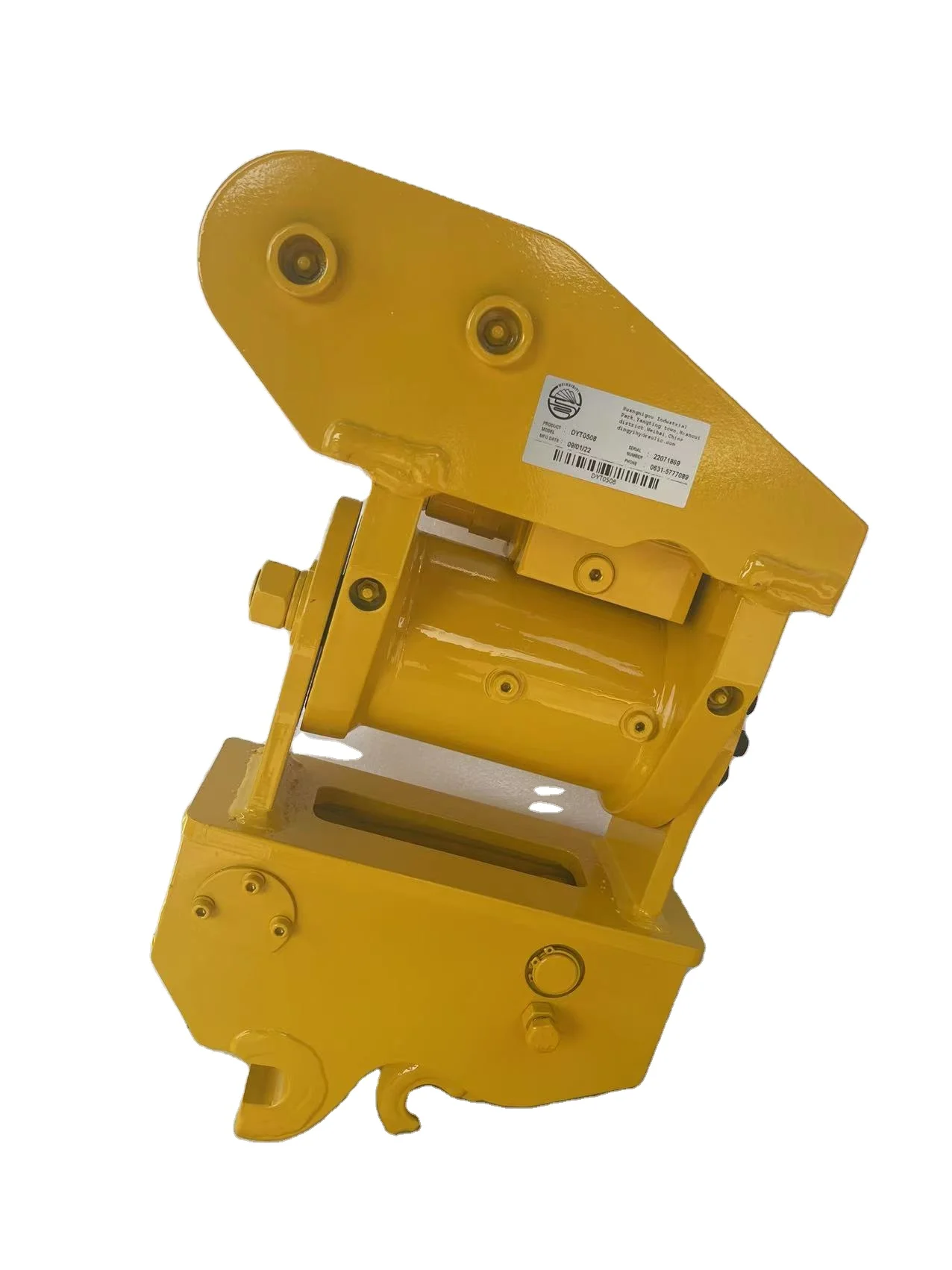

Quick Hitch Coupler
FEATURES AT A GLANCE
1. Strong safety pin at accurate position
2. High-abrasive front tiger mouth design
3. Reinforced cylinder with imported oil seals.(Simrit Germany Brand)
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Category | Unit | JT-mini | JT-02 | JT-06 | JT-08 | JT-08S | JT-10 | JT-17 |
Length C | mm | 300-450 | 520-542 | 760 | 920-955 | 950-1000 | 965-1100 | 1005-1150 |
Widtch（B） | mm | 150-250 | 260-266 | 351-454 | 460-493 | 445-493 | 543-572 | 602-666 |
Height（G） | mm | 225-270 | 312 | 400 | 512 | 512-540 | 585 | 560-615 |
Arm width A | mm | 82-180 | 155-172 | 230-317 | 280-345 | 330-350 | 345-425 | 380-480 |
Pins center distance (D) | mm | 95-220 | 220-275 | 350-400 | 430-480 | 450-505 | 485-530 | 520-630 |
Pin diameter | mm | 20-45 | 40-45 | 50-70 | 70-90 | 90 | 90-100 | 100-110 |
Cylinder stroke E | mm | 95-200 | 200-300 | 340-440 | 420-510 | 450-530 | 460-560 | 500-650 |
Vertical pins center distance | mm | 170-190 | 200-210 | 240-255 | 300 | 320 | 350-370 | 370-380 |
Weight | kg | 30-40 | 50-75 | 170-210 | 350-390 | 370-410 | 410-520 | 550-750 |
Working pressure | kg/cm² | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 |
Necessary flow | Ipm | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Excavator | ton | 1-4 | 4-6 | 12-16 | 18-25 | 25-26 | 26-30 | 30-40 |
Successful Project
Project in Thailand
Project in India
Project in Russia
FAQ
Q1：Why should I choose your product?
A1：Yantai Jiangtu Mechanical Equipment Company is a leading manufacturer for excavator attachments in China. All product's quality are strictly under control from processing to delivery. By continuous innovation and improvement, the company has got ISO 9001, CE certifications and technical patens successively. Our products have been sold to domestic and oversea customers including Russia, Japan, Korea, Malaysia, India, Australia, Isreal, etc, and long term partnerships have been developed.
