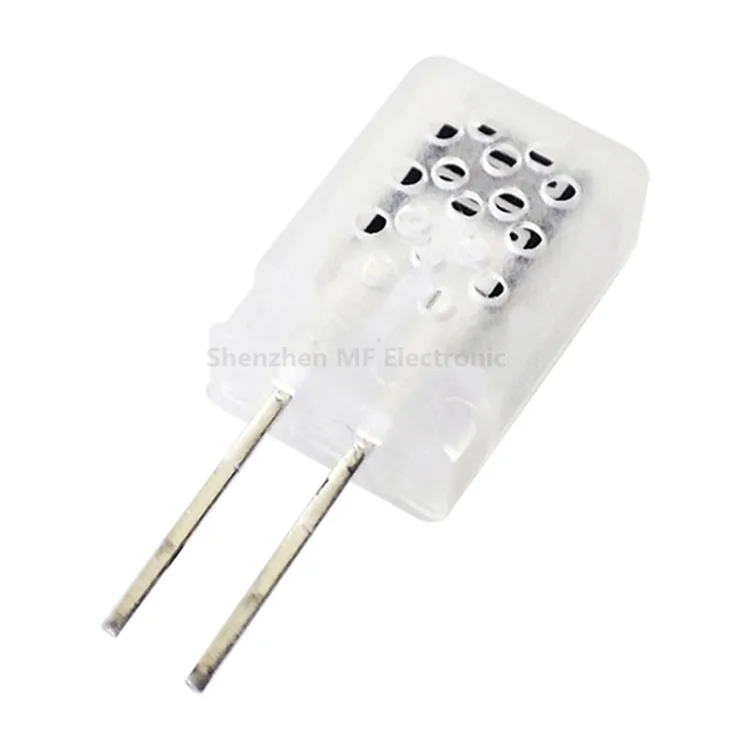

HR202L Aosong Digital High Quality Humidity Sensor Resistance Sensor Module With Housing For Temperature and Humidity Meter,
- Category: >>>
- Supplier: Shenzhen Manfri Electronic Technology Co. Ltd.
Share on (1600628103237):
Product Overview
Description
HR202L Aosong Digital High Quality Humidity Sensor Resistance Sensor Module With Housing For Temperature and Humidity Meter,
Product Description

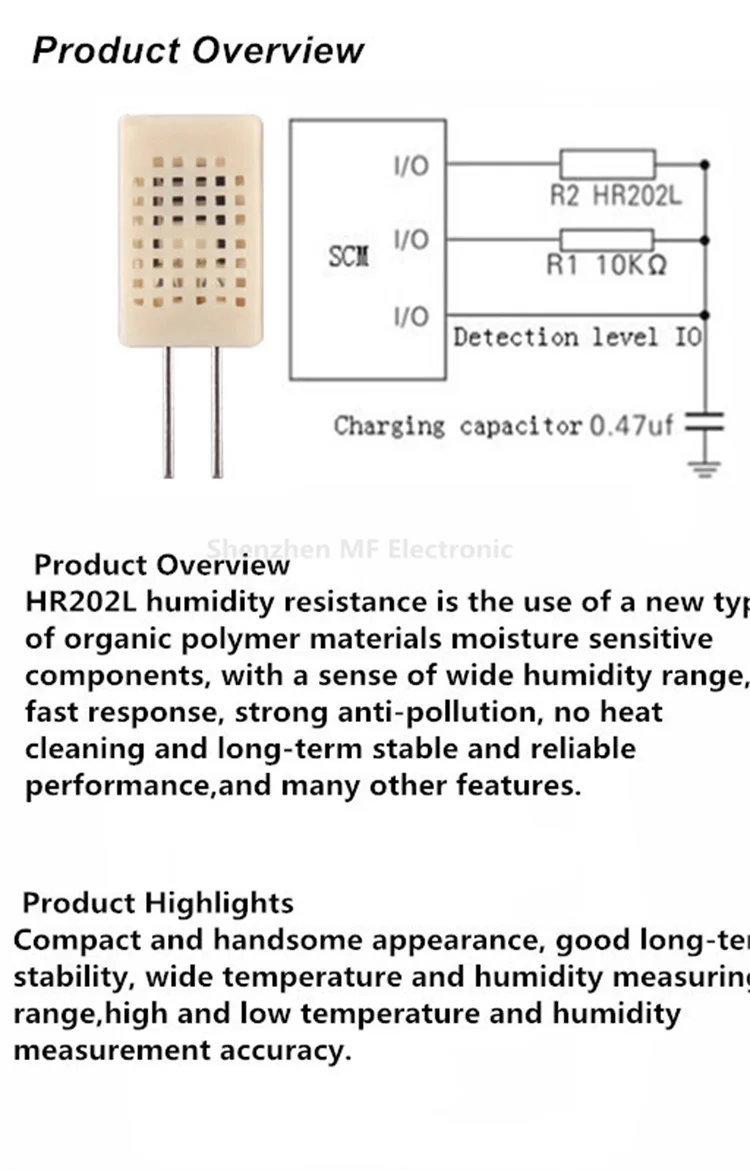

HR202L humidity resistance is the use of a new type of organic polymer materials moisture sensitive components, with a sense of wide humidity range, fast response, strong anti-pollution, no heat cleaning and long-term stable and reliable performance, and many other features.
Technical Parameters
Model | HR202L |
Fixed Voltage | 1.5VAc (Max ,Sine Wave) |
Fixed Power | 0.2mw (Max ,Sine Wave) |
Working Frequency | 500hz~2khz |
Operating Temperature | 0~60℃ |
Operating Humidity | Below 95%RH(Non-Condensing) |
Wet Hysteresis | ≤2%RH |
Response Time | Moisture Absorption, ≤20S; Dehumidification ≤40S |
Stability | ≤1%RH/Year |
Humidity Detection Accuracy | ≤ ±5%RH |
Center Value | 31 KΩ |
Impedance Value Range | 19.8~50.2 KΩ |
Relative Humidity Conditions | At25℃ 1khz 1v Ac (Sine Wave) |
Humidity | 60%RH |

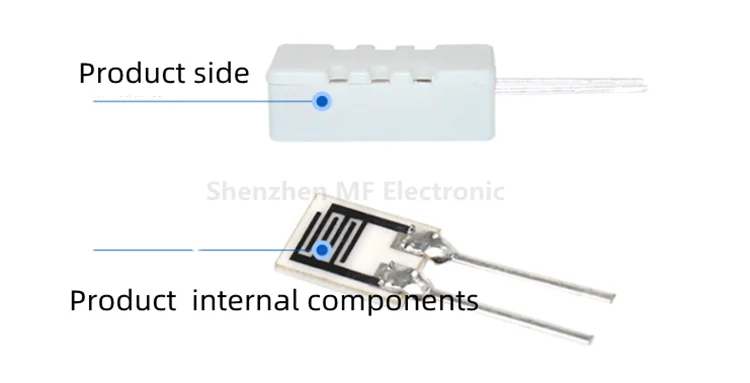

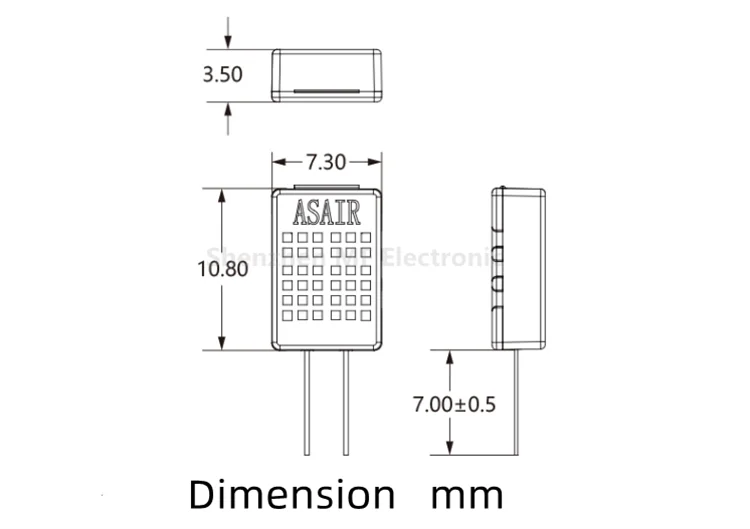

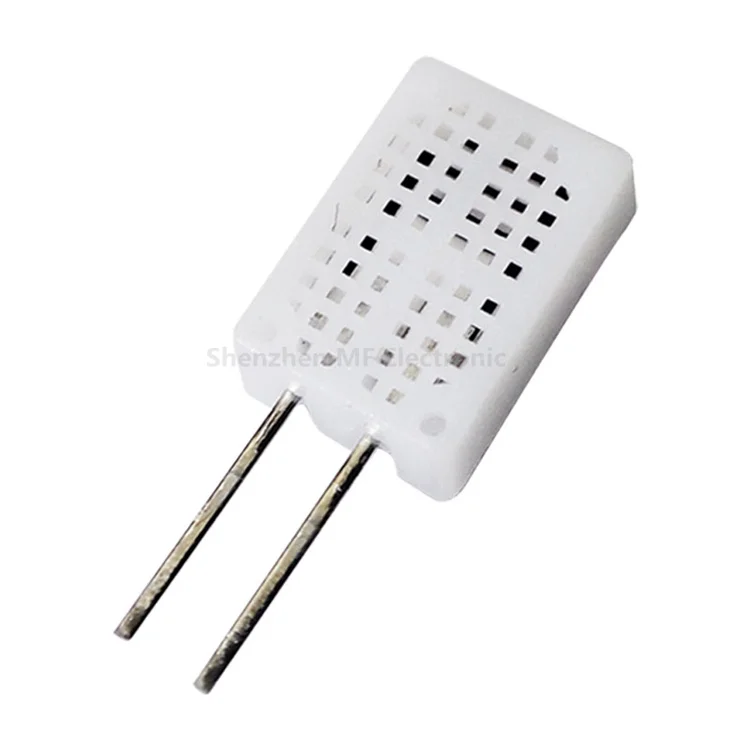

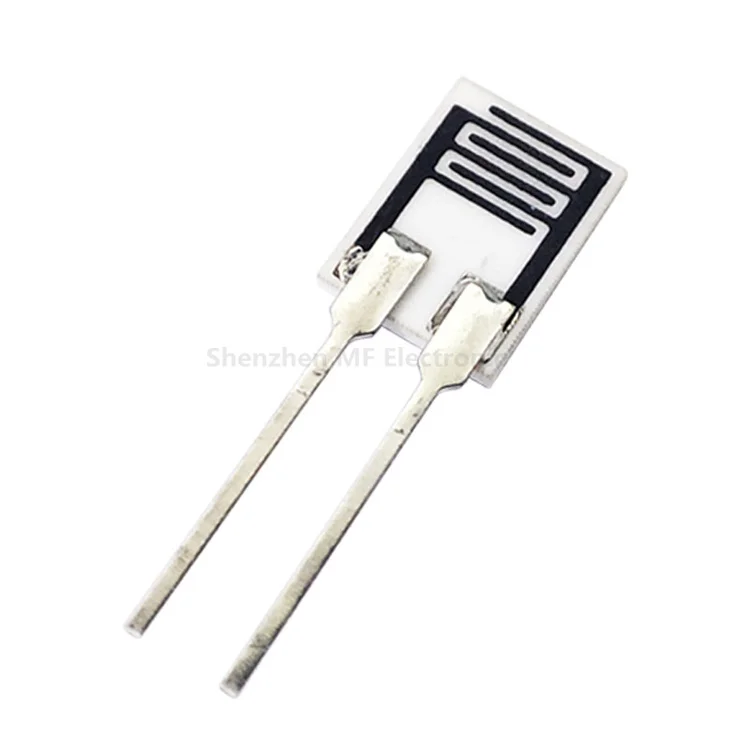

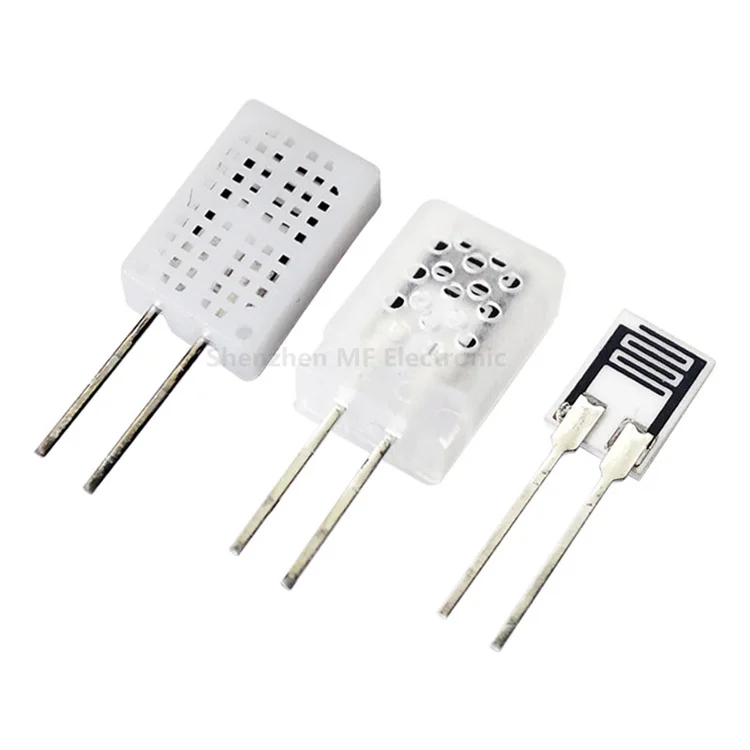

Detailed Images
