Vehicle Security 4 Channel Video Recording 1080P School Bus Vans Mobile DVR H.265 H.264 4G MDVR Camera Kit
- Category: >>>
- Supplier: Shenzhen,Xianghan,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Vehicle Security 4 Channel Video Recording 1080P School Bus Vans
Mobile DVR H.265 H.264 4G MDVR Camera Kit
Product Description
Support up to 128GB Micro SD card (not include): it can hold roughly more 20 hours of all 4CH 1080P camera videos. And it will keep continuously recording by overwriting the oldest files once the card is full.

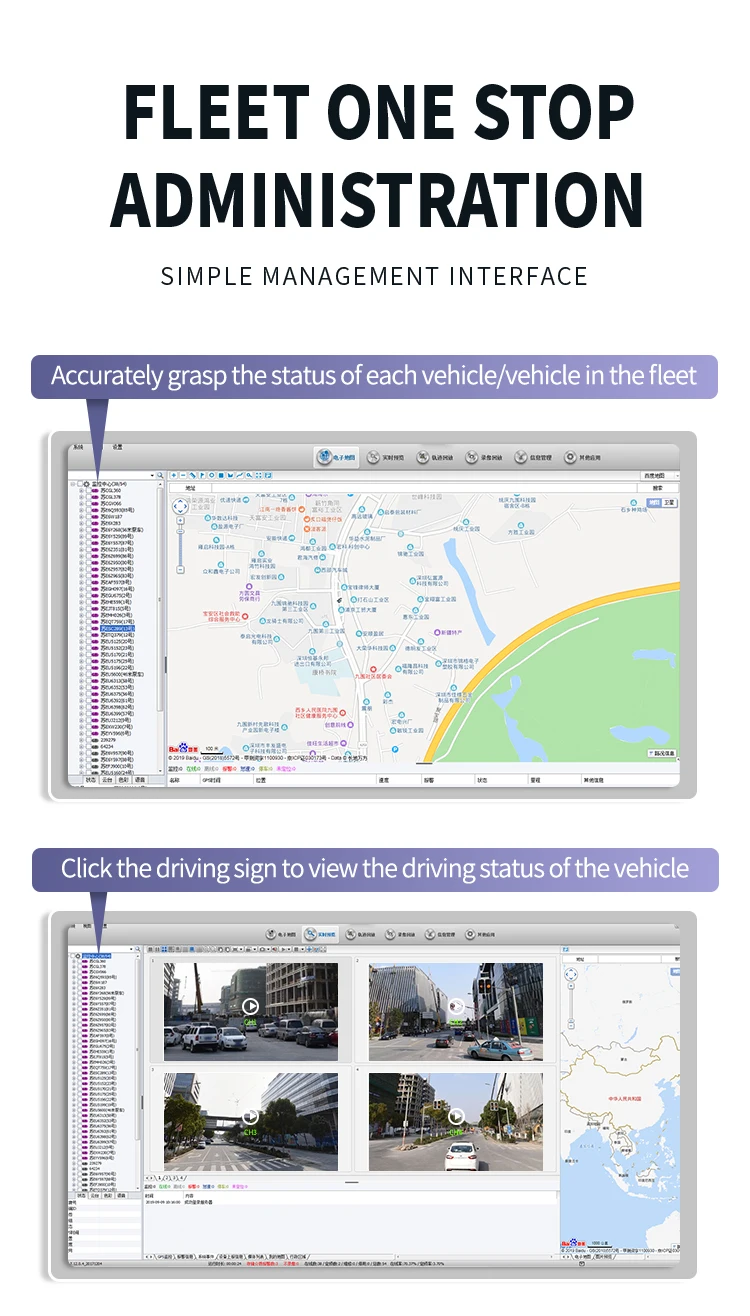

360° Surveillance & Recording: support 4 channel waterproof sync recording cameras (Front/Left/Right/Rear) DVR system. You can easily switch display mode (quad-image/independent image) on 7/9//10/12/15 inch or other widescreen monitor by wireless IR remote. Or view streaming live video by your phone or PC. Design for Truck Van Caravan Trailers Camper Bus RV Harvester etc.

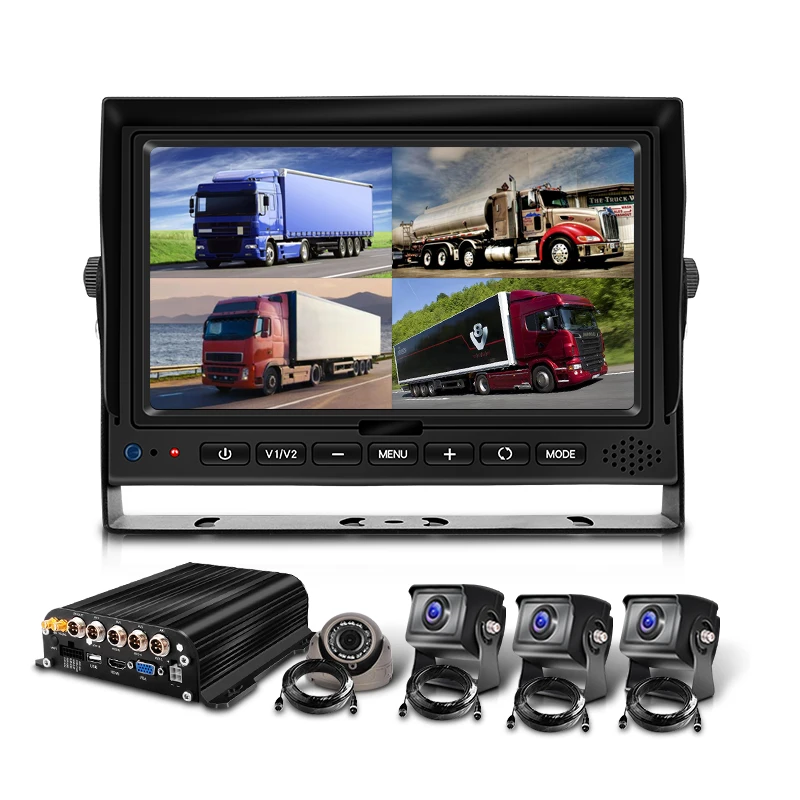

Package Include:

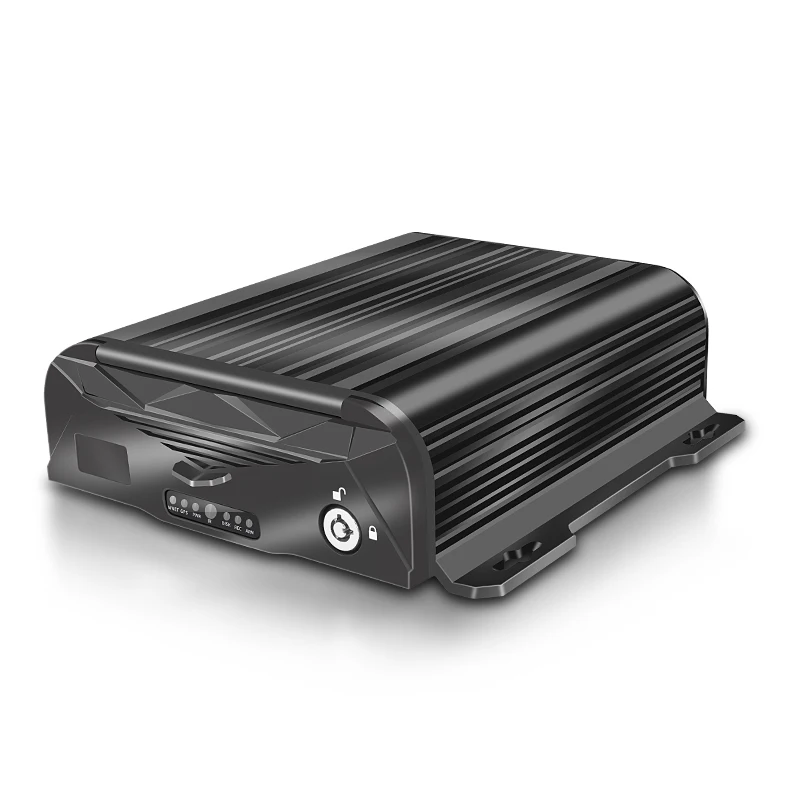

4CH 1080P SD MDVR with 4G GPS

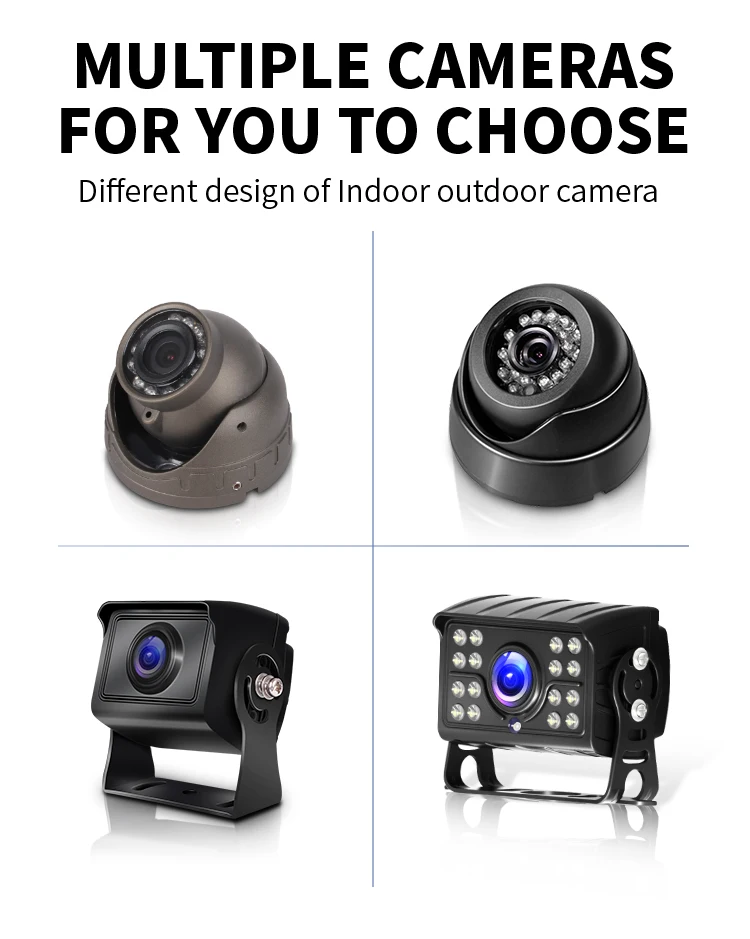

AHD1080P Camera*4
7 Inch Monitor*1
5M Cable*3+15M Cable*1
1080P MDVR Specification | |
Power | Voltage Input: DC8-48V Voltage Output: DC12V (+/-0.2V, max. 2.0A) / DC5V (+/-0.2V, max. 0.5A) |
System | Main Processor: Hi3520DV300 Operating system: Embedded Linux OS Language: Chinese/English OSD: Graphical User interface OSD menu Password: Users Password/ Administrator Password |
Video | Video input: 4CH (8CH)AHD or Analog Video Inputs Video output: 1CH Video Inputs (1.0Vp-p/ 75 Ohms), 1CH VGA output Preview: 1 CH/ 4 CH Preview. Recording Ratio: PAL: 25 Frame/s; NTSC: 30 Frame/s Image Compression: H.264 or H.265 Main profile/MJPEG Video Standard: PAL/NTSC Image Resolution: 1080P/1080N/720P/960H/D1/CIF Playback quality: 1080P/1080N/720P/960H/D1/CIF |
Audio | Audio input: 4-CH( 8CH) Audio output: 1-CH Audio Bit Rate: 8KB/S Recording mode: Audio & Video sync. |
Image processing & Storage | Video Quality: 1080P/720P/960H/D1/CIF each channel; Highest Video Quality: 4CH Full 1080P Bit Rate: 1080P: 2048Kbps~6144Kbps; D1: 512Kbps~1536Kbps; 6 levels optional. Storage: 2TB Hard Disk & 128GB SD Card (maximum) |
Alarm | Alarm input: 4 alarm inputs Alarm output: 1 alarm output |
Firmware Upgrading | Upgrading mode: Manual/Automatically/Remote/Emergency Recovery Upgrading method: USB disk/Wireless network/SD card |

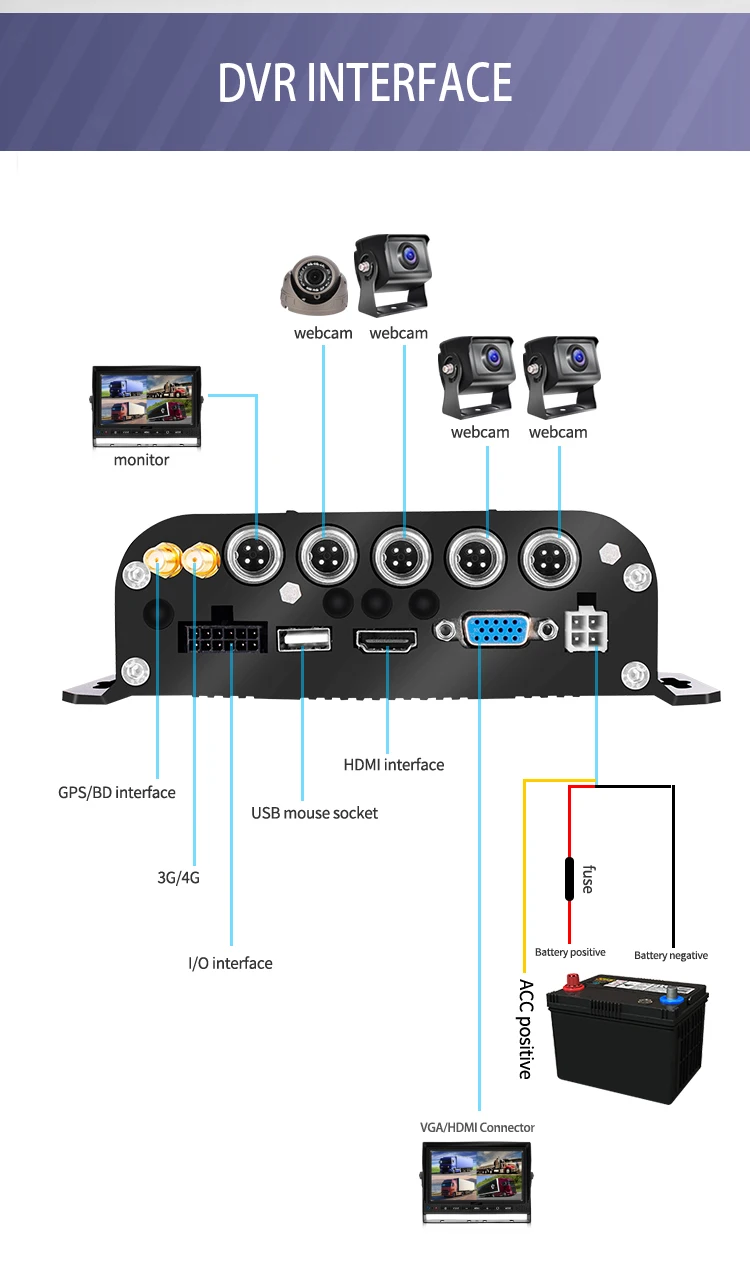

Interface | RJ45 Interface: No AV input: 4/8 ch Aviation interface AV output: 1ch VGA video output, 1ch Aviation AV output Ignition input: 1 ACC signal UART: 1 LVTTL Level USB 2.0 Port: Yes RS232 Interface: 1-RS232 interface |
Wireless | 3G/4G: Optional,Supports CDMA/EVDO/GPRS/WCDMA/FDD; LTE/TDD LTE Wi-Fi: Optional (Wi-Fi Client/ Wi-Fi Hotpot),(Wi-Fi Client/ Wi-Fi Hotpot),802.11b/g/n, 2.4GHz External GPS Module: (Optional) ,Support detecting antenna Plug in/Unplug/Short |
Operation Environment | Temperature: -20°~70° Humidity: 10% to 95% |
Feature :
- Support Mouse operating
- Support reversing aid setting
- Proprietary SD card bad track detection technology to ensure video continuity and extend SD lifespan
- Built-in super capacitor to avoid abnormal power loss data loss and disk damage
- Support intelligent power management identification, low power automatic shutdown, flameout low power consumption
- Various protection circuits such as undervoltage, short circuit, and reverse connection are applicable to various models
