OEM/ODM 8 Port POE Switch with SFP Port IEEE 802.3af/at 48V Active POE 120W Built in Power for ip camera, wireless AP
OEM/ODM 8 Port POE Switch with SFP Port IEEE 802.3af/at 48V Active POE 120W Built-in Power for ip camera, wireless AP
OEM/ODM 8 Port POE Switch with SFP Port IEEE 802.3af/at 48V Active POE 120W Built-in Power for ip camera, wireless AP
OEM/ODM 8 Port POE Switch with SFP Port IEEE 802.3af/at 48V Active POE 120W Built-in Power for ip camera, wireless AP
OEM/ODM 8 Port POE Switch with SFP Port IEEE 802.3af/at 48V Active POE 120W Built-in Power for ip camera, wireless AP
OEM/ODM 8 Port POE Switch with SFP Port IEEE 802.3af/at 48V Active POE 120W Built-in Power for ip camera, wireless AP
OEM/ODM 8 Port POE Switch with SFP Port IEEE 802.3af/at 48V Active POE 120W Built-in Power for ip camera, wireless AP

OEM/ODM 8 Port POE Switch with SFP Port IEEE 802.3af/at 48V Active POE 120W Built in Power for ip camera, wireless AP

Share on (1600628158773):


Price:$18.00 - $24.00

Quantity:


Product Overview

Description



Product Description




Modle
POE308G
Ports Composition
8*100Mbps PoE ports, 2*1000Mbps Uplink ports, 1*1.25G SFP
Bandwidth
7.6Gbps
MAC Address
2K
POE Protocols
IEEE 802.3 AF/AT
Power Input
100-240V 50/60Hz, 90W

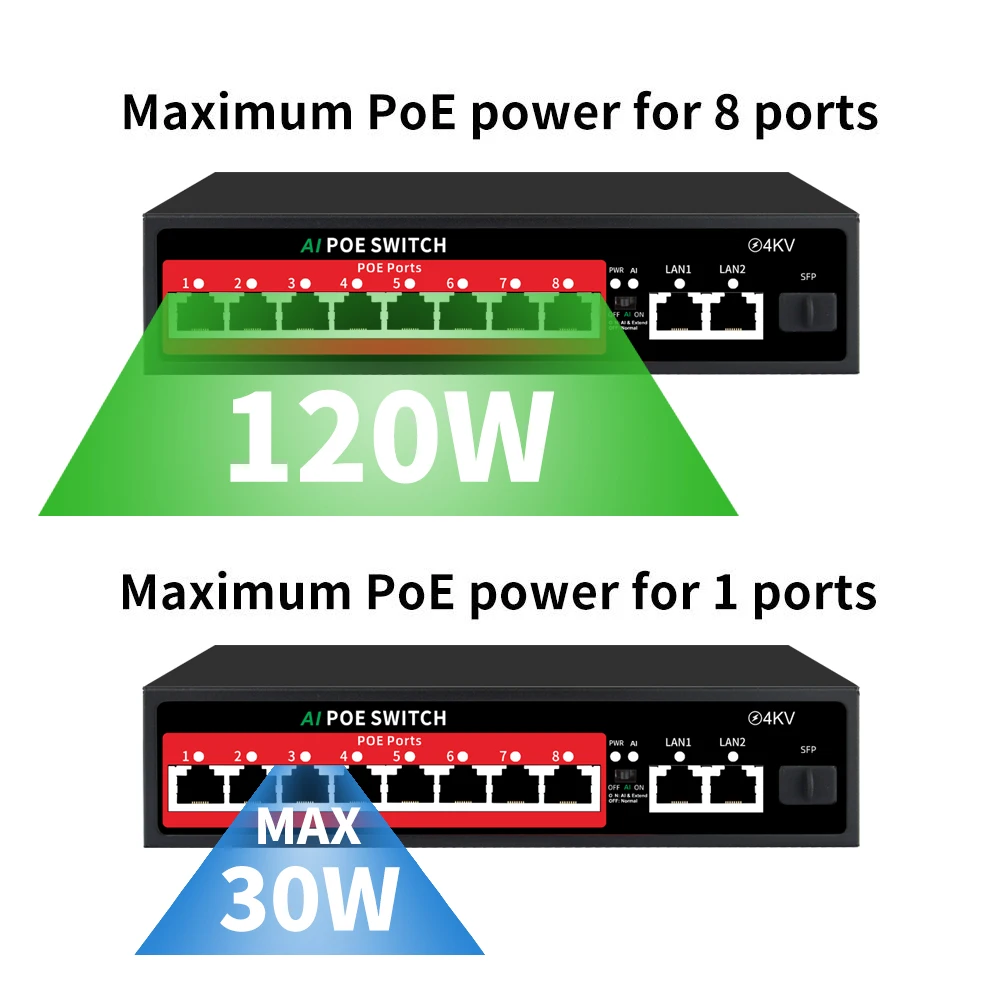

Power Output
52V/30W(Max)
Switch Capability
up to 7.6Gbps
Data transfer rate
Ethernet 10Mbps half duplex, 20Mbps full duplex
Fast Ethernet 100Mbps half duplex, 200Mbps full duplex
Gigabit Ethernet 2000Mbs full duplex

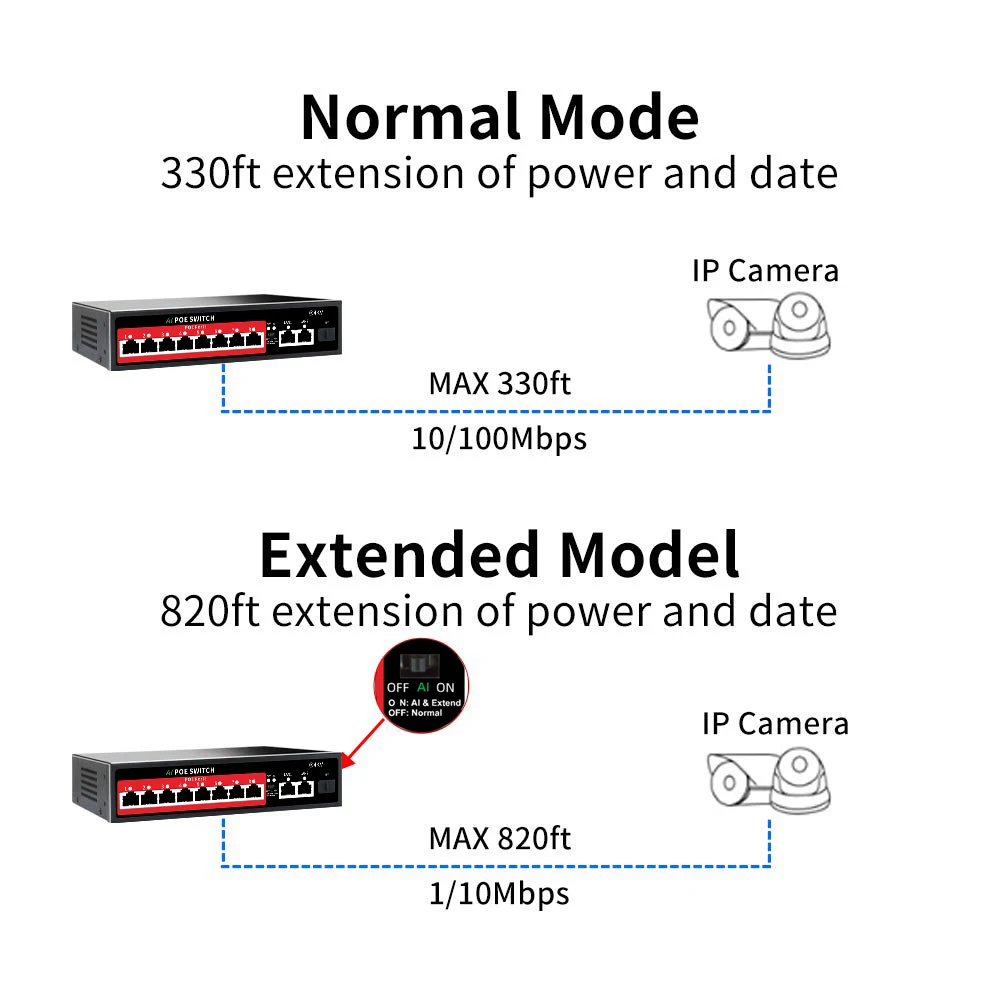

Network media
1000Base-T: 4 to Cat5e or over UTP/STP(≤100m)
100Base-TX: 2 to Cat5 or over UTP/STP(≤100m)
10Base-TX: 2 to Cat6 or over UTP/STP(≤250m)
Basic function
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet protocol
Support IEEE802.3af/at standard
Store and forward
Support self-learning and aging of MAC address
Support full-duplex flow control and half-duplex flow control
Temperature
Working temperature：0℃～40℃
Storage temperature：-40℃～70℃
Humidity
Working humidity：10%～90% RH Non-condensing
Storage humidity：5%～90% RH Non-condensing
Weight
1.36KG

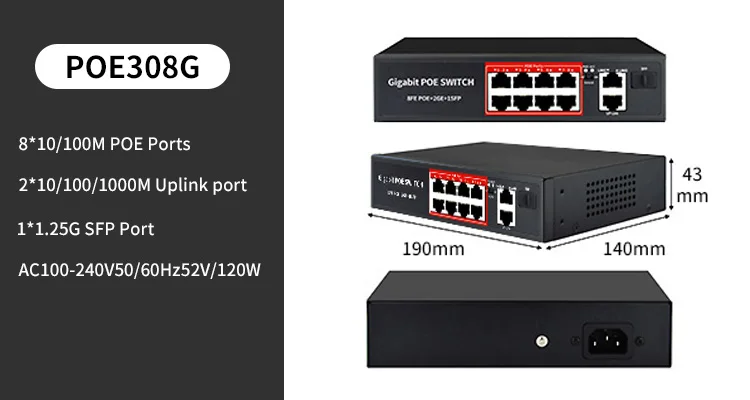

Dimensions
190mm*140mm*43mm




Company Introduction


HUOYI Technology (Shenzhen) Co., Ltd.was a professional Poe switch ,ethernet switch,IP camera and NVR manufacturer with more than 10 years experience in CCTV and network communication fields ,have a professional team of about 200 workers and The production of dust-free workshop can reach 3500 units per day. For years,Our research and development achievements have SPOE,PSE,CCTV managed system,CCTV smart router,IPC tester and cable tester products.






Our Services & Strength
We are a team with 10 years of experience in R&D and production,Focus on the R&D, production and sales of network equipment, POE equipment, 4G/5G and wireless routers etc..Efficient R&D, low failure rate (0.04%) , and low prices are our biggest advantages.
