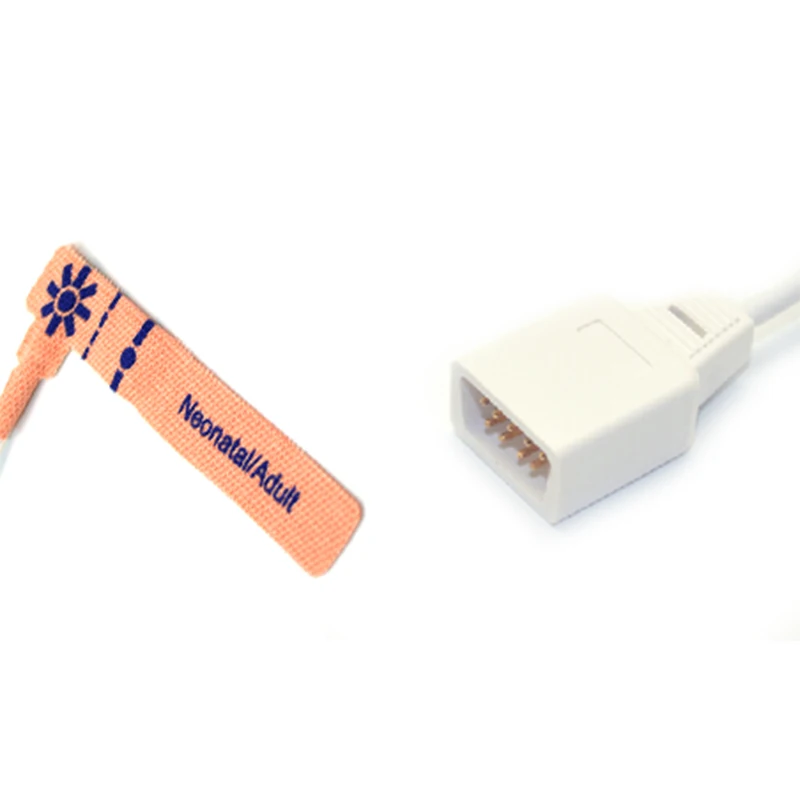

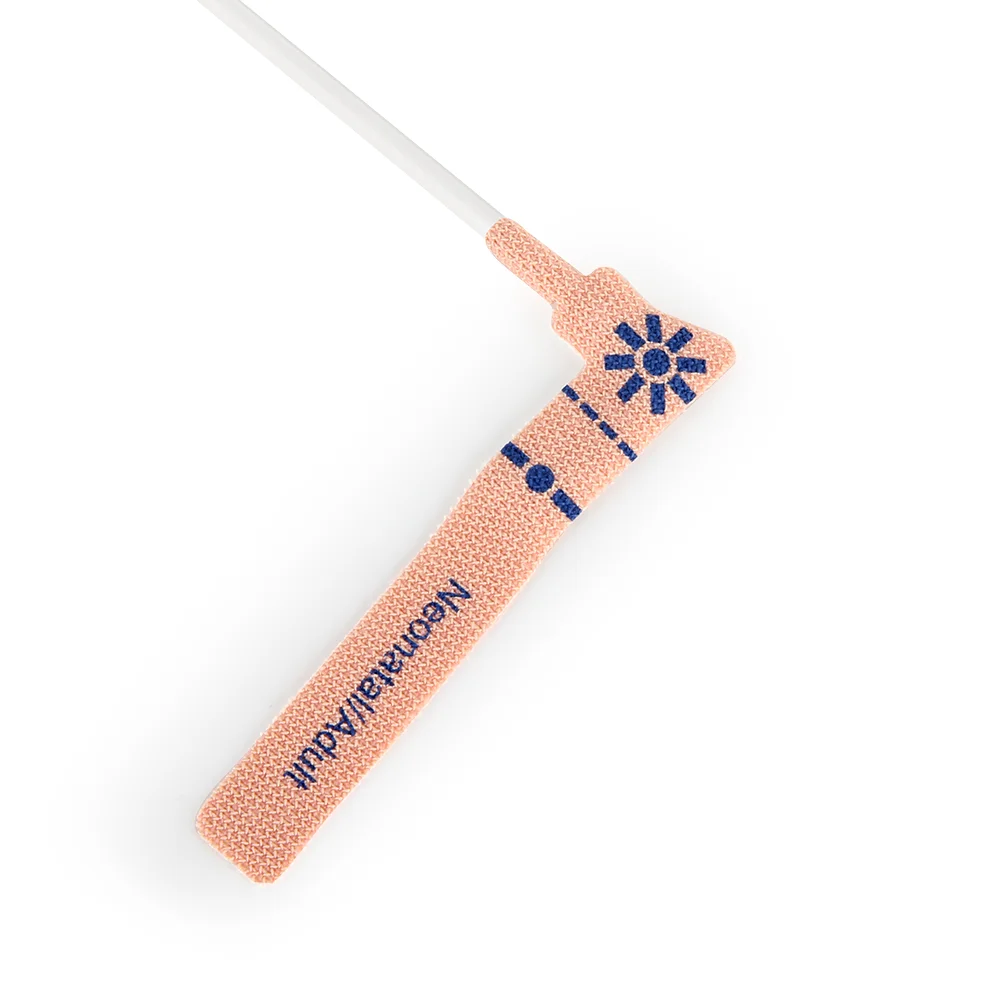

Smiths Medical BCI Compatible Disposable SpO2 Sensor 1302 Adult/Neonate Oximeter Probe
- Category: >>>
- Supplier: Shenzhen Caremed Medical Technology Co. Ltd.
Share on (1600628166303):
Product Overview
Description
Smiths Medical BCI Compatible Disposable SpO2 Sensor - 1302 Adult/Neonate spo2 probe
Product Description
1. Product Description:
Compatible Brand |
| ||||||||||||||||||||||||||||||||
Sensor Type | Adult, Pediatric, Infant, Neonate; Blue Foam Non-adhesive, 1M Non-woven Adhesive, 1M White Foam Adhesive. | ||||||||||||||||||||||||||||||||

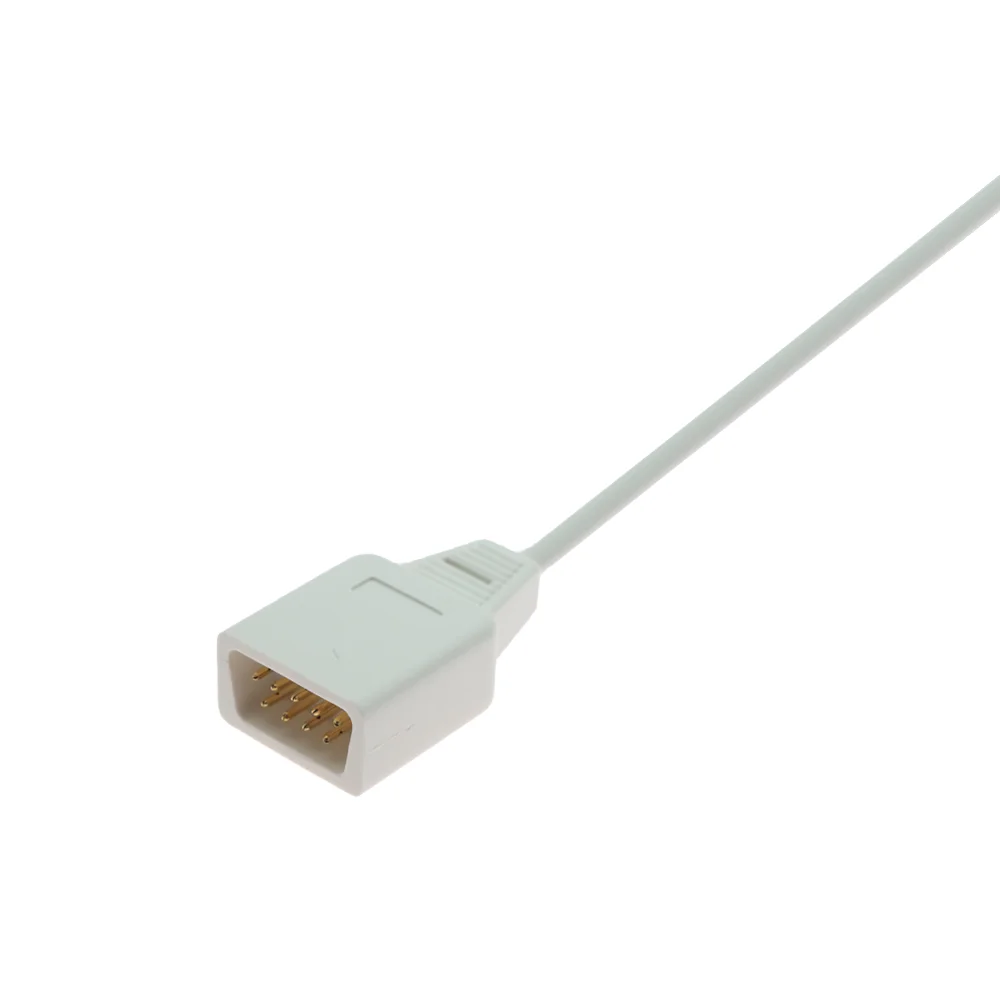

Cable Material | white PVC jacket, 3.2mm diameter | Sensor Connector | Plastic adapter with gold plated pins | ||||||||||||||||||||||||||||||
LED | 660nm/905nm/940nm | Photo Detector | 4mm² /8mm²(size) | ||||||||||||||||||||||||||||||
Cable Length | 0.9m | Package | 1pc in one ziplock bag | ||||||||||||||||||||||||||||||
2. Product Technical Parameters:
LED | Red | 660nm normal |
Infrared | 880/905/940nm normal | |
Text Range | Oxygen Saturation(%SpO2) | 0% to 100% |
Pulse Rate(bpm) | 30 to 245 | |
Accuracy | SpO2 | ±1%(90~100%) |
±2%(80~90%) | ||
±3%(below 70%) | ||
Pulse Rate | ±2bpm(30-250bpm) | |
Storage and Transport Environment | -10℃~+40℃ | |
Operating Temperature | ±5℃~+40℃ | |
Operating/Storage/Transportation Humidity | 0%-80% | |
Hyperbaric Pressure | 86kPa-106kPa | |

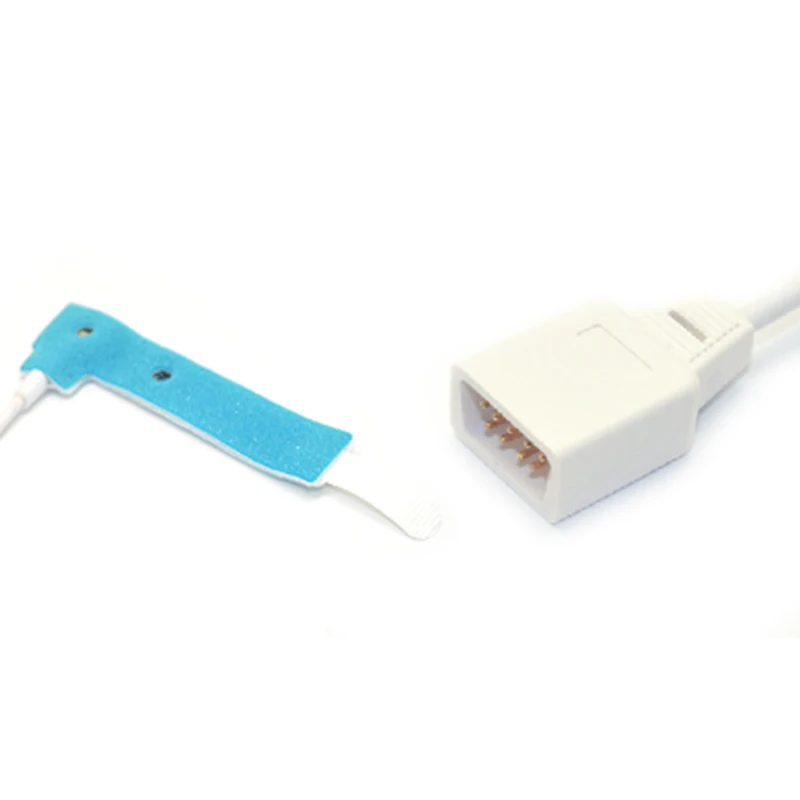

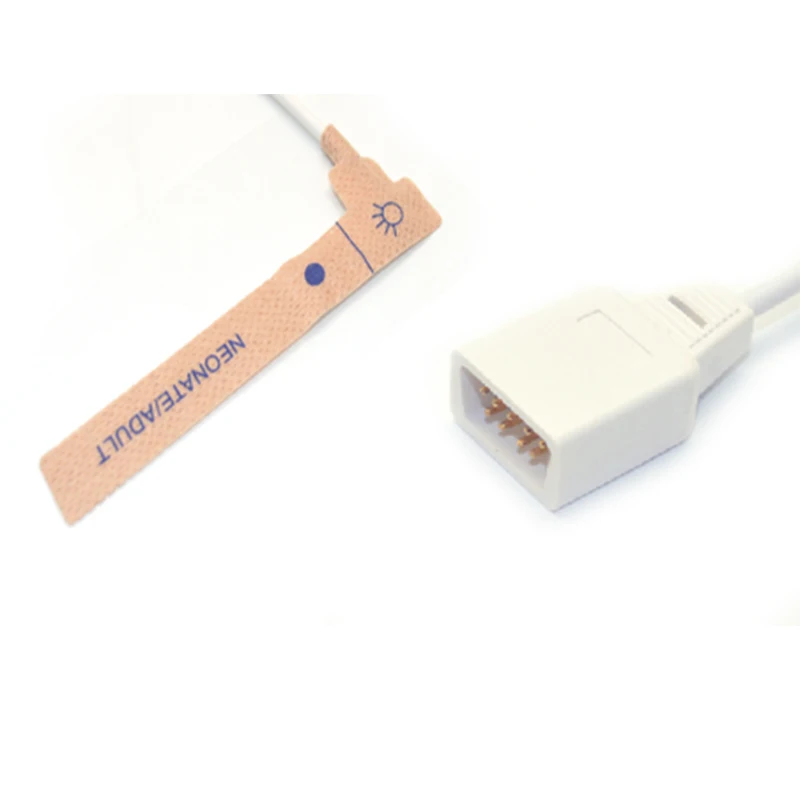

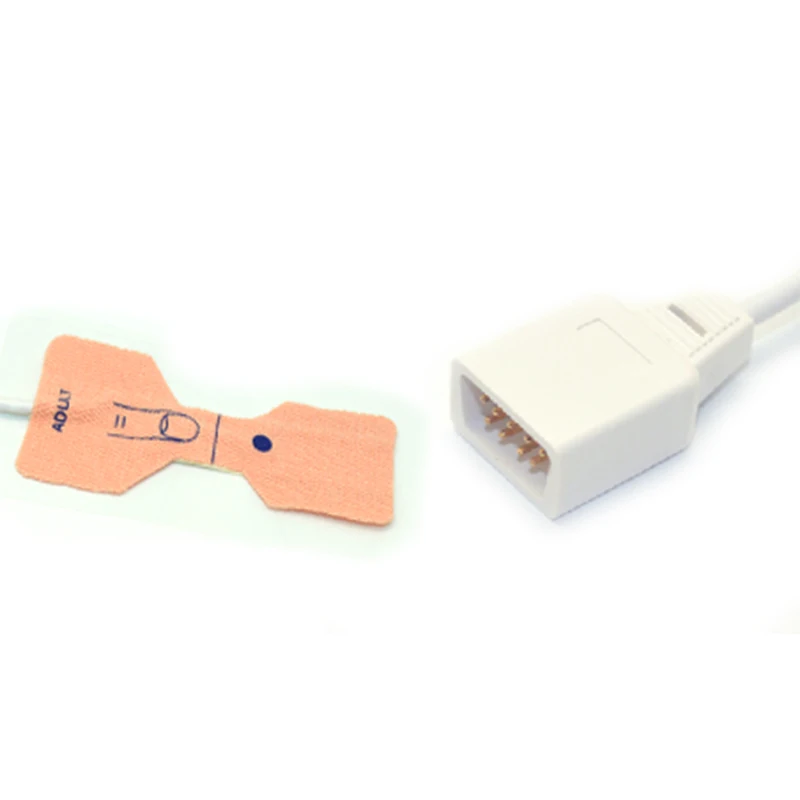

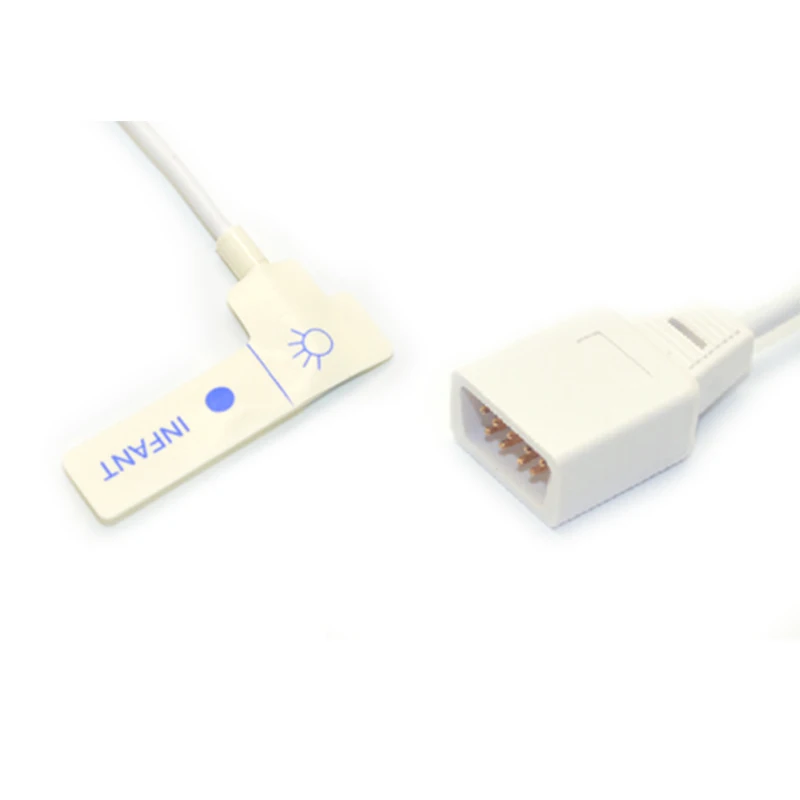

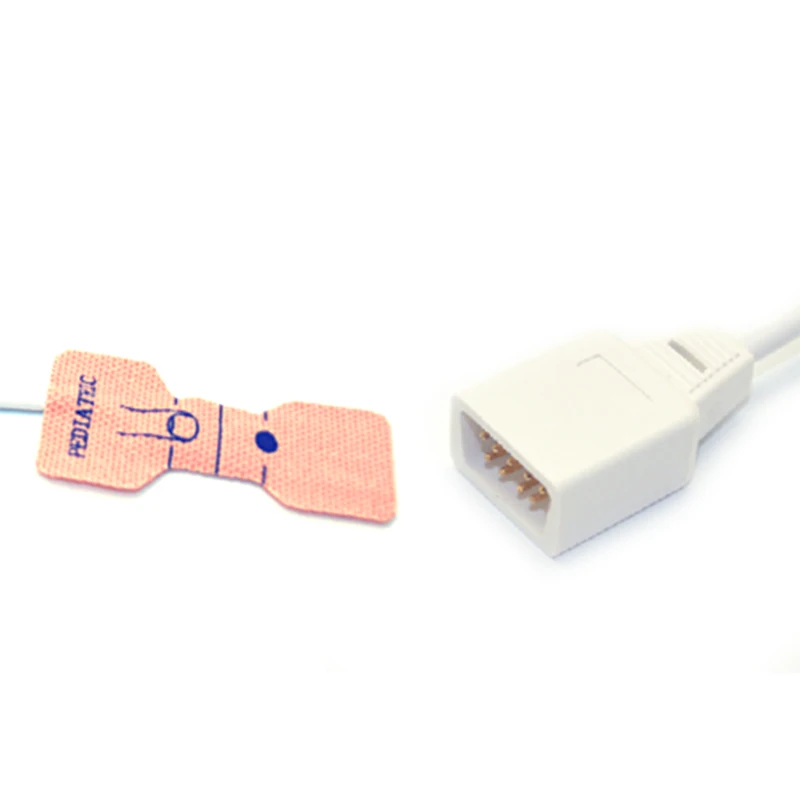

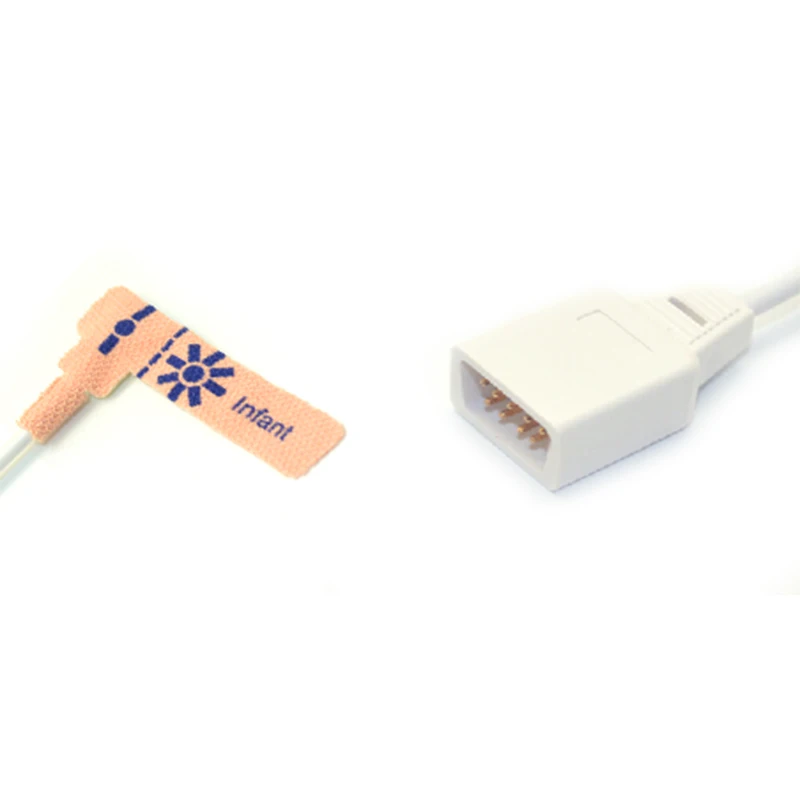

3. Caremed Product Pictures:
4. Caremed Product Test Report:
5. More Main Products from Caremed:
A. SpO2 Sensor, SpO2 Extension;
B. Holter ECG Cable;
C. ECG/EKG Cable, ECG/EKG Leadwire, ECG Electrodes;
D. IBP Transducer, IBP Cable;
E. NIBP Cuff, NIBP Hose;
F. Temperature Probe, Fetal Transducer, CTG Belt;
G. Ultrasound Transducer, Ultrasound Probe Repair.
All Compatible Brands Available for the above. (Contact Now, Save More
