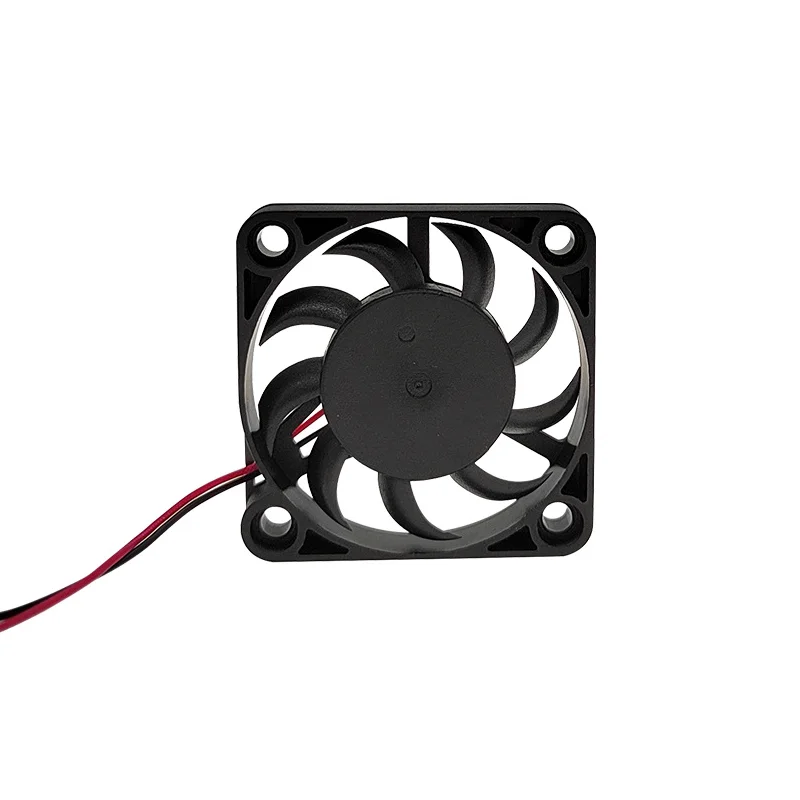

5v 12v 24v 40X40X7mm 2 inch 40 mm 9 blades Sleeve Bearing fan Low noise high air volume ultra thin axial flow brushless fan
- Category: >>>
- Supplier: Shenzhen Duo Li Technology Company Limited
Share on (1600628167576):
Product Overview
Description
Product Description
40x40x10 7-blade Mini Dc Brushless Cooling Fan 5v 40mm
Product Attributes | ||||||||||||||
Description | DlD4007 | |||||||||||||
Series | DC Brushless Fan | |||||||||||||
Size / Dimension | Square - 40mm L x 40mm H | |||||||||||||
Width | 7.00mm | |||||||||||||
Bearing Type | Sleeve | |||||||||||||
Fan Type | Axial Fan | |||||||||||||
Features | • Soft Start. • Hot Swappable Function. • Reverse Polarity Protection. • Over Voltage Protection. • Inrush Current Protection. • Over Current Protection . • PWM or Voltage Speed Control. • Redundancy Function.・ Thermal Sensor Fail and Fan Fail Alarm Signal Output | |||||||||||||
Voltage - Rated | 5V/12V/24V | Customized | ||||||||||||
RPM | 5000 RPM | 6000 RPM | 7000 RPM | 8500 RPM | * | |||||||||
Air Flow(CFM) | 3.13 | 3.84 | 4.24 | 19.58 | * | |||||||||
Max air pressure (mm-H20) | 1.05 | 1.52 | 2.16 | 3.60 | * | |||||||||
Noise(dB(A)) | 26 | 30 | 33 | 46 | * | |||||||||
Termination | 2 Wire Leads OR MORE | |||||||||||||
Operating Temperature | -20℃~70℃ | |||||||||||||
Approvals | CE, ROHS | |||||||||||||
Weight | 10g | |||||||||||||
Voltage Range | 5V12V 24V | |||||||||||||
Material - Frame | PBT With Fiber Class Filed UL-94V0 | |||||||||||||
Material - Blade | PBT With Fiber Class Filed UL-94V0 | |||||||||||||

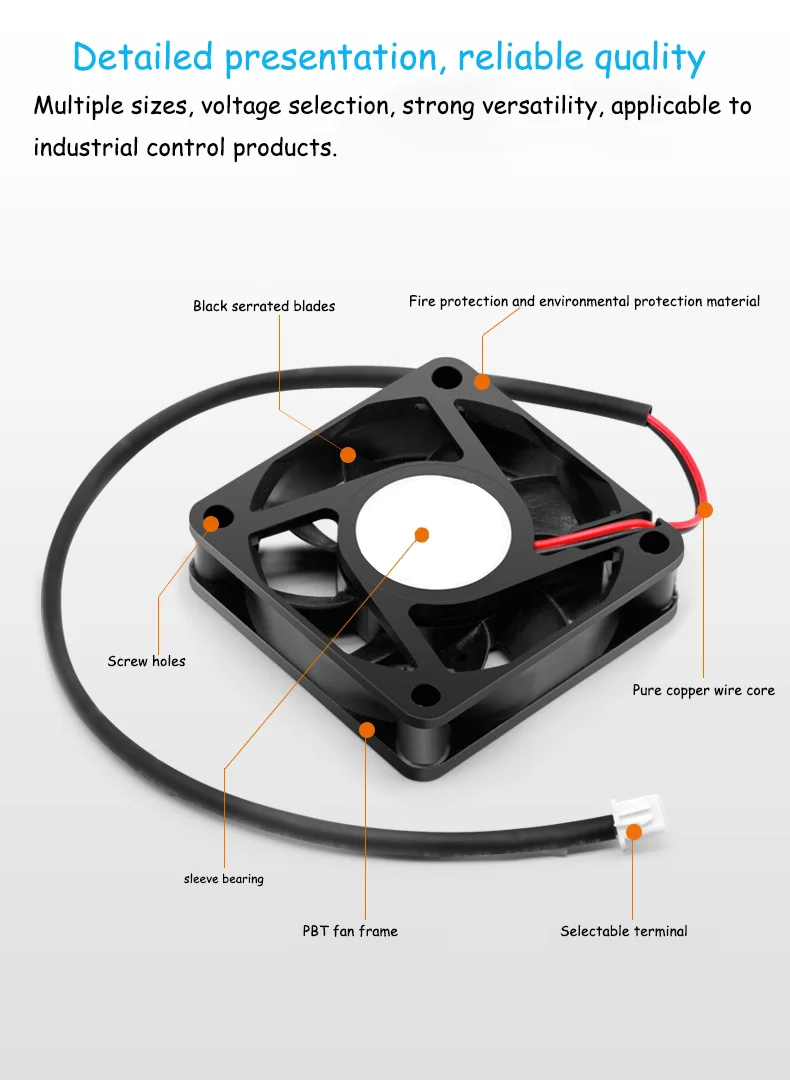

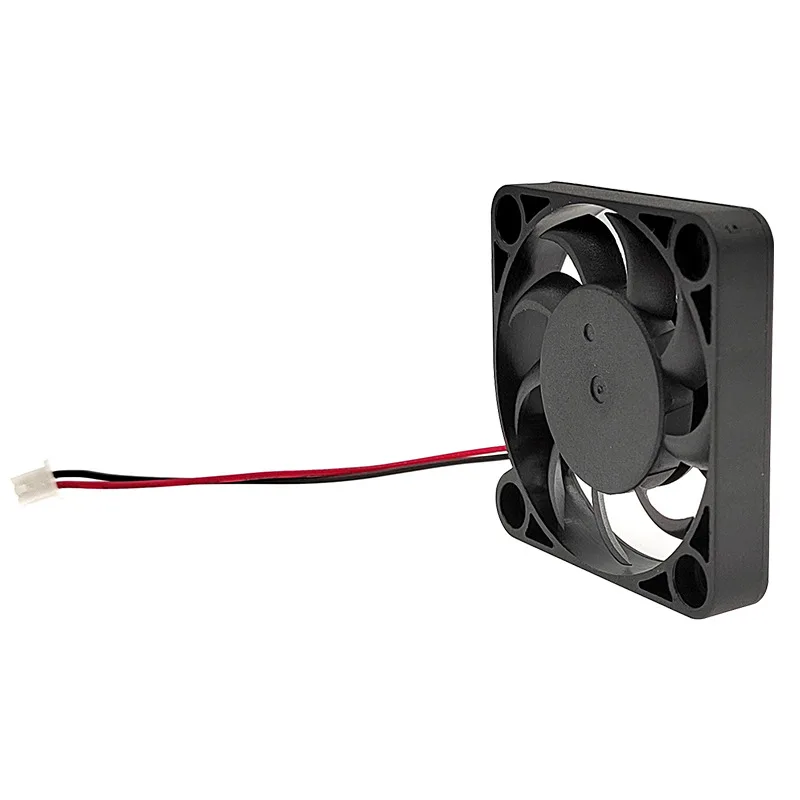

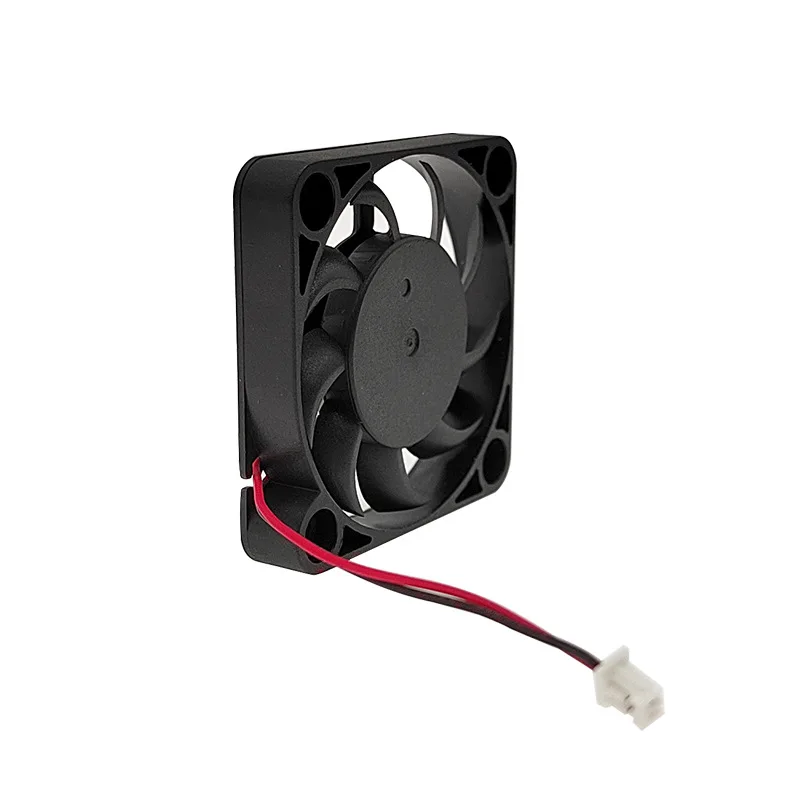

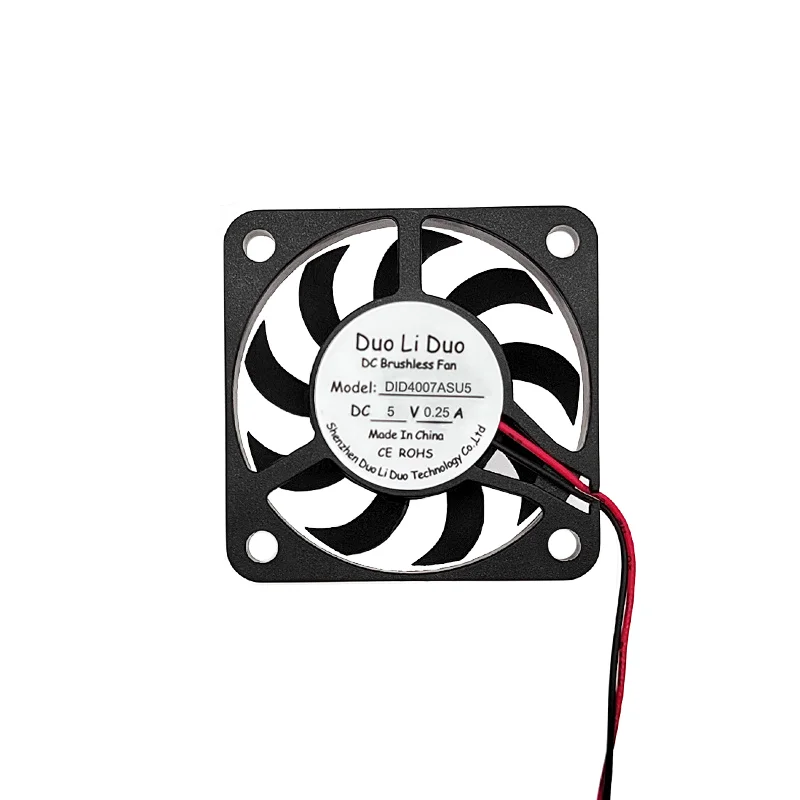

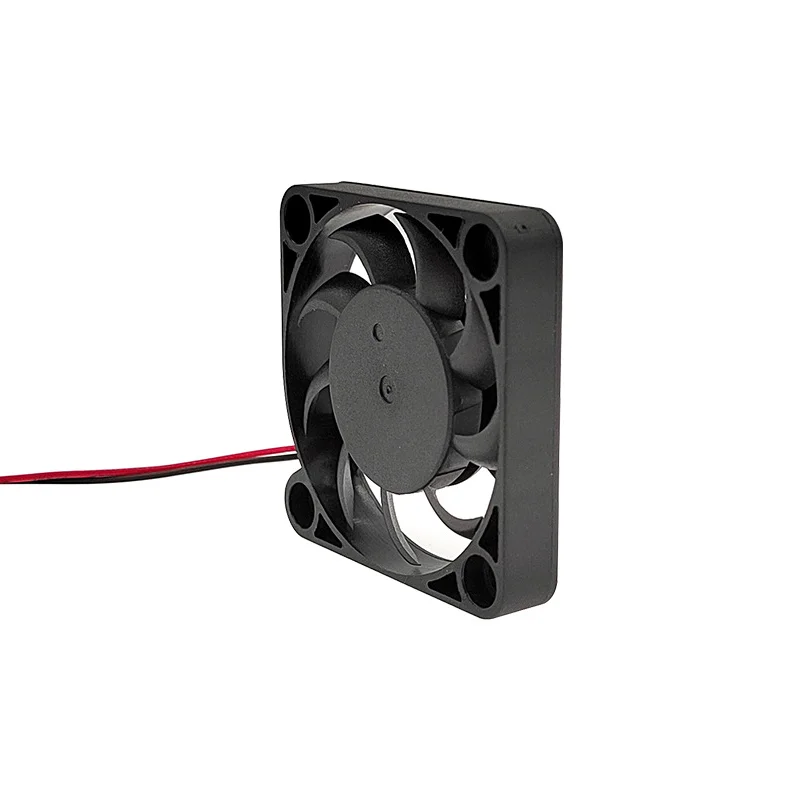

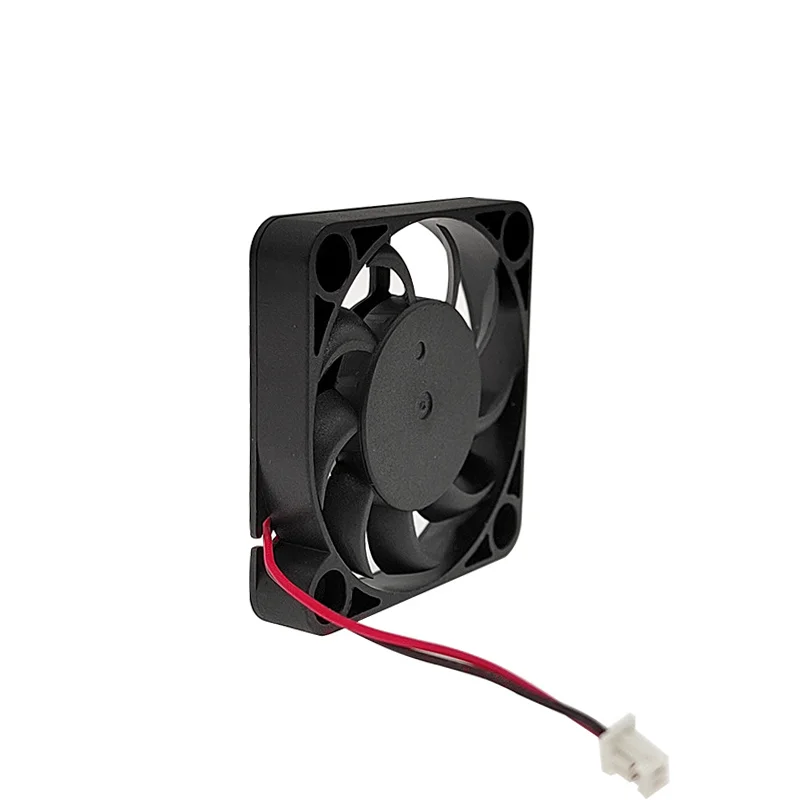

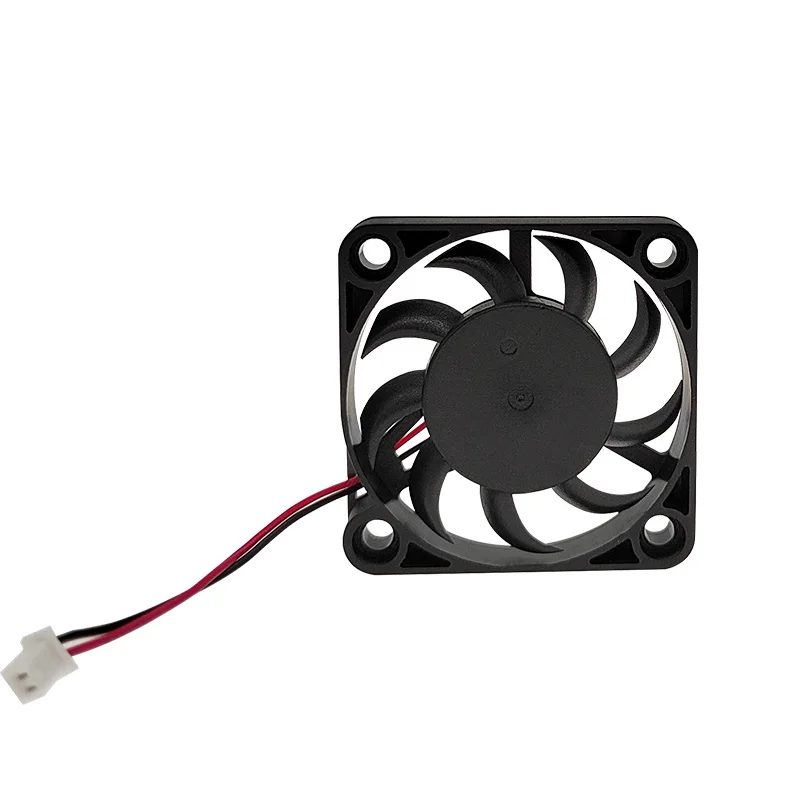

Product pictures

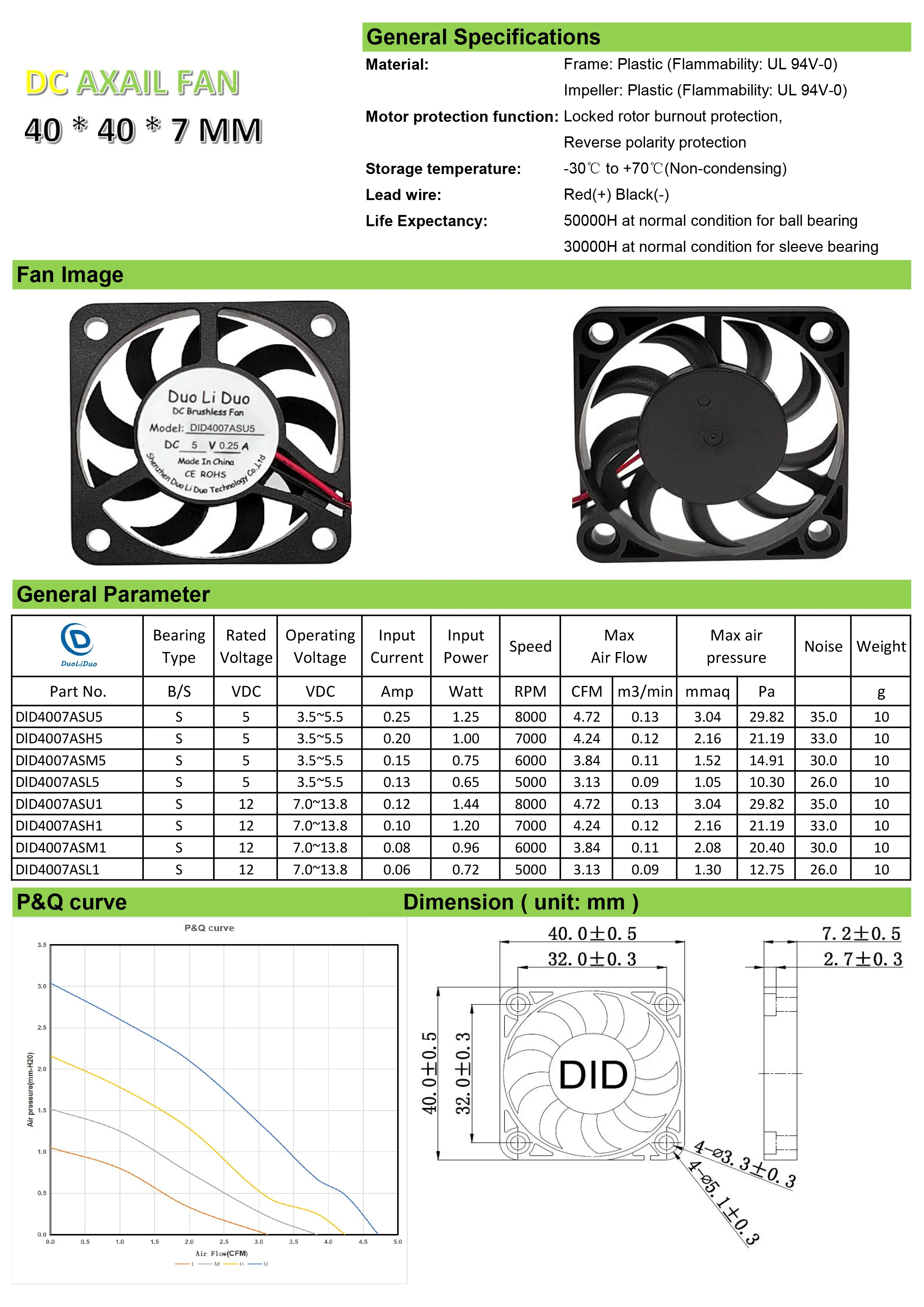

Specification
Life Expectancy At Different Temperatures | ||||
Oil bearing | Ball bearing | The environment temperature | ||
30000hours | 60000hours | 25℃ | ||
20000hours | 40000hours | 40℃ | ||
15000hours | 25000hours | 55℃ | ||
10000hours | 20000hours | 70℃ | ||
Company introduction
Shenzhen Duo Li Duo Technology Co., Ltd. (Didfan) specialized in producing DC compact brushless fans, like Dc axial flow fan, Dc blower fan, Dc centrifugal fan. we have developed a variety of low noise, strong air volume, high stability and long life products, which is widely used for industrial, medical, home appliances, consumer electronics, and other fields. such as industrial equipment, servers, new energy, communication equipment, medical equipment, instruments and meters, stage lights,cabinets, industrial power supply, ventilation and heat dissipation system, air purification, heating and cooling ventilation system, military and other products and other industries. We will always provide customers with reliable quality and stable performance of the fan, according to customer requirements to develop a variety of structure and performance of the cooling fan,and real-time technical communication with customers, respond to customer needs in short time, and help customers select the most suitable products in the shortest time. We will also collect relevant information and carry out forward-looking development according to the market situation and customer demand tendency. To expand product performance advantages and product series.
Product transportation
