2 Way 3 Way Water Micro Normally Open Solenoid Isolation Valve

Product Overview

Description

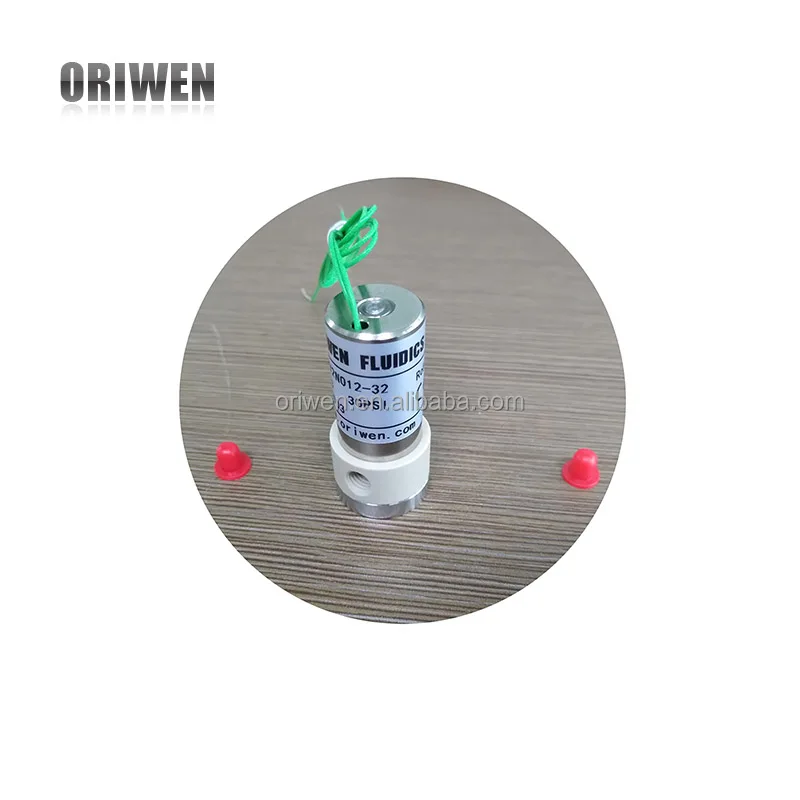

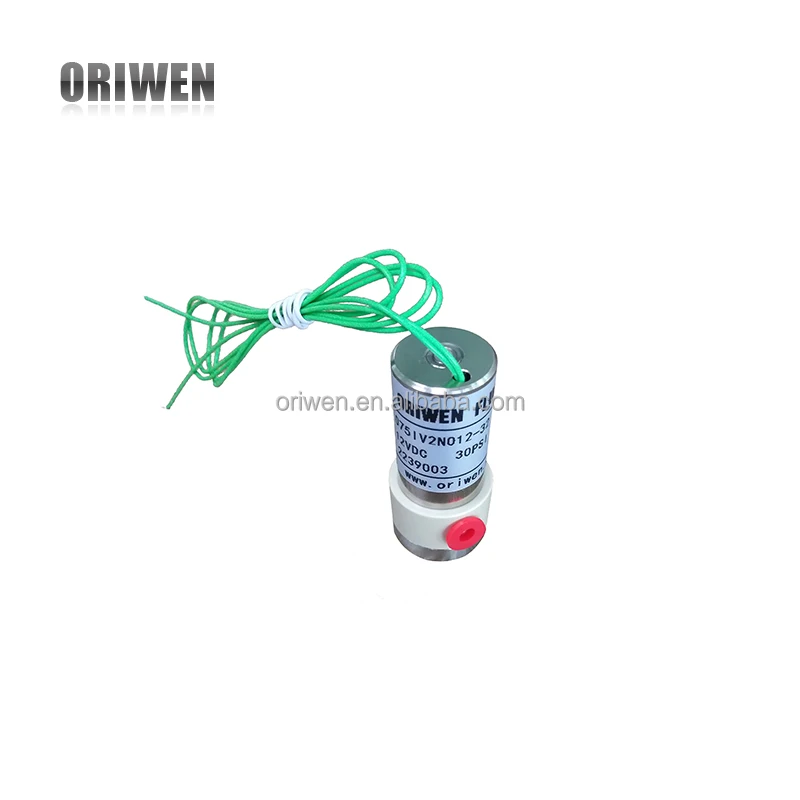

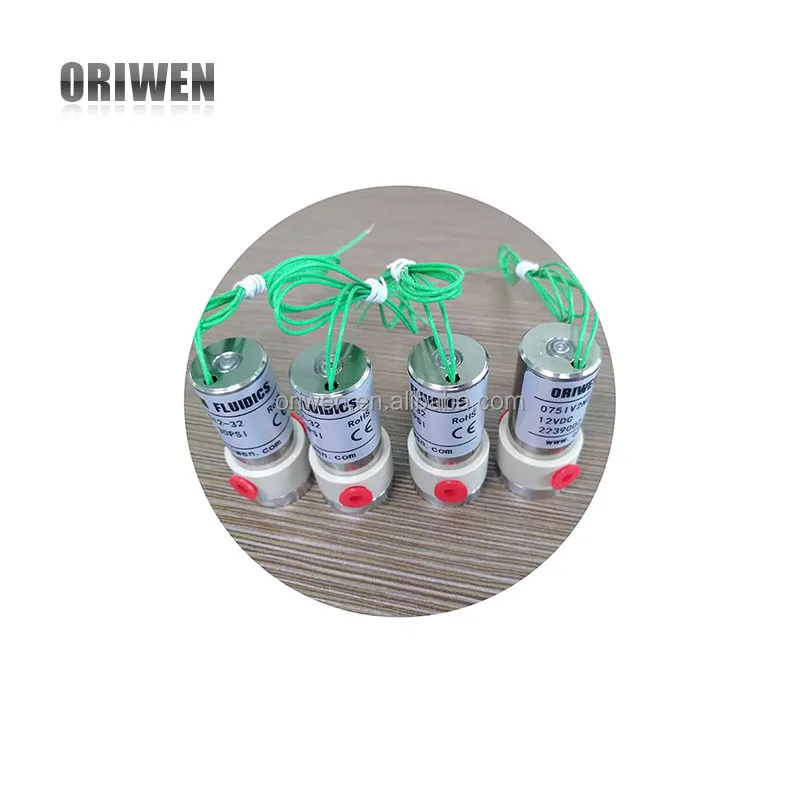

2 Way 3 Way Water Micro Normally Open NO Solenoid Isolation Valve





Oriwen Fluidics Custom Solenoid Isolation Valves (inert) are applicable to medical and analytical instruments. Small highly inertness valves are suitable for flow control on corrosive chemical liquids and particle-free liquids. Normally Closed, Normally Open and 3 Way NO/NC solenoid isolation valves are all available for different application areas.



Specifications



Features



√ Both 2way-NC, 2way-NO and 3way available

√ Max pressure resistance 60PSI

√ Resistant to various strong corrosive media

√ Orifice 0.5~3.0mm optional

√ Low energy consumption

√ A shorter response time

√ Wetted materials: PTFE/FFKM, etc.

√ Zero dead volume, reducing cross-contamination

√ Modular installation: no leakage points and smaller installation space



Small Valve Types



Different sizes of isolation valves; Solenoid Coil Size: 19.1mm and 25.4mm;

Corresponding Orifice: 0.032’’~0.125’’ (0.81mm~3.17mm), suitable for a range of applications.



Wetted materials



The wetted part of the isolation valves only includes the diaphragm and the valve bottom. The standard material is PTFE which is inert and of good performance of corrosion resistance. Others are like PEEK, PPS, EPDM and Perfluoroelastomer.





Note:

*Mounting clip, ring, and flange are all available to support with.

*Please feel free to contact us for quotation or custom service about our Solenoid Isolation Valves.





Selection Advice



1.	Ports?
2.	Structure?
3.	Voltage?
4.	Application information related?
*customization service as required
