Online Wholesale Gantry Crane 5 Ton Price 30 Ton Gantry Crane Double Girder Gantry Crane
- Category: >>>
- Supplier: Shandong Kaiyuan Heavy Machinery Co. Ltd.
Share on (1600628189716):
Product Overview
Description
Product Description

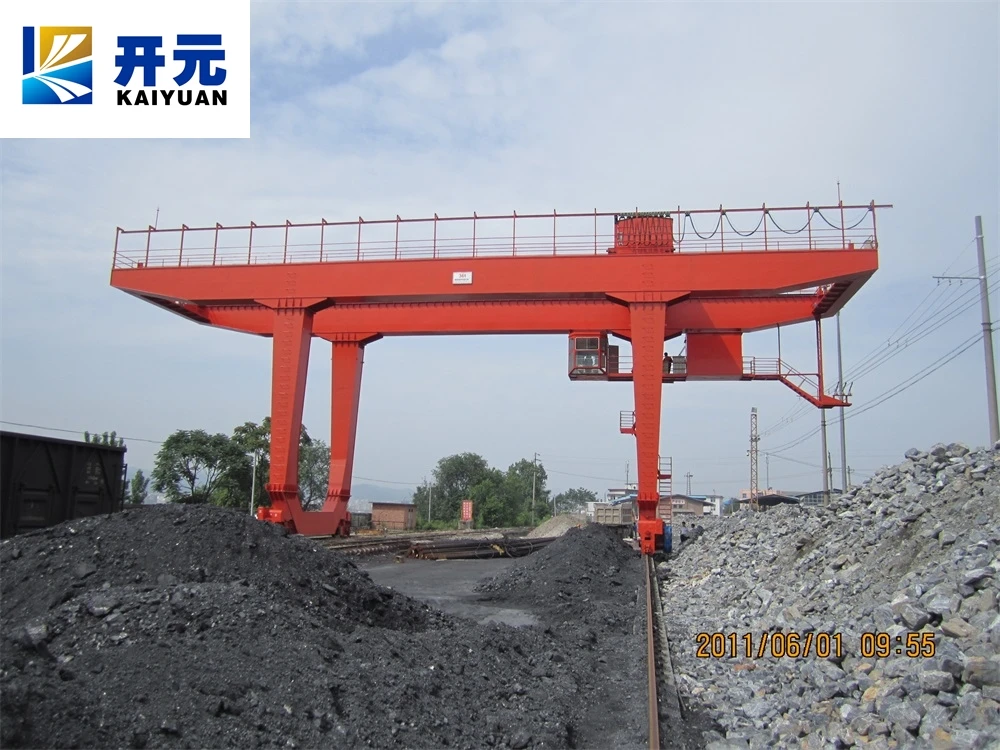

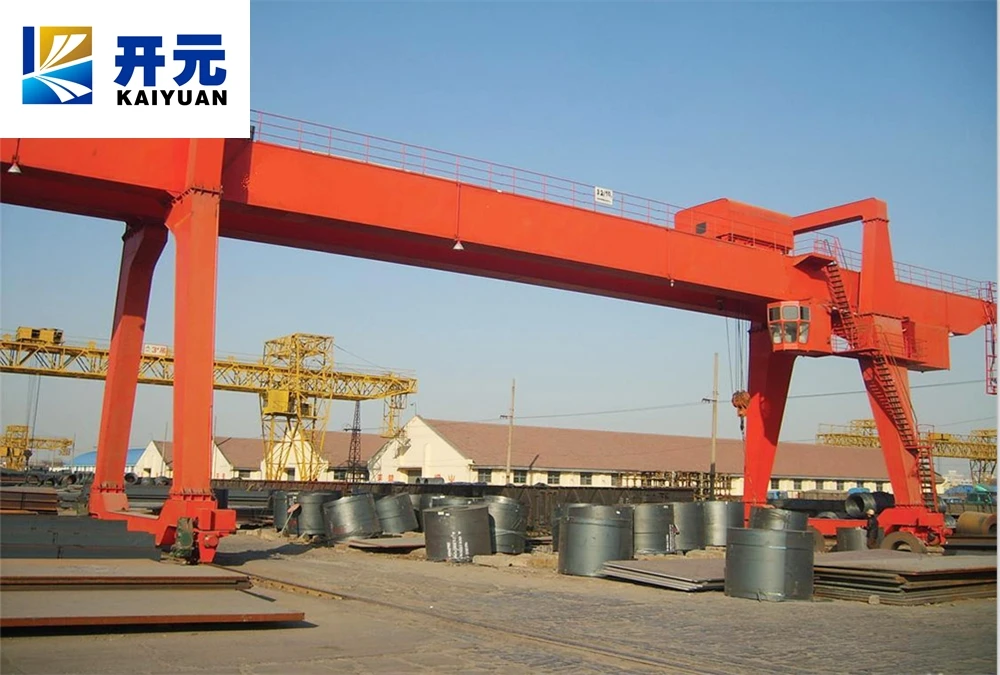

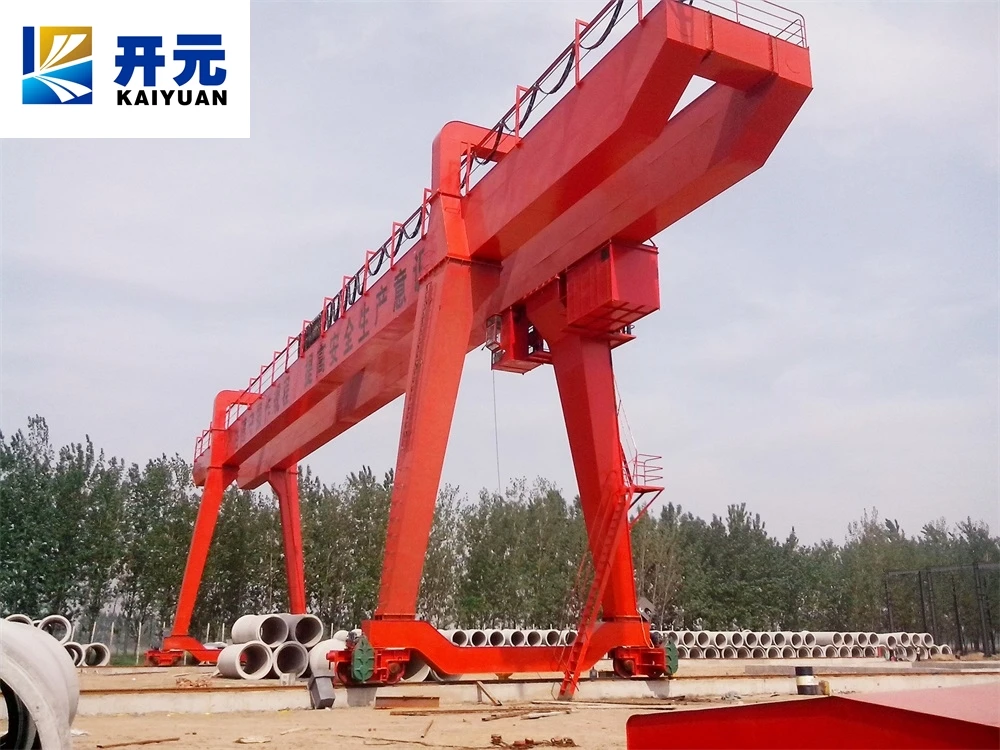

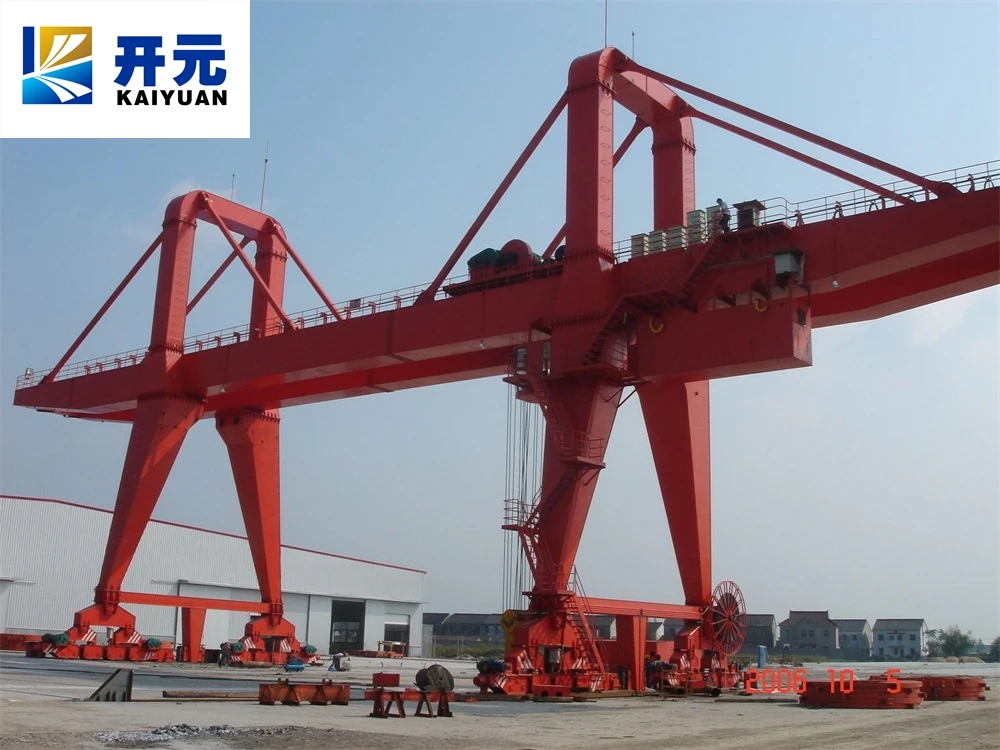

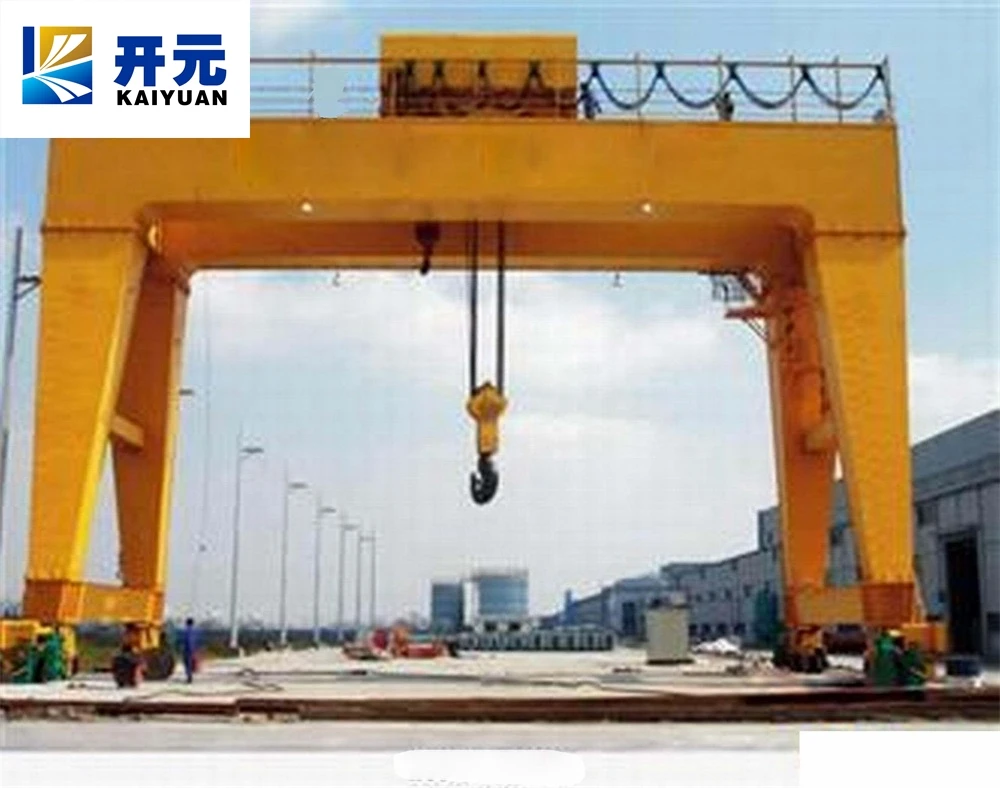

Double Girder Gantry Crane with Hook
1. The double gilder gantry crane with hook adapts to open storage, stock ground, railway freight station, port and pier to load and move. It can use various special hooks to operate.
2. The crane consists of crane span structure, crane travel mechanism, trolley and electrical equipment. The crane span structure adapts the box type double girder welding structure while the crane travel mechanism adapts the separate drive with all the mechanism are operated in operating housing. All the safety precautions like wind alarm, broken shaft, rollover protection and others are all in readiness.
3. The electric conduction form of crane can be decided into cable and trolley conductor. The users can choose one form and the trolley conductor subject to data in the figure.
4. The normal ambient temperature condition of crane is between 25 to 40 degree centigrade and the average temperature in 24 hours must less than 35 degree centigrade. It should install in the place where the height is less than 2000 meters and if the height is more than 1000 meters, the mater capacity should be checked.
2. The crane consists of crane span structure, crane travel mechanism, trolley and electrical equipment. The crane span structure adapts the box type double girder welding structure while the crane travel mechanism adapts the separate drive with all the mechanism are operated in operating housing. All the safety precautions like wind alarm, broken shaft, rollover protection and others are all in readiness.
3. The electric conduction form of crane can be decided into cable and trolley conductor. The users can choose one form and the trolley conductor subject to data in the figure.
4. The normal ambient temperature condition of crane is between 25 to 40 degree centigrade and the average temperature in 24 hours must less than 35 degree centigrade. It should install in the place where the height is less than 2000 meters and if the height is more than 1000 meters, the mater capacity should be checked.
Main Parameters List | ||||||||||||
Crane Traveling Mechanism | Traveling Speed(m/min) | 20 | 30 | 45 | 60 | |||||||
Ratio | 58.95 | 39.42 | 26.51 | 19.44 | ||||||||
Motor | Type | Cone Squirrel-cage | Cone Squirrel-cage | |||||||||
Power(kw) | 0.8*2, 1.5*2, 2.2*2 | 1.5*2, 2.1*2 | ||||||||||
Rotary Speed(r/min) | 1380 | 1350 | ||||||||||
Hoist Lifting Mechanism and Traveling Mechanism | Trolly | |||||||||||
Lifting Speed(m/min) | 8/0.8, 7/0.7, 3.5/0.35 | 8, 7, 3.5 | ||||||||||
Span(m) | 7.5-28.5 or assigned | |||||||||||
Lifting Capacity(t) | 1-32 | |||||||||||
Lifting Height(m) | 6, 9, 12, 18, 24, 30 | |||||||||||
Traveling Speed(m/min) | 20, 30 | |||||||||||
Motor | Cone Squirrel-cage | |||||||||||
Work Duty | Intermediate Jc=25% | |||||||||||
Power Supply | 380V 50HZ 3P | |||||||||||
Wheel Diameter | Φ270, Φ400 | |||||||||||
Trail Width | 37-70 | |||||||||||
Company Profile
Shandong Kaiyuan Heavy Machinery Co., Ltd. was established in 2006, focusing on the design and manufacture of various types of lifting machinery, the annual capacity of 35,000 tons of steel, products have 13 series, more than 800 specifications, especially in the fields of overhead crane, gantry crane, portal crane, dust-free ship unloader, ship loader, STS and port mining equipment field, great achievements have been made. As a member of China Heavy Machinery Association, Kaiyuan has obtained the ISO9001 international quality system certification, as well as international CE, SGS and other certifications,with A-level special equipment production, transformation, installation, maintenance license and other qualifications, and has independent intellectual property and industrial property rights, and has been rated as "high-tech enterprise".
The company has 26 professional and technical personnel and 126 employees, covering an area of 70,000 square meters and the products are sold all over the country and exported to more than 20 countries including Russia, Czech Republic, Brazil, Pakistan, Thailand, Bangladesh, Ethiopia, Vietnam, Indonesia, Uzbekistan, etc.
OUR SERVICE
Professional mechanical engineers and electrical engineers provide suitable solution only for you!
Engineers available to service machinery overseas.
We can offer about 12 moths maintenance service.
Recieved customer's message about the quality problems,related after sale service managers will help customer solve problems immediately.
Professional mechanical engineers and electrical engineers provide suitable solution only for you!
Engineers available to service machinery overseas.
We can offer about 12 moths maintenance service.
Recieved customer's message about the quality problems,related after sale service managers will help customer solve problems immediately.
Certifications
Why Choose Us
Customer Photos
Exhibition
Packing & Delivery
Packaging Details: | Packaging: 1. Electric parts are packed in iron box to reduce distortion in conveying; 2. Steel structures are fastened by bolts. Land Transportation & Shipping: 1. If the size of whole crane are suitable for container ship, usually by container; 2. If the size is too big, usually by bulk ship or by container after truncation; 3. Transport ways are based on reducing cost for you and keep the crane performance! |
Delivery Day : | Within 150 work days after receiving the deposit |
FAQ
1. Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
3. What's the max lifting capacity of the crane?
Thanks for your question. The max. Lifting capacity of our standard crane are up to 600 ton (the electric hosits are up to 80 t). If this can't satisfy your working requirement. Please contact us for special customized.
4. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
5. Can the crane work in hazardous environment?
Thanks for your question. .For hazardous environment, please consult our professional sales manager.
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
3. What's the max lifting capacity of the crane?
Thanks for your question. The max. Lifting capacity of our standard crane are up to 600 ton (the electric hosits are up to 80 t). If this can't satisfy your working requirement. Please contact us for special customized.
4. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
5. Can the crane work in hazardous environment?
Thanks for your question. .For hazardous environment, please consult our professional sales manager.
