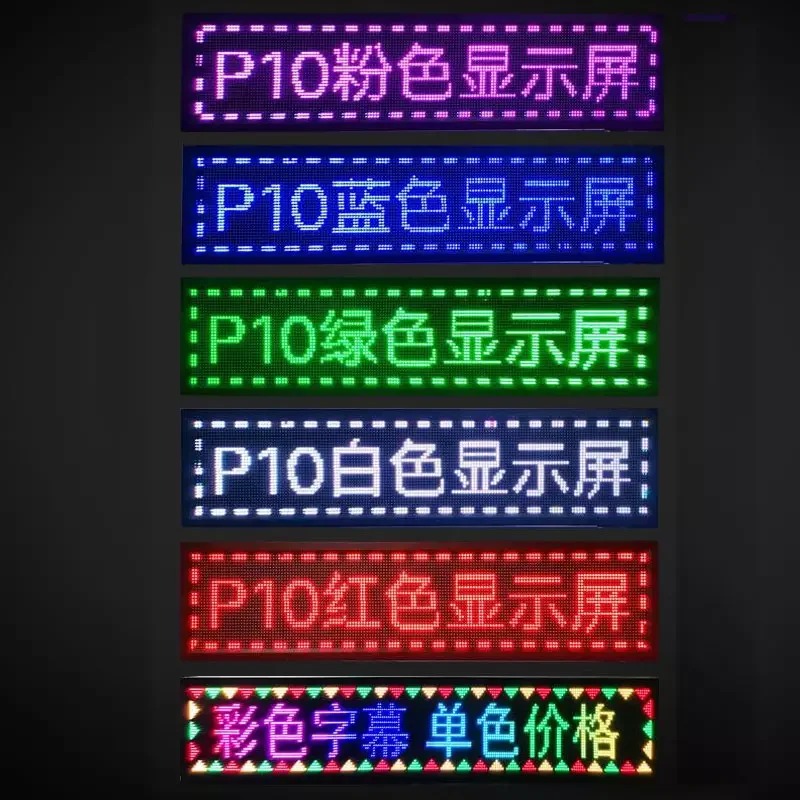

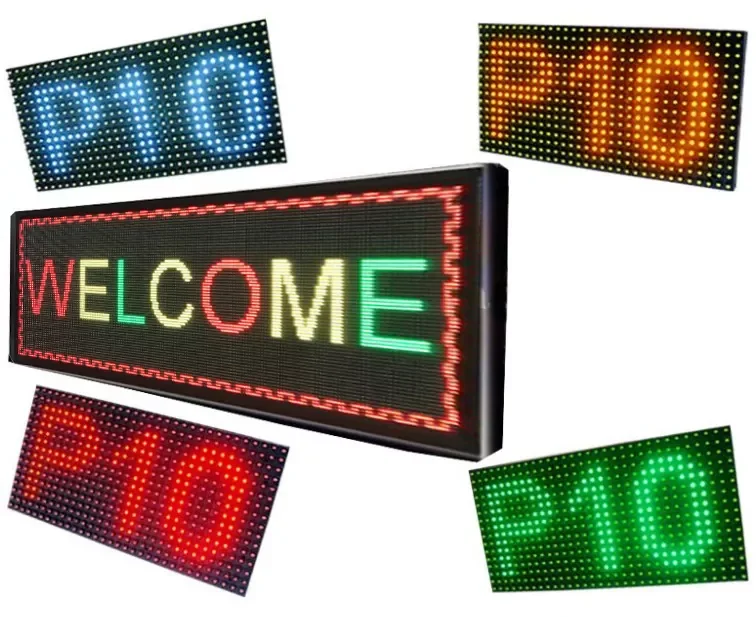

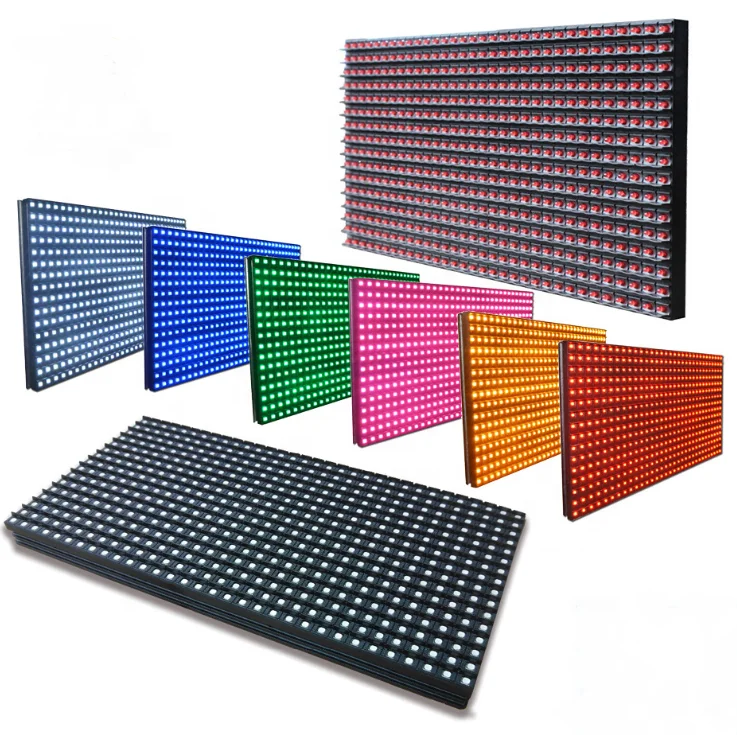

Free sample P10 green color Outdoor Led Display Single Color led panel for Welcome Display
- Category: >>>
- Supplier: Fujian Huacai Tronics LimitedFujian Limited
Share on (1600628273091):
Product Overview
Description
Product Paramenters
LED tube chip parameters | ||||||||||||
Packaging | Color | Brand | Model | Brightness | Wave length | Quantity | ||||||
DIP Oval 546 Lamp | R | Epistar | 9mil | 800-900 | 730-800 | 1 | ||||||
G | Epistar | 8x10mil | 1000-1100 | 900-1000 | 1 | |||||||
B | Epistar | 8x10mil | 230-260 | 230-260 | 1 | |||||||

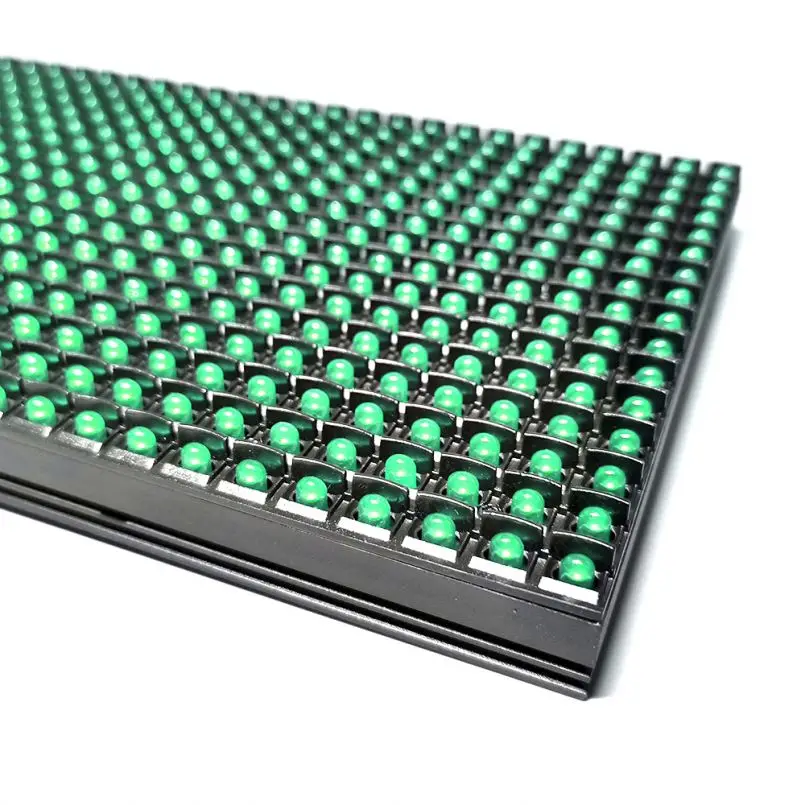

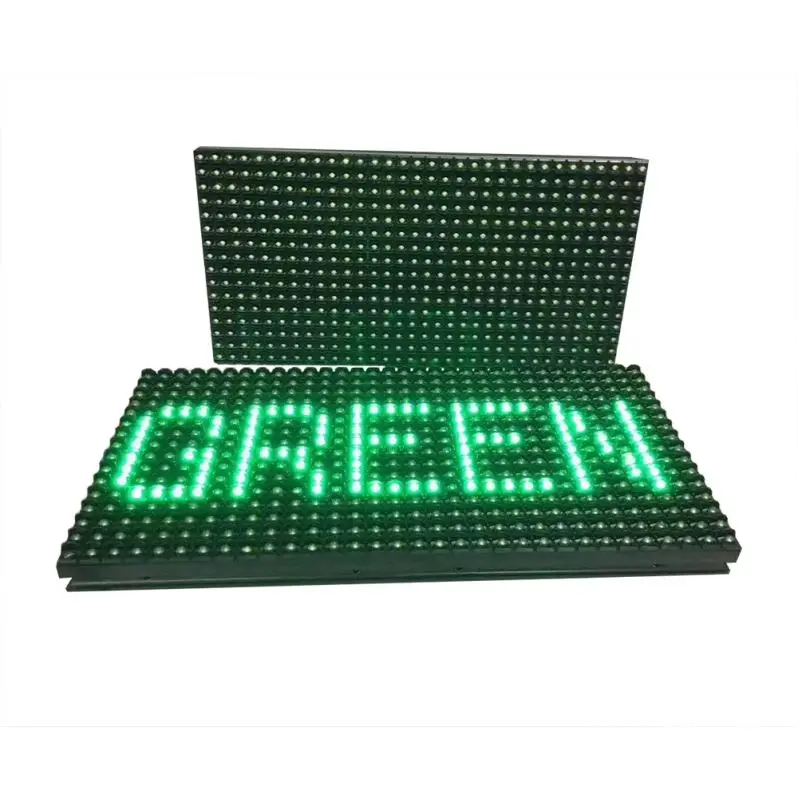

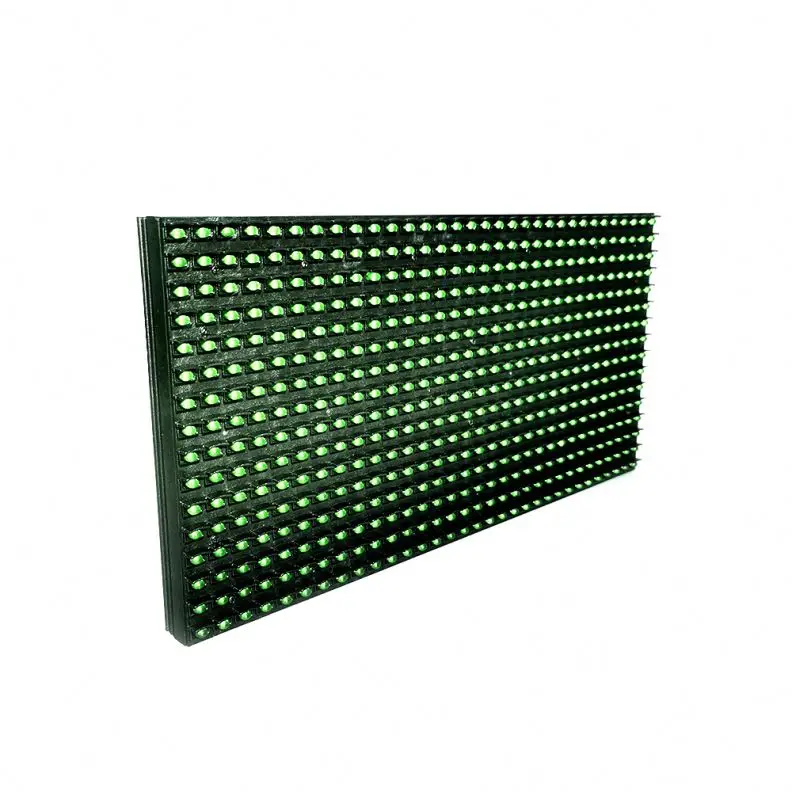

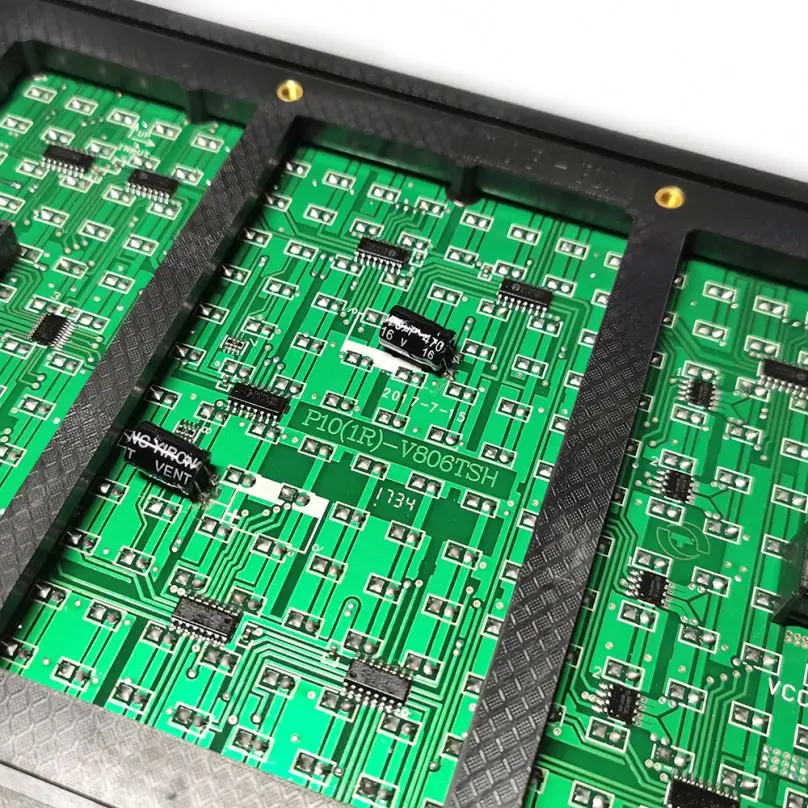

LED module parameters | ||||||||||||

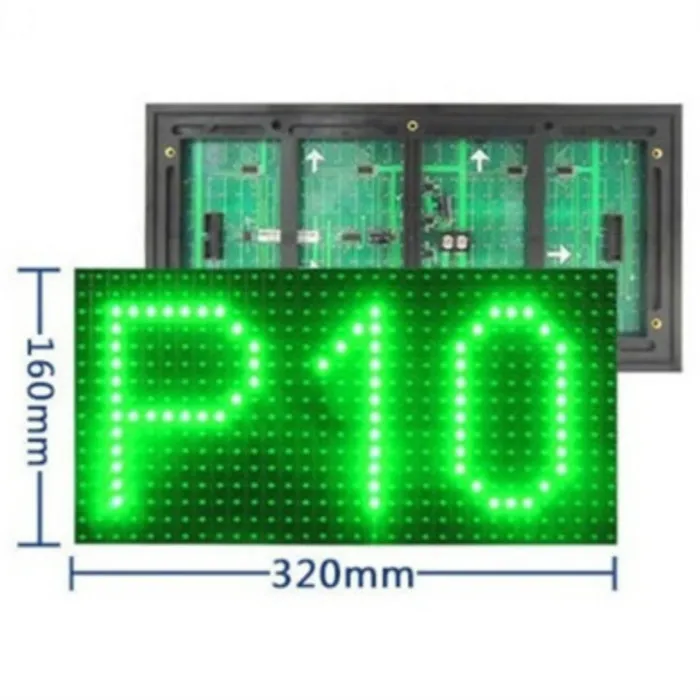

Pixels pitch: | 10mm | Pixel density: | 10000dot/m2 | |||||||||

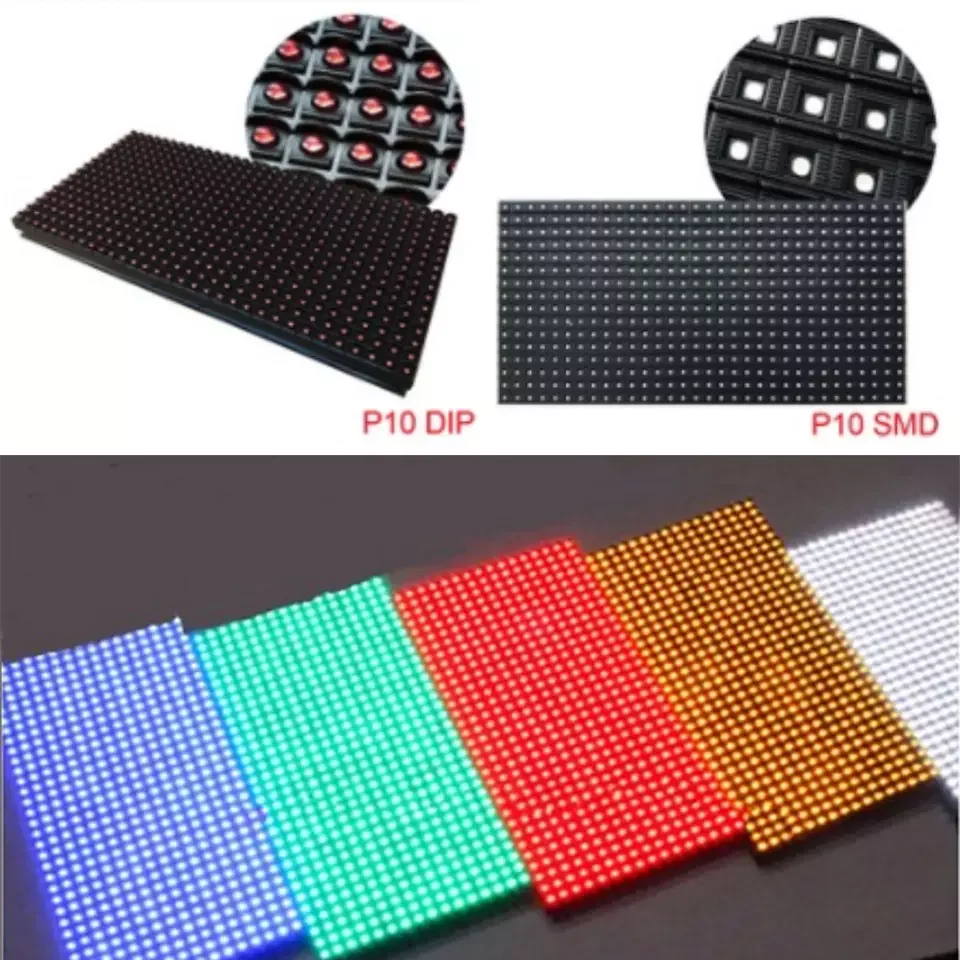

Pixel configuration: | 1R/1G/1B/1W/1Y/1P Optional | Module pixels: | 32x16=512 dots | |||||||||
Module size: | 320x160x25mm | Module weight: | 0.58KG | |||||||||
Configuration feature: | Integrated Light/Driver | Frame material: | Polycarbonate(PC) | |||||||||
Input voltage: | AC 4.8-5.5V | Max current: | 6.0A±0.1A | |||||||||
Module power consumption: | 30W | Driver mode: | 1/4 scan | |||||||||
LED cabinet parameters | ||||||||||||
Standard cabinet size: | 960x960x48 mm | |||||||||||
Cabinet pixel: | 96x96=9216dots | |||||||||||
Cabinet square: | 0.9216m2 | |||||||||||
Cabinet weight: | 45KG | |||||||||||
Max power consumption: | 300W | |||||||||||
Average power consumption: | 100W~250W | |||||||||||
LED display parameters | ||||||||||||
Brightness: | ≥1800cd/m2 | Brightness homogeneity: | ≥0.95 | |||||||||
Best horizontal view angle: | 120° | Best vertical view angle: | Vertical:<160° | |||||||||
Best view distance: | 5m~100m | Blind spot rate: | <0.0001 | |||||||||
Max power consumption: | 300w/m² | Application condition: | outdoor | |||||||||
System control parameters | ||||||||||||
Gray scale: | 256 grade | Color | 16777216 kinds | |||||||||
Repetition rate: | ≥60 frame/second | Refresh rate: | ≥300Hz | |||||||||
Control method: | Asynchronous or Synchronous | Brightness adjusting: | 256 auto/manual | |||||||||
Input signal: | DVI/VGA, RGBHV, S-VIDEO, HDTV and so on | |||||||||||
System working features | ||||||||||||
Lifespan: | ≥100,000 hours | MTBF: | ≥10,000 hours | |||||||||
Attenuation rate: | ≤15% 3 years working | Out of control dots: | 0 | |||||||||
Discrete control dot: | 0 (before shipment) | Blind spot rate: | 0 (before shipment) | |||||||||
Working temperature: | -20 ~50 °C | Working humidity: | 10%~90%RH | |||||||||
Protection feature: | over-heat, over-load, image complement, overcurrent, overvoltage, anti- thunder (optional) | |||||||||||
Products Description
Installation Instructions
Product packaging

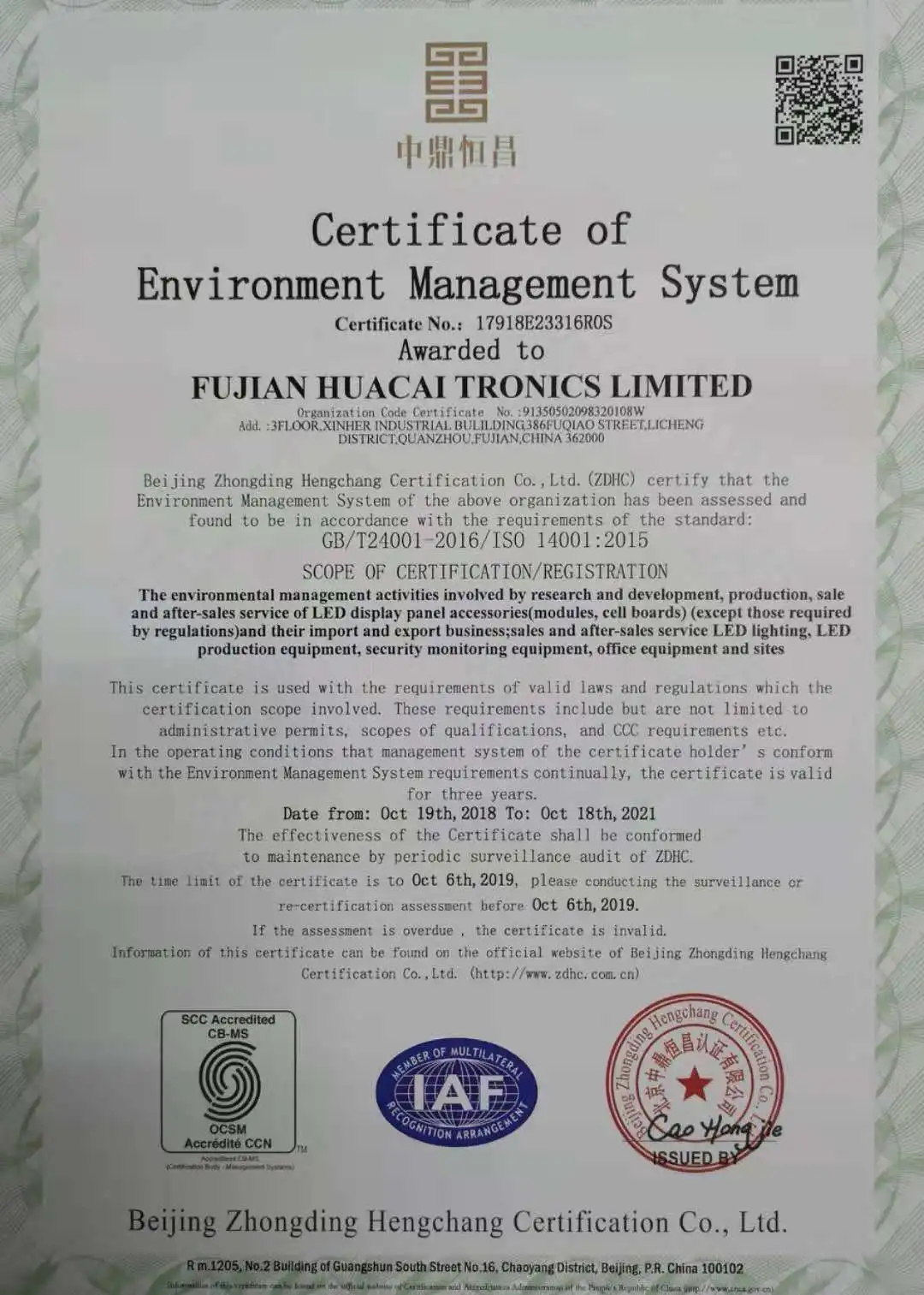

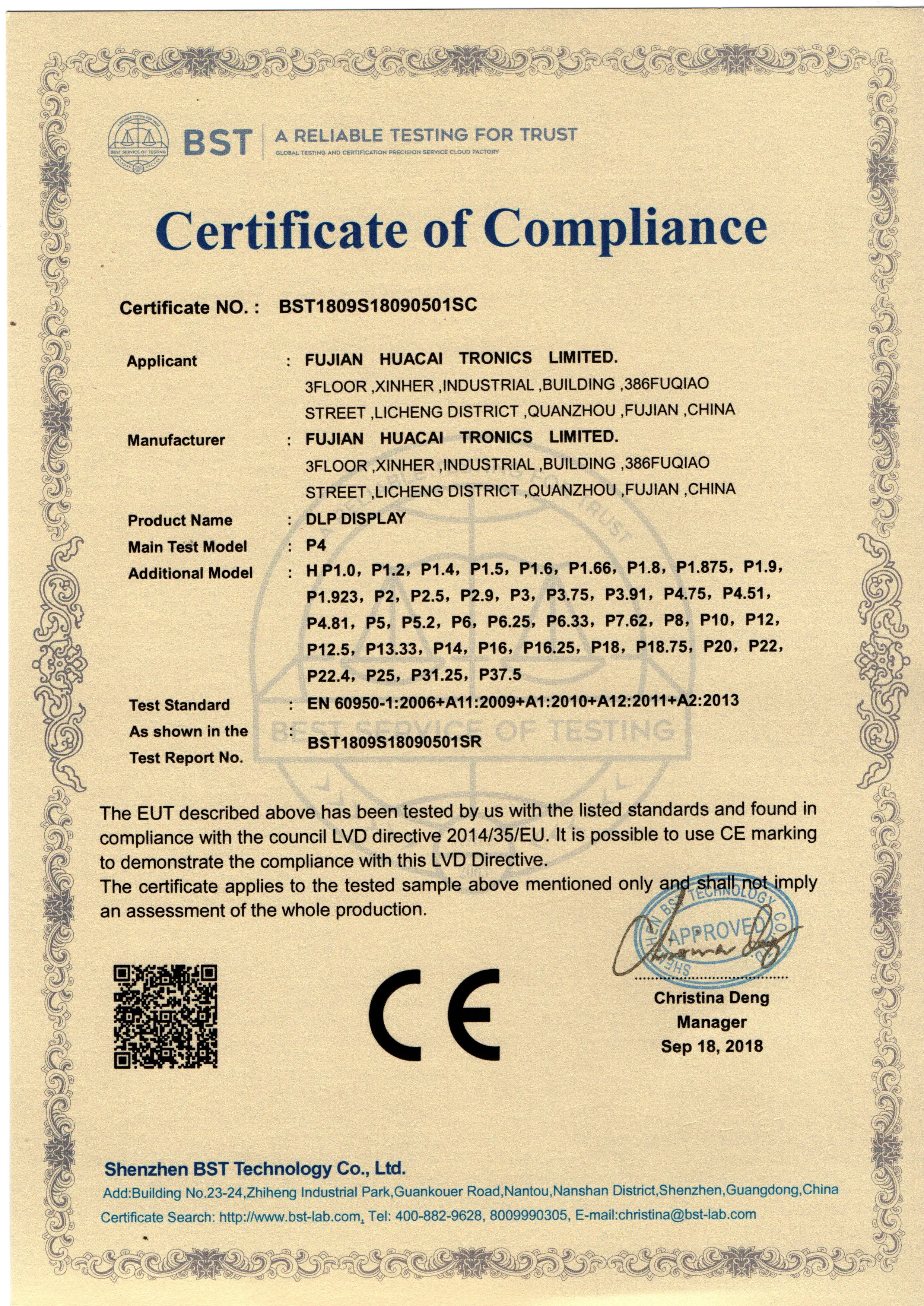

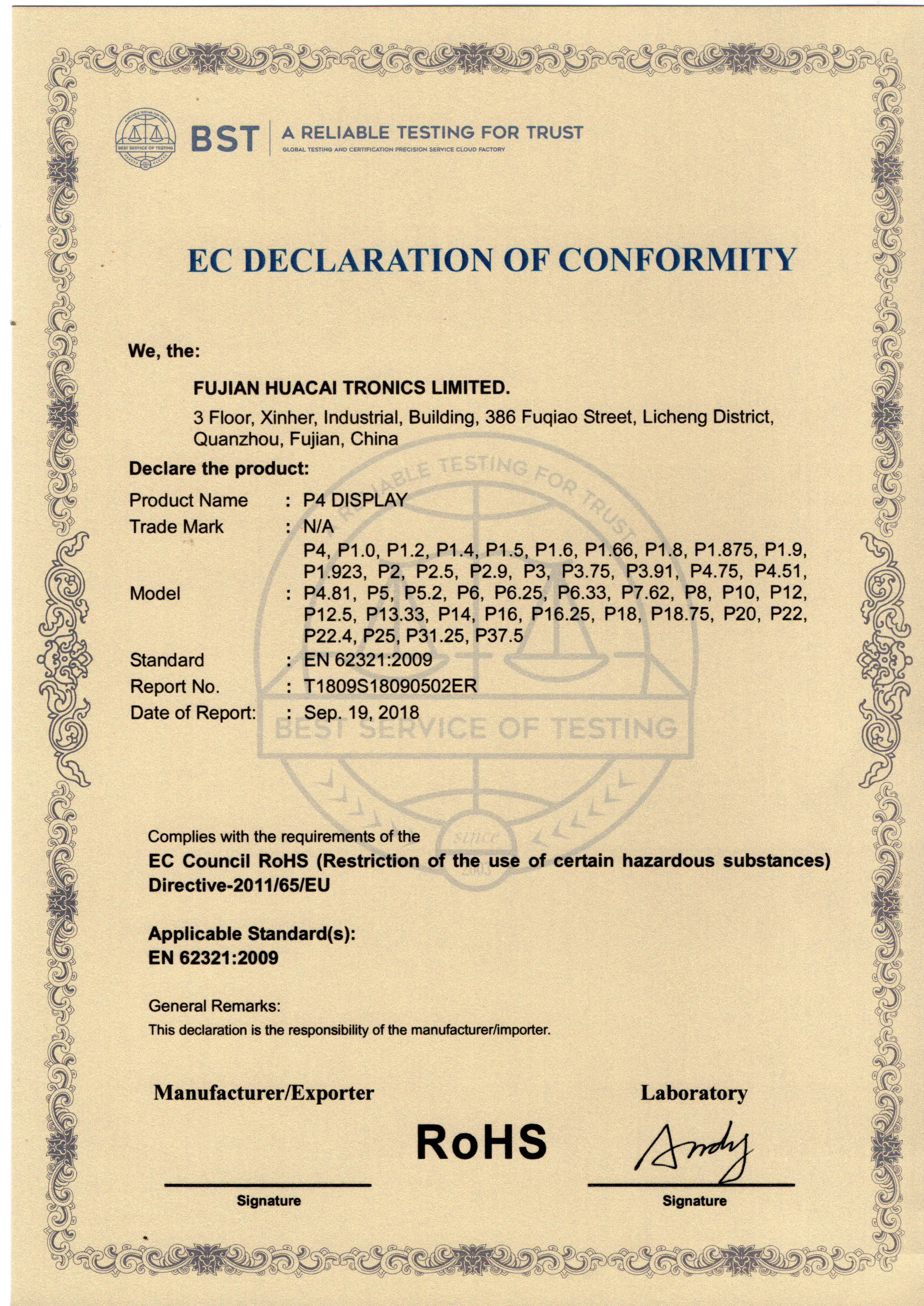

Certifications

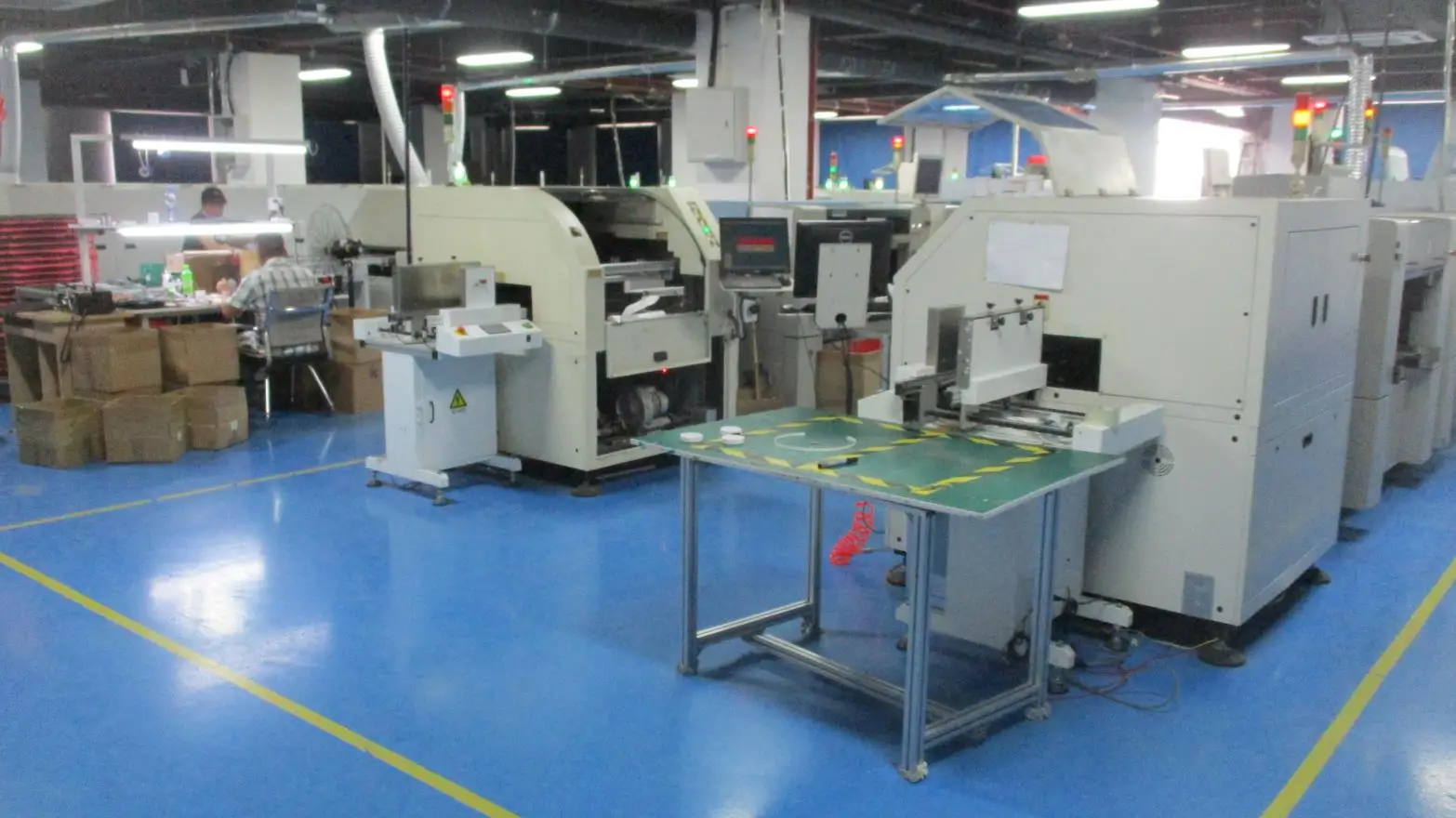

Company Profile

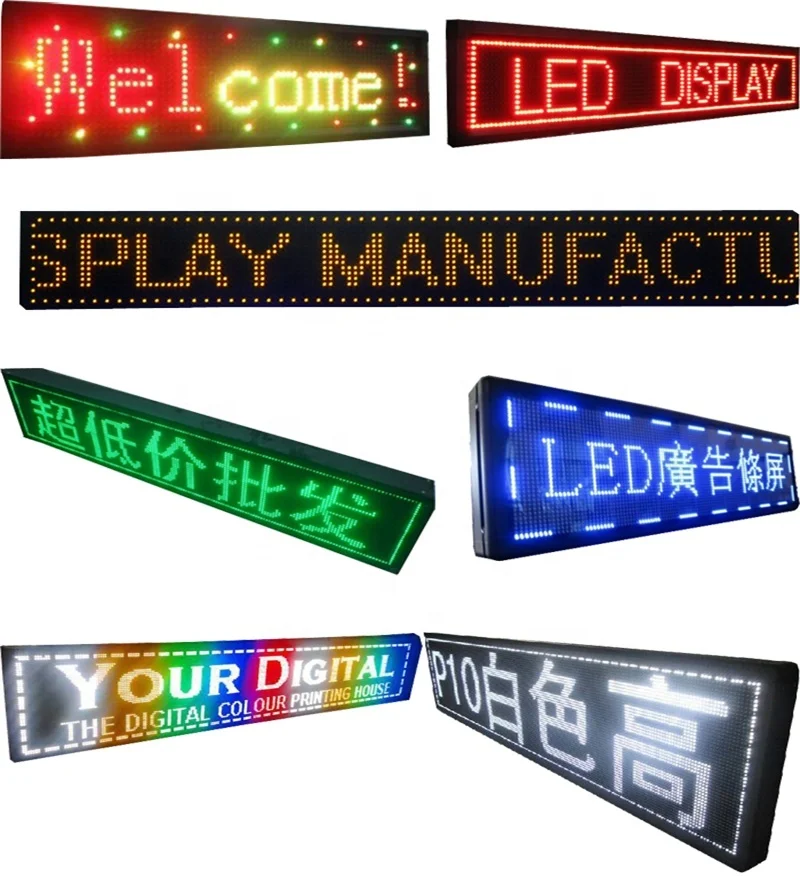

Recommend Products
FAQ
FAQ
Q1: How about your company ?
A: HUACAI is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and QC team for 8 years
Q2: What is the control system? How is it?
A: We use Novastar/Colorlight/Linsn/HD..... control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/
Laptop/PC/ Cloud control.
It’s very easy and convenient to control the screen.
Q3: What is your best service?
A: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well,
5…6…etc.
Q4. How about your delivery time?

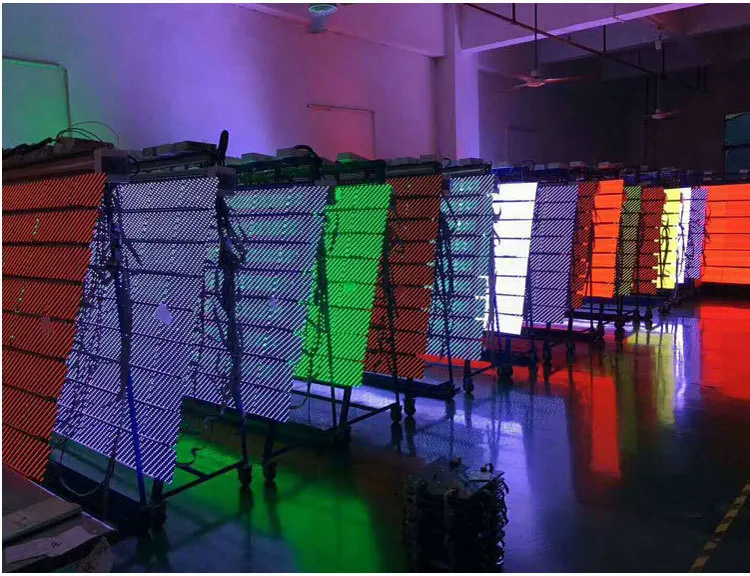

A: Standard module we have stock ,Can send out after 12 hours aging testing .The led display can finish 10-15 days.
Q5:How about your Warranty Term?
A: 1-3 years warranty. Structure design, installation problem, program the screen, how to use the screen.....We have professional
after-sale team to solve any questions after you placed an order. And your exclusive sales engineer will also help you get over
any problems.
Q6: What quality certificates do you have?
A: We have CE-LVD, CE-EMC,RoHS,FCC certificates.
Q1: How about your company ?
A: HUACAI is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and QC team for 8 years
Q2: What is the control system? How is it?
A: We use Novastar/Colorlight/Linsn/HD..... control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/
Laptop/PC/ Cloud control.
It’s very easy and convenient to control the screen.
Q3: What is your best service?
A: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well,
5…6…etc.
Q4. How about your delivery time?
A: Standard module we have stock ,Can send out after 12 hours aging testing .The led display can finish 10-15 days.
Q5:How about your Warranty Term?
A: 1-3 years warranty. Structure design, installation problem, program the screen, how to use the screen.....We have professional
after-sale team to solve any questions after you placed an order. And your exclusive sales engineer will also help you get over
any problems.
Q6: What quality certificates do you have?
A: We have CE-LVD, CE-EMC,RoHS,FCC certificates.
