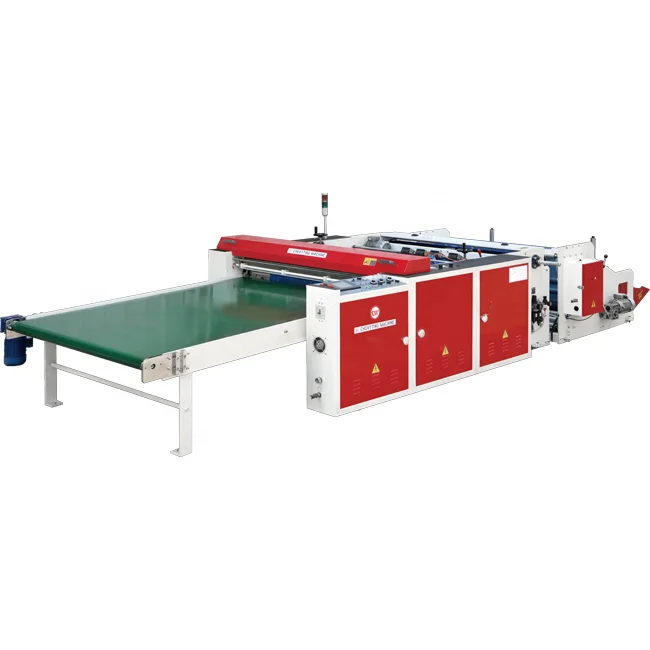

China supplies side and bottom sealing cutting bag making machine ice cube bag making machine garbage LDPE bag making machine
- Category: >>>
- Supplier: Zhejiang Chovyting Machinery Co. Ltd.
Share on (1600628279558):
Product Overview
Description
Product Description
Brief Introduction
This machine without tensile force design,specially for making more thickness packing bag.
Main Features
1) Newly design flying knife cutting system,easy to exchange the blade.
2) Double heat coil heat sealing design,sealing firmly.
3) Dotted line knife device and rewind device(maual exchange roller).
4) Can make multi-lane non-print bag.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Optional
1.Handle hole puncher device.
2.V type sealing device.
3.Dotted line knife device and rewind device(manual exchange roller).
4.Double servo feeding for producing double lane print bag.
5.The bag design providing the non-overlapping sealing system.
Model | CW-800FB | CW-1000FB | CW-1200FB | CW-1400FB | CW-1600FB |
Bag making length | 200-300mm | 200-300mm | 200-300mm | 200-300mm | 200-300mm |
Bag making width | 800mm | 900mm | 1100mm | 1300mm | 1500mm |
Mechanical speed | 80pcs/min | 80pcs/min | 80pcs/min | 80pcs/min | 70pcs/min |
Line speed | 80m/min | 80m/min | 80m/min | 80m/min | 70m/min |
Film thickness | 0.03mm *2-0.25mm*2 | 0.04mm* 2-0.25mm*2 | 0.04mm* 2-0.25mm*2 | 0.04mm* 2-0.25mm*2 | 0.04mm* 2-0.25mm*2 |
Total power | 6.8KW | 7.5KW | 8KW | 9KW | 10KW |
Machine weight | 1680kg | 1800kg | 2000kg | 2100kg | 2200kg |
Machine dimension (LxWxH) | 6000*1600 *1300mm | 6000*1800 *1300mm | 6000*2000 *1300mm | 6000*2200 *1300mm | 6000*2400 *1300mm |
Air compressor (not included) | 6HP | 6HP | 6HP | 6HP | 6HP |

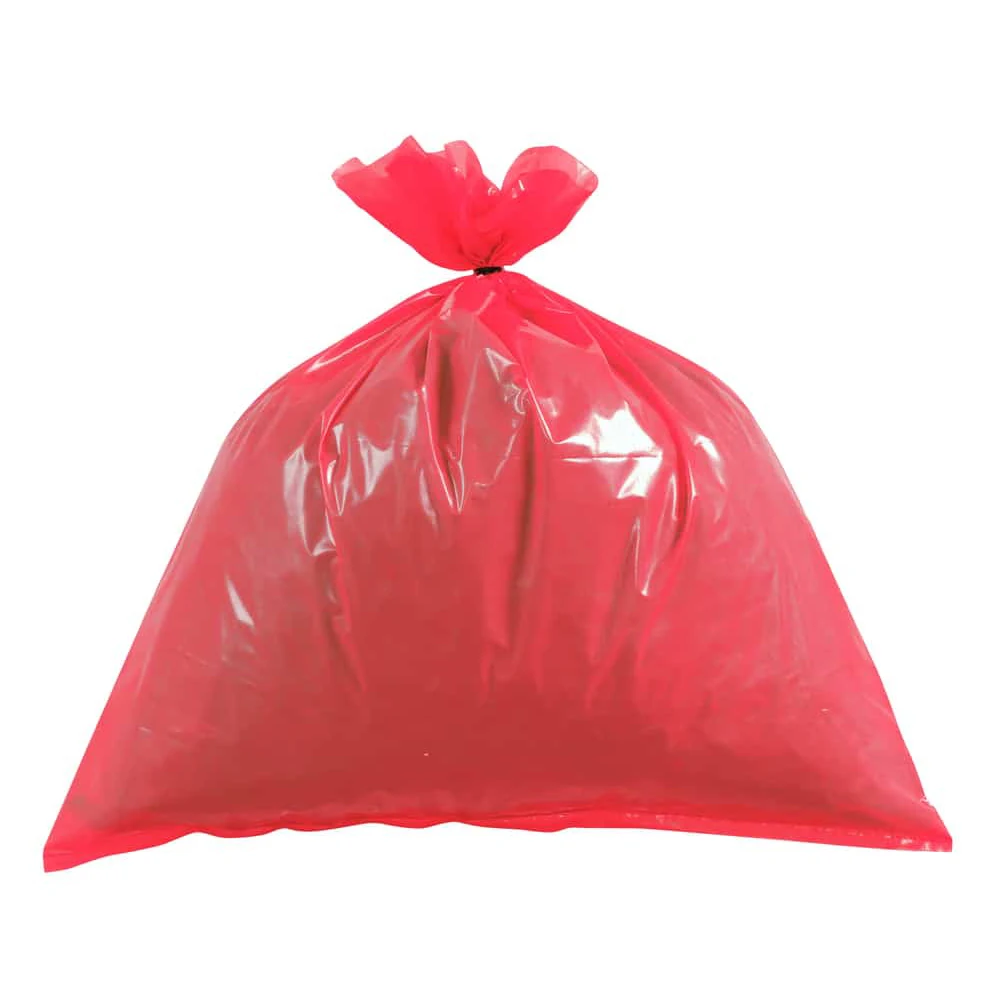

Sample Bag
Detailed Images

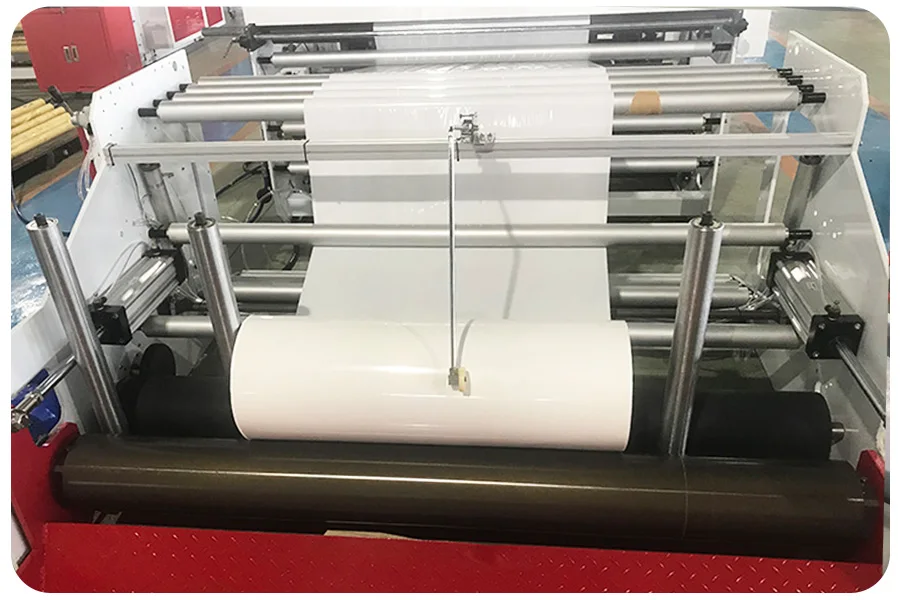

Automatic Unwinding Part
1.Single unwinding max diameter is 1000mm, unwinding roller is head blocked, load material by auto pneumatic
2.Feeding dragging is AC motor control, automatic adjust speed control
2.Feeding dragging is AC motor control, automatic adjust speed control

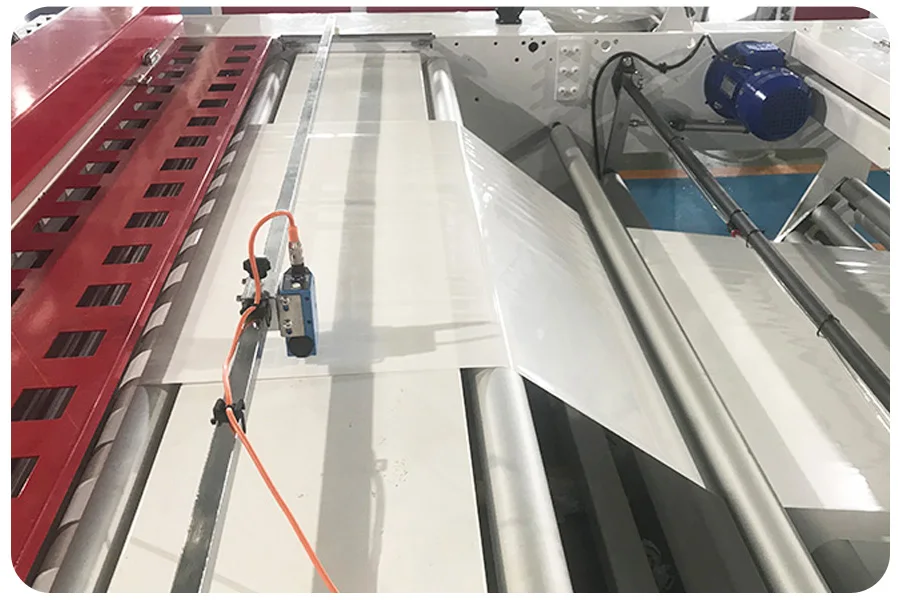

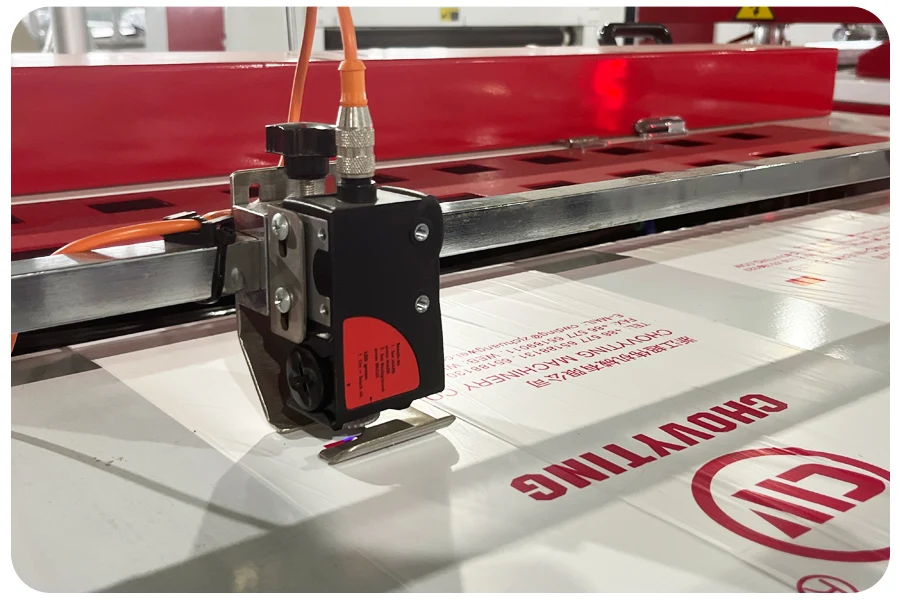

Printing image tracking
Printing image tracking adopts photocell from SICK Germany.(Maximum length of printing bag is 800mm)
Printing image tracking adopts photocell from SICK Germany.(Maximum length of printing bag is 800mm)

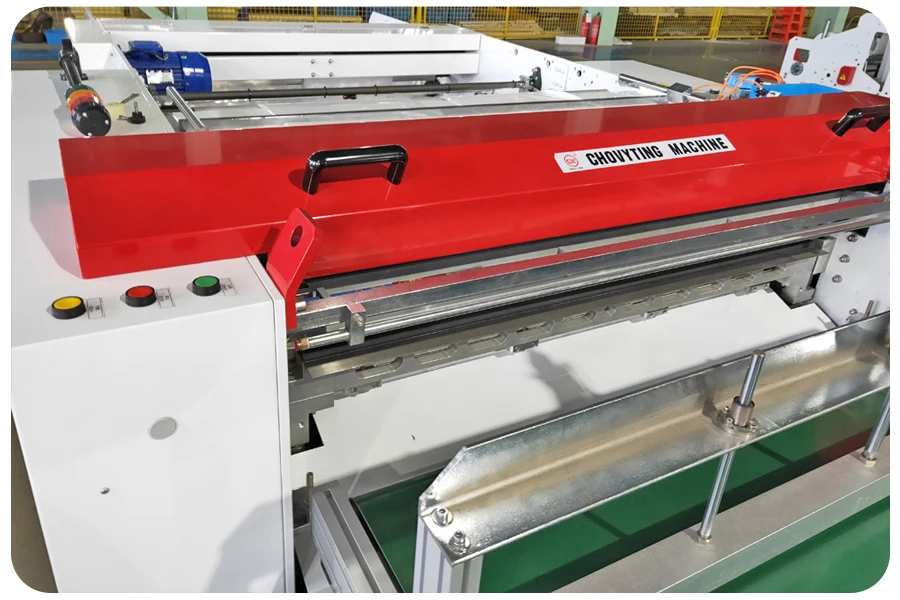

Flying Knife
1.Using the design by flying knife cutting off,the knife is easy to be replaced.

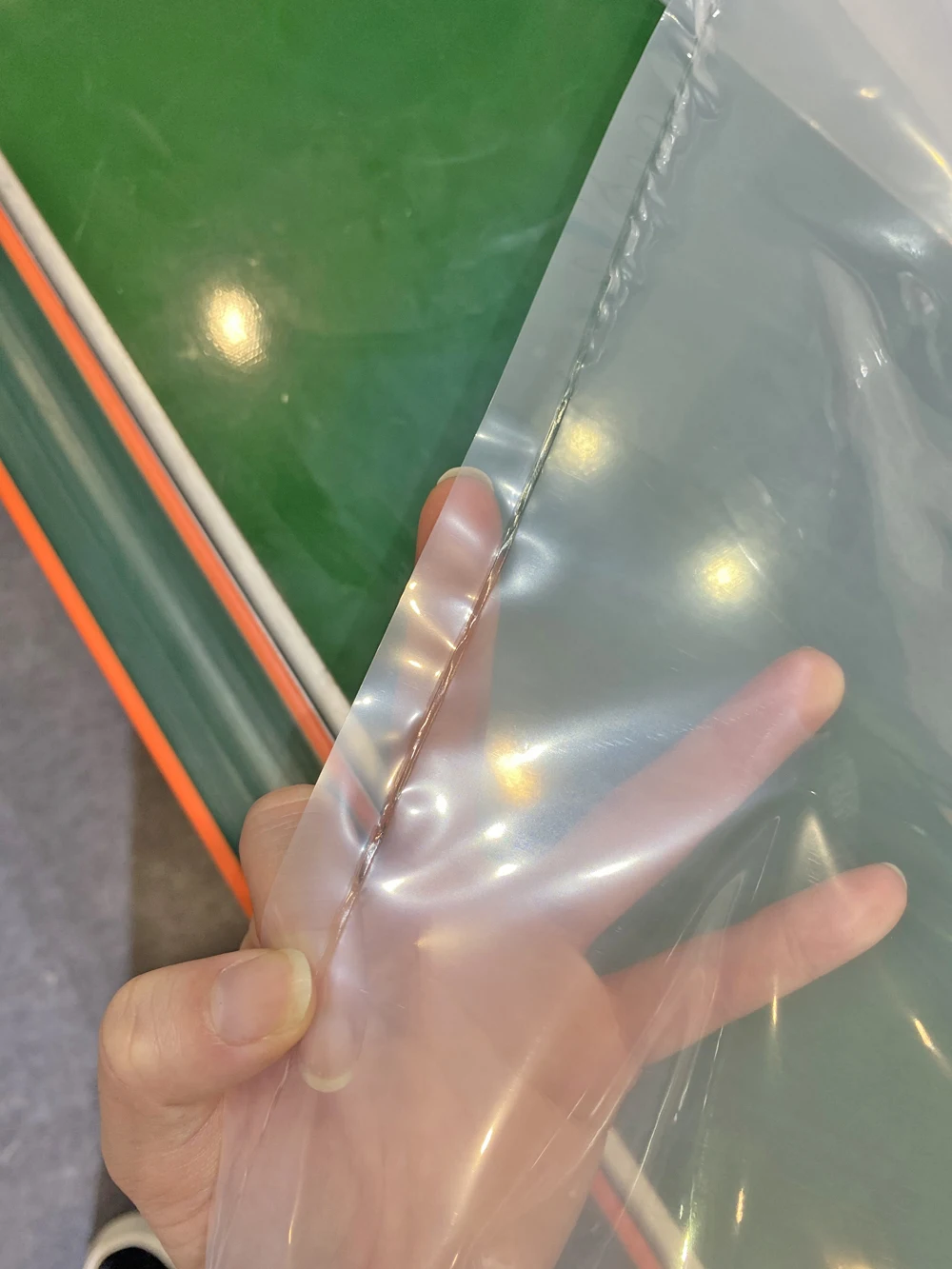

2.The sealing design is heated by two-sided(up and down) heating lines, to achieve a strong sealing line.
3.The bag sending design providing the non-overlapping sealing line system.
2.The sealing design is heated by two-sided(up and down) heating lines, to achieve a strong sealing line.
3.The bag sending design providing the non-overlapping sealing line system.

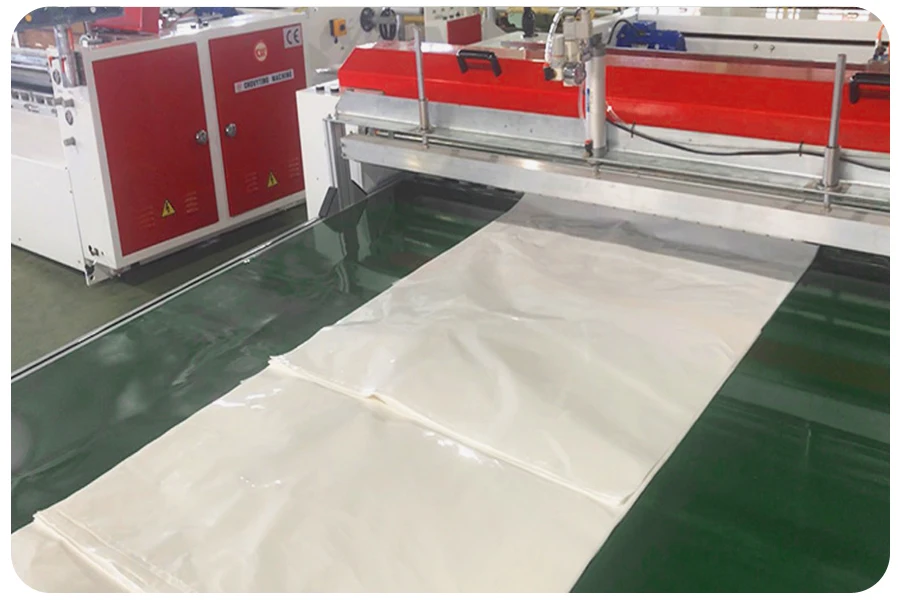

Automatic Collect Table
1.Collect table adopt automatic collecting bag feeding (intermission model and continuum model).
2.Double servo feeding for producing double lane print bag.
2.Double servo feeding for producing double lane print bag.
Main Part
Certificate
Packing
About Us
CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery. it has adopted modern management methods such as 6S site management, PMC production management and international standard QC management, and adopted 3D mechanical design and IEC standard electrical 3D design to standardize production operations, so that to receive a higher rating from customer after use.
CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.
CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.
