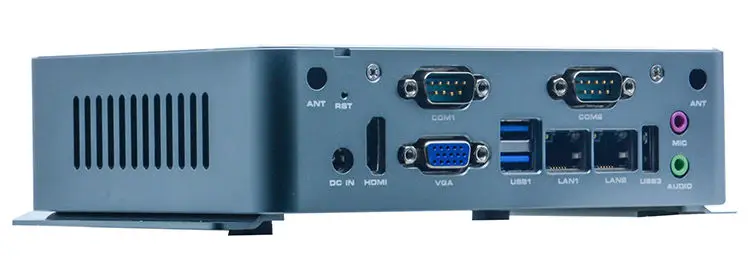

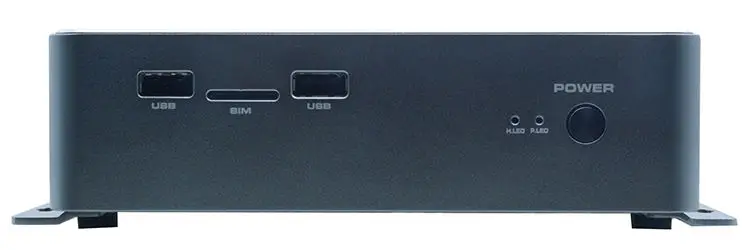

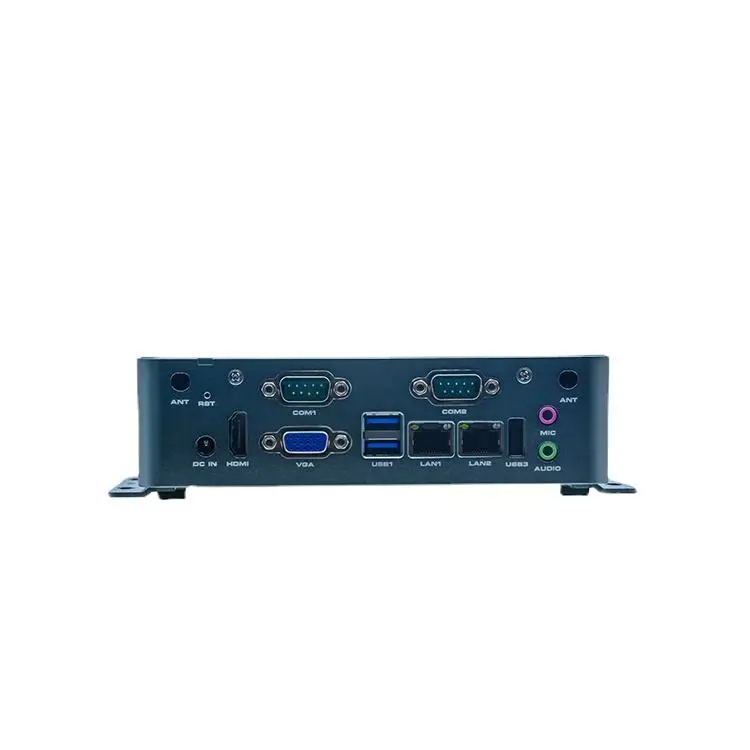

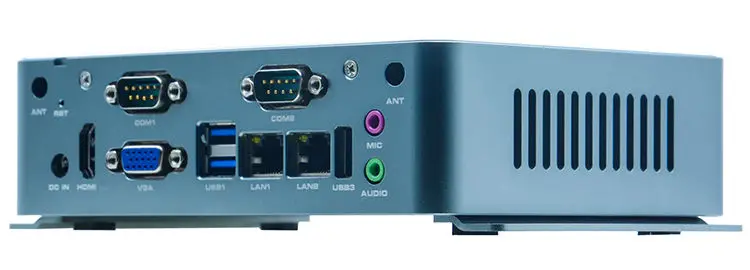

Intel Celeron J1900 NUC mini computer quad core processor J1900 Dual Lan Mini PC Nano PC with 2*com port
- Category: >>>
- Supplier: Shenzhen Immediate Technology Co. Limited
Share on (1600628295272):
Product Overview
Description
item | value |
Products Status | Stock |
Type | Embedded Computer |
Brand Name | IIT |
Place of Origin | China |
Type | Barebone System |
Optical Drive Type | Combo Drive |
CPU | Intel Celeron J1900 quad core processor |
RAM | DDR3L |
Chipset | Intel Bay trail SOC |
Display | 1*HD OUTPUT 1*VGA |
Ethernet | 2*RTL8111H |
Serial Port | 2* RS232 ,COM2 supports RS485/422 |
USB | 3*USB2.0,2*USB3.0 |
Dimensions(L*W*H) | 165mm*128mm*45.5mm |
Features
Fanless heatsink structure, all aluminium alloy material
Integrated Intel Celeron J1900 quad core processor
Supports 1*HD OUTPUT,VGA
2* RTL8111H Gigabit ethernet port,Supports Wake on LAN/PXE Function
2* RS232 ,COM2 supports RS485/422
Processor
CPU
Intel® Celeron J1900 quad core processor
Frequency
2.00GHz~2.42GHz(MAX)
TDP
TDP 10W
10 W10
10 W
Chipset
Intel® Bay trail SOC
BIOS
64Mb Flash ROM
Memory
Memory
DDR3L 1600/1333MHz
Maximum capacity
8GB
Slot
SODIMM
Display
Chipset
Intel®HD Graphics
Graphics Engine
DirectX 11.1,OpenGL 3.2
HD OUTPUT
1*HD OUTPUT,1920X1080@60HZ
CRT
1*VGA,2560X1600@60Hz
Independent double display
1*HD OUTPUT 1*VGA
Ethernet
LAN1
1* RTL8111H Gigabit network card, supports wake on LAN/PXE functions
LAN2
1* RTL8111HGigabit network card, supports wake on LAN/PXE functions
Audio
Interface
On-board ALC662 6 channel high fidelity audio controller, supporting MIC/Line-out/power amplifier
I/O Interface
Serial Port
2* RS232 ,COM2 supports RS485/422
USB
3*USB2.0,2*USB3.0
Phoenix Terminals
N/A
Expansion
Mini PCIE
1* Mini PCIE,supports WIFI/4Gmoudle
Expansion Slot
N/A
Storage
SATA
N/A
Solid state disk
1* MSATA SSD,the transfer rate is up to 3Gbps
OS
Microsoft Windows
Windows 10,64bit
Linux
Ubuntu
Power Supply
Power Supply
1*DC JACK
Voltage input
12V
Power Adapter
AC TO DC,DC12V5A,60W(Optional )
Chassis
Structure
All-aluminium alloy Fanless
Installation
Desktop or wall mounted
Dimensions(L*W*H)
165mm*128mm*45.5mm
Environment
Working temperature
-10℃~60℃
Storage Temperature
-20℃~70℃
Relative humidity
5%-95%(relative humidity, non condensing)
Working Vibration
0.5g rms/5-500HZ/random/operating
Order information
No.
Model
Processor
Motherboard
Memory
HDD
GPIO
LAN
COM
HD OUTPUT
VGA
USB2.0
USB3.0
SIM
power-input
1
N1619Z
J1900/2.00GHz
N19_J122E
N/A
N/A
N/A
2
2
1
1
3
2
1
DC 12V
2
N1631Z
J3160/1.60GHz
N16_J122E
N/A
N/A
N/A
2
2
1
1
3
2
1
DC 12V
Fanless heatsink structure, all aluminium alloy material
Integrated Intel Celeron J1900 quad core processor
Supports 1*HD OUTPUT,VGA
2* RTL8111H Gigabit ethernet port,Supports Wake on LAN/PXE Function
2* RS232 ,COM2 supports RS485/422
Processor
CPU
Intel® Celeron J1900 quad core processor
Frequency
2.00GHz~2.42GHz(MAX)
TDP
TDP 10W
10 W10
10 W
Chipset
Intel® Bay trail SOC
BIOS
64Mb Flash ROM
Memory
Memory
DDR3L 1600/1333MHz
Maximum capacity
8GB
Slot
SODIMM
Display
Chipset
Intel®HD Graphics
Graphics Engine
DirectX 11.1,OpenGL 3.2
HD OUTPUT
1*HD OUTPUT,1920X1080@60HZ
CRT
1*VGA,2560X1600@60Hz
Independent double display
1*HD OUTPUT 1*VGA
Ethernet
LAN1
1* RTL8111H Gigabit network card, supports wake on LAN/PXE functions
LAN2
1* RTL8111HGigabit network card, supports wake on LAN/PXE functions
Audio
Interface
On-board ALC662 6 channel high fidelity audio controller, supporting MIC/Line-out/power amplifier
I/O Interface
Serial Port
2* RS232 ,COM2 supports RS485/422
USB
3*USB2.0,2*USB3.0
Phoenix Terminals
N/A
Expansion
Mini PCIE
1* Mini PCIE,supports WIFI/4Gmoudle
Expansion Slot
N/A
Storage
SATA
N/A
Solid state disk
1* MSATA SSD,the transfer rate is up to 3Gbps
OS
Microsoft Windows
Windows 10,64bit
Linux
Ubuntu
Power Supply
Power Supply
1*DC JACK
Voltage input
12V
Power Adapter
AC TO DC,DC12V5A,60W(Optional )
Chassis
Structure
All-aluminium alloy Fanless
Installation
Desktop or wall mounted
Dimensions(L*W*H)
165mm*128mm*45.5mm
Environment
Working temperature
-10℃~60℃
Storage Temperature
-20℃~70℃
Relative humidity
5%-95%(relative humidity, non condensing)
Working Vibration
0.5g rms/5-500HZ/random/operating
Order information
No.
Model
Processor
Motherboard
Memory
HDD
GPIO
LAN
COM
HD OUTPUT
VGA
USB2.0
USB3.0
SIM
power-input
1
N1619Z
J1900/2.00GHz
N19_J122E
N/A
N/A
N/A
2
2
1
1
3
2
1
DC 12V
2
N1631Z
J3160/1.60GHz
N16_J122E
N/A
N/A
N/A
2
2
1
1
3
2
1
DC 12V
