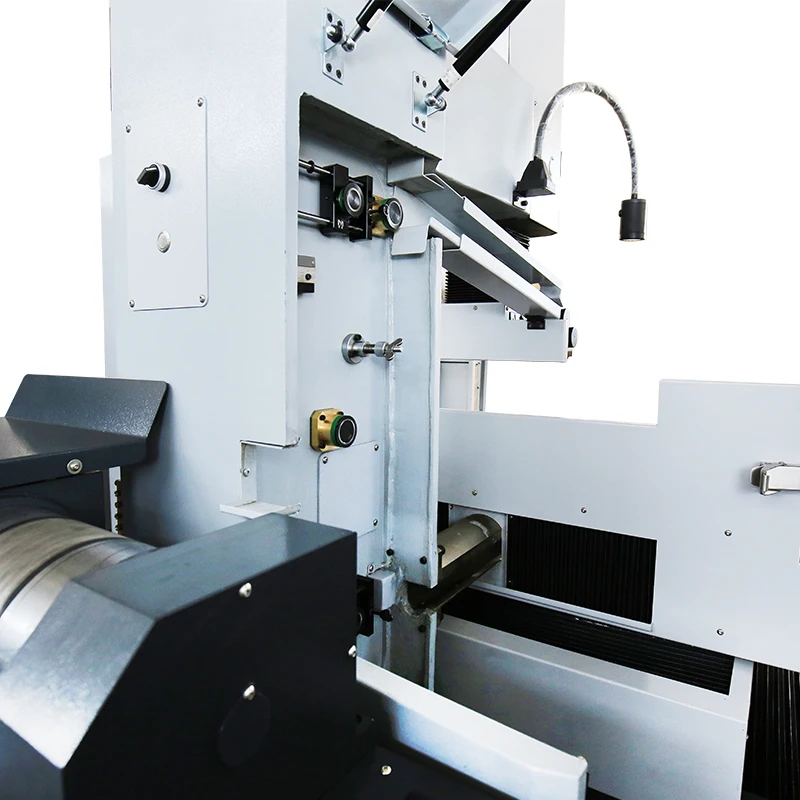

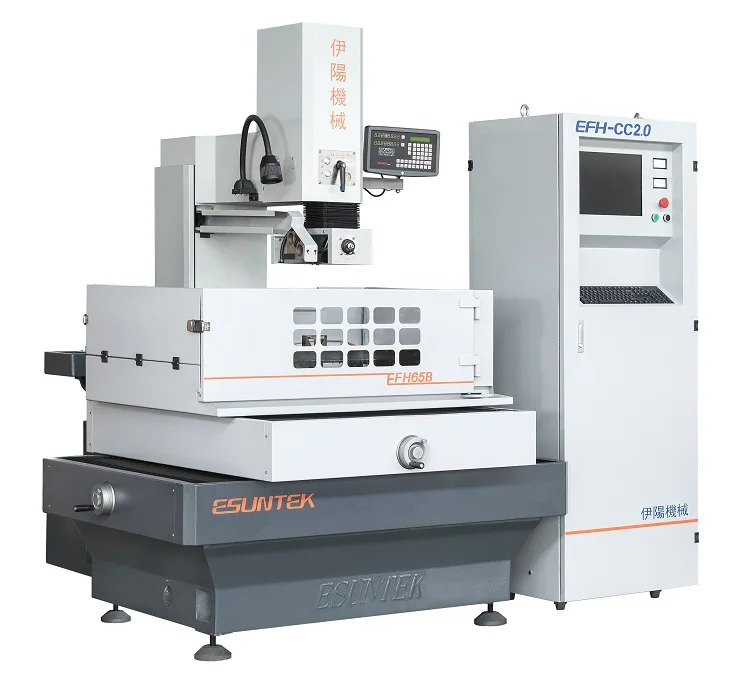

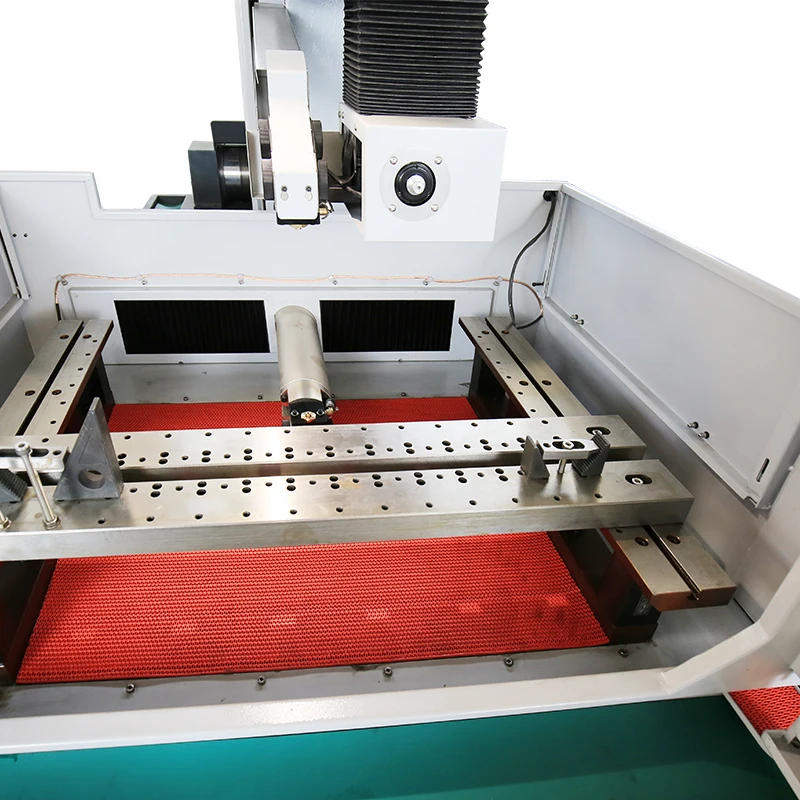

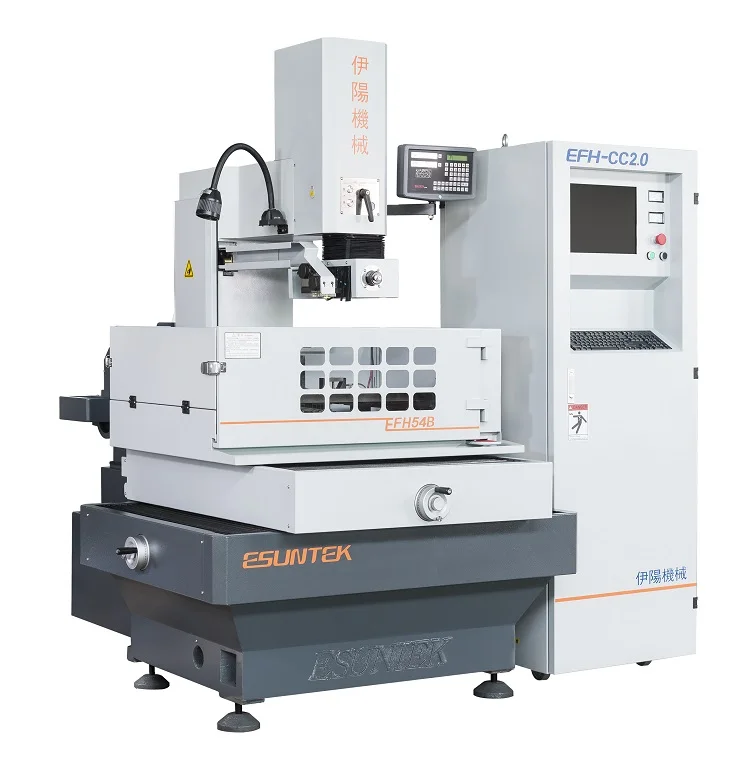

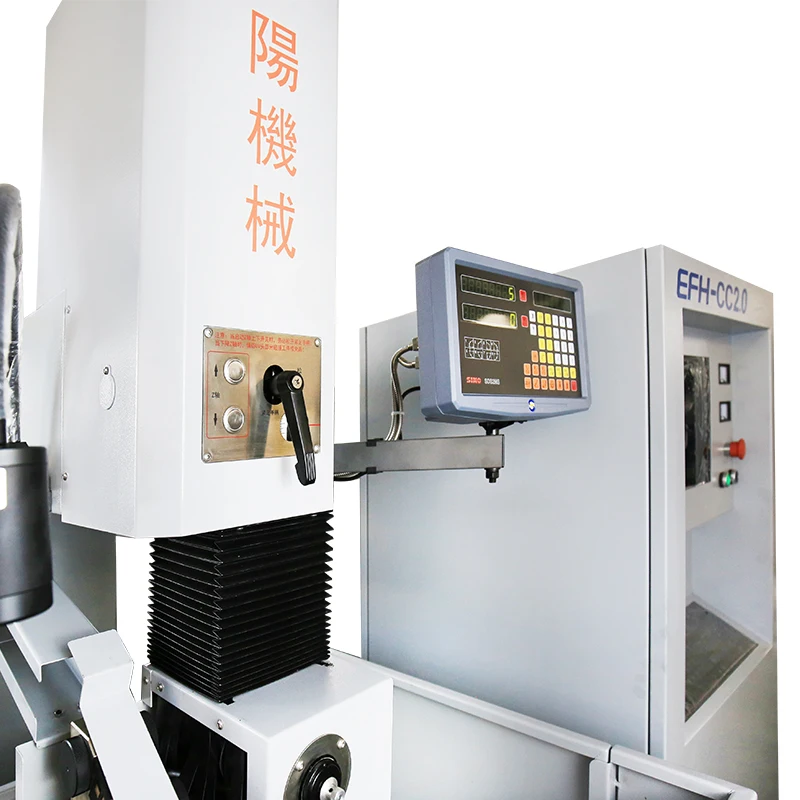

Esuntek China DK 300 Wire EDM machine

Product Overview

Description

We have more variety of   Series product models, For details about the spec, please contact with our sales team.

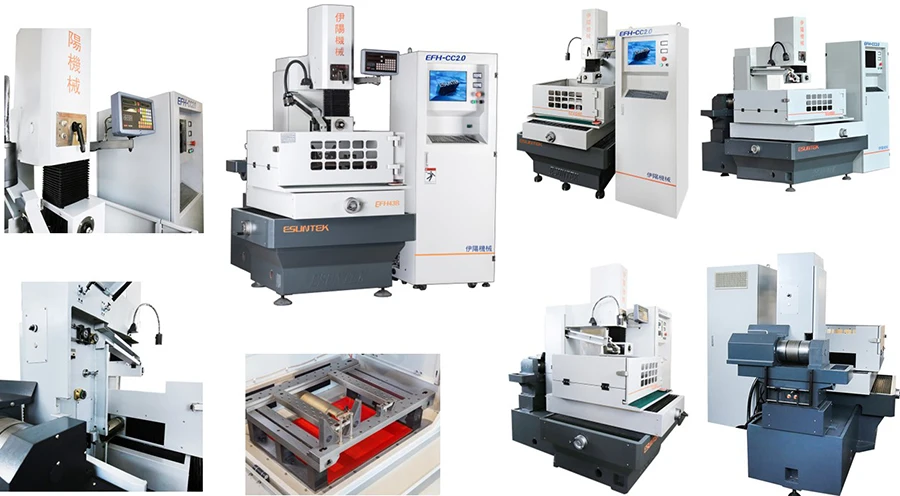

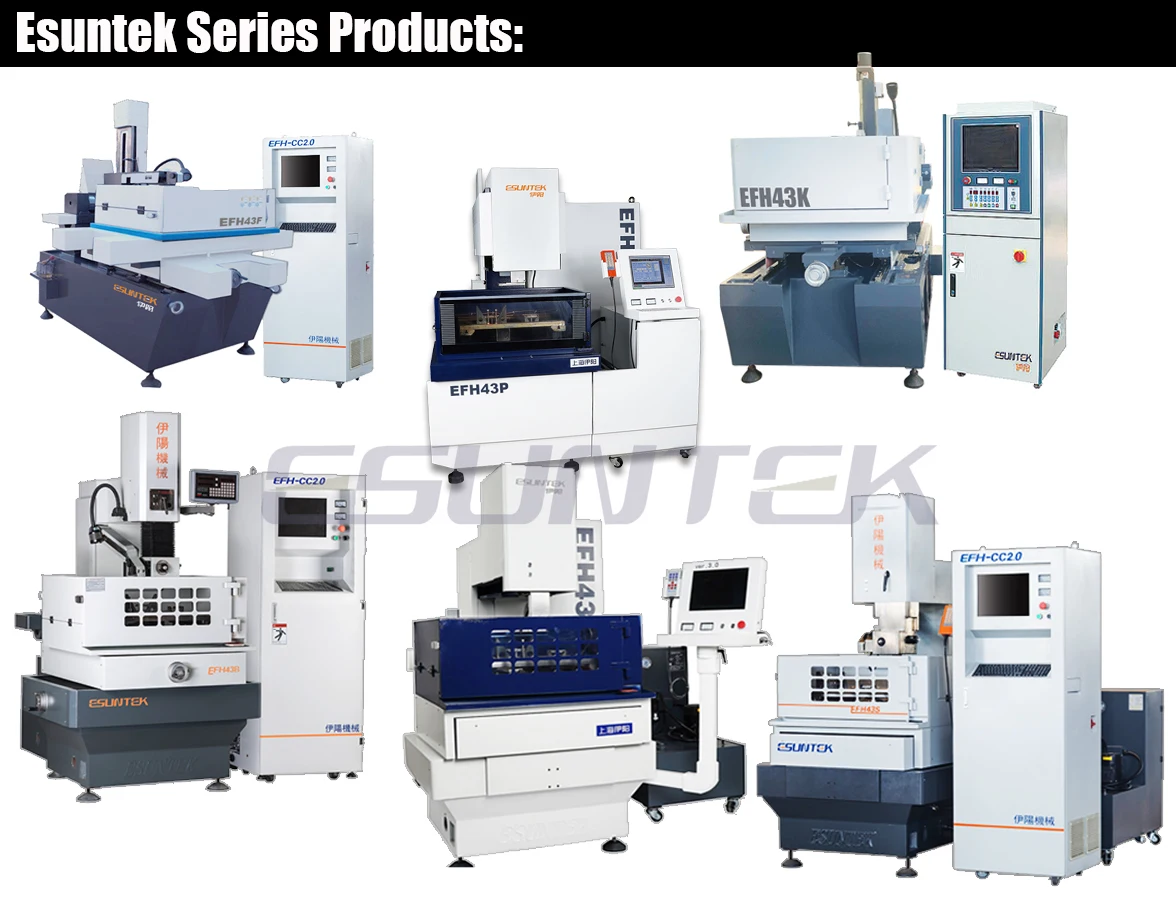

Esuntek has more series products (High-Precision  Wire EDM, Die Sinking EDM & Drilling EDM) for your different processes requirment, for more details, please contact us, Our sales team would like propose you the most sutable product according to your demand, Esuntek also support OEM for your special demand based on the exist standard machine.





Reference Table - Shanghai Esuntek CNC Wire Cutting EDM Machine Tools
NO.	Item         Model	EFH43B	EFH54B	EFH65B	EFH43S	EFH54S	EFH65S

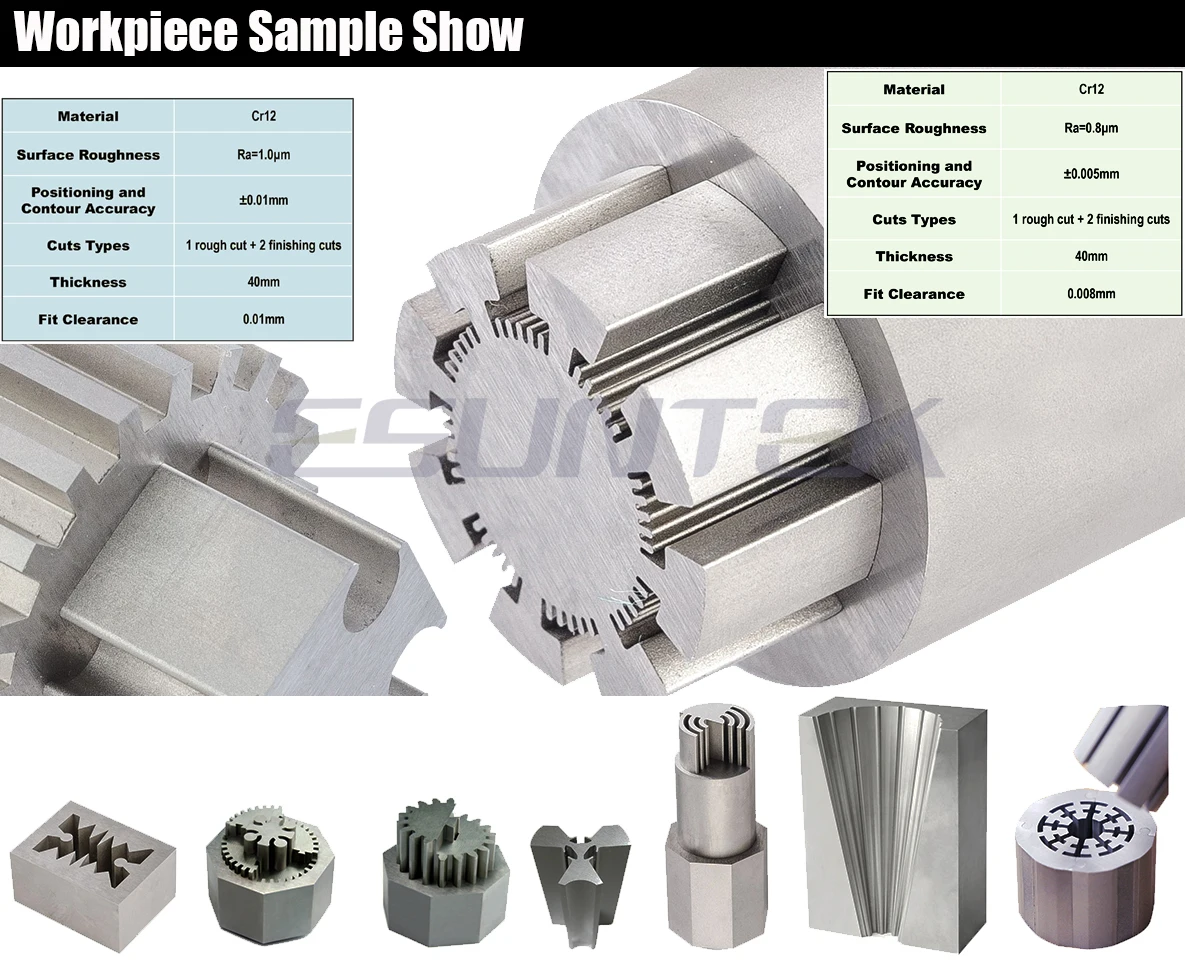

1	Processing Accuracy	<=0.01mm (D14mm regular octagon Cr12 Material, H=40mm)			<=0.005mm (D14mm regular octagon Cr12 Material, H=40mm)
2	Best Surface Roughness (Ra)	<=1.0μm(Multiple Cutting 1+2, Cr12, H=40mm)			<=0.8μm(Multiple Cutting 1+2, Cr12, H=40mm)
3	Cutting Efficiency	0-200 mm²/min
4	Max Cutting Thickness	300mm (Optional 400mm)
5	Max Cutting Taper	±3°/80mm(H) (Optional 6°/80)
6	Type of Electrode Wire	Φ0.13-φ0.2mm (Molybdenum Wire) (Optional Φ0.6mm)
7	Travel of X-Y-Z Axis	400x350x250 mm	500x400x250 mm	600x500x250 mm	400x350x250 mm	500x400x250 mm	600x500x250 mm
8	Working Table Size (LxW)	660x505 mm	780x555 mm	880x681 mm	660x505	780x555 mm	880x681 mm
9	Max Workpiece Size(LxW)	760x560 mm	880x610 mm	980x720 mm	760x560 mm	880x610 mm	980x720 mm
10	Max Workpiece Weight	500 kg	700 kg	900 kg	500 kg	700 kg	900 kg
11	Machine Overall Size (WxDxH)	1250x2050x2100 mm	1500x2150x2100 mm	1650x2250x2100 mm	1100x1700x2100 mm	1400x1800x2100 mm	1750x2150x2100 mm
12	Weight	2100 kg	2600 kg	3000 kg	2100 kg	2600 kg	3000 kg
13	Motor Drive	Stepper Motor			Servo motor
14	Z Axis Drive	Electric
15	Power Type	AC3~380V/50HZ (3 phase 4-wire) (Or as costumer's requirement)
16	Max Input Power	3 KVA	3.5 KVA	3.5 KVA	3 KVA	3.5 KVA	3.5 KVA
17	Wire installation Method	Manual			Automatic
18	Type of working fluid	emulsifying ointment (JR3A) or Compound Water-based Wire Cutting Liquid
19	Capacity of Water Tunk	144L			180L
20	Filtering	3 Layer Filter (Single Water Pump)			4 Layer Filter, 2 Water Pumps
21	Linear Guide Rail	Domestic Branded			International Branded
22	Ball Screw	Domestic Branded			International Branded
23	Lubrication system	Manual			Automatic lubrication system





Shanghai Esuntek CNC Wire  EDM Machine - Reference Table
NO.	Item         Model	EFH43B	EFH54B	EFH65B	EFH43S	EFH54S	EFH65S	EFH86S	EFH1080S	EFH1210S
1	Best Processing Accuracy	<=0.01mm (D14mm regular octagon Cr12 Material, H=40mm)			<=±0.005mm (D14mm regular octagon Cr12 Material, H=40mm)
2	Best Surface Roughness (Ra)	<=1.0μm(Multiple Cutting 1+2, Cr12, H=40mm)			<=0.8μm(Multiple Cutting 1+2, Cr12, H=40mm)
3	Cutting Efficiency	0-200 mm²/min			0-250 mm²/min
4	Max Cutting Thickness	300mm (Optional 400mm)							500mm (Optional 800mm)
5	Max Cutting Taper	±6°/80mm(H) (Optional 15°,30°,45°)
6	Type of Electrode Wire	Φ0.13-φ0.2mm (Molybdenum Wire) (Optional Φ0.6mm)
7	Travel of X-Y-Z Axis	400x350x250 mm	500x400x250 mm	600x500x250 mm	400x350x250 mm	500x400x250 mm	630x500x250 mm	800x630x250 mm	1000x800mm	1200x1000x250mm
8	Working Table Size (LxW)	660x505 mm	780x555 mm	880x681 mm	660x505 mm	780x555 mm	880x681 mm	990x775 mm	1250x1015 mm	1450x1215
9	Max Workpiece Size(LxW)	760x560 mm	880x610 mm	980x720 mm	760x560 mm	880x610 mm	980x720 mm	980x720 mm	1360x1080 mm	1560x1270
10	Max Workpiece Weight	500 kg	700 kg	900 kg	500 kg	700 kg	900 kg	1200 kg	2000kg	3500kg
11	Machine Overall Size (WxDxH) mm	1250x2050x2100	1500x2150x2100	1650x2250x2100	1100x1700x2100	1400x1800x2100	1750x2150x2100	1900x2250x2100	2100x2500x2100
12	Weight	2100 kg	2600 kg	3000 kg	2100 kg	2600 kg	3000 kg	3600 kg	6000 kg	7000 kg
13	Motor Drive (X/Y Axis)	Stepper Motor			Servo motor
14	Z Axis Drive	Electric
15	Power Type	AC3~380V/50HZ (3 phase 4-wire) (Or as costumer's requirement)
16	Max Input Power	3 KVA	3.5 KVA	3.5 KVA	3 KVA	3.5 KVA	3.5 KVA	3.5 KVA	4.0 KVA	4.0 KVA
17	Lubrication system	Manual			Automatic lubrication system
18	Type of working fluid	emulsifying ointment (JR3A) or Compound Water-based Wire Cutting Liquid
19	Capacity of Water Tunk	144L			180L
20	Filtering	3 Layer Filter (Single Water Pump)			4 Layer Filter, 2 Water Pumps
21	Linear Guide Rail	Domestic Branded			International Branded
22	Ball Screw	Domestic Branded			International Branded

Q: What kind of after sale service could you provide?

A: 1) 1 year Warranty

  2) Free operation training (in our factory)

  3) Video Training Material.

  4) Spare consumable part & special tools (one set by free and more by cost price)

  5) 24/7 After Sales Call

  6) Remote Maintaining

  7) On-Site Maintaining



Q: Do you have agent or service center in my country or area?

A: Please check with our sales.



Q: How can I check the machine is good enough?

A: The best way is to make sample for check according to your drawing.



Q. Do you have any sample machine or user for visit in my country or area?

A: Please check with our sales



Q: Can we use our brand?

A: Yes, We support OEM / ODM.



Q: Can we do some changing base on your current standard machine?

A: Yes, We support OEM/ODM.

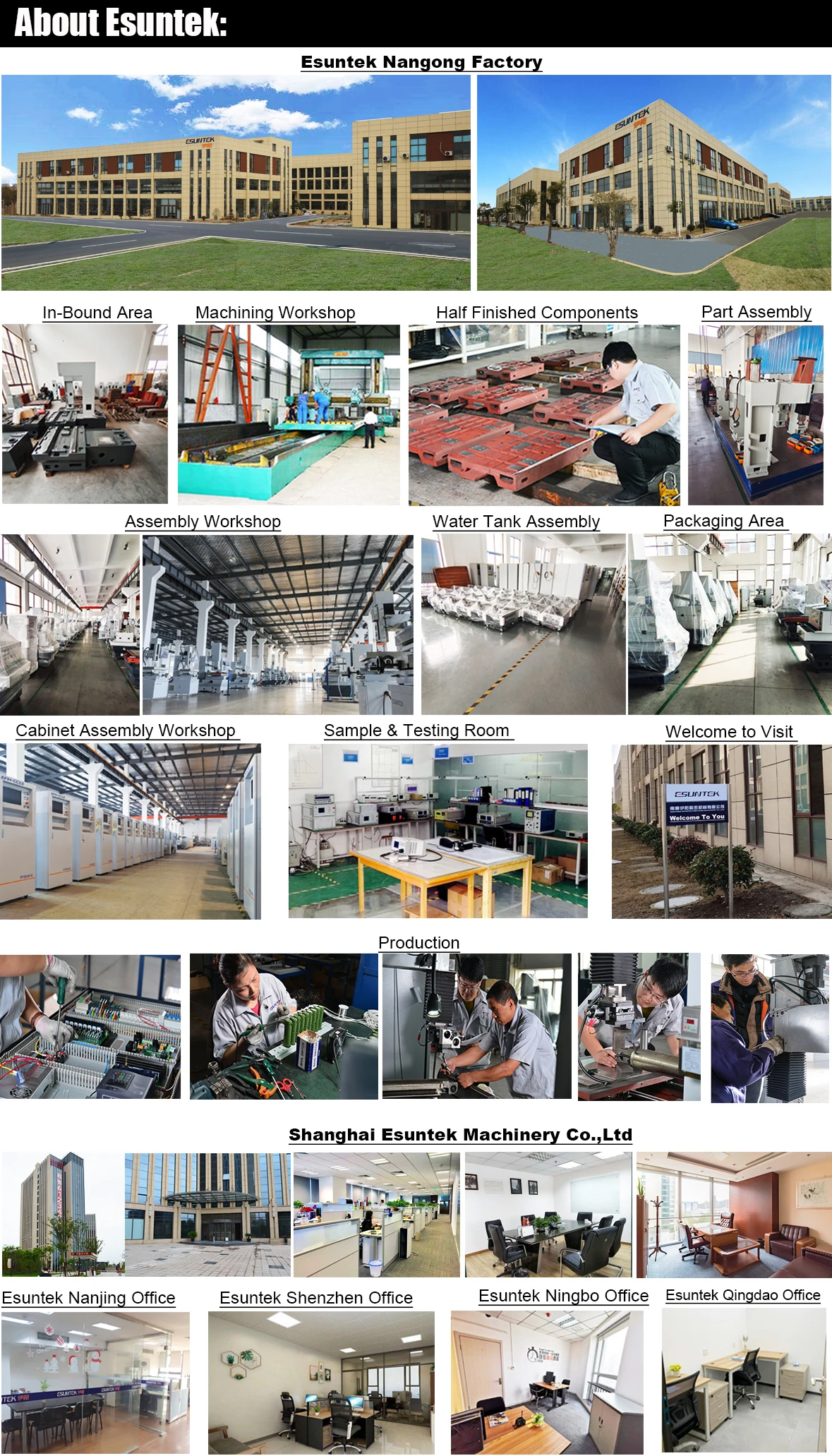

Q: May I know more about Esuntek?

Established in 2002, Esuntek has dedicated to the precision machining field for 20 years. Focusing on Advanced R&D ability, Rigorous Production and Quality Control, Competitive Price and Efficient after-sales service, ESUNTEK has been well known as one of the top 10 WEDM manufactures in China. Relying on stable quality, reliable performance, humanized operation mode, Esuntek's products, Wire Cutting EDM (Electric Discharge Machining), are distributed to all over the world. Products throughout the machinery industry in each industry. Customers are mainly distributed in automobile, machinery, electronics, energy, medical and other industries.

With the continuous development of manufacturing technology and automation and digital technology, Esuntek culture takes the concept innovation as the guid, strategic innovation as the guarantee, and market innovation as the goal. To provide customers with constantly updated products, the most cost-saving processing solutions, efficient and satisfactory after-sales service is the goal of Esuntek team.
