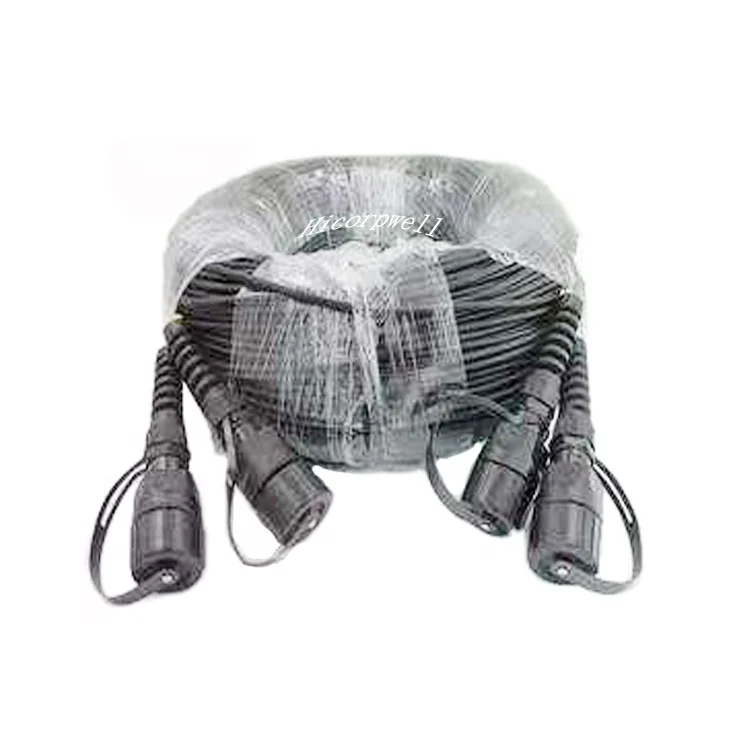

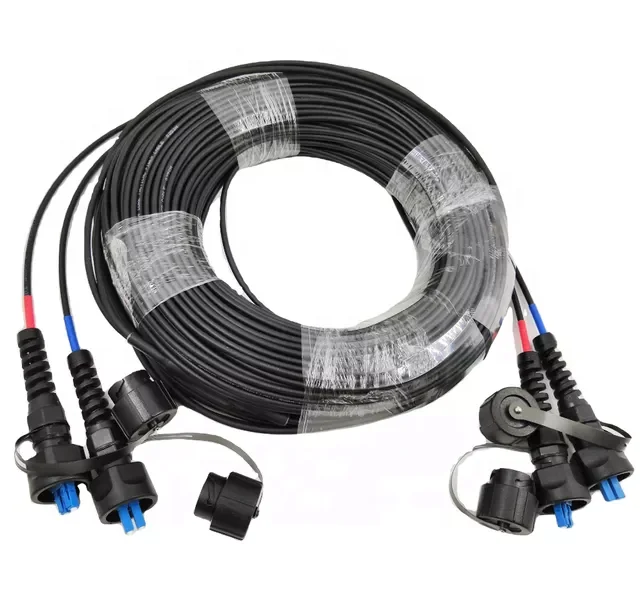

3.0mm 5.0mm Fiber Patch Cord Cable De Conex FTTH Armoured LC/UPC LC/UPC SM Fiber Optic Cable Drop Jumper Optical Cable
- Category: >>>
- Supplier: Shenzhen Hicorpwell Technology Co. Ltd.
Share on (1600628308362):
Product Overview
Description
Product Description
PDLC duplex singlmode waterproof fiber patch cable with PDLC connector from Tyco/ZTE/Huawei Which compatible waterproof sealing on one end of the cable and standard LC/SC/FC/ST connector on the other end.
The connector is designed to exceed the requirements of ODVA, and meet IP66/67 environmental sealing ratings and is the ideal choice for a low cost and easy to use solution in industrial, fiber to the Antenna, or any other harsh environmental applications.
The LC connector is designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems. PDLC single mode duplex waterproof fiber optical cable will not get damage even stepped, and are anti-rodents, and suit to use in harsh environment.

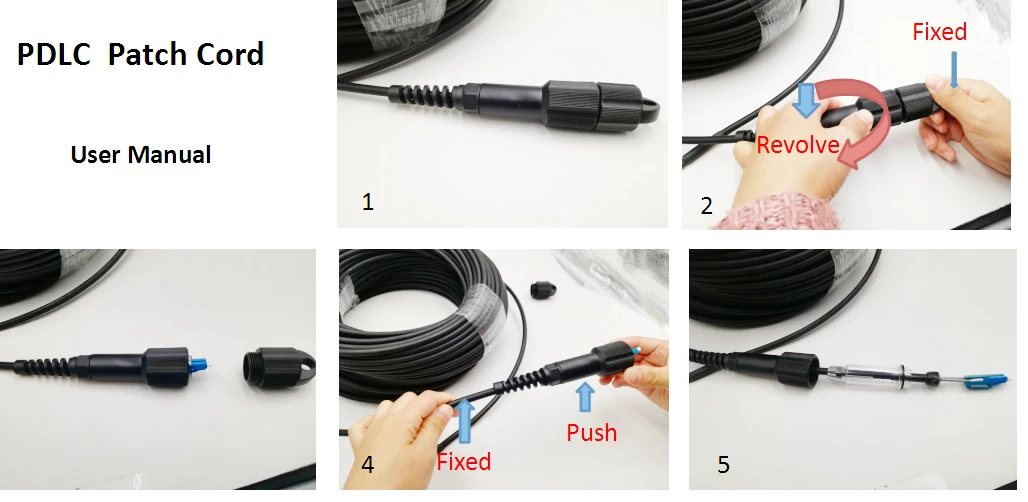

Product usage introduction
产品使用方式介绍
产品使用方式介绍

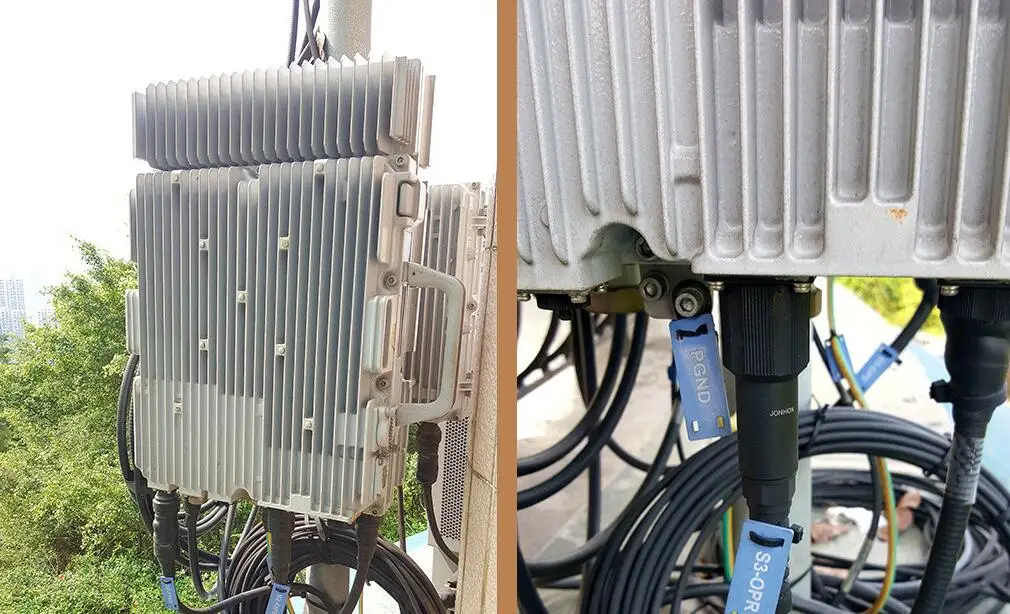

the tower by using optical fibers to replace all or part of the coaxial network. Sun Telecom provides excellent FTTA solutions to
reduce installation time and save the cost of installation and maintenance. We provide the whole set of equipment and technology supporting, include outdoor optic fibers, PDLC outdoor waterproof patch cords, terminal boxes and etc.

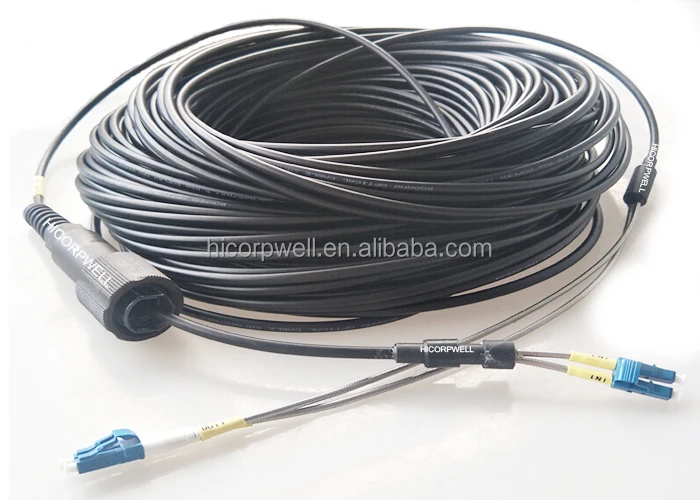

The PDLC Waterproof PatchCord
Features:
1. Standad LC Duplex connector, can be connected with normal LC Adapters
2. Light weight,waterproof, dustproof, moistureproof , Metal hard housing.
3. Wall seal design,easy operation, strong and durable.
4. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
2. Light weight,waterproof, dustproof, moistureproof , Metal hard housing.
3. Wall seal design,easy operation, strong and durable.
4. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
5. Available Single mode and Multi-mode
6. IP67 protection, salt-mist proof, humidity proof, dust proof
7. Low insertion/return loss, steady optical transmitting.
6. IP67 protection, salt-mist proof, humidity proof, dust proof
7. Low insertion/return loss, steady optical transmitting.

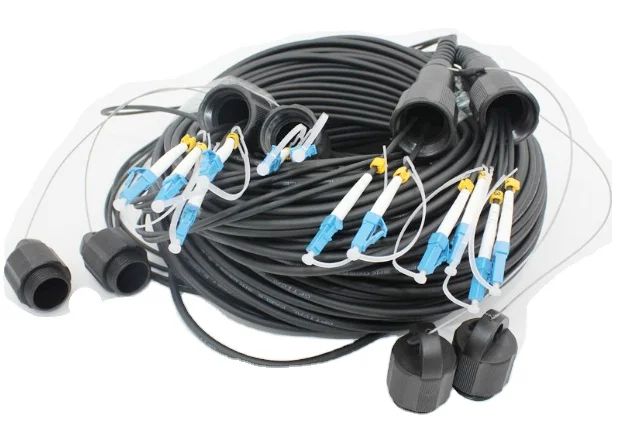

Product Name | PDLC Optical Cable Assembly Waterproof Outdoor Armoured Protected Cable |
Cable Jacket Material | LSZH, PVC, PE |
Application | FTTA, Base station, and the outdoor waterproof condition |
Package | Cable Drum ＆ Plastic Film |
With Armoured BBU/RRU Patch Cord：
Optical Cable Assembly, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable (ARMOURED TYPE) Length= 10m, 20m...xxxM.
With PDLC cover BBU/RRU patch cord：
Optical Cable Assembly, DLC/PC, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable Length = 10m, 20m...xxxM, A end (RRU) with PDL cover.
Non-Armoured BBU patch cord :
Optical Cable ASssembly, DLC/PC, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm Outdoor Protected Branch Cable Length = 10m, 20m...xxxM.
Optical Cable Assembly, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable (ARMOURED TYPE) Length= 10m, 20m...xxxM.
With PDLC cover BBU/RRU patch cord：
Optical Cable Assembly, DLC/PC, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable Length = 10m, 20m...xxxM, A end (RRU) with PDL cover.
Non-Armoured BBU patch cord :
Optical Cable ASssembly, DLC/PC, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm Outdoor Protected Branch Cable Length = 10m, 20m...xxxM.

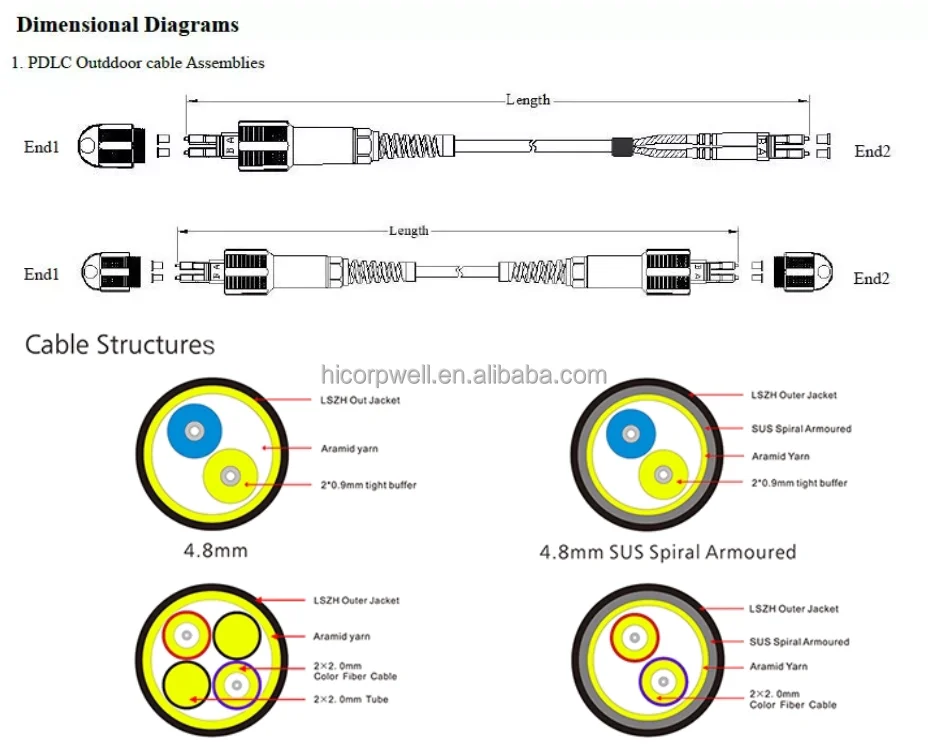

Product Type | Waterproof Cable | Fiber Type | Singlemode OS2 9/125 |
Connector 1 | PD LC | Connector2 | LC/FC/SC/ST/E2000 |
Trunk Diameter | 7.0mm | Branch Diameter | 3.0mm |
Insertion Loss | ≤0.30dB | Return Loss | LC≥50dB,E2000APC≥60dB |
Storage Temperature | -55°C-85°C | Operating Temperature | -40°C-85°C |
Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature | ||||||||||||
Long Term | Short Term | Long Term | Short Term | Dynamic | Static | |||||||||||||
2 or 4 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 | |||||||||
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | ||||||||||||||||||
Product Usage
Description of PDLC to PDLC Outdoor Armoured Fiber Optic Patch cable:
dust proof characteristics, applied to RRH and FTTH signal transmission process at the wireless infrastructure, widely applied in
optic telecommunication field andoutdoor equipment interconnection field.
It adopts DX LC standard interface with unique composites material of IP67 protection after connected to flange or module, while
it meets dust, water proof requirements and harsh outdoor environment.
Diameter | Length |
∅ 3.0mm | 628m |
∅ 5.0mm | 226m |
∅ 6.0mm | 157m |
∅ 7.0mm | 115m |
∅ 8.0mm | 88m |
∅ 9.0mm | 70m |
∅ 10.0mm | 57m |
∅ 11.0mm | 47m |
∅ 14.0mm | 29m |
