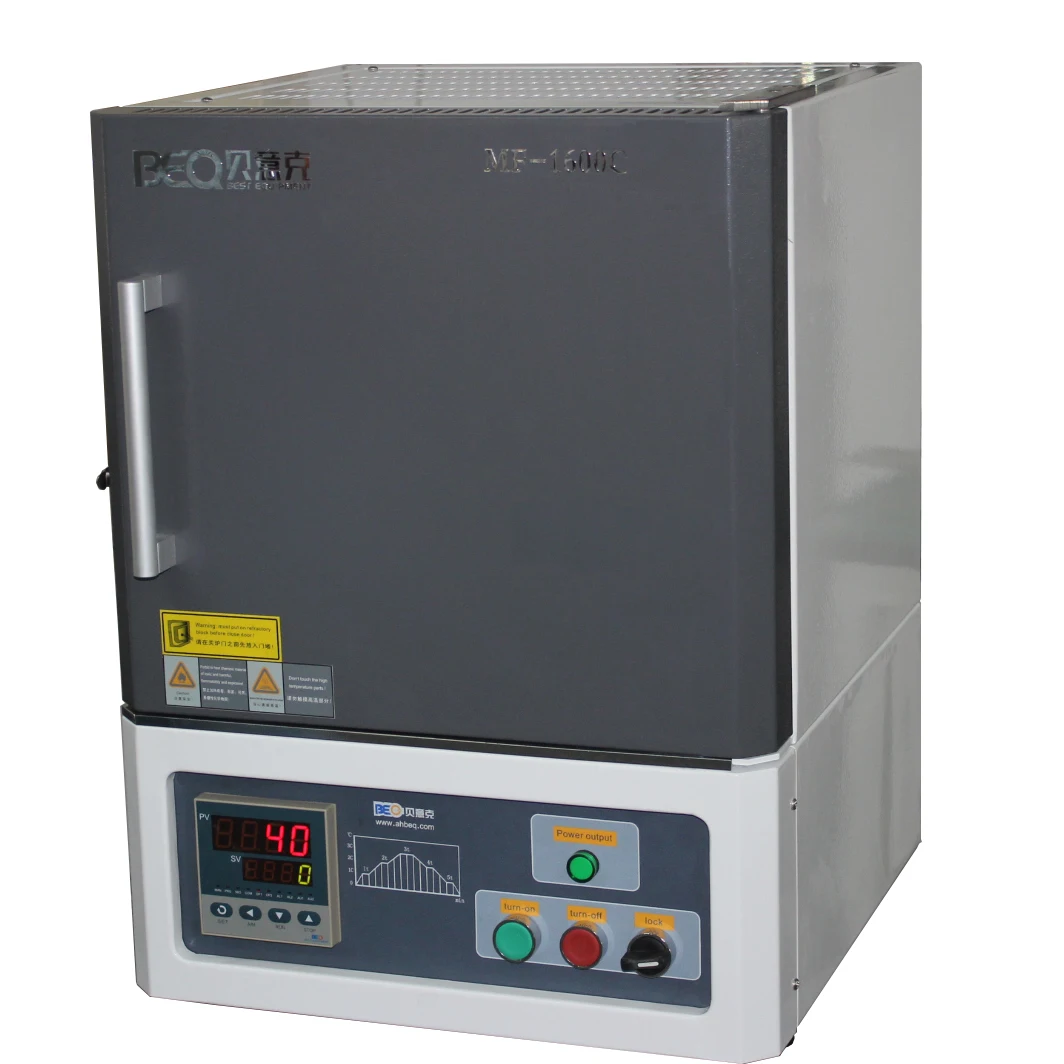

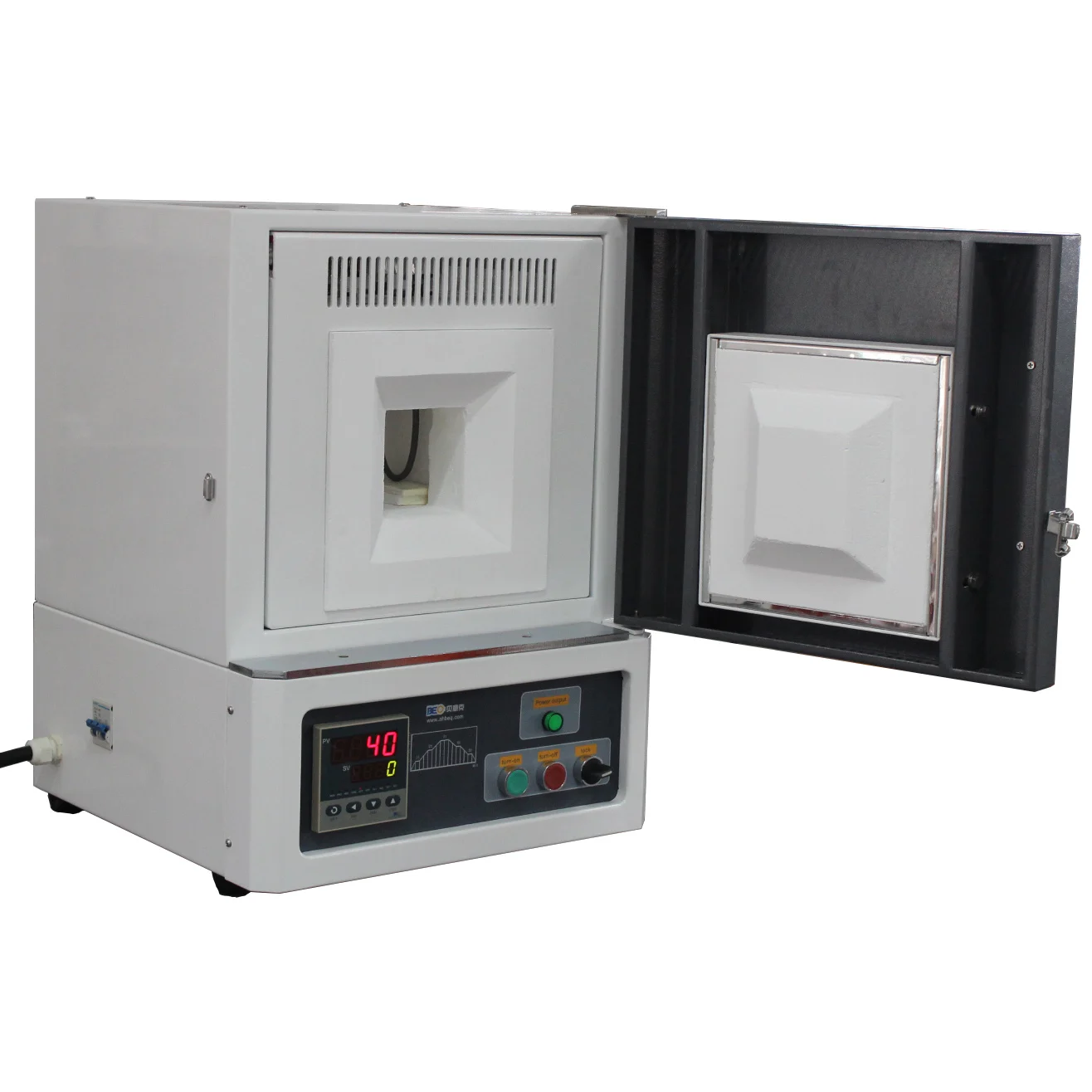

High Temperature Muffle Furnace Heated by silicon carbide rod MF 1600C S
- Category: >>>
- Supplier: Anhui Beq Equipment Technology Co. Ltd.
Share on (1600628313351):
Product Overview
Description
Product Description
Main feature
Heat insulating materials adopt Alumina fiber inorganic ones, which is formed with vacuum absorption, environmental protecting and energy saving.
Furnace body is double air cooling structure to control furnace surface Temp. no more than 60℃ when furnace is heated into max.Temp.
Made of various heat insulating materials to make furnace smaller and energy consumption less(electric consumption is only 25% of the same type furnace consumption)
Furnace body is double air cooling structure to control furnace surface Temp. no more than 60℃ when furnace is heated into max.Temp.
Made of various heat insulating materials to make furnace smaller and energy consumption less(electric consumption is only 25% of the same type furnace consumption)
Related Products
Company Introduction
BEQ is the professional manufacturer for material R&D equipment.
Our Services & Strength
1)Customization:Mature design team, professional production team, exquisite craftsmanship team
2)First mover:First to introduce professional organic small molecule purification equipment The first set of continuous CVD thin film graphene preparation equipment
3)Technological innovation: BEQ is the only company in the same industry in China with an independent laboratory equipped with a process department, which can do substantive tests for different process equipment, and undertake various commissioned tests for free
4)Brand:At present, there are more than 50,000 cooperative customers, gradually forming a professional, high-quality, and honest corporate image among the majority of users, and establishing a good market reputation
Packing&Shipping
Power | Power rated: 2.5KW (220V) |
Voltage | Voltage rated: AC 220V 50/60HZ |
Working Temperature | Max. Temperature: 1600℃( 1 hr) Continuous working temperature: ≤1500℃ Recommended Heating Rate:5℃/min |
Temperature Controller | PID automatic control and auto-tune function. 30 programmable segments for precise thermal processing. Built-in protection for the over-heated and broken thermocouple. |
Thermocouple | B type |
Heating Elements | Silicon Molybdenum Rod (4pcs U shape) |
Dimensions | Chamber size(L*D*H): 130*120*100mm (1.5L) Furnace size(L*W*H): 480*480*700mm |
Net Weight | 100kg |
Packing dimensions(L*W*H) | 600*540*930mm（wooden case） |
Gross weight | 138kg |
Warranty | One year limited warranty with lifetime support (Such consumable parts as thermal insulation material, and O-rings are NOT supported by the warranty) |
Attention | Toxic or explosive gasses are not recommended for use with this furnace without necessary safety controls and supervision. Please put furnace into fume hood for better safety Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. You shall place the sample in to a crucible. Never place sample on the chamber bottom directly. |
Compliance | CE Certified |
