Oraako 1000W 3Kw 15Kw Custom Hybrid Solar Panel 100A Hybrid Solar System Inverter That Can Work Without Batteries Turkey
- Category: >>>
- Supplier: Shenzhen Oraako Electronics Technology Co. Ltd.
Share on (1600628320604):
Product Overview
Description
Oraako 1000W 3Kw 15Kw Custom Hybrid Solar Panel 100A Hybrid Solar System Inverter That Can Work Without Batteries Turkey
Model | PRO 3.5KW | PRO 5.5KW | |
The rated power | 3500VA/3500W | 5500VA/5500W | |
INPUT | |||
Voltage | 230VAC | ||
Selectable Voltage Range | 170-280VAC (UPS),90-280VAC (Appliances) | ||
Frequnecy Range | 50Hz/60Hz (Auto sensing) | ||
OUTPUT | |||
AC Voltage Regulation (Batt. Model) | 230VAC ± 5% | ||
Surge Power | 7000VA | 11000VA | |
Power factor | 1.0 | 1.0 | |
Efficiency(Peak) | > 90% | ||
Transfer Time | 10ms (UPS), 20ms (Appliances) | ||
Wave form | Pure sine wave | ||
No load current | 1.0A | 1.1A | |
BATTERY | |||
Battery voltage | 24VDC | 48VDC | |
Low battery alarming voltage | 22.0VDC | 44.0VDC | |
Low battery cut off protection voltage | 21VDC | 42VDC | |
Low battery recovery voltage | 23.0VDC | 46.0VDC | |
Floating Charge Voltage | 27VDC | 54VDC | |
Overcharge Protection | 32VDC | 64VDC | |
MPPT SOLAR CHARGER & AC CHARGER | |||
Maximum PV Array Power | 5000W | 6000W | |
MPPT Range Operation Vol | 120-450VDC | 120-450VDC | |
Maximum PV Array Open Circuit Vol. | 500VDC | 500VDC | |
Number of MPPT trackers / Max output current | 100A | 100A | |
Maxmum AC Charge Current | 80A | 80A | |
Maxmum Charge Current | 100A | 100A | |
Maxmum Efficiency | 98% | ||
BEST PANEL CONFIGUTATION | |||
Maximum PV Array Power | 5000W | 6000W | |
Best Panel configuration | 300Wp*9pcs*36V(2700Wp)*2Parallel | 330Wp*9pcs*36V(2970Wp)*2Parallel | |
PHYSICAL | |||
Products Dimension, D*W*H(mm) | 481mm*313mm*117mm | 481mm*313mm*117mm | |
Packing size, D*W*H(mm) | 543mm*394mm*204mm | 543mm*394mm*204mm | |
Net Weight (kgs) | 9.8Kg | 10.5Kg | |
G.W. kg | 11.2Kg | 11.8Kg | |
OPERATING ENVIRONMENT | |||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
Nominal DC Volt/Max DC Voltage | 360VDC/500VDC | ||
Start-up Voltage/Initial Feeding Voltage | 120VDC | ||
MPPT Voltage Range | 120-450VDC | ||
No. of MPPT Tracker/Max. Input Current | 1/27A | ||
Grid Output (AC) | |||
Nominal Output Volt | 220Vac/230Vac/240Vac, Single Phase | ||
Output Voltage Range | 184V-265Vac or 195-253V (Selectable) | ||
Nominal Output Current | 26.0A | ||
AC Input (AC) | |||
AC Start-up Voltage/Auto Restart Volt. | 120Vac-140Vac/180Vac | ||
Acceptable Input Voltage Range | 90-280Vac or 170-280Vac | ||
Max. AC Input Current | 40A | ||
Battery Mode Output (AC) | |||
Nominal Output Volt | 220Vac/230Vac/240Vac | ||
Waveform | Pure sine wave | ||
Efficiency(DC to AC) | 93% | ||
Battery & Charger | |||
Battery Type Supported | LEAD ACID | VRLA|AGM|DEEP CYCLE| GEL|FLOODED |TUBULAR|LITHIUM-ION(BMS BUILT-N) | ||
Nominal Battery Voltage | 48Vdc | ||
Max Solar Charge Current | 120A | ||
Max AC Charge Current | 120A | ||
Max Total Charge Current | 120A | ||
General | |||
Physical | |||
Products Dimension,D X W X H (mm) | 356*471*149 | ||
Product Net Weight(kgs) | 13.5 | ||
Packing Dimension,D X W X H (mm) | 535mm*382*mm*224mm,1PC/CTN | ||
Product Net Weight(kgs) | 14.7 | ||
Parallel functions Optional | Yes, optional, max 9pcs | ||

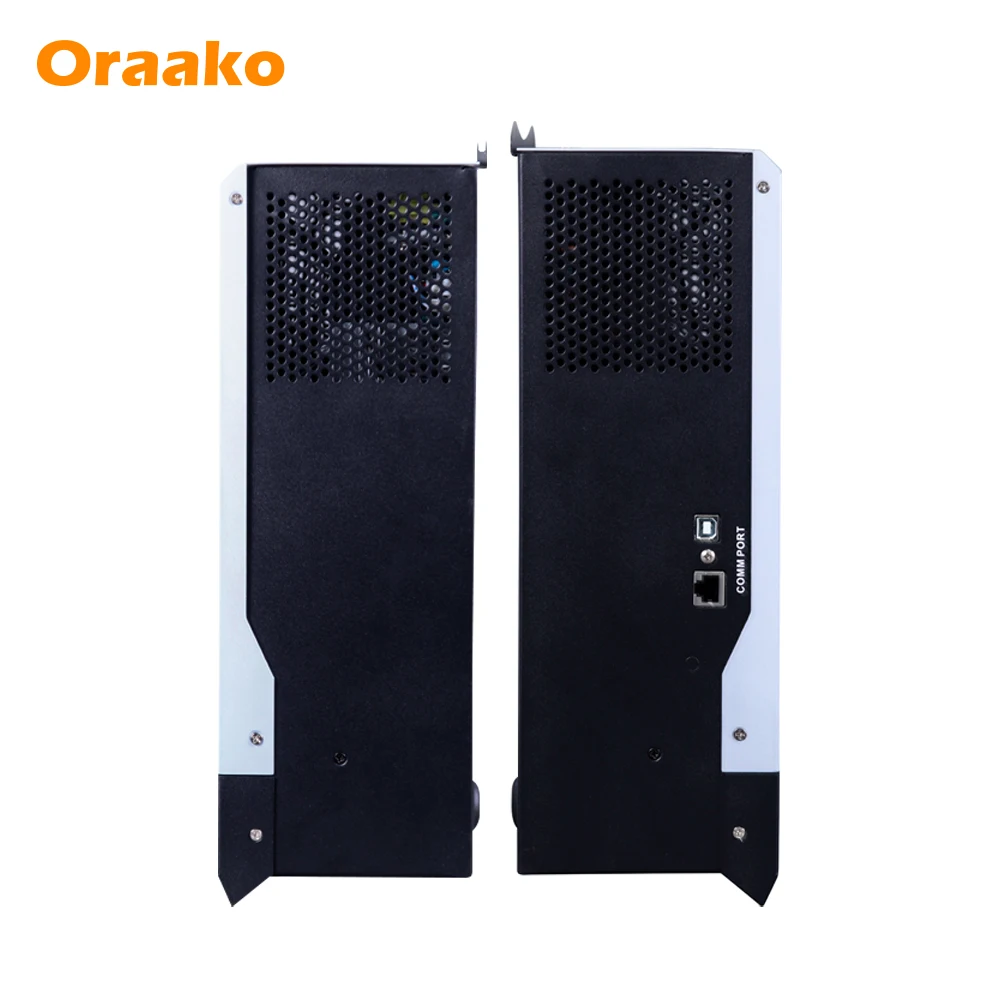

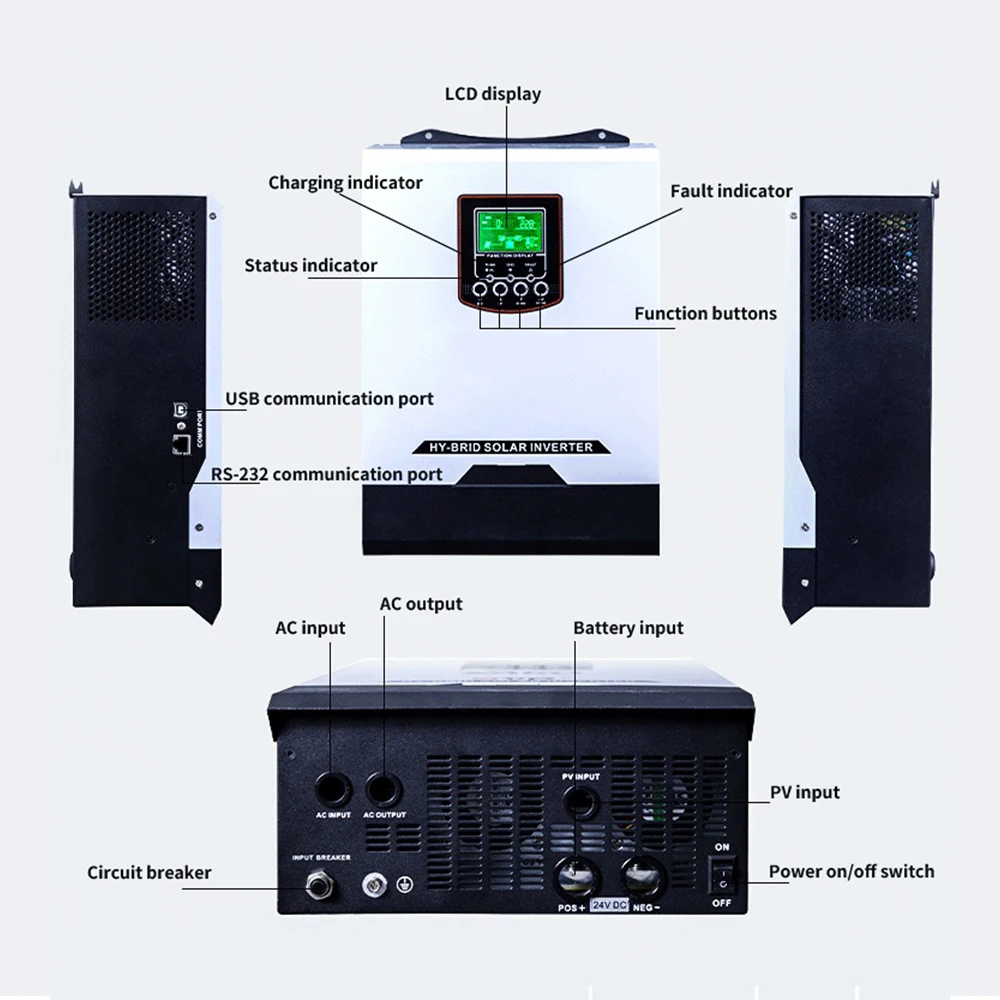

Communication Interface | RS232,USB,RS485(BMS),WIFI | ||
Environment | |||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||
Operating Temperature | -10℃ to 50℃ | ||
Storage Temperature | -15℃ to 60℃ | ||
*Product specifications are subject to change without further notice | |||
