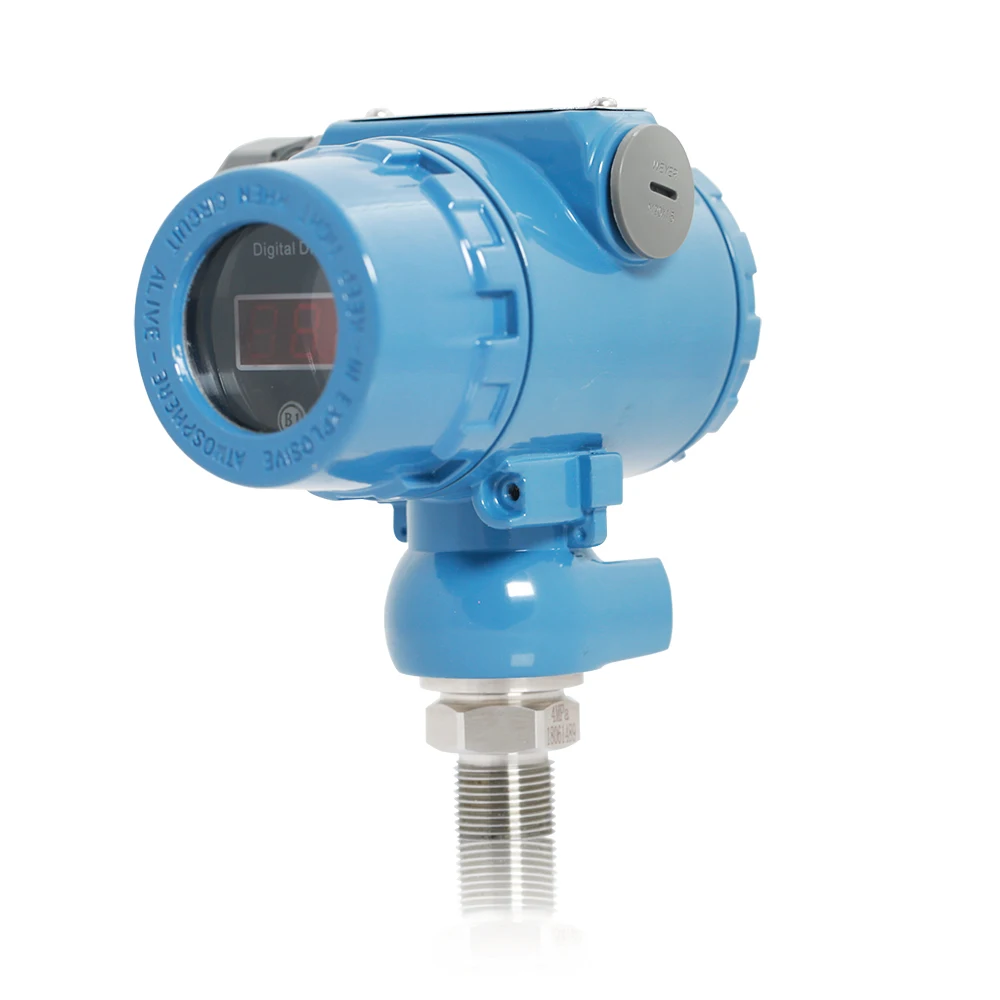

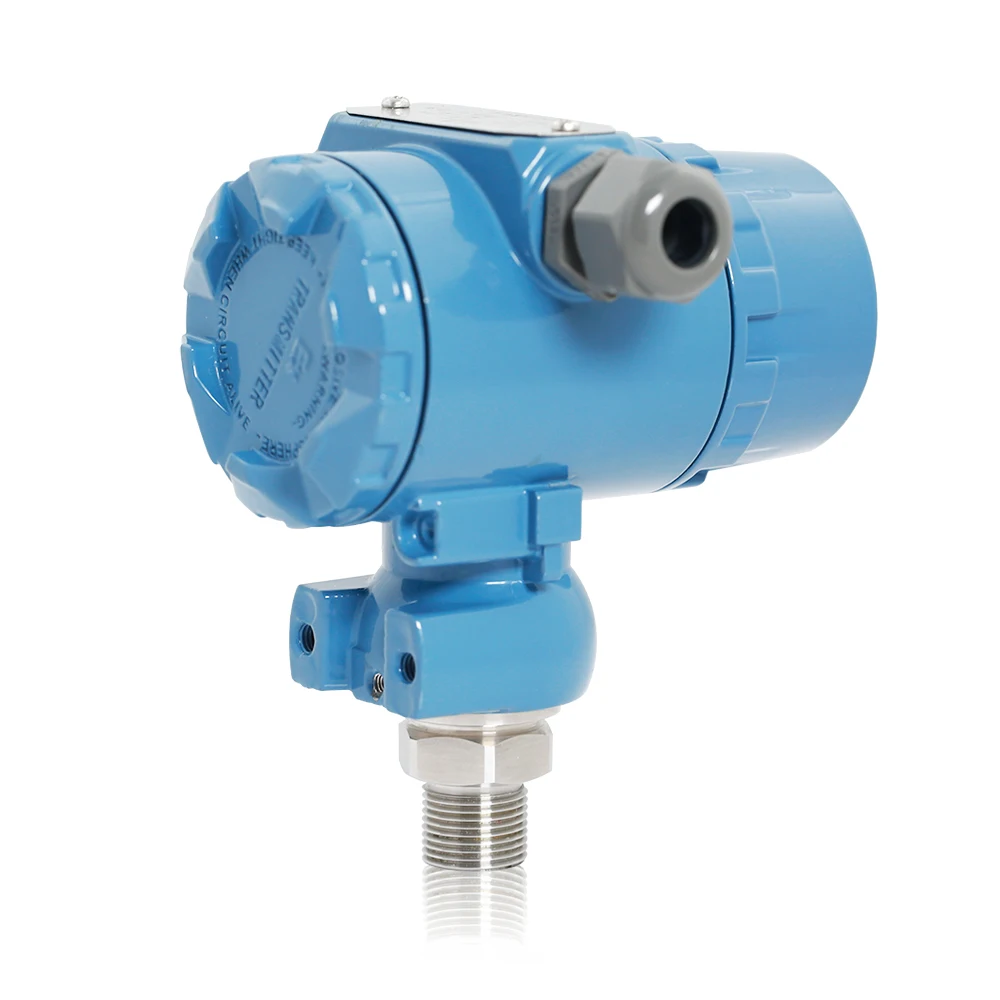

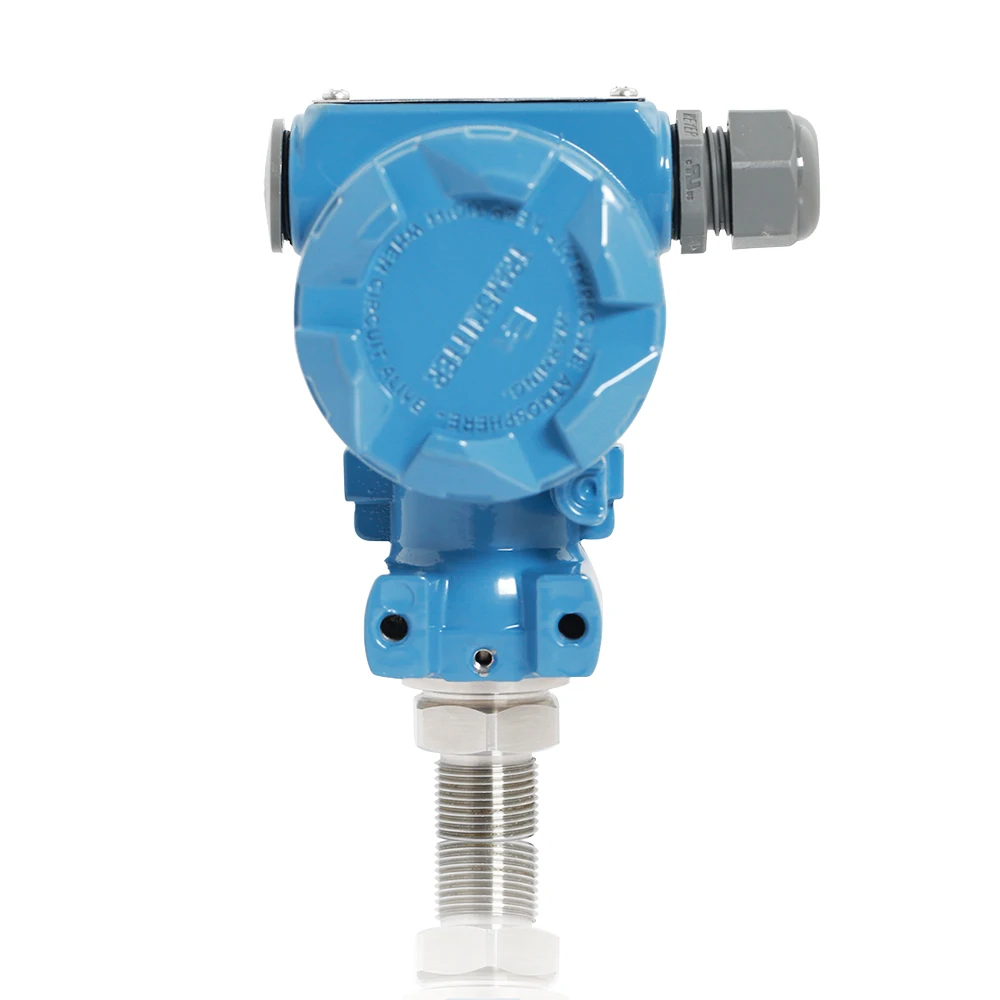

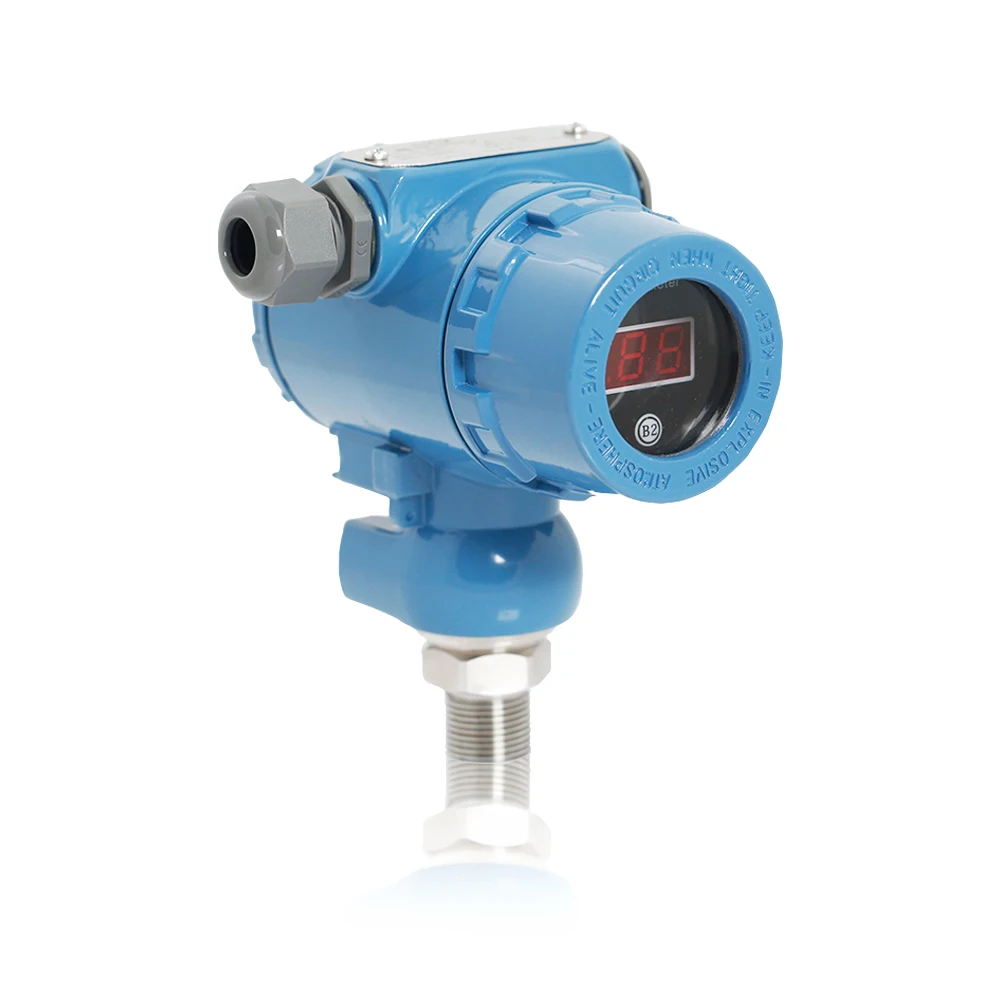

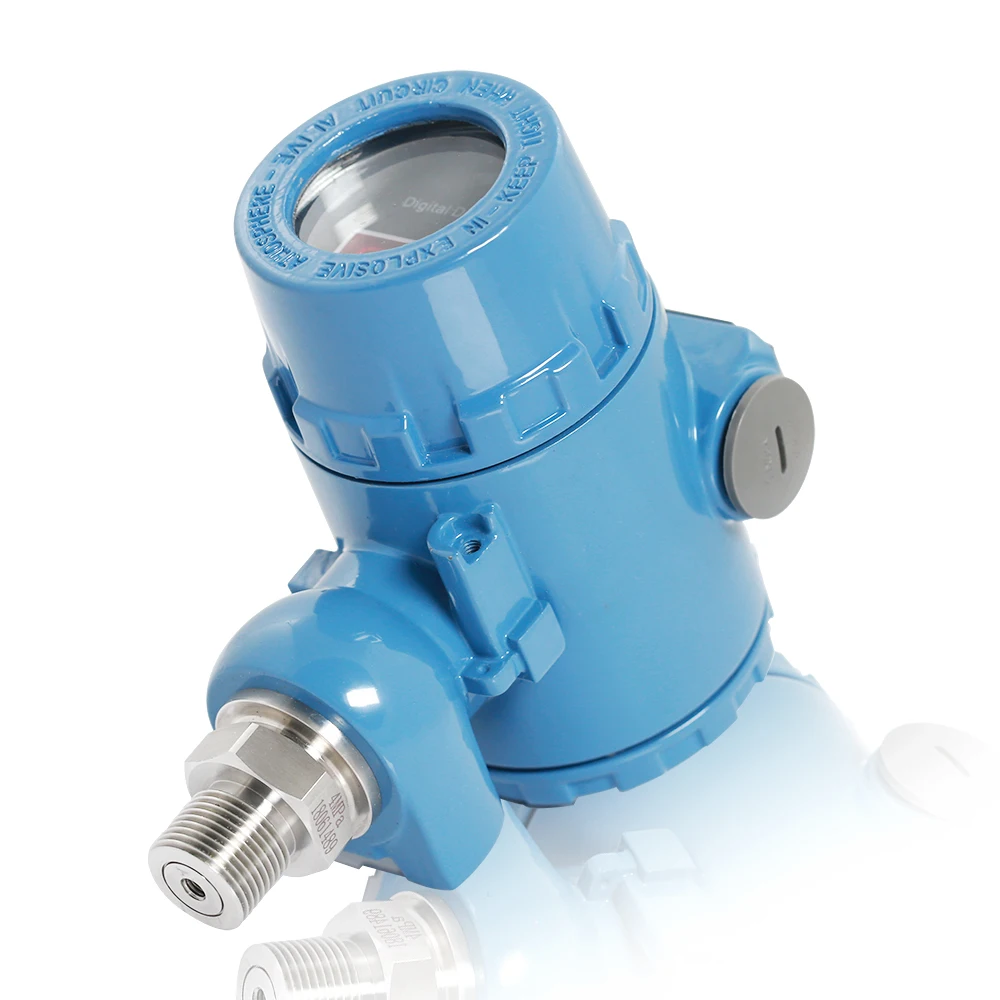

0 10 Bar Wireless Air Gas water Pressure Transmitter Explosion Proof Pressure Sensor
- Category: >>>
- Supplier: Hunan Tecnk Electronic Co. Ltd.
Share on (1600628338706):
Product Overview

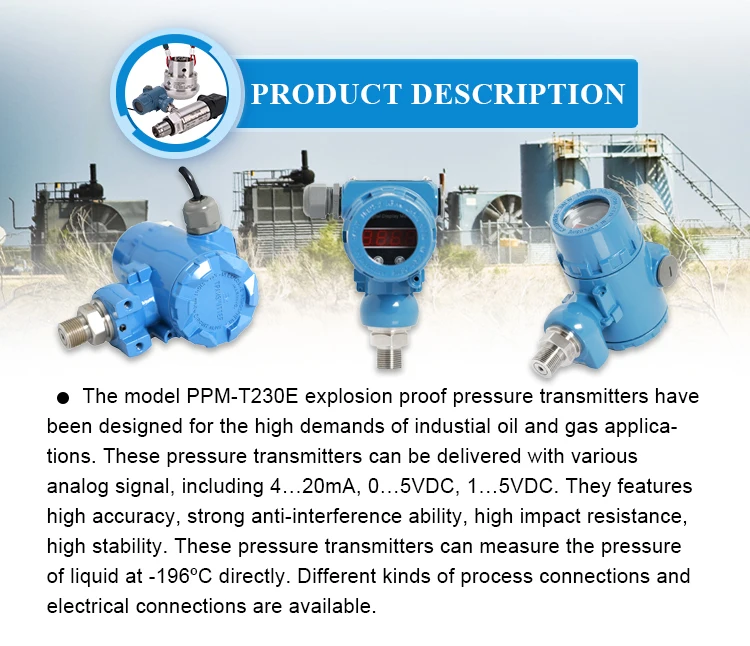

Description
0-10 Bar Wireless Air Gas water Pressure Transmitter Explosion-Proof Pressure Sensor
Company Profile
product information
Measuring medium | Gas, liquid |
Pressure type | Gauge pressure(G), Sealed pressure(S), Absolute pressure(A) |
Pressure range | -100kPa~0~250Pa~1kPa…300MPa 0~1MPa…1.6MPa…2MPa…3MPa…4MPa…5MPa…6MPa…7MPa…10MPa…15MPa…20MPa…30MPa…40MPa…50MPa…60MPa…80MPa…100MPa…150MPa…200MPa…300MPa |
Power supply | 12~32VDC |
Output signal | 4~20mA ,0~5VDC,1~5VDC |
Nonlinearity | ≤0.05% FS |
Non-repeatability | ≤0.05% FS |
Accuracy | 0.1%FD, 0.2%FS, 0.5%FS |
Long-term stability | 0.2%FS/year |
Medium temperature | -20~+90℃, -40~+125℃, -196~+125℃ |
Operation temperature | -40~+85℃, -40~+125℃, -40~+150℃ |
Frequency response | 0~1kHz |
Insulation resistance | ≥500 MΩ/100V |
Overpressure | 150%FS (1.5 times FS) |
Damage pressure | 300%FS (3 times FS) |
Vibration resistance | 5~1000Hz |
Shock resistance | 50g, 20ms |
Process connections | 1/4NPT, 1/2NPT, M20×1.5, or other process connections on request |
Materials | Wetted parts: 17-4PH, or stainless steel 316. Non-wetted parts: stainless steel 1Cr18Ni9Ti |
Ingress protection | IP67 |
Explosion-proof class | ExibⅡCT4 |
Electrical connections | Terminal block, 2m cable connection |

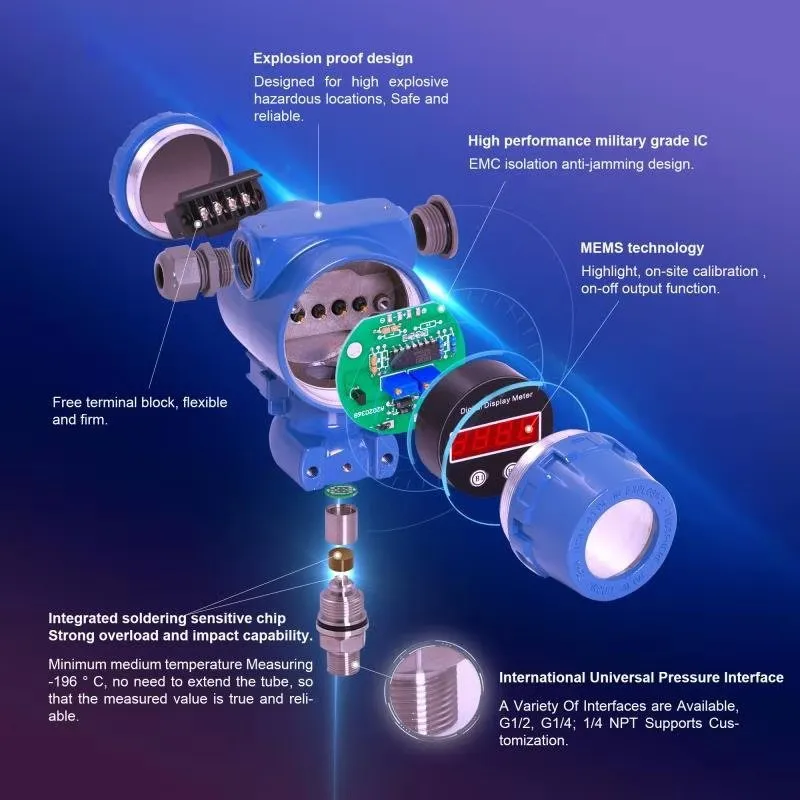

Productiong Detail
company advantage
other information
FAQ
Q: How long will you give me the reply?
A: we will contact you as soon as we can.
Q:Are you factory or trading company ?
A: We have our own factory.
Q: Do you provide samples?
A: Yes, we have materials in stock to help you to get the samples as soon as we can.
Q: What is your delivery date?
A: The warehouse is now fully stocked and orders are shipped early.
Q: What is the minimum order quantity?
A: Normally, the MOQ of mop is 1200 pieces.
