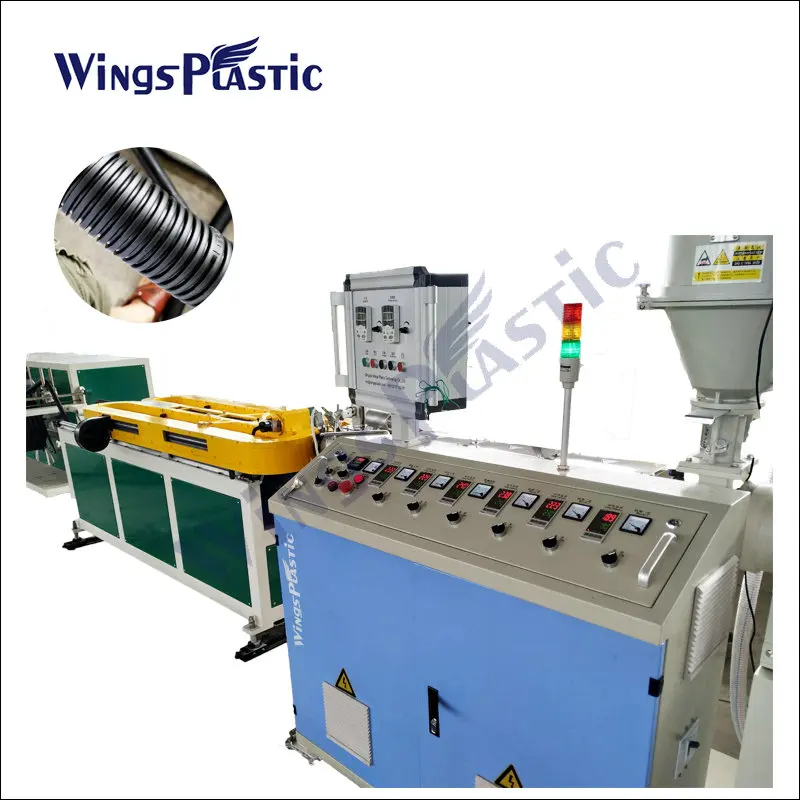

Automatic High Capacity PE Single Wall Corrugated Pipe Making Machine Extrusion Line
- Category: >>>
- Supplier: Qingdao Wings Plastic Technology Co. Ltd.
Share on (1600628345486):
Product Overview
Description
Product Description
Single Wall Corrugated Pipe MachineThe machine is used to produce single wall corrugated pipe by PE PVC PP or PA Nylon Materials.

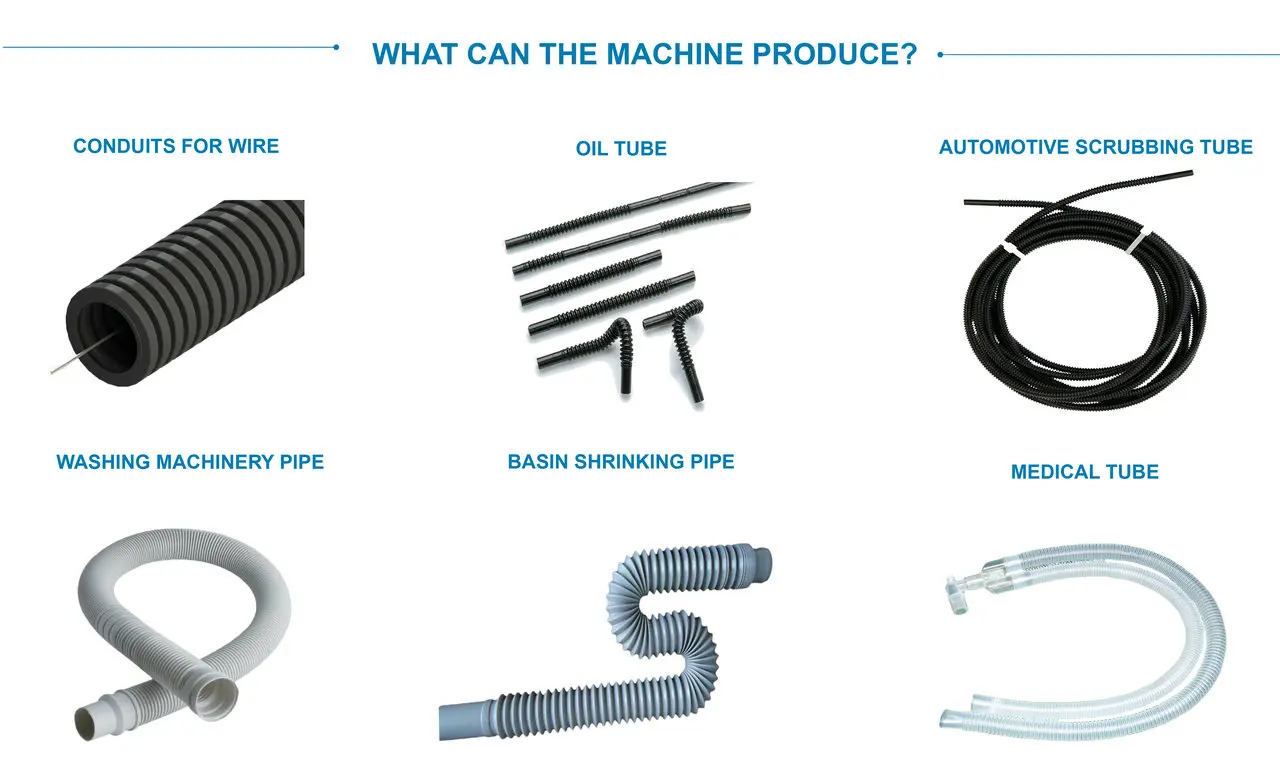

This kind of corrugated pipe is always 10-50mm diameters, popular used in machinery tool, machine building, eledtric insulation protection system, electric automatic control system, public traffic equipment, metor, electric locomotive and air-conditioner equipment, etc.
This kind of corrugated pipe is always 10-50mm diameters, popular used in machinery tool, machine building, eledtric insulation protection system, electric automatic control system, public traffic equipment, metor, electric locomotive and air-conditioner equipment, etc.
Details Images

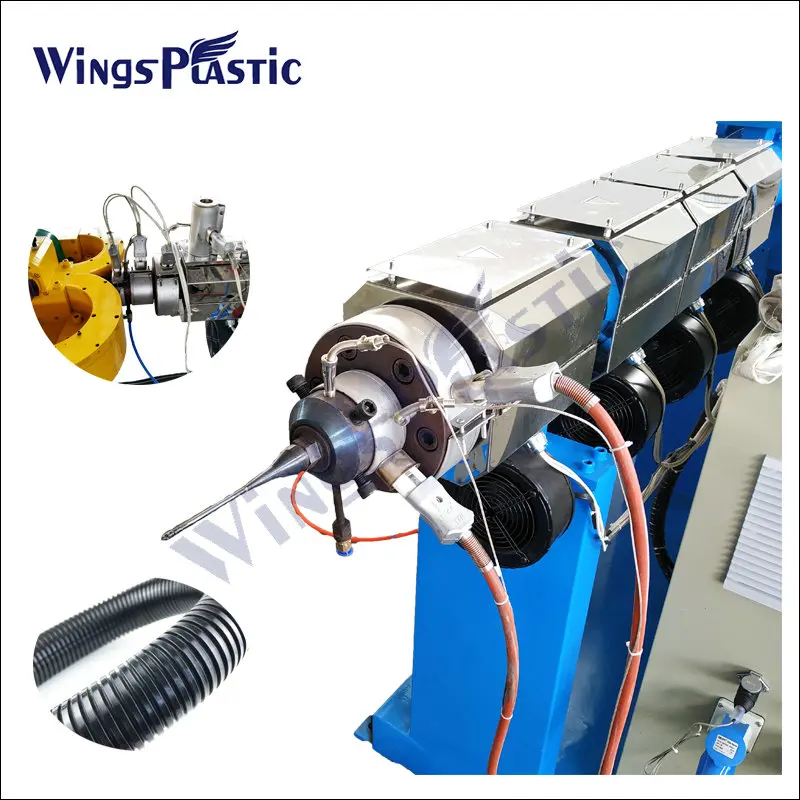

High Efficient Single Screw Extruder
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barrel>940, the surface of screw is chromeplated Feeding bush with water cooling system

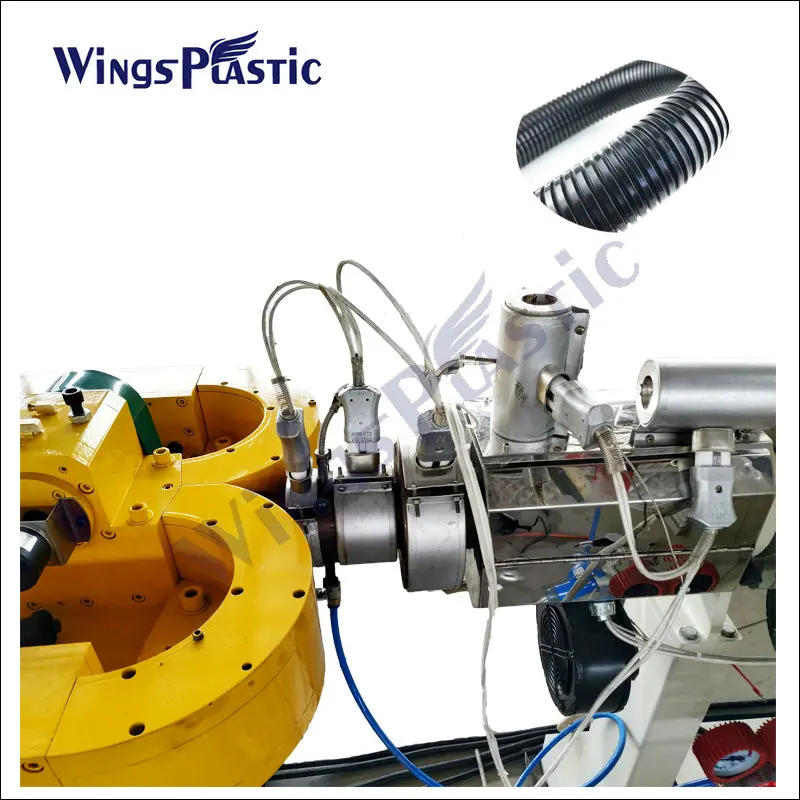

Die Head
Material :40Cr , the surface of die is chromeplated, anti-corrosive
High Speed Forming Machine
Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 10-30m/min working speed.It is added water cooling and fan cooling two system.

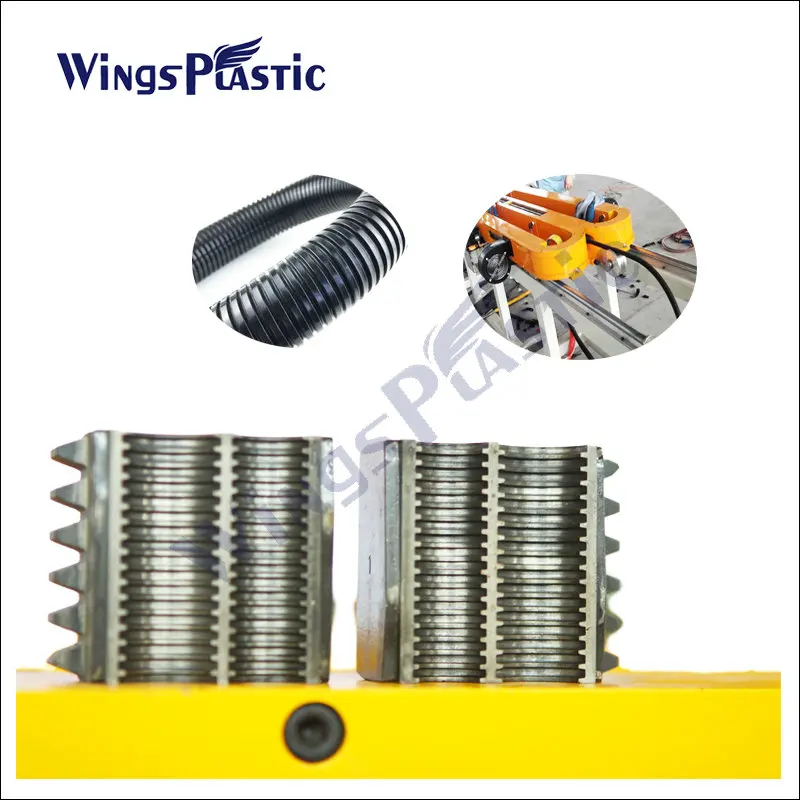

Mould Blocks
Materials of moulds block:40CrThe moulds are made by CNC system, it is high precison and long service life.
It could be designed into one hole or two hole according customer request.
We could print customers logo into moulds according request.
It could be designed into one hole or two hole according customer request.
We could print customers logo into moulds according request.
Automatic Coiler
No of wheel: two wheel or one wheel according customer requestUseing delta inverter system, it is automatic adjustment of winding speed.

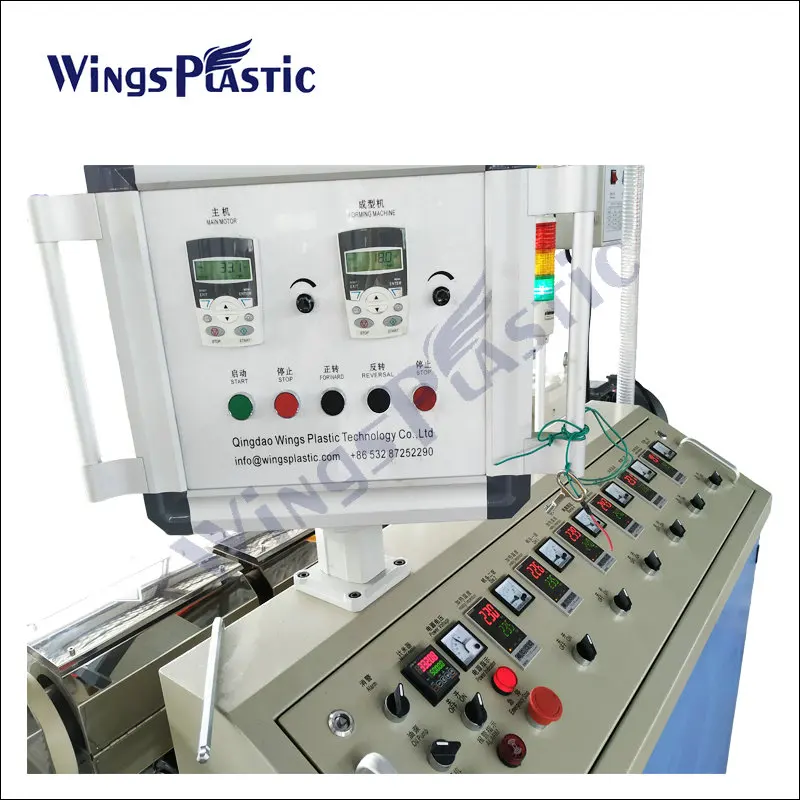

Control Box
Temperature controller: OMRONContactor and replay: SIEMENS
Inverter: ABB or Delta Character
High precise temperature control. Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability
Inverter: ABB or Delta Character
High precise temperature control. Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability
Company Profile
Qingdao Wings Plastic Technology Co., Ltd, is the professional manufacturer and exporter of the plastic extrusion line, the main product is: plastic corrugated pipe machine,PE/PPR/PVC pipe extrusion machine, pet pp strap extrusion line, EVA hose extrusion line, PVC/LDPE mat extrusion line.
FAQ
Q:Are you machinery factory or trading company? A：We are machinery factory. Q:If we have very special request for the production line,could you help me to do the design? A:Experienced mechanical designer customized-design provided. Q:How can we visit your company and machines? A:Our company located in Jiaozhou City nearby Jiaodong Airport.If customer want to visit our factory,we will pick up you at the airport.Of course, because of the special period, customers cannot come, so we can also audit the factory through online video.
Q:What`s the payment method? A:T/T, L/C, etc.
Q:How long is the warranty? A:12 months.
Q:How long is the delivery time? A:Under normal conditions, products are delivered within 60 working days. Q:How to install machine when machine arrive? A;We will arrange our engineer to customer factory for installation and teach customer`s worker how to operate the machine，and in this special period,we will guides the installation and commissioning online when the equipment arrived.
