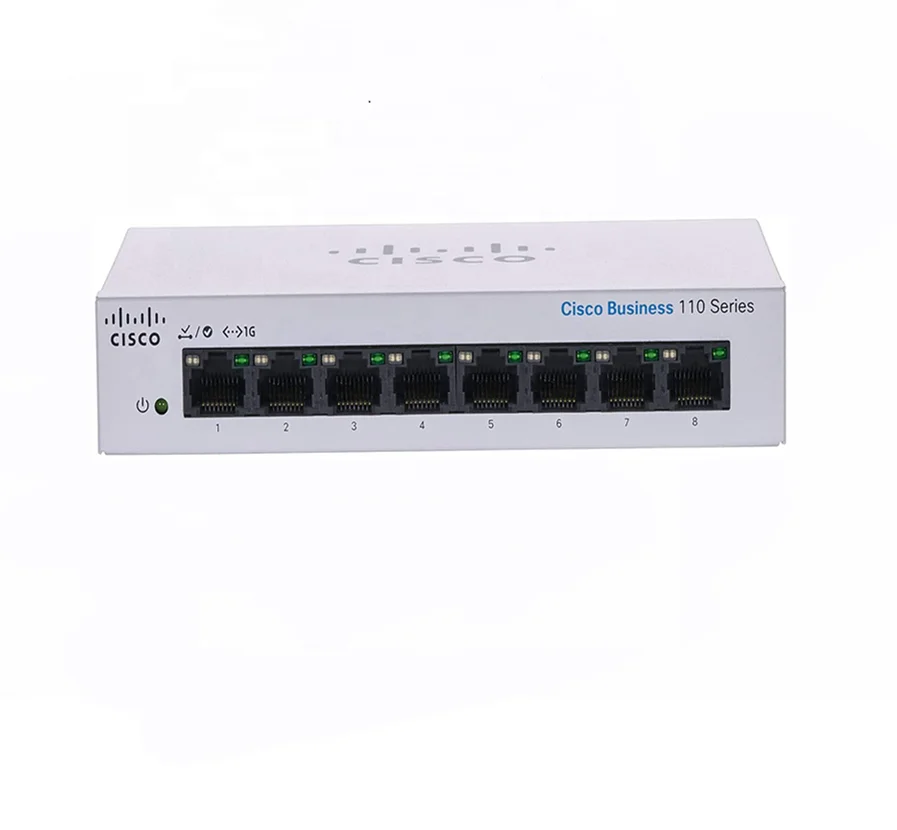

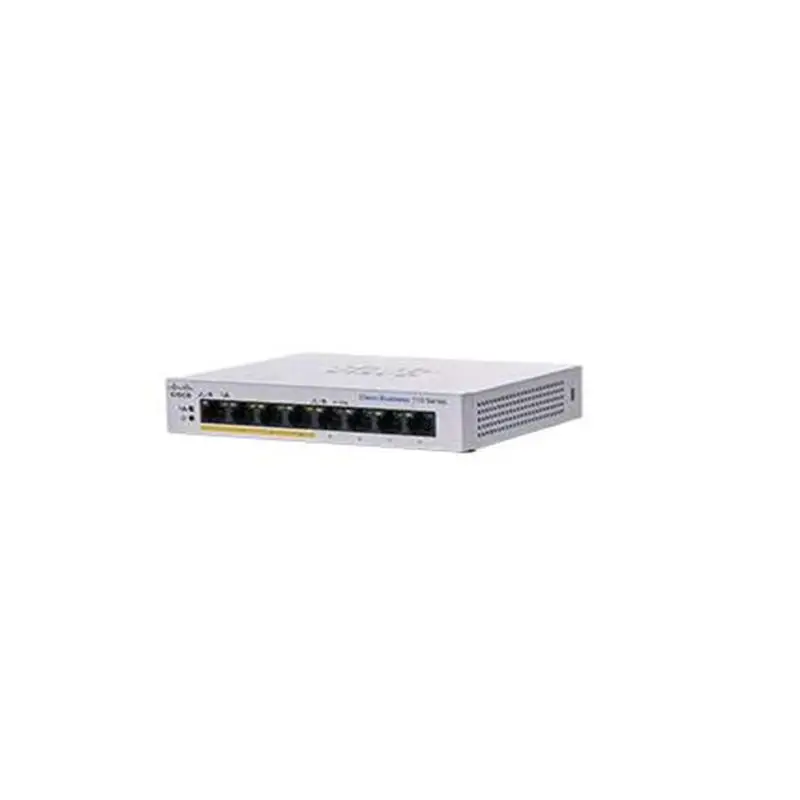

Network Switch 8 ports switch 10/100/1000 unmanaged Ethernet Switch CBS110 8T D CN
- Category: >>>
- Supplier: Shanghai Shuaiqi Network Technology Co. Ltd.
Share on (1600628349798):
Product Overview
Description
C9500-40X-E
C9500-40X-A is one of the the Cisco Catalyst 9500 Series Switches. The Cisco Catalyst 9500 Series Switches are the next generation
of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU,
the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for
security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches
targeted for the enterprise campus.
of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU,
the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for
security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches
targeted for the enterprise campus.
C9500-40X-E Specification
Switching capacity | Up to 960 Gbps | |
Forwarding rate | Up to 720 Mpps | |
Total number of MAC addresses | Up to 64,000* | |
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 64,000 indirect* Up to 32,000 host* | |
Total number of IPv6 routes | Up to 32,000 indirect* Up to 16,000 host* | |
Multicast scale | Up to 48,000* | |
QoS ACL scale | Up to 18000* | |
Security ACL scale | Up to 18000* | |
FNF entries | Up to 512,000* | |
DRAM | 16 GB | |
Flash | 16 GB | |
VLAN IDs | 4000 | |
Total Switched Virtual Interfaces (SVIs) | 4000 | |
Jumbo frame | 9198 bytes | |
Power supply specifications | ||
Power Supply Feature | Support in the Catalyst 9500 Series | |
AC power max rating | 950W | |
System power consumption | 850W max | |
Input-voltage range and frequency | AC 115 to 230 VAC, 50 to 60 Hz | |
Power supply efficiency | 94% | |
Total output BTU (Note: 1000 BTU/hr = 293W) | 2901 BTU/hr (850W) max | |
Input current | AC 10A at 115VAC, 5 A at 230VAC | |
Output ratings | 12V at 79A, 12V at 3A | |
Output holdup time | AC = 10 ms at maximum load | |
Power-supply input receptacles | AC IEC 60320 C16 | |
Power cord rating | AC 15A | |
Dimensions, physical specifications, and MTBF | ||
Description | Specifications | |
Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in | |
Rack units (RU) | 1 RU | |
Input voltage | 90 to 264 VAC | |
Operating temperature | 32°F to 104°F (0° to 40°C) | |
Storage temperature | -4° to 149°F (-20° to 65°C) | |
Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% | |
Altitude | Operation up to 6000 ft | |
MTBF (hours) | 180,640 | |
