1 input/1 output Marine Car Waterproof 6 Way Fuse Blade Block Holder Fuse Box With Fuse Blade Set
- Category: >>>
- Supplier: Hangzhou Yancheng Technology Co. Ltd.
Share on (1600628400703):
Product Overview
Description
All ST Blade fuse blocks utilize a specialized fuse clip that is designed to hold fuses in place in the harshest conditions.
WUPP fuse block will be your choice!
Product Description
Product name | 6-way one in one out ATO or ATC fuse common waterproof fuse box |
Product model | ZH-1704B1 |
Net weight | 191G |
Product gross weight | 230G |

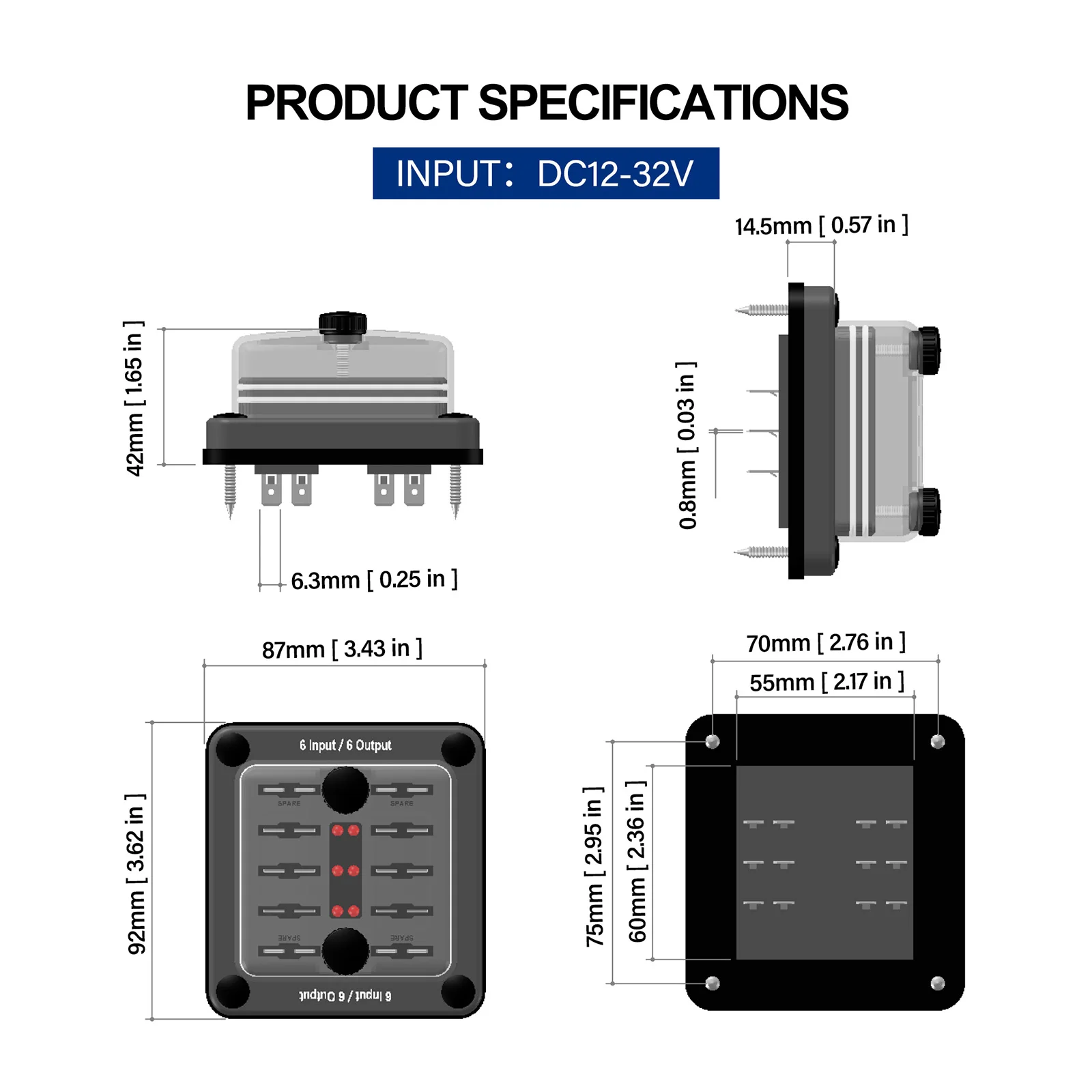

Product size | 87*92*42mm |
Package size | 97*97*72mm |
Packaging method | White box packaging |
Input rated voltage | 32V |

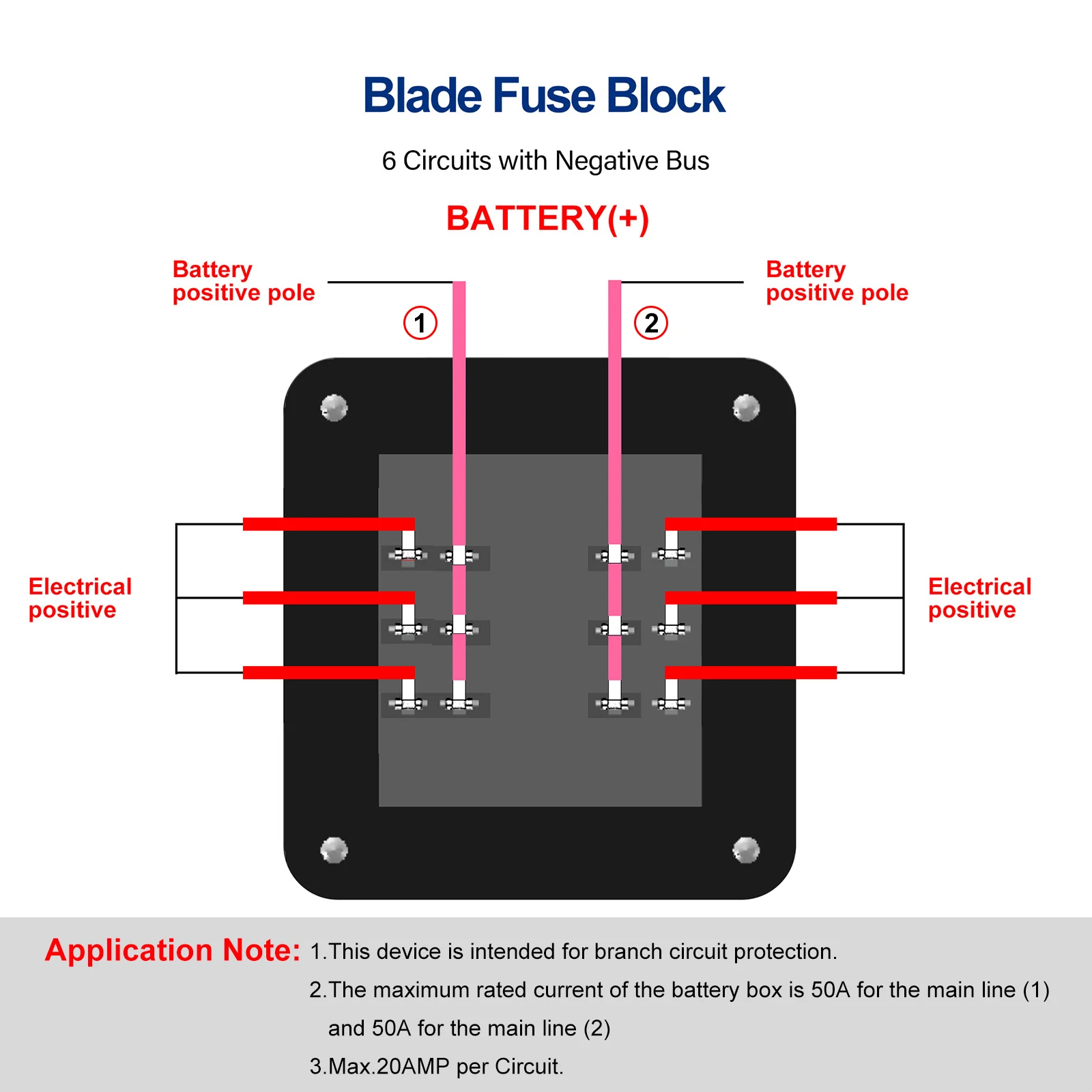

Input rated current | Main line ① 50A, main line ② 50A |
Maximum output current | 20A per circuit |
Product material | PA66 base, PC dust cover, nickel plated copper terminal block, stainless steel screw, polybutadiene rubber waterproof gasket, PP × 70 sticker, silicone sealing ring |
Main line terminal | 1015/12# (50A 32V DC.max)。 |
Single line terminal | Copper/nickel plated 1/4 "(6.3mm) (20A 32V DC maximum) |
Single line diameter | #12-16AWG |
Opening size | 55*60mm |
Product Details：
Product material:
PA66 base, PC dust cover, nickel plated copper terminal block, stainless steel screw, polybutadiene rubber waterproof gasket, PP × 70 sticker, silicone sealing ring

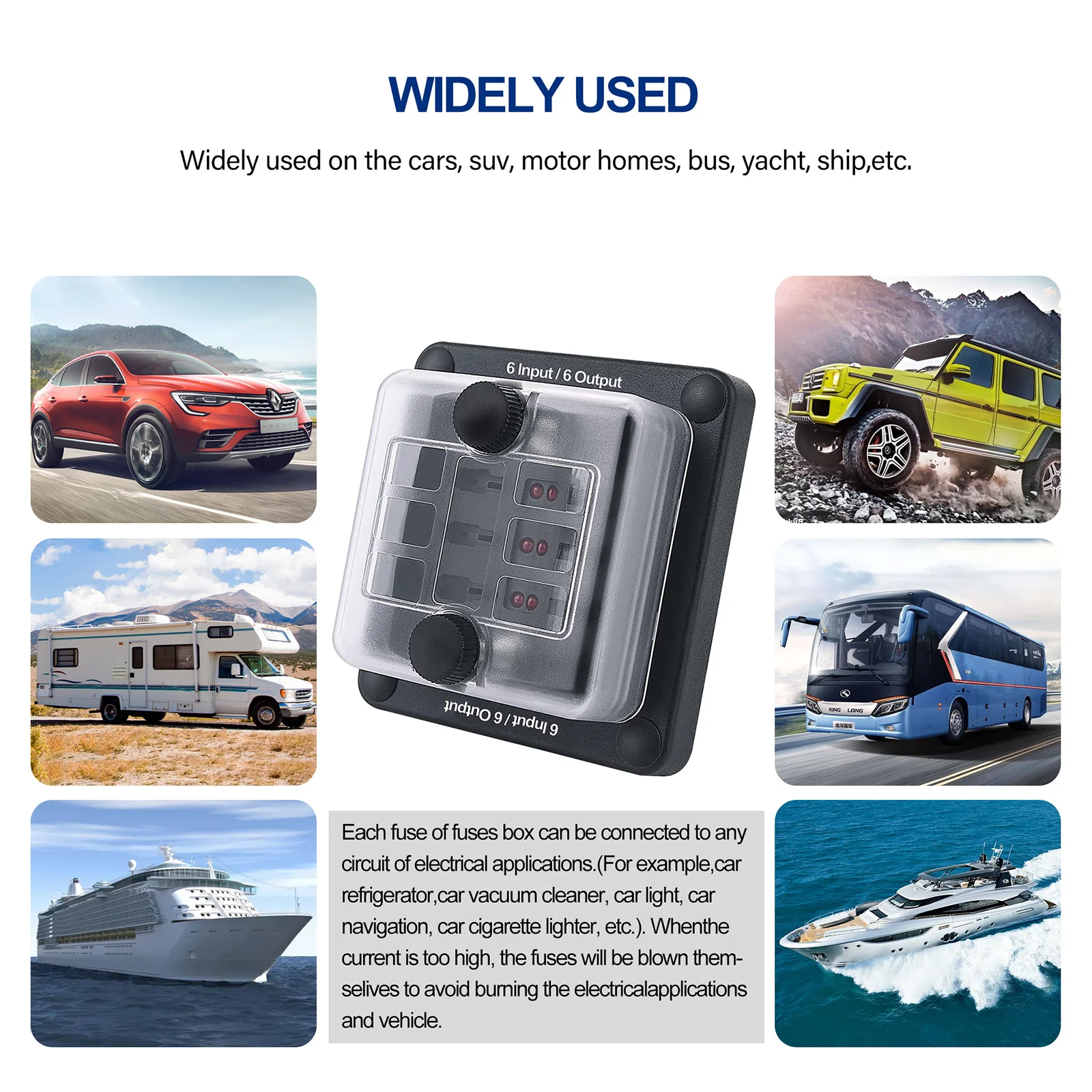

Installation scope: It can be installed on cars, off-road vehicles, recreational vehicles, buses, yachts, boats, etc
Function of indicator light:
when the red LED light is on, it means that the fuse has been disconnected, and the fuse needs to be replaced in time to continue operation
Scope of use: It can be directly connected to the circuit of any electrical appliance on the vehicle/ship [such as roof light, headlight, side marker light, fog light, warning light, car refrigerator, car charger, car fan, car TV, etc.]

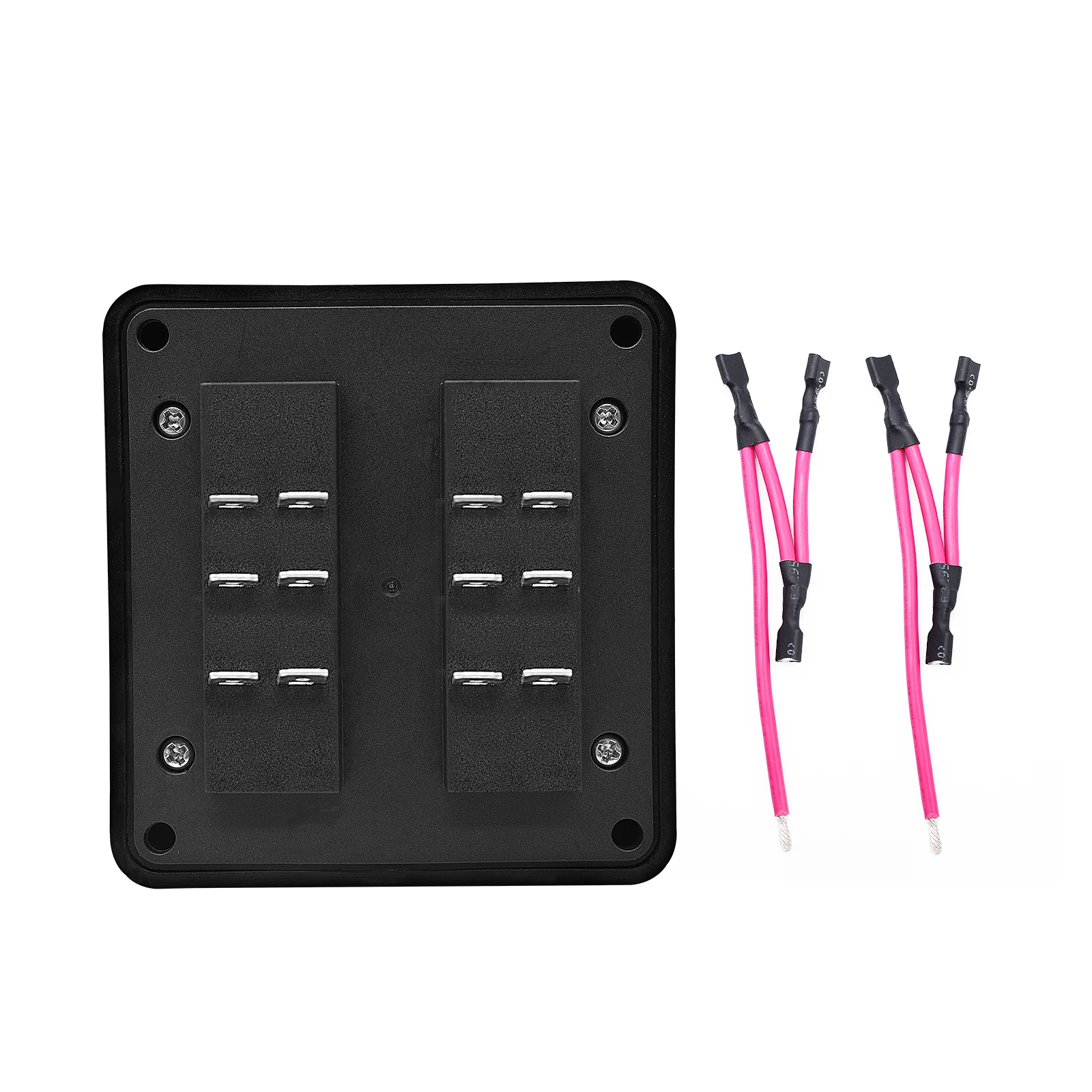

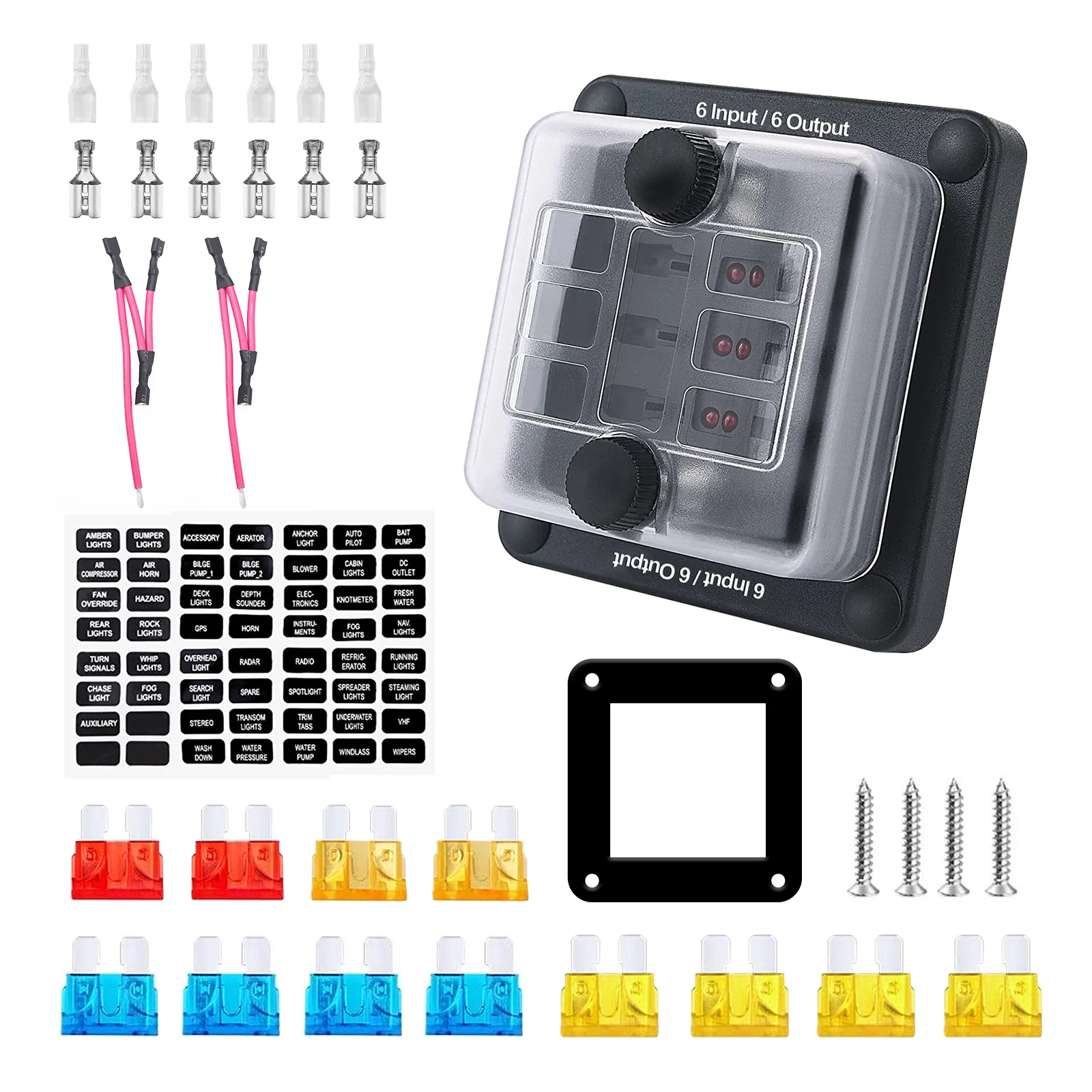

Product accessories: X2 stickers; X4 self tapping screws; Shunding waterproof gasket x4; 20A fuse X 6 pieces; 15A fuse X 6 pieces; 10A fuse X 6 pieces; 5A fuse X 6 pieces; Flat terminals include x12 protective sleeves. Accept ATO or ATC fuse from 1A to 20A
Fuse function:
In case of circuit failure or abnormality, the current will increase continuously, and the increased current may damage some important or valuable components in the circuit, or burn the circuit or even cause fire. The fuse protects the electronic equipment from being injured by current, and can also avoid serious injuries caused by internal faults of electronic equipment. Therefore, each fuse has a rating. When the current exceeds the rating, the fuse will blow. If the fuse is correctly placed in the circuit, the fuse will fuse and cut off the current when the current abnormally rises to a certain height and temperature, thus protecting the safe operation of the circuit
Detailed Images
MAKE WIRING CLEAN
Instead of piling a mess of wires and fuse holders onto your battery posts, WUPP 12 volt fuse block/ground bus kit gives you 6 dedicated fuses and 6 ground locations to keep all of your wires clean, organized, and accessible. Made wiring electronics in your vehicles or boat a breeze!

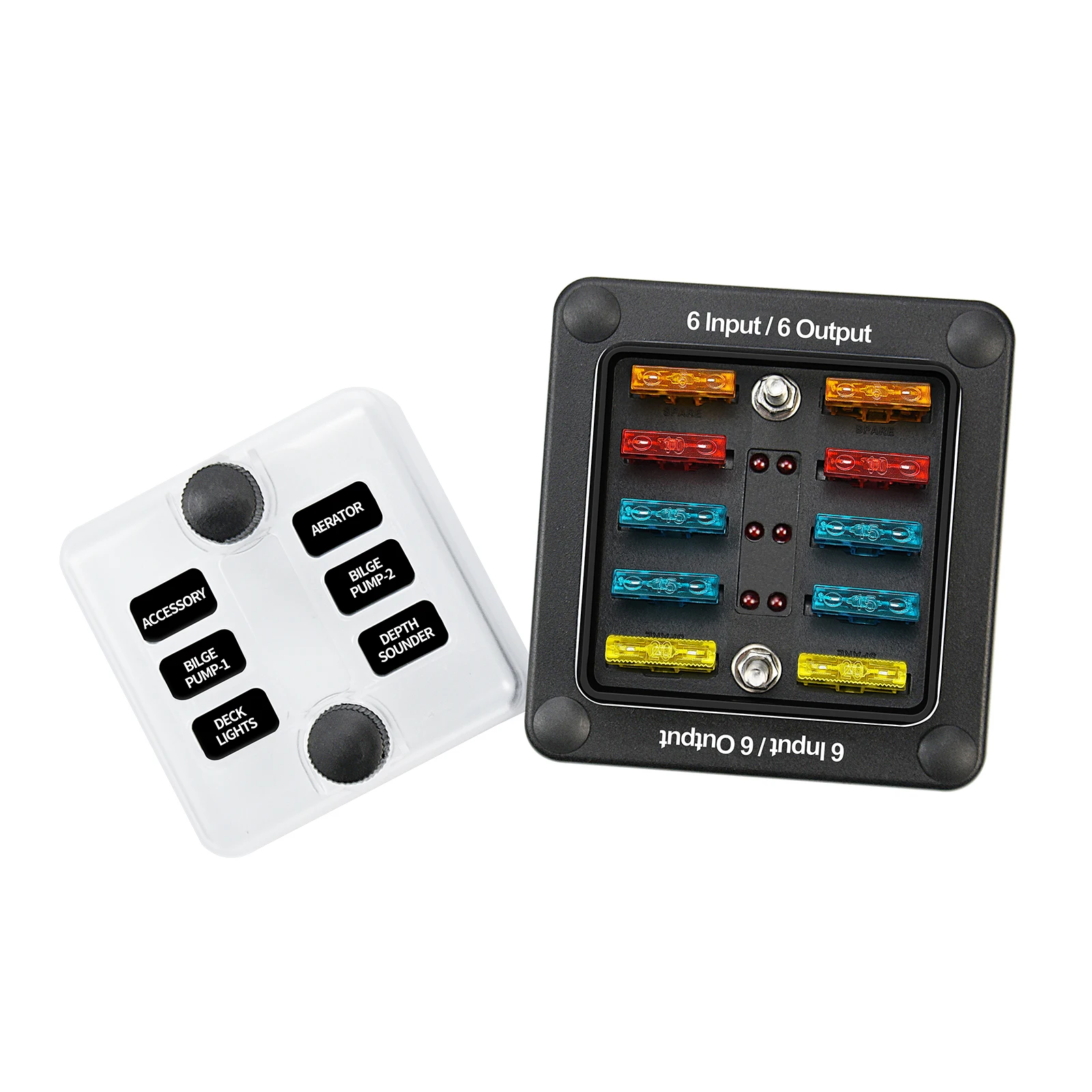

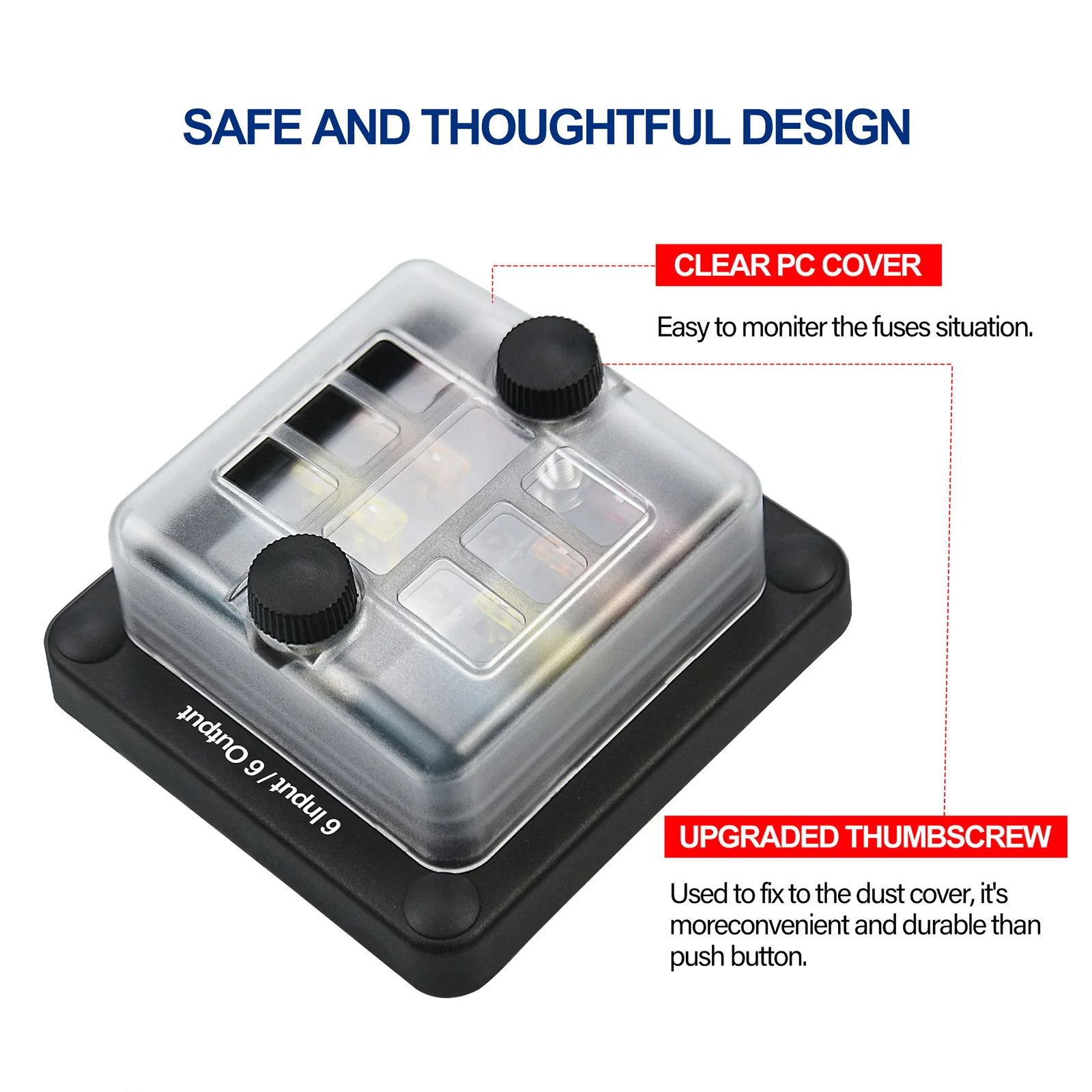

CLEAR FUSE PROTECTION COVER
Insulating cover with black push latch system, easy to operate, splash ,dust-proof and waterproof design. Also this transparent design also helps to add extra protection to your fuse box & fuses
Insulating cover with black push latch system, easy to operate, splash ,dust-proof and waterproof design. Also this transparent design also helps to add extra protection to your fuse box & fuses

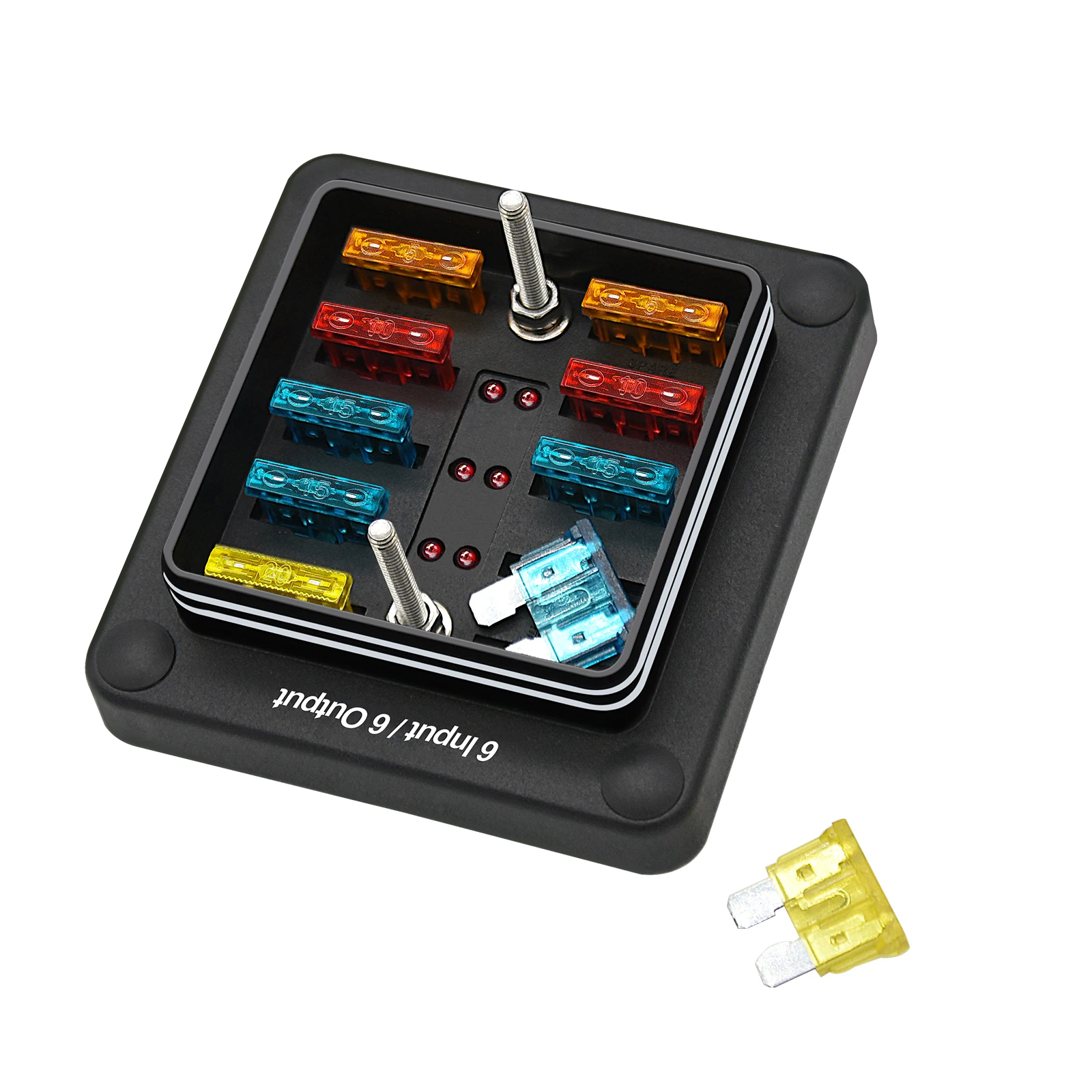

QUICK FIX
WUPP 12 Volt fuse block will indicate exactly where there is a short circuit or any other fault so you can easily identify it and change it!
WUPP 12 Volt fuse block will indicate exactly where there is a short circuit or any other fault so you can easily identify it and change it!

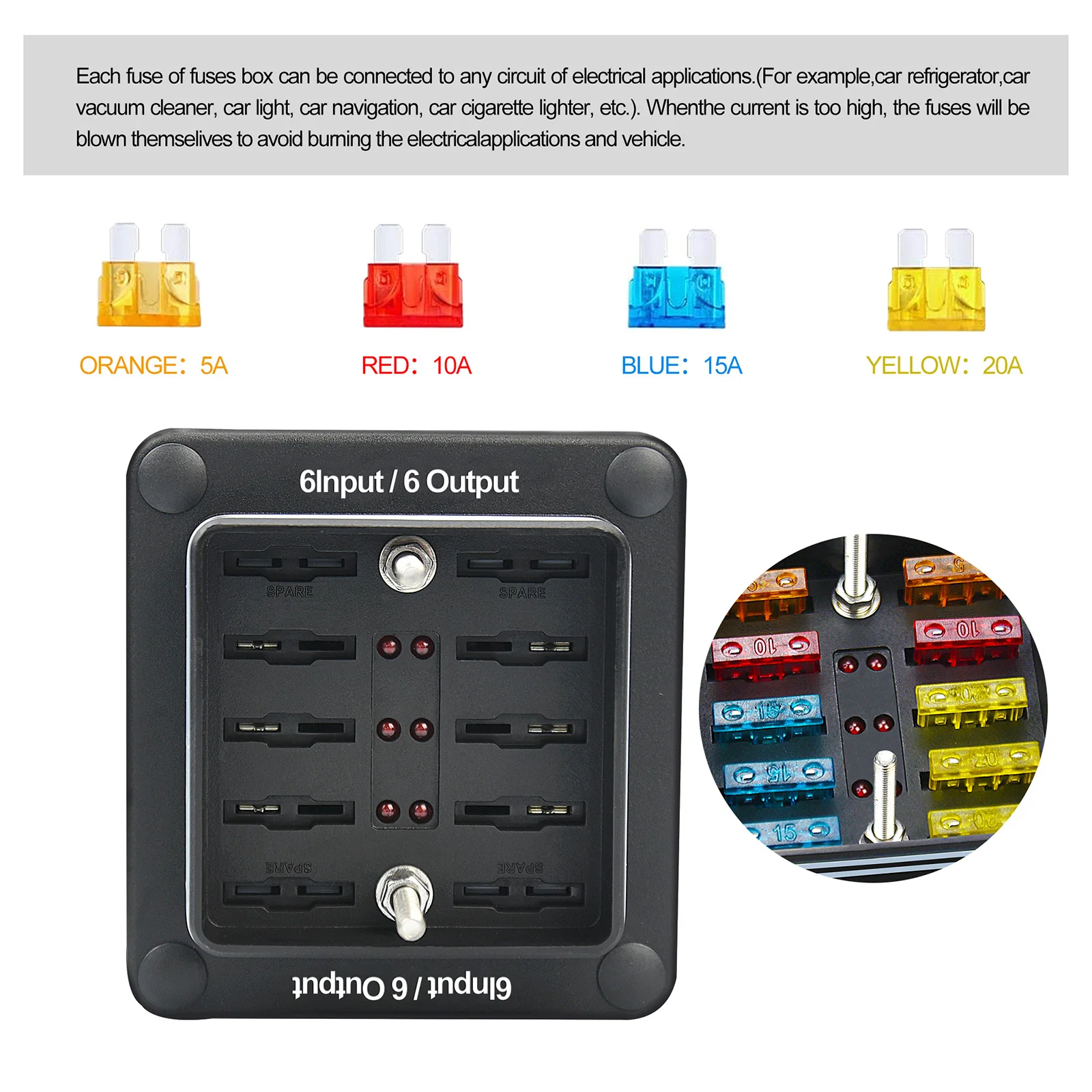

Each fuse of fuses box can be connected to any circuit of electrical applications.(For example,car refrigerator,carvacuum cleaner, car light, car navigation, car cigarette lighter, etc.).Whenthe current is too high, the fuses will beblown themselves to avoid buming the electrical applications and vehicle.
Accessories:
Product Advantages:
【1】 The product is made of PA66 flame retardant and high and low temperature resistant material, which fully meets the requirements of [the fuse holder must have good mechanical strength, insulation, heat resistance and flame retardancy,
and shall not produce fracture, deformation, combustion, short circuit, etc. in use]
【2】 All fastening accessories are made of stainless steel. The overall installation of the fuse box is relatively simple, and the fuse box is fixed with self tapping screws, which is more convenient and safe to install.

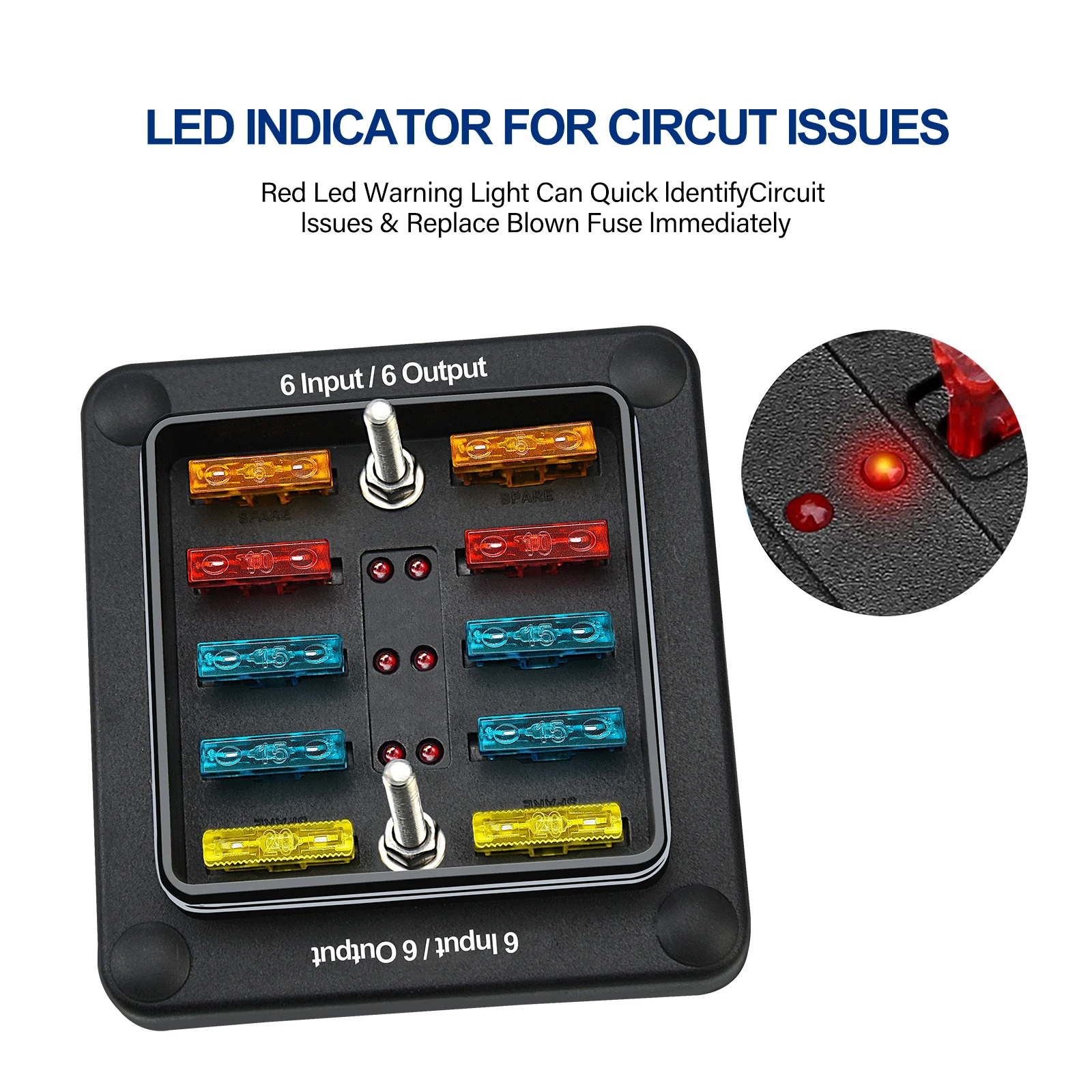

【3】 The product has a red LED indicator light design. When the circuit is short circuited, the red light will be on, so you can immediately know which fuse is broken, so that you can timely judge which circuit is faulty

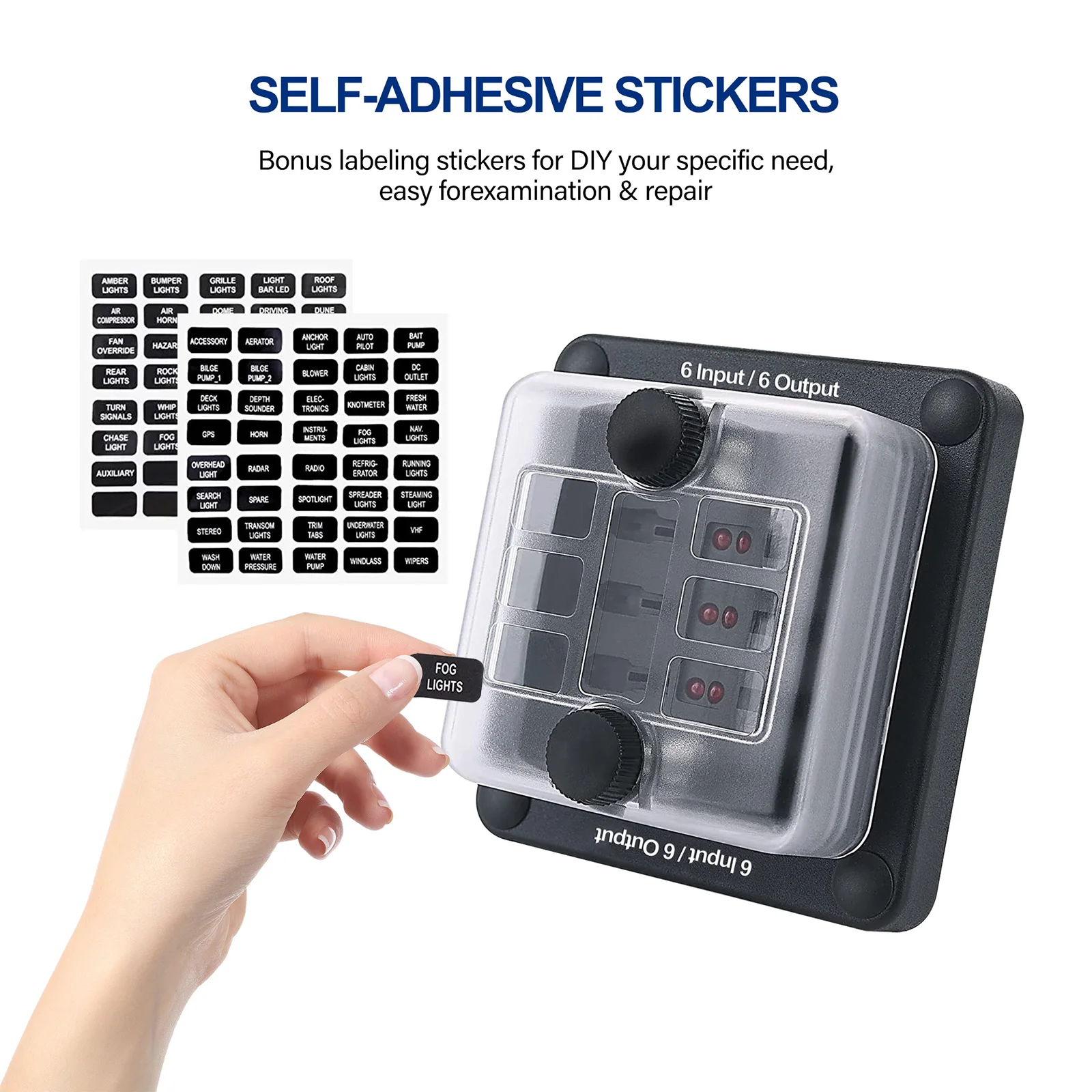

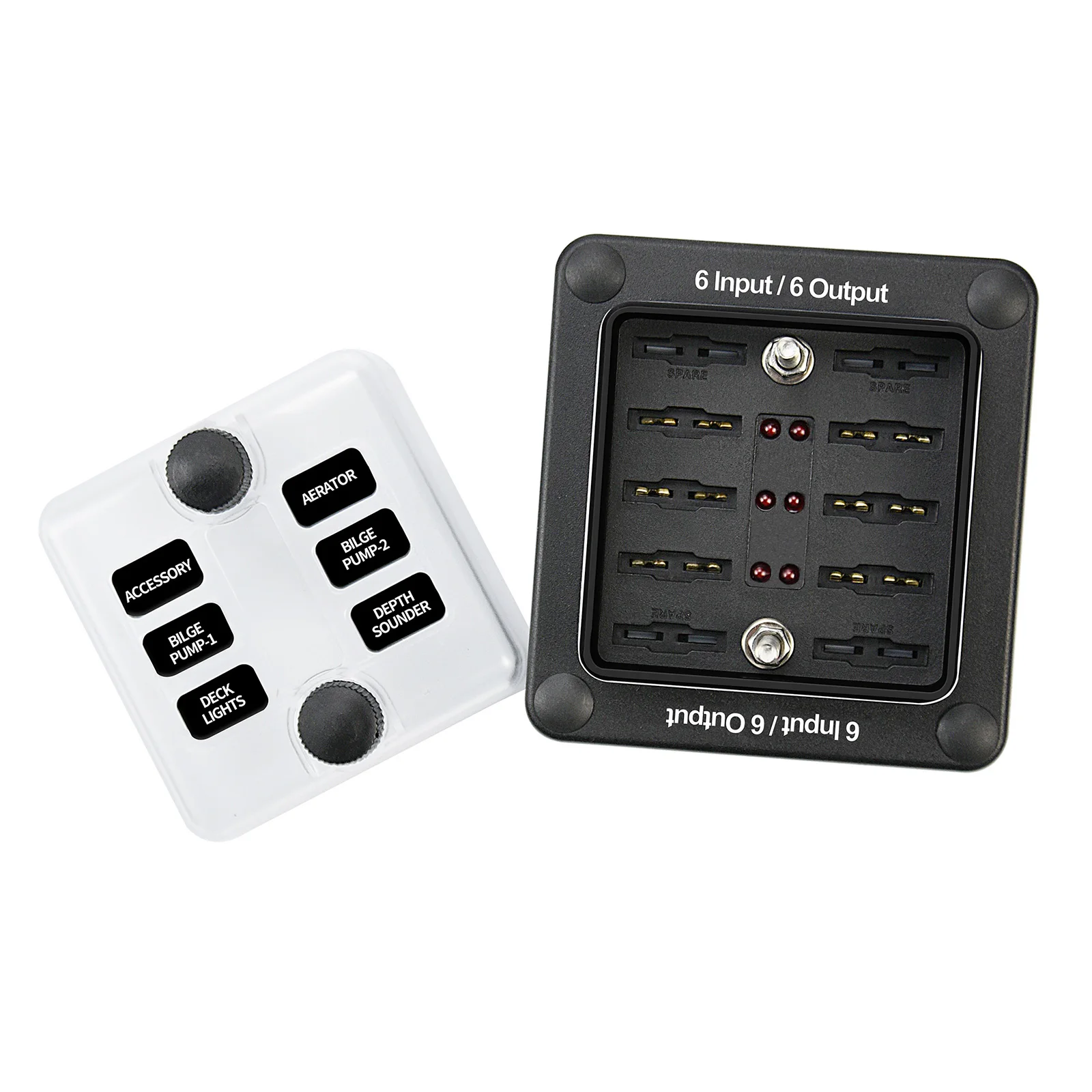

【4】 Product free stickers can be attached to the cover of the electrical appliance circuit we connected according to the name marked on the sticker. When the red light of the circuit short circuit is on, we can quickly identify which electrical appliance has a problem
【5】 The product is delivered with double four specifications of fuse blade. If the fuse blade is short circuited during use, it can be immediately replaced from the spare fuse blade, and the fuse blade corresponding to multiple can be selected according to the current electrical appliance
【6】 This type of fuse box is waterproof. For large water crossing vehicles such as off-road vehicles, recreational vehicles and ships, regardless of the quality, the fuse boxes currently on the market are mainly dust-proof, with no waterproof measures taken.

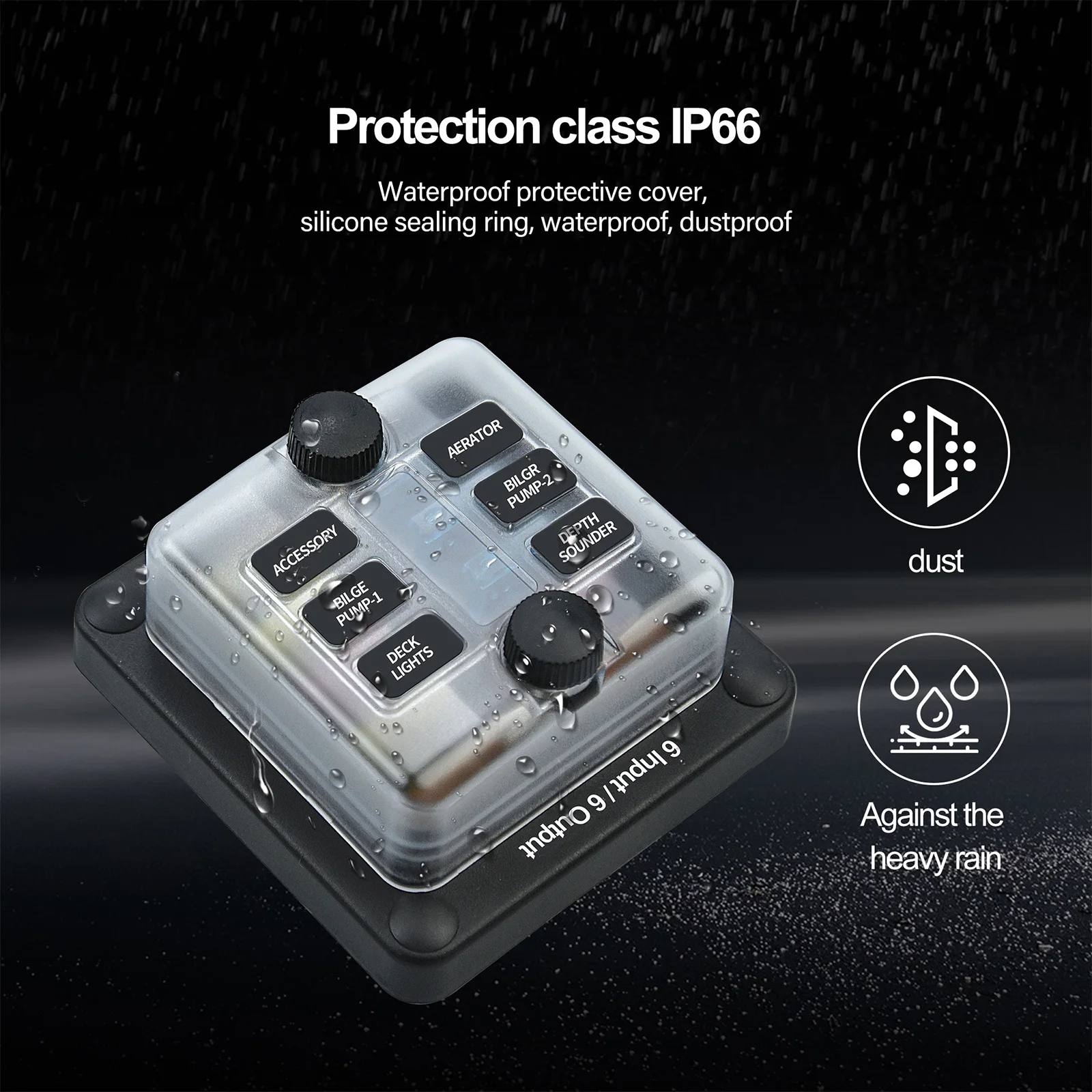

This type of fuse box reaches the waterproof grade of IP66 through the front waterproof cover, Shunding waterproof gasket, body
sealing ring, drilling, installation and wiring
【1】 The product is made of PA66 flame retardant and high and low temperature resistant material, which fully meets the requirements of [the fuse holder must have good mechanical strength, insulation, heat resistance and flame retardancy,
and shall not produce fracture, deformation, combustion, short circuit, etc. in use]
【2】 All fastening accessories are made of stainless steel. The overall installation of the fuse box is relatively simple, and the fuse box is fixed with self tapping screws, which is more convenient and safe to install.
【3】 The product has a red LED indicator light design. When the circuit is short circuited, the red light will be on, so you can immediately know which fuse is broken, so that you can timely judge which circuit is faulty
【4】 Product free stickers can be attached to the cover of the electrical appliance circuit we connected according to the name marked on the sticker. When the red light of the circuit short circuit is on, we can quickly identify which electrical appliance has a problem
【5】 The product is delivered with double four specifications of fuse blade. If the fuse blade is short circuited during use, it can be immediately replaced from the spare fuse blade, and the fuse blade corresponding to multiple can be selected according to the current electrical appliance
【6】 This type of fuse box is waterproof. For large water crossing vehicles such as off-road vehicles, recreational vehicles and ships, regardless of the quality, the fuse boxes currently on the market are mainly dust-proof, with no waterproof measures taken.
This type of fuse box reaches the waterproof grade of IP66 through the front waterproof cover, Shunding waterproof gasket, body
sealing ring, drilling, installation and wiring
The advantage of our fuse block is that it has an indicator light, so when the fuse is blown, the indicator light will light up immediately to show you which fuse is blown. But you may get voltage across the circuit even with no fuse in place, that's because the fuse box has its own light circuit, the light circuit has resistance, so it displays some voltage.
So if you are extremely power-sensitive, be aware, this is the normal situation, please don't worry.
Thanks for your understanding.

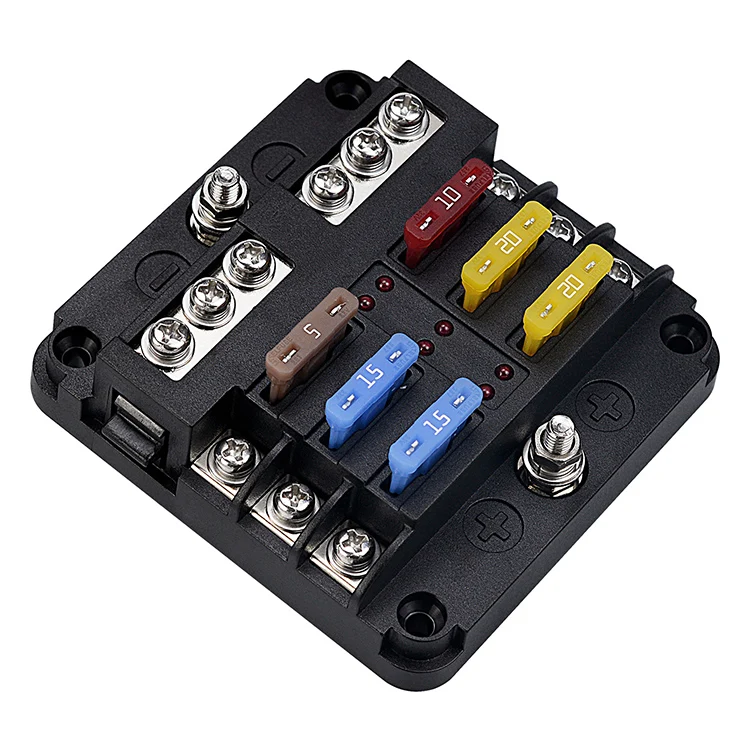

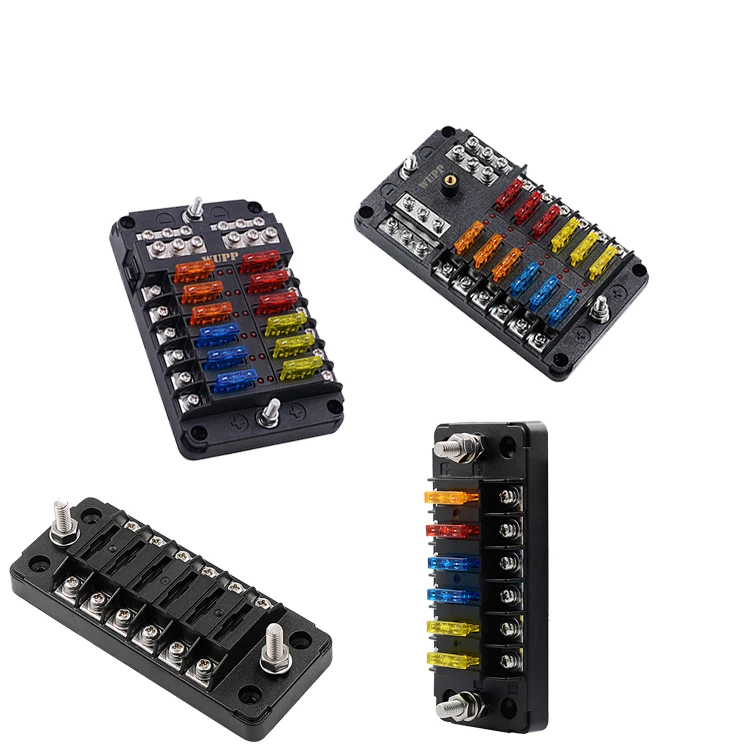

Similar Product
Input Voltage | 12V-24V DC | 12V-24V DC | 12V-24V DC |
Maximum Amperage | 100A per block/ 30A per circuit | 100A per block/ 30A per circuit | 100A per block/ 30A per circuit |
Fuse Type | Standard (ATC/ATO) | Standard (ATC/ATO) | Standard (ATC/ATO) |
Fuses Included or Not | Included | Included | Included |
Quantity of Fuse Slots | 6 | 12 | 6 |
Spare Fuse Slots | Not Included | Not Included | Not Included |
Easy Installation | ✓ | ✓ | ✓ |
LED Warning Indicator | ✓ | ✓ | ✓ |
Has Negative Bus | ✓ | ✓ | ✓ |
Common Source | ✓ | ✓ | ✓ |
