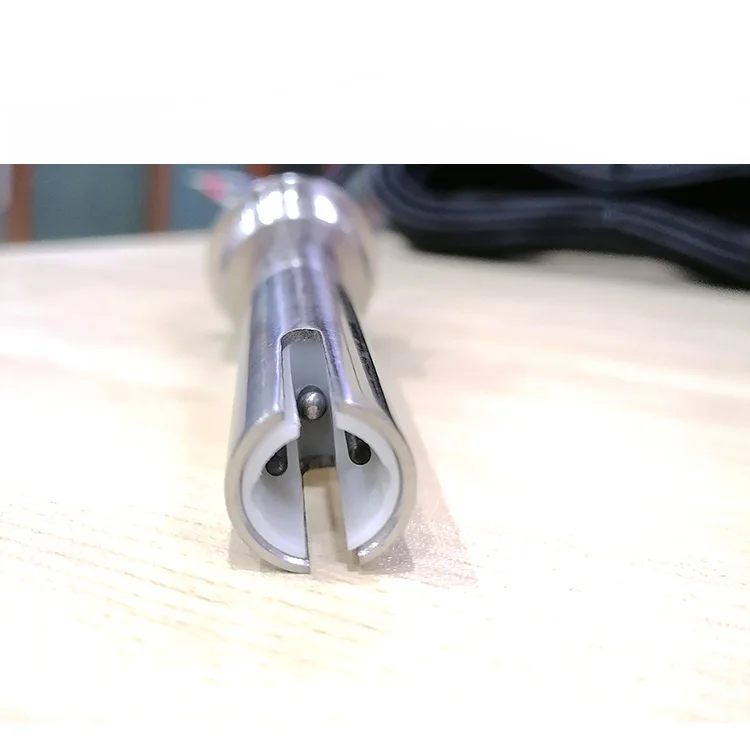

Stainless Steel Conductivity Sensor Online Conductivity Controller TDS Sensor EC Probe
- Category: >>>
- Supplier: Shanghai Lanchang Automation Technology Co. Ltd.
Share on (1600628406381):
Product Overview
Description

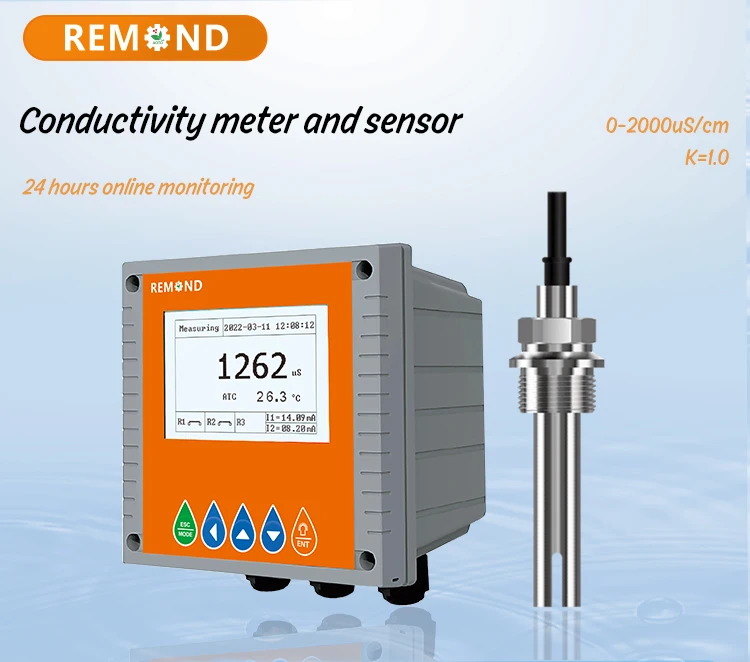

Stainless Steel Conductivity Sensor Online Conductivity Controller TDS Sensor EC Probe
Product Description

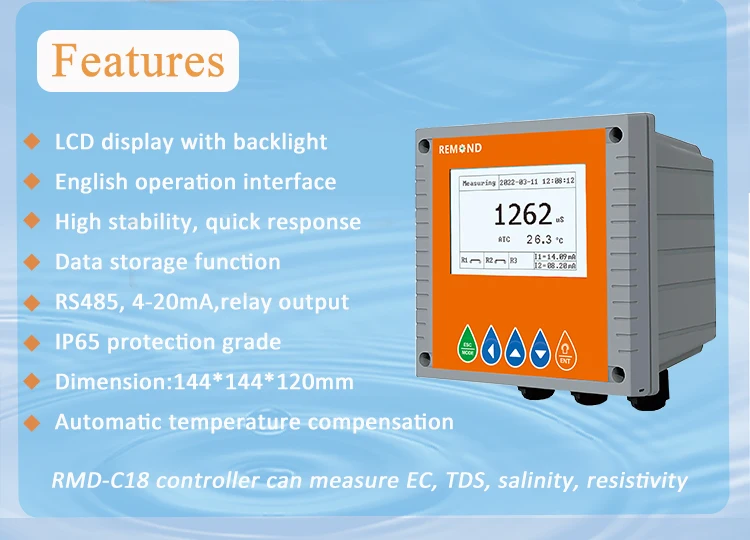

Conductivity Meter technical data
Functions | EC | Resistivity | Salinity | TDS |
Measuring range | 0.00uS-2000mS | 0.00-20.00 MΩ-CM | 0.00-78.00 g/Kg | 0-133000 ppm |
Resolution | 0.01/0.1/1 | 0.01 | 0.01 | 1 |
Accuracy | ±1%F.S. | ±1%F.S. | ±1%F.S. | ±1%F.S. |
Temp. compensation | Pt 1000/NTC30K | |||
Temp. range | -10.0 to +130.0℃ | |||
Temp. compensation range | -10.0 to +130.0℃ | |||
Temp. resolution | 0.1℃ | |||
Temp. accuracy | ±0.2℃ | |||
Cell constant | 0.001 to 20.000 | |||
Ambient temperature range | 0 to +70℃ | |||
Storage temp. | -20 to +70℃ | |||
Display | Back light, dot matrix | |||
EC current output1 | Isolated, 4 to 20mA output , max. load 500Ω | |||
Temp. current output 2 | Isolated, 4 to 20mA output , max. load 500Ω | |||
Current output accuracy | ±0.05 mA | |||
RS485 | Mod bus RTU protocol | |||
Baud rate | 9600/19200/38400 | |||
Maximum relay contacts capacity | 5A/250VAC,5A/30VDC | |||
Cleaning setting | ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours | |||
One multi function relay | clean/period alarm/error alarm | |||
Relay delay | 0-120 seconds | |||
Data logging capacity | 500,000 | |||
Language selection | English/traditional Chinese/simplified Chinese | |||
Waterproof grade | IP65 | |||
Power supply | From 90 to 260 VAC, power consumption < 7 watts | |||
Installation | panel/wall/pipe installation | |||

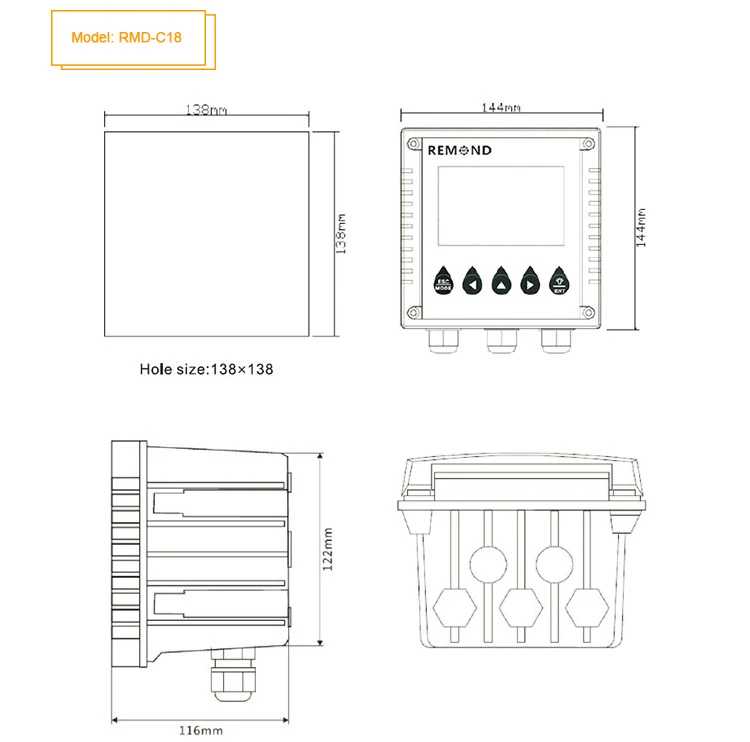

Detailed Images

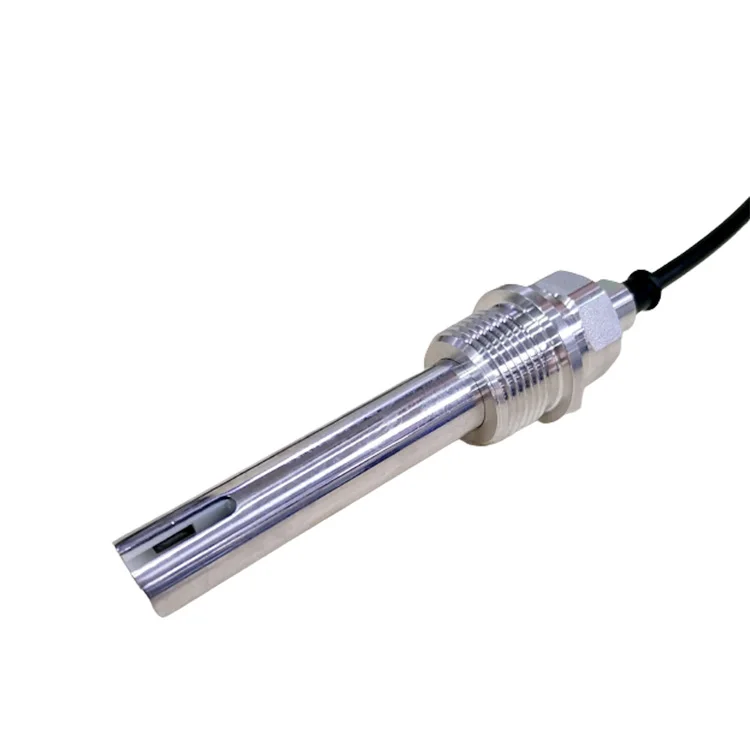

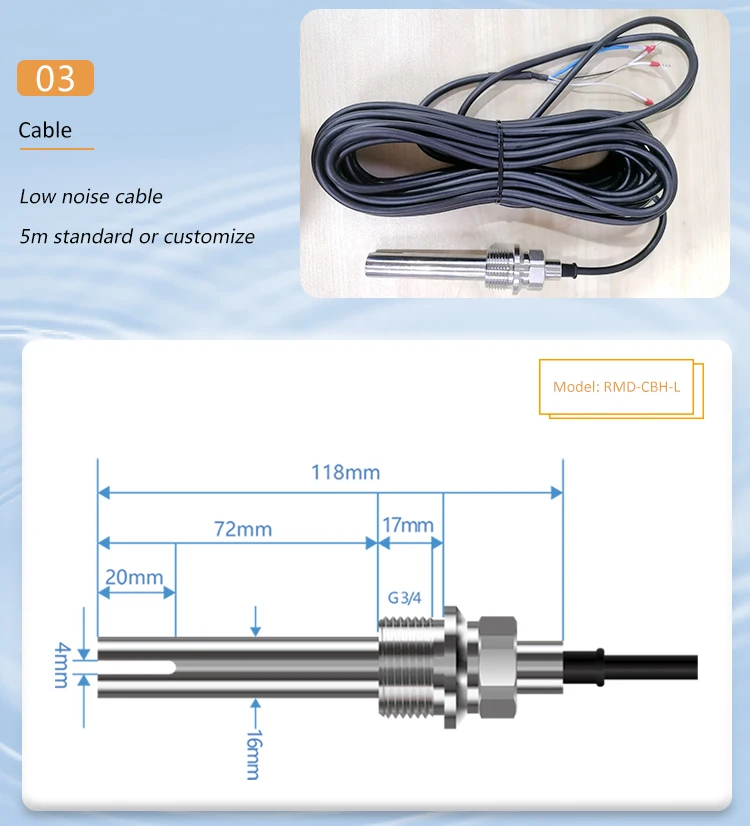

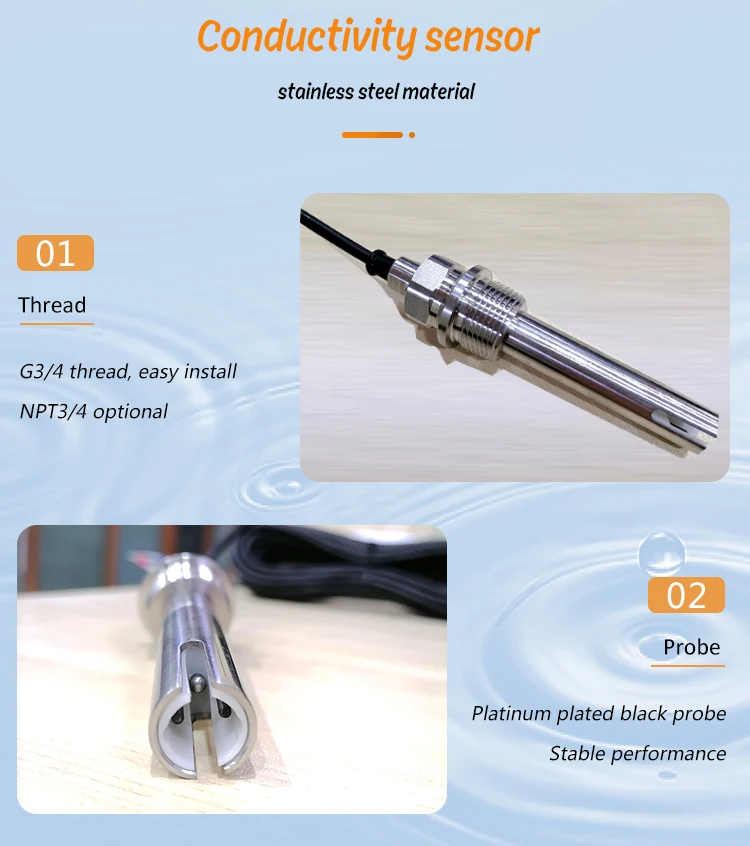

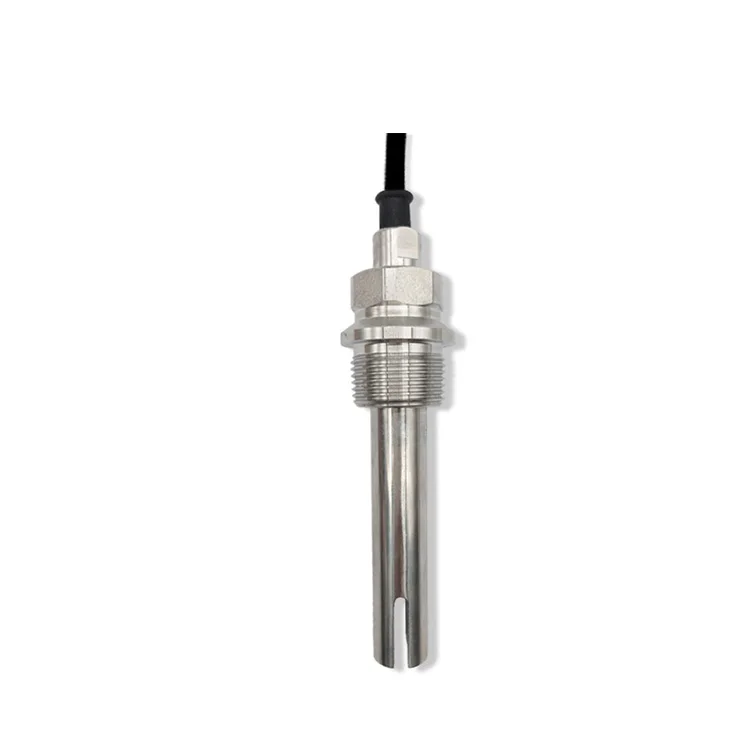

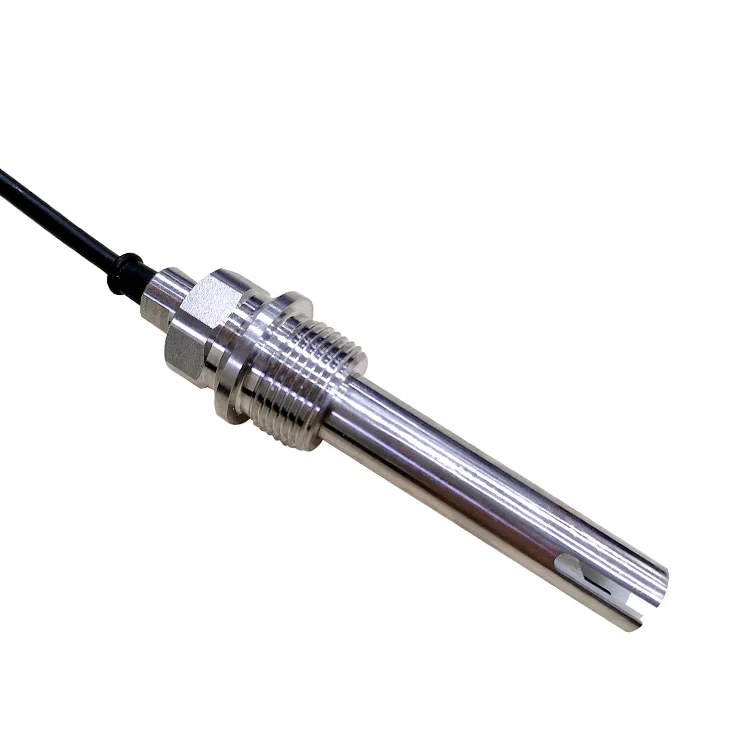

Conductivity sensor technical parameter
| Model | RMD-CBH-L |
| Measuring range | 0...2000uS/cm |
| Constant | K=1.0 |
| Temp measure range | 0.0...60.0℃ |
| Resolution | 1uS/cm |
| Accuracy | ±2%FS |
| Temperature compensation | Automatic |
| Pressure range | 0-4bar |
| Electrical connection | Pin type |
| Shell material | Stainless steel |
| Thread | G3/4(optional NPT3/4) |

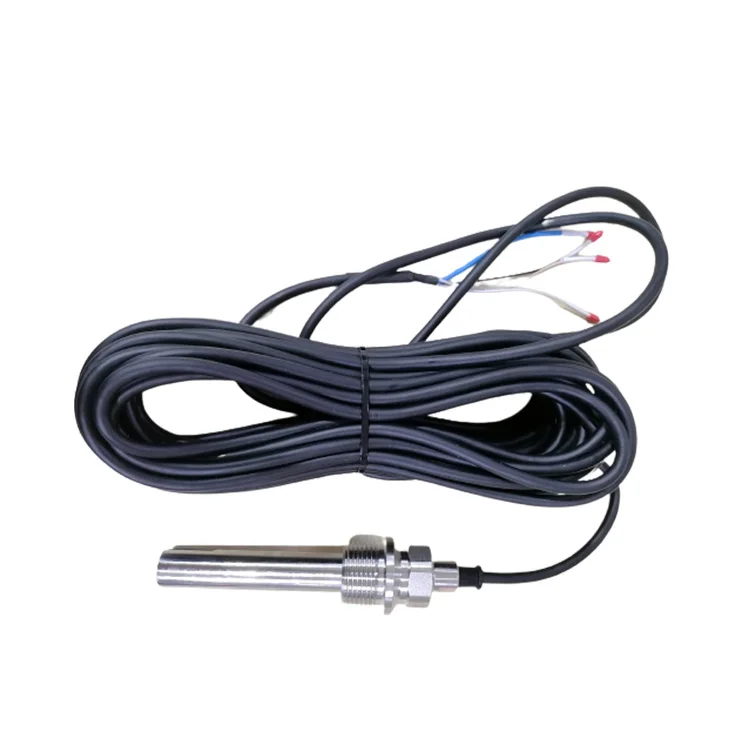

| Cable length | 5m |
| Protection grade | IP68 |
Related Products
Company Information
Certifications
FAQ
Q: Are you the final manufacturer?
A: Yes, We are manufacturer
Q: Do you offer the OEM order ?
A: Yes, we can offer OEM service and label according to your requirements
Q: How to make payment?
A: We accept T/T , Credit card
Q: Could we visit your factory?
A: Yes, Sincerely invite you to visit our factory
Q:Do you have any discount?
A:Yes, if you buy large quantity, please contact us or send email, we will give you a big discount
Q: What is your delivery time?
A: It is about 5-7 working days since the payment confirmed . If the quantity more than 100pcs , it will need extra 3-5 working days
Q: How long is the warranty of your products ?
A: controller :2 years warranty sensor: 1 year warranty
