Quality Assurance Fertilizer Raw Materials Blender Automatic Disc Rotary Mixer
- Category: >>>
- Supplier: Henan Tongda Heavy Industry Science And Technology Co. Ltd.
Share on (1600628424009):
Product Overview
Description
Model | TDPJ-1600 | TDPJ-1800 | TDPJ-2000 | TDPJ-2200 | TDPJ-3000 |
Dimensions(mm) | 1600*1600*1800 | 1800*1800*1800 | 2000*2000*1800 | 2200*2200*1850 | 3000*3000*2200 |
Edge Height(mm) | 400 | 400 | 400 | 400 | 400 |
Disc Diameter(mm) | 1600 | 1800 | 2000 | 2200 | 3000 |
Motor Power(kw) | 7.5 | 7.5 | 7.5 | 7.5 | 15 |
Reducer Model | BLD15-87 | BLD15-87 | BLD15-87 | BLD15-87 | XLD9-87 |
Mixing Speed(r/min) | 16 | 16 | 16 | 16 | 16 |
Main Plate Thickness(mm) | 5 | 5 | 5 | 5 | 5 |
Floor Plate Thickness(mm) | 8 | 8 | 8 | 8 | 8 |
Mixing Capacity(t/h) | 2-4 | 3-5 | 4-6 | 6-8 | 8-12 |
Product introduction

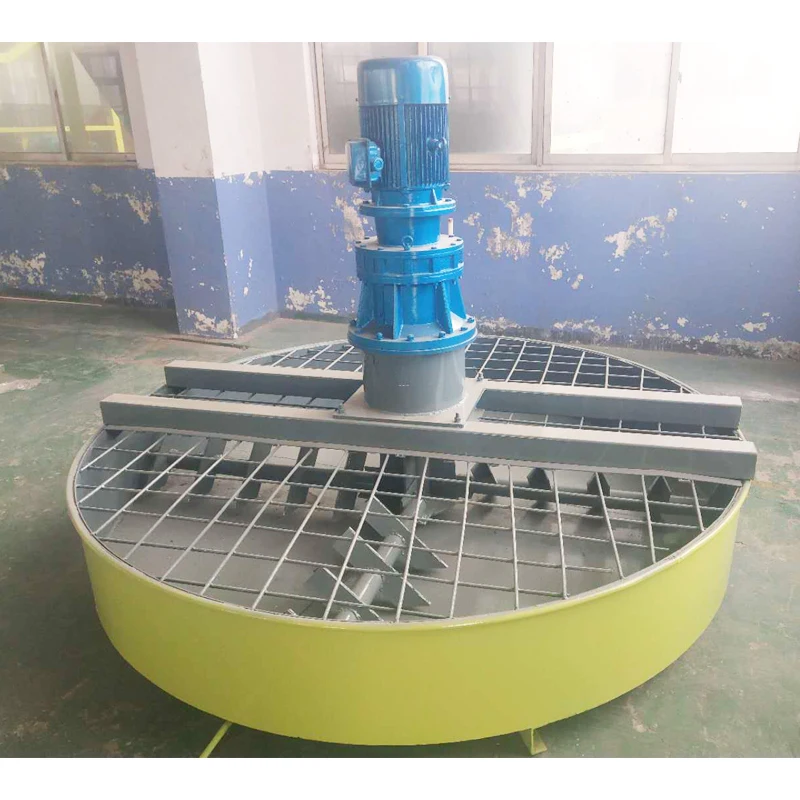

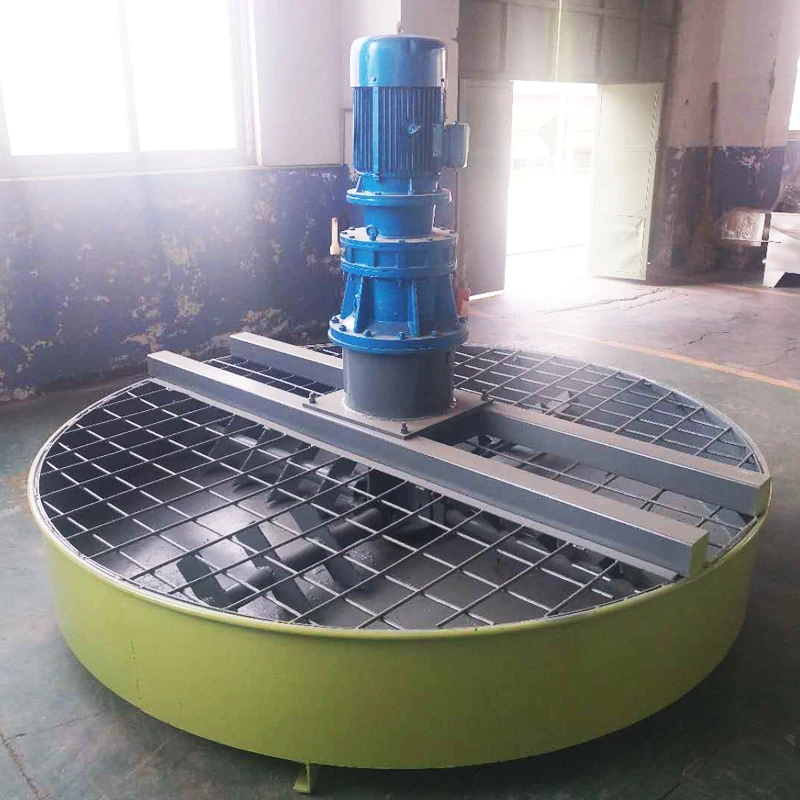

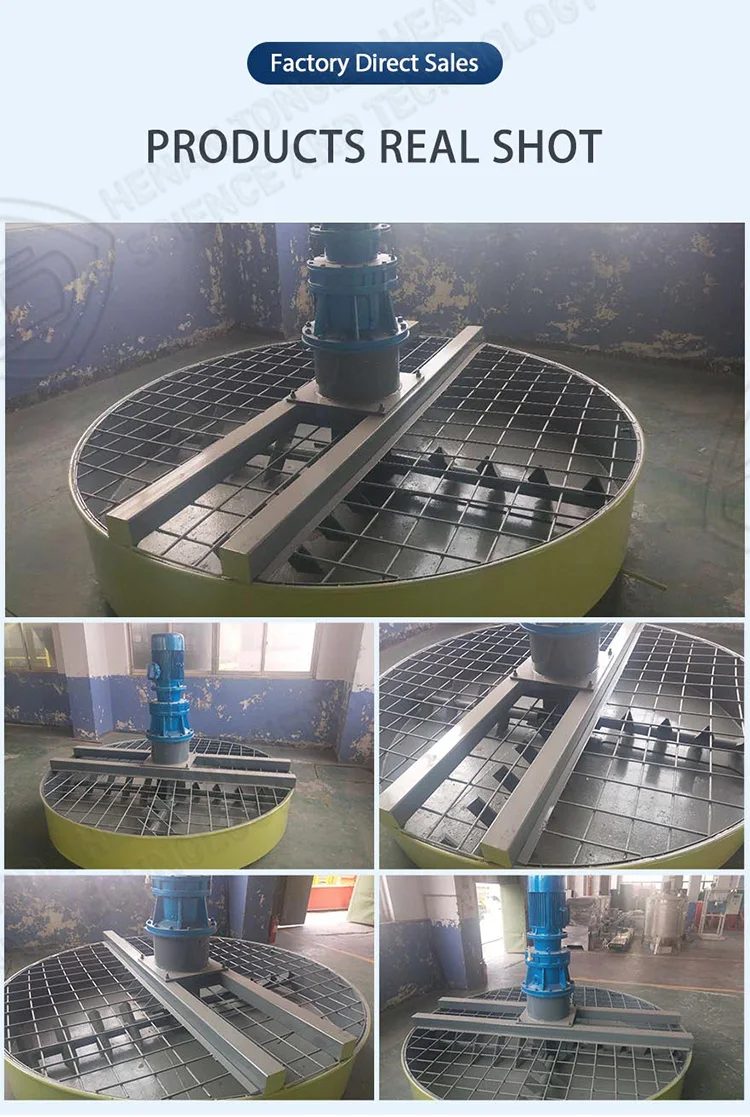

This machine is a new vertical disc mixer, which consists of mixing plate, discharge port, mixing arm, rack, gearbox and transmission mechanism. The characteristic of the machine is that the output shaft end of the reducer drives the stirring main shaft to operate, and the stirring shaft has fixed stirring teeth, and the stirring shaft drives the stirring teeth to mixing the material sufficiently. The mixer has long service life, energy saving, small volume, fast stirring speed and continuous working. The machine is mainly used for the mixing of raw materials. The inside can be lined with polypropylene plate or stainless steel plate. It is not easy to stick material and wear resistance. The cycloid pinwheel reducer make the machine has the characteristics of compact structure, convenient operation, uniform mixing, and convenient discharge and transportation.
Performance characteristics
1.High mixing efficiency and less occupied area.The spiral blade adopts high-wear special alloy.
2.The cycloidal gear reducer has the characteristics of compact structure,convenient operation,uniform stirring and convenient unloading etc.The rotation is smooth and the noise is low.
3.The disc mixer feeds material from top,discharge from bottom,which is reasonable.
4.The sealing between each combination surface is tight,so the machine runs smoothly.
Working principle
The disc mixer is a new type mixing equipment for continuous running. It is mainly used in organic fertilizer, compound fertilizer and thermal power plant, and can also be used in chemical, metallurgy, mining, building materials and other industries. We adopt special wearing alloy for the spiral blade for longer service time. The disc mixer feeds from the top and discharge from the bottom with reasonable structure. it is widely used in the fertilizer processing industry, and we supply the turn-key basis fertilizer project start from design, producing, installation, debugging and technical training. The electrical motor drives the reducer, and the reducer drives the main shaft, and the main shaft drive the mixing plate to mix the materials.
Product Description
Company Information
Customer Site
Notice:
And we also have other fertilizer processing equipments,like compost turner,crushing equipments,mixing equipments,drying and cooling machines and auxiliary equipments.
The different BB fertilizer,organic fertilizer and compound fertilizer production line and water-soluble fertilizer fermentation equipment can be provided too.
Our Advantage
Our Services
Pre-sale Service:
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
5.Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.
After-sales Service:
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.
Packaging & Shipping
Notice:
1.Big machines packed in nude or shipping in containers.
2. Spare parts packed in wooden case.
3. If you have any special requirement, we will pack as request.
FAQ
1. What is your minimum order quantity, can you send me samples?
The minimum order quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples; however, online brochure is available under request and we warmly welcome you to visit our company.
2.How about price?
We can give you the lowest price than market one, of course, the discount is based on the quantity.
3. How can I get to your factory?
Our factory is near Zhengzhou Xinzheng Airport, we can pick you up from the airport.
4. Can the machine be customized according to our needs, such as put on our logo?
Surely the machine can be customized accoridng to your specific requirements, putting your logo on is also available and region agents are welcomed.
5.About the aftersale service, how can you solve the problems occurred of your overseas customer in time?
The machine warranty is 12 months, we have engineers available to help you solve your problems during that period.
