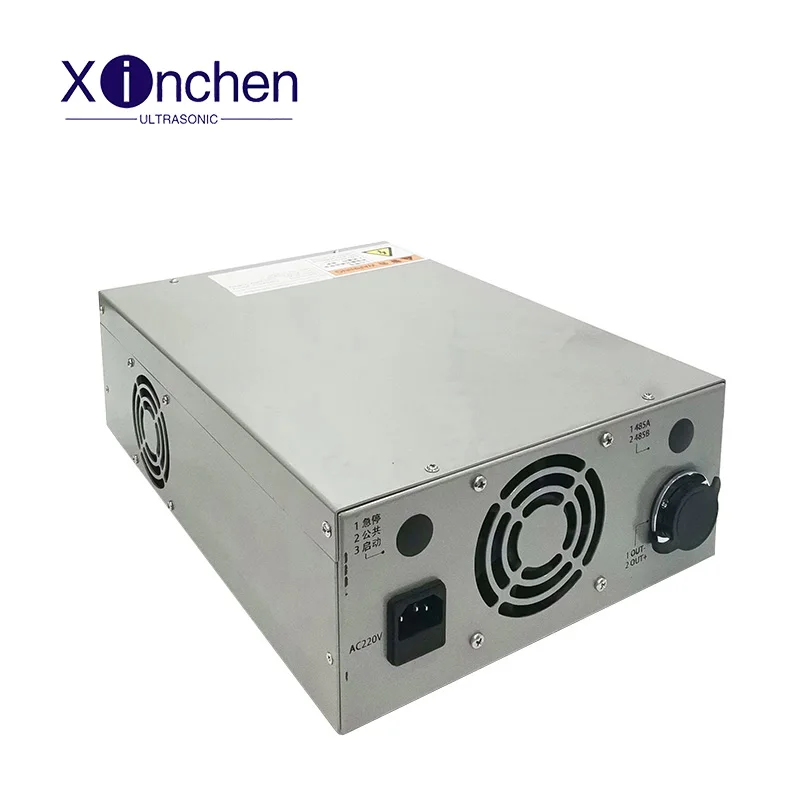

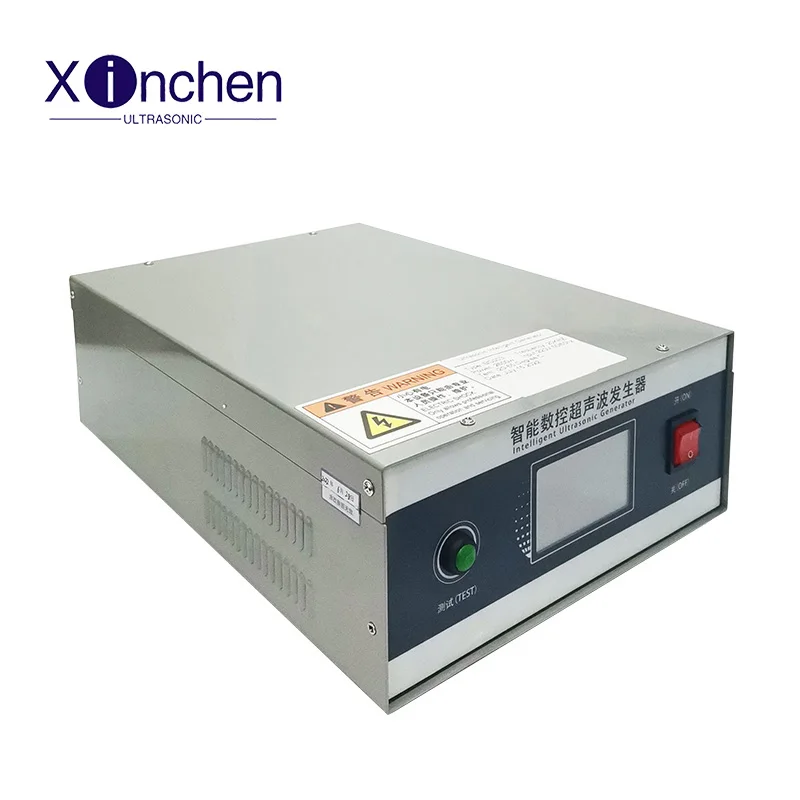

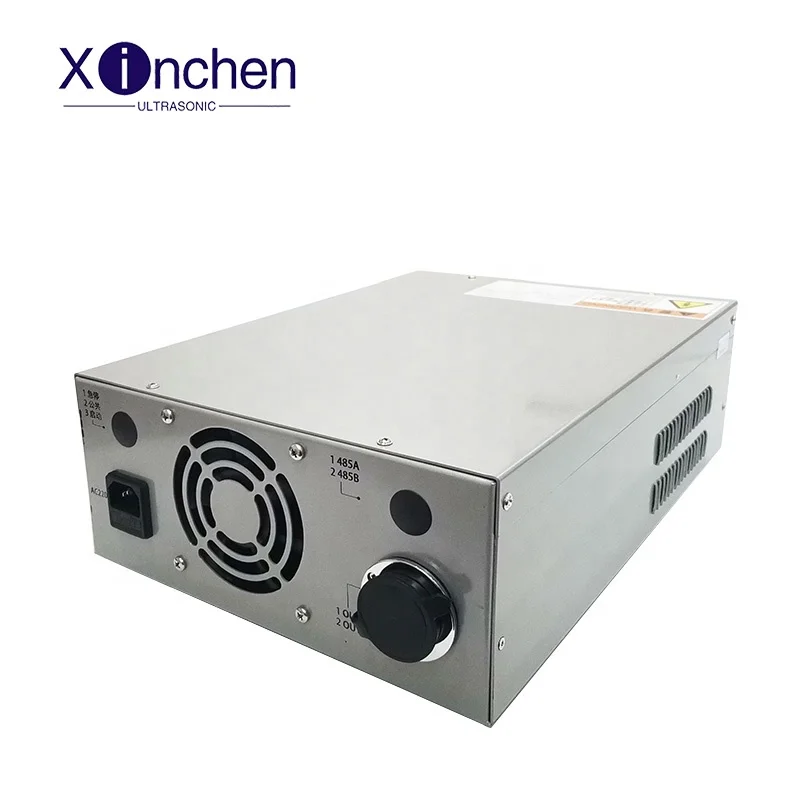

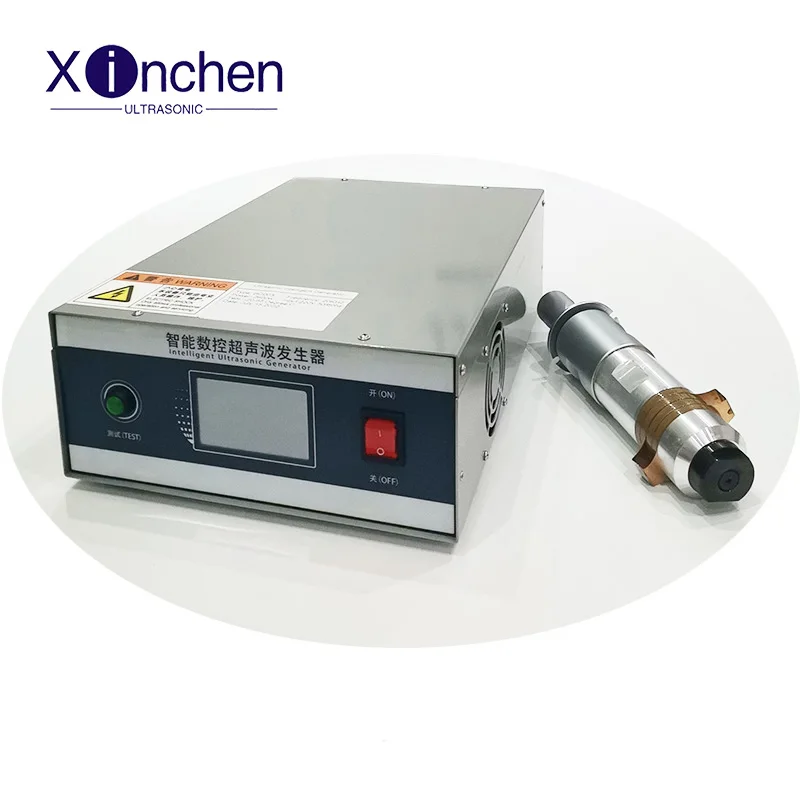

High Quality Ultrasonic Parts Power Supply 20khz 2000W Ultrasonic Digital Generator For Ultrasonic Welding Machine
- Category: >>>
- Supplier: Foshan Xinchen Ultrasonic Equipment CO. LTD
Share on (1600628438375):
Product Overview
Description
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Type | XCGW-G2000 |
2 | Frequency | 20khz |
3 | Ultrasonic Power | 2000W |
4 | Input Voltage | 175-240V |
5 | Input Frequency | 50/60 HZ |
6 | Output Frequency | 19.4-20.3 KHZ |
7 | Size | 370*255*120mm L*W*H |
8 | Weight | 6.5kg |
If you need test report and other technical support.
Pls contact with us
Product Overview

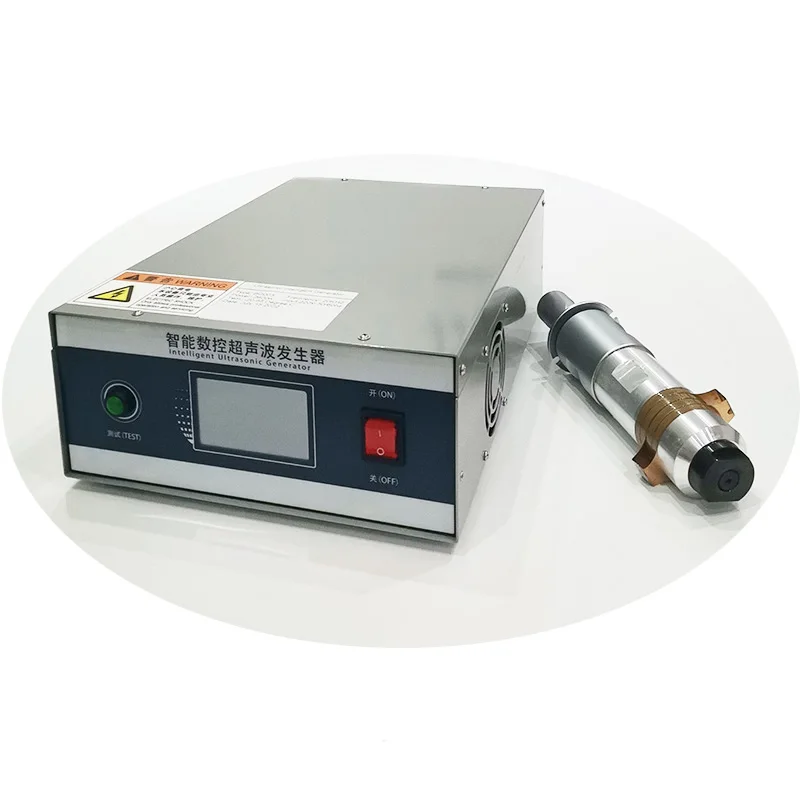

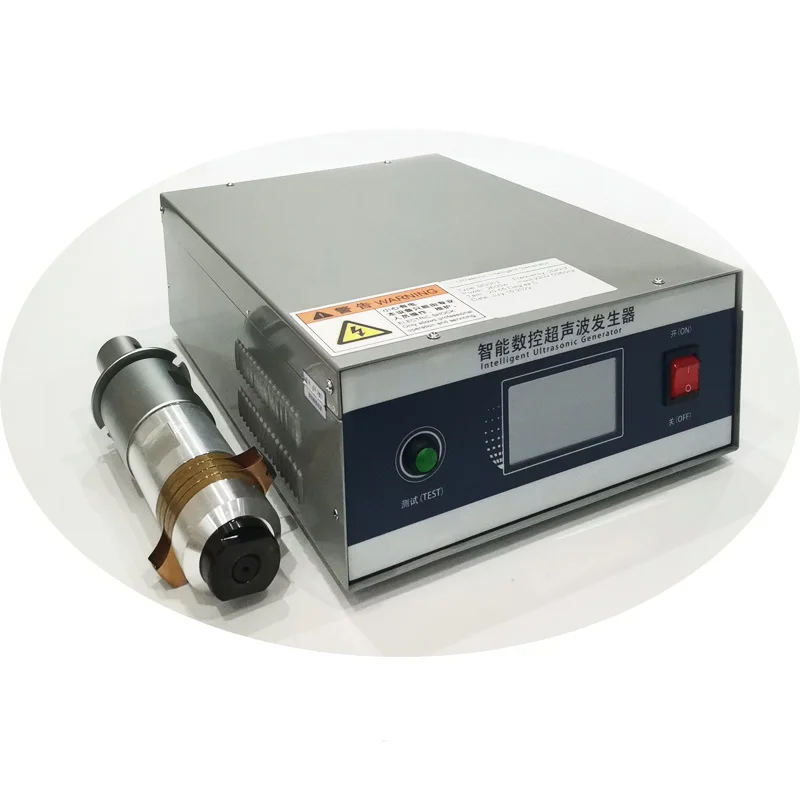

Digital Ultrasonic Generator For Welding
1) Ultrasonic welding principle is that the intelligent numerical control ultrasonic generator will input a wide voltage range of power frequency AC. The rectifier filter converts the DC to about 310V, which is chopped into a specific high-frequency alternating current, and passes through the high-frequency. The transformer amplifies signal to several thousand volts of high voltage AC signal and then drives the transducer to produce at its own resonant point resonance. The control module can cut off the ultrasonic output when the ultrasonic welding fault occurs, so as to be ultrasonic generator and the whole welding equipment provide extremely high safety guarantee.2) The core control system of the whole machine adopts STM high-speed MCU, equipped with 3.2-inch widescreen touch screen. With sensitive reaction speed, easy to communicate, durable, space-saving advantages, to provide more convenient human-computer interaction experience. It also has modular management current sampling, output port, input port, high-speed pass Information, safety protection and fault alarm functions, so that the equipment can maintain efficient and stable operation.
Functions：
--- Fast automatic search, fast speed, strong power. Increase production capacity.
--- Multiple modes are optional to meet the individual needs of customers
--- Wide frequency tracking range, high precision, powerful function, good quality, high welding stability
--- Over voltage, over current, overload, over temperature protection, improve product life
--- Broadband true color touch screen human-computer interaction is more convenient and simple
--- It can directly drive P4 and P8 transducers to work directly
--- Independent research, development and production. After-sales guarantee, non-human reasons, one year warranty and provide remote technical support, free design scheme
--- Independent research, development and production. After-sales guarantee, non-human reasons, one year warranty and provide remote technical support, free design scheme
FEATURES AT A GLANCE
we can set the working mode and time according
to the requirements.
The ultrasonic power can be adjusted.
Display the working frequency.
SIMILAR PRODUCTS
----- Click to learn more about the related products -----
Successful Project
Ultrasonic Welding System Application:
Paper Cup Making Machine, Nonwoven Machinery, such as Nonwoven Bag Making Machine, Nonwoven Surgical Cap Making Machine, NonwovenBouffant Cap Making Machine, Nonwoven Shoe Cover Making Machine, Nonwoven Ultrasonic Plastic Welding Machine, Ultrasonic Lace machine, Three Layers Bag Making Machines, Plastic Bag Making Machine, Stationery, Machinery, Automation Equipment, etc.
Paper Cup Making Machine, Nonwoven Machinery, such as Nonwoven Bag Making Machine, Nonwoven Surgical Cap Making Machine, NonwovenBouffant Cap Making Machine, Nonwoven Shoe Cover Making Machine, Nonwoven Ultrasonic Plastic Welding Machine, Ultrasonic Lace machine, Three Layers Bag Making Machines, Plastic Bag Making Machine, Stationery, Machinery, Automation Equipment, etc.
Company Profile
FAQ
Q: Are you ultrasonic generator manufacturer or trader?
A:Yes, we are manufacturer.
Q: What is the MOQ of ultrasonic generator ?
A: 1pcs as you need.
Q: Can I ge a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.
Q: When will you send out the ultrasonic generator after receiving the order?
A: Based on the order quantity, the goods will be send out within 2 -7days.
Q: How about the quality guarantee period of ultrasonic generator ?
A: One year!
Q: How can you guarantee the production quality?
A: We have more than 12 years production experience and we have strictly quality
control system in our production process. 2times inspection for each ultrasonic generator before the delivery.
Q: What is the MOQ of ultrasonic generator ?
A: 1pcs as you need.
Q: Can I ge a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.
Q: When will you send out the ultrasonic generator after receiving the order?
A: Based on the order quantity, the goods will be send out within 2 -7days.
Q: How about the quality guarantee period of ultrasonic generator ?
A: One year!
Q: How can you guarantee the production quality?
A: We have more than 12 years production experience and we have strictly quality
control system in our production process. 2times inspection for each ultrasonic generator before the delivery.
