2022 new design Vacuum Suction Shale Shaker Recovering fluid & Reducing solid waste equipment for the solid control system
- Category: >>>
- Supplier: Dongying Qixiang Import & Export Co. Ltd.
Share on (1600628469129):
Product Overview
Description
Product Overview

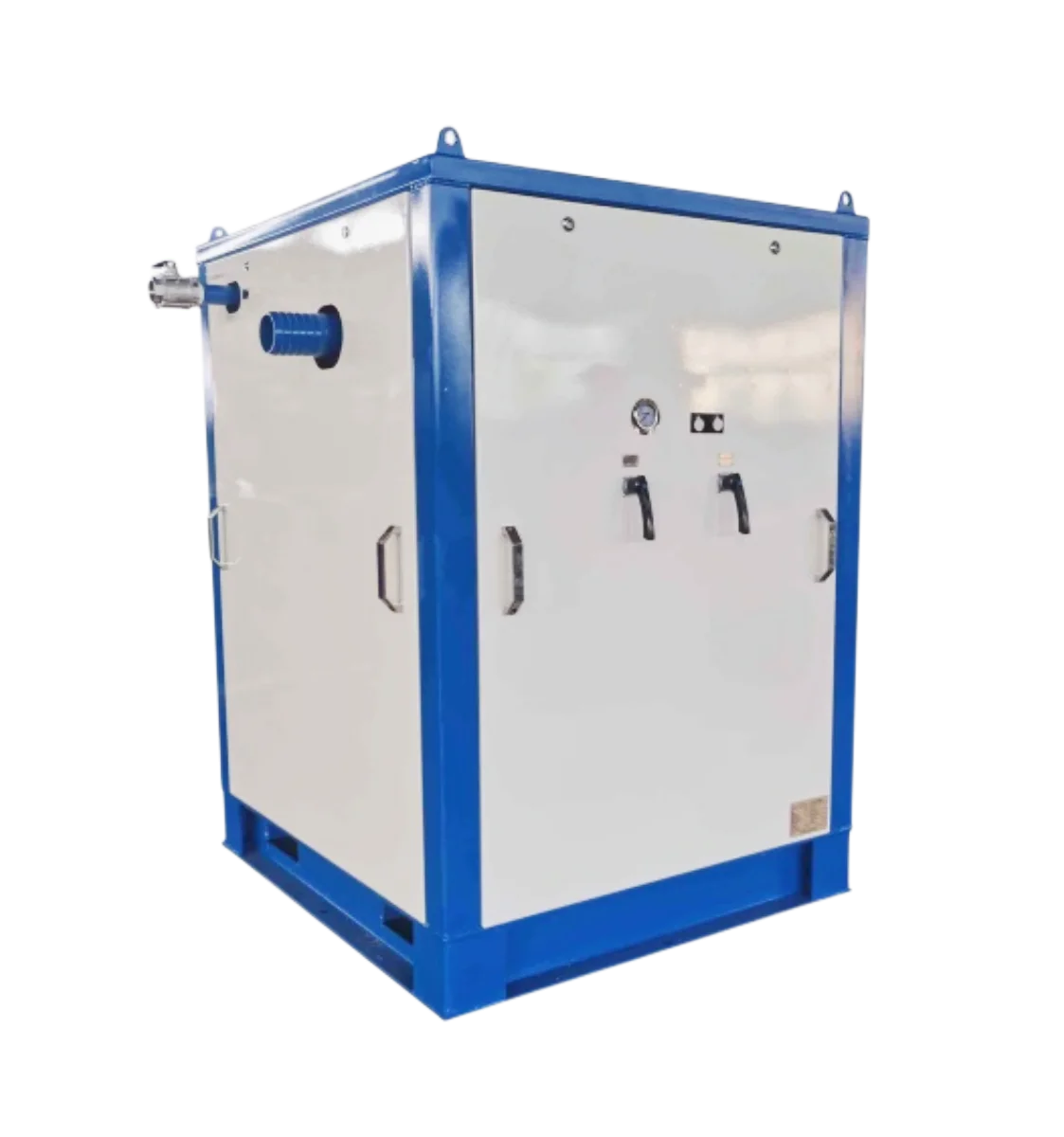

Vacuum Suction Shale Shaker
DYQX Vacuum Suction Shale Shaker independently developed by DYQX Solid
Control, which has combined the advantages of many products.It improves the
treatment effect of the original shale shaker and achieves the purpose of highly efficient ecovery of drilling fluid and reduction of drilling waste discharge. Its working principle is to install a set of vacuum suction device under the last screen of the shale shaker, and use pulsating air to form a vacuum state with certain frequency to absorb materials, so as to improve the recovery of drilling fluid and reduce the fluid content of drilling cuttings discharged.
Control, which has combined the advantages of many products.It improves the
treatment effect of the original shale shaker and achieves the purpose of highly efficient ecovery of drilling fluid and reduction of drilling waste discharge. Its working principle is to install a set of vacuum suction device under the last screen of the shale shaker, and use pulsating air to form a vacuum state with certain frequency to absorb materials, so as to improve the recovery of drilling fluid and reduce the fluid content of drilling cuttings discharged.
FEATURES AT A GLANCE

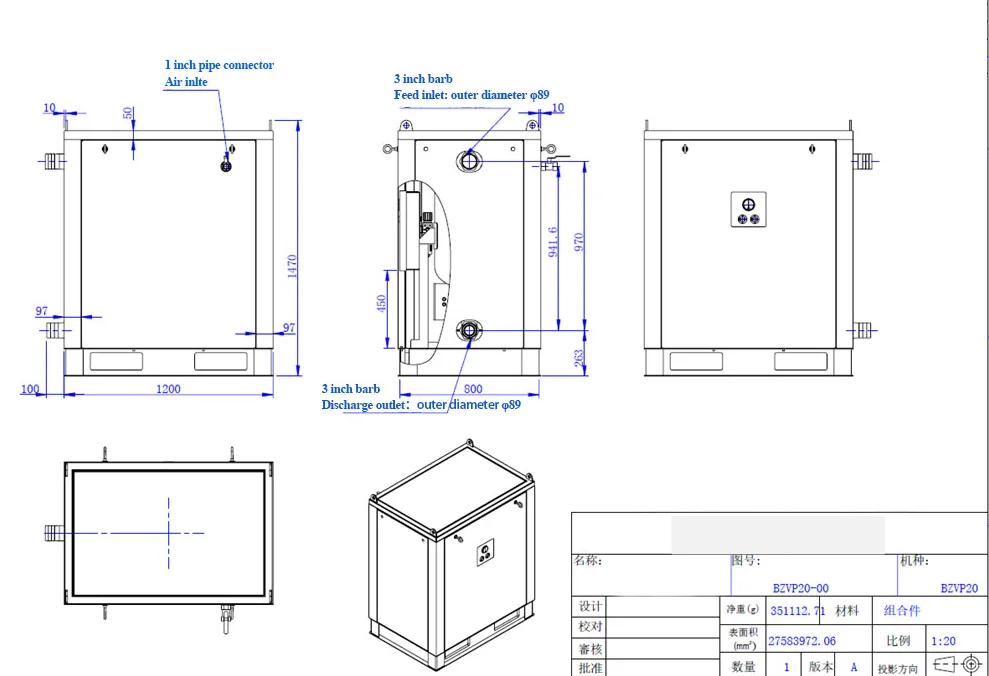

Dimension drawing of vacuum
suction device
suction device
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
Vacuum Suction Shale Shaker Work Process

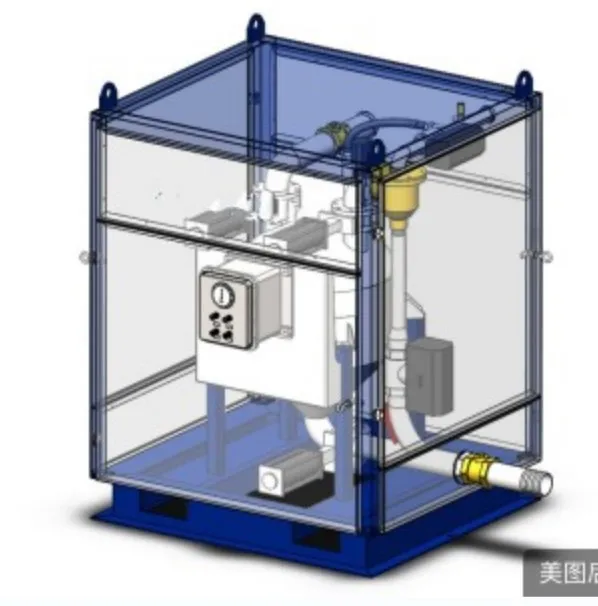

components introduction
components introduction

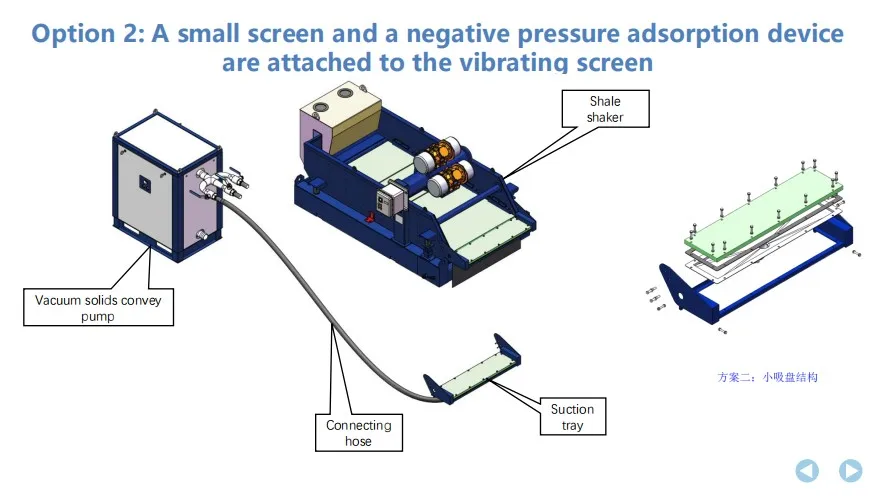

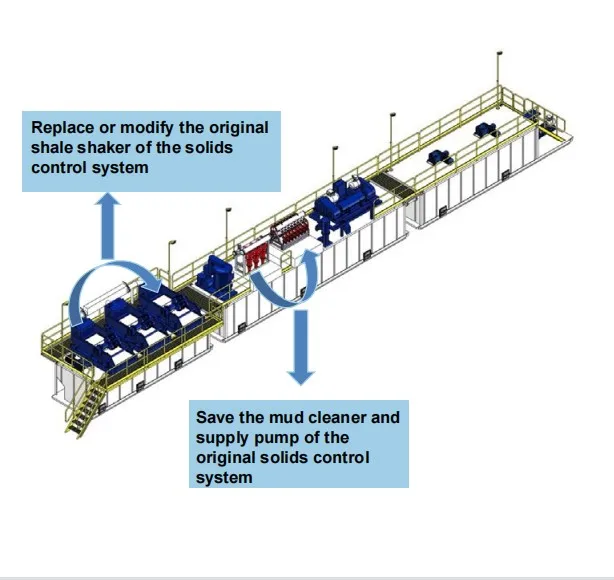

Installation plan of vacuum suction
shale shaker device
shale shaker device
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Supply Air Pressure | 550Kpa-690Kpa (80-100PSI) |
2 | Air Capacity Required | 4.5m³/min |
3 | Operation Shaker(Set) | 1-3 |
4 | Application | OBM,SBM,WBM |
5 | Recovery Effciency | 30%-50% |
6 | Extra Fluids Recovery | 3000-5000 L/Day |
7 | Mud Temperature | -18~ +90°C |
8 | Suction-discharge time | Adjustable under different working conditions |
9 | Dimension (Weight) | 1200×800×1470mm ( 360kg ) |
10 | Power Supply | No electrical |
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
