12 84v GY 6D отображения заряда батареи тестер водонепроницаемый устройство контроля уровня напряжения датчика Индикатор процент измеритель напряжения ЖК дисплей
- Category: >>>
- Supplier: Taizhou Aoguang Technology Co. Ltd.
Share on (1600628508752):
Product Overview
Description

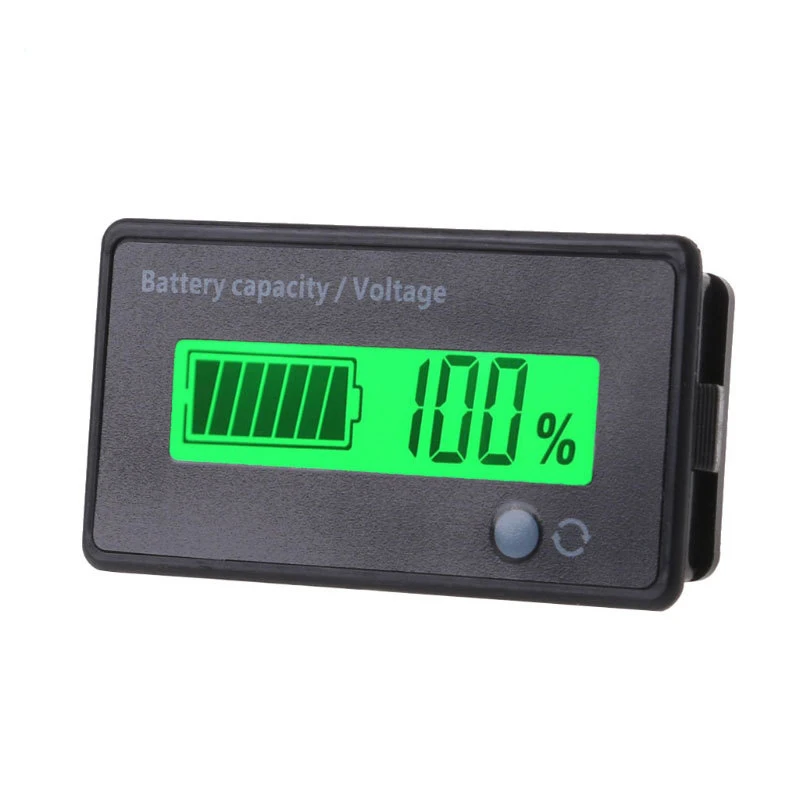

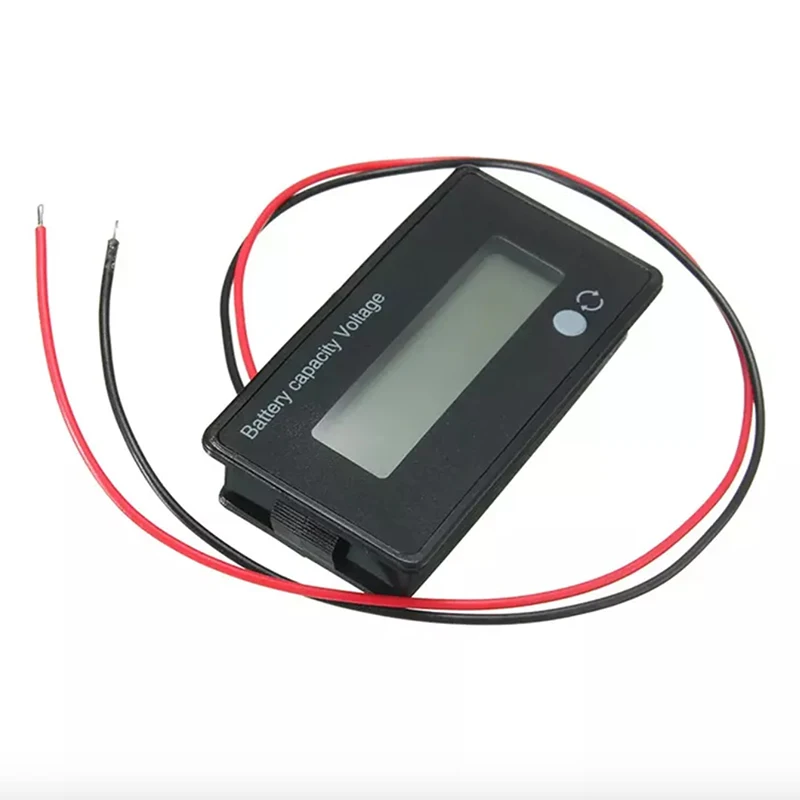

12-84v GY-6D Battery Capacity Display Tester Waterproof Voltage Monitor Gauge Indicator Percentage Voltage Meter Lcd Display
Features:
Lead-acid and Lithium battery can be used to visually display battery state power;
With switch, easy to install and use, no need for external control switch;
The front is a PVC film, the surface can be waterproof;
Liquid crystal display, power saving, saving more than 50% power over conventional power
The following battery is universal
Lithium battery: 3 string 4 string 5 string........24 string 25 string 26 string
Lead acid: 12V 24V 36V 48V 60V 72V
With switch, easy to install and use, no need for external control switch;
The front is a PVC film, the surface can be waterproof;
Liquid crystal display, power saving, saving more than 50% power over conventional power
The following battery is universal
Lithium battery: 3 string 4 string 5 string........24 string 25 string 26 string
Lead acid: 12V 24V 36V 48V 60V 72V
Button settings:
Function key front: percentage/voltage/off manual cycle switch
Post-setting of setting keys: to avoid arbitrary settings by end customers, which can avoid after-sales problems caused by arbitrary settings of customers
Post-setting of setting keys: to avoid arbitrary settings by end customers, which can avoid after-sales problems caused by arbitrary settings of customers
Setup steps:
1. Press and hold the setting button to supply power to the battery and enter the setting interface;
2. Short press the setting button to select the battery specification (P lead-acid, L lithium battery, F lithium iron phosphate);
3. Short press the function key to select the number of battery strings (increase in setting, decrease in function key);
4. Press and hold the function key to set the S mode, the setting key to select the corresponding mode, and the function key to enable or cancel;
5. After the setting is completed, restart the power supply.
2. Short press the setting button to select the battery specification (P lead-acid, L lithium battery, F lithium iron phosphate);
3. Short press the function key to select the number of battery strings (increase in setting, decrease in function key);
4. Press and hold the function key to set the S mode, the setting key to select the corresponding mode, and the function key to enable or cancel;
5. After the setting is completed, restart the power supply.
Instructions
How to set (If you don't understand, welcome to contact us for help)
S1:%/V Rotate display in 2s
Power percentage and voltage are displayed in turn recurrently and automatically;
S2:Inactivity sleep in 10s
Automatically sleep after battery capacity display for 10 s, save power, press the function key to wake up power display for 10 seconds;
S3:Turn on backlight
Power display turns on or off power backlight;
S4:Show logo(Applicable to small battery icon)
Logo icon is located in the underface of battery symbol on the left side of LCD, turn on and show the logo;
S5:Discharge mode selection
Power displays two kinds of battery discharge curve, different environments convert to select appropriate battery discharge modes;
S1:%/V Rotate display in 2s
Power percentage and voltage are displayed in turn recurrently and automatically;
S2:Inactivity sleep in 10s
Automatically sleep after battery capacity display for 10 s, save power, press the function key to wake up power display for 10 seconds;
S3:Turn on backlight
Power display turns on or off power backlight;
S4:Show logo(Applicable to small battery icon)
Logo icon is located in the underface of battery symbol on the left side of LCD, turn on and show the logo;
S5:Discharge mode selection
Power displays two kinds of battery discharge curve, different environments convert to select appropriate battery discharge modes;
Note:
1.Due to different production batches, the outer packaging and product structure may be slightly different, but it does not affect the overall structure of the product and can be used normally. Mind to place an order carefully, thank you.
2.The picture is taken in kind, due to the different light and display effect, there will be color difference, please refer to the
actual object for details.

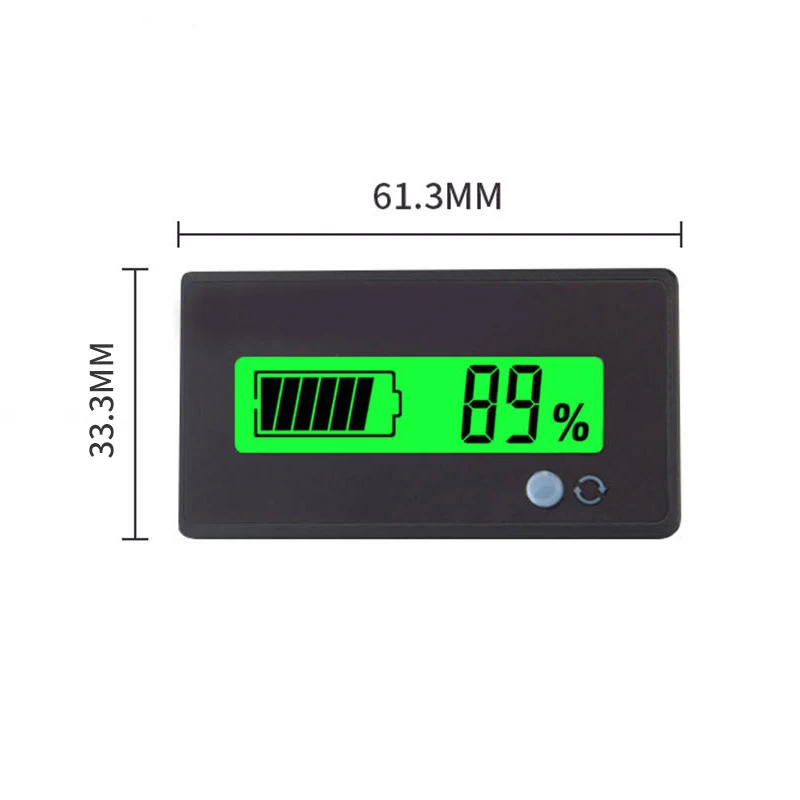

3.The product size data involved in the following pictures are all measured manually, Due to the different measurement methods and angles, please allow ±3mm error, thank you.
1.Due to different production batches, the outer packaging and product structure may be slightly different, but it does not affect the overall structure of the product and can be used normally. Mind to place an order carefully, thank you.
2.The picture is taken in kind, due to the different light and display effect, there will be color difference, please refer to the
actual object for details.
3.The product size data involved in the following pictures are all measured manually, Due to the different measurement methods and angles, please allow ±3mm error, thank you.
1.Can I have a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2.What about the lead time?
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
3.Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
4.Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
5.How to guarantee the quality of your products?
（1) Strict detection during production.
（2) Strict sampling inspection on products before shipment and intact product packaging ensured.
6.What's your advantage?
Honest business with competitive price and professional service on export process.
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2.What about the lead time?
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
3.Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
4.Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
5.How to guarantee the quality of your products?
（1) Strict detection during production.
（2) Strict sampling inspection on products before shipment and intact product packaging ensured.
6.What's your advantage?
Honest business with competitive price and professional service on export process.
