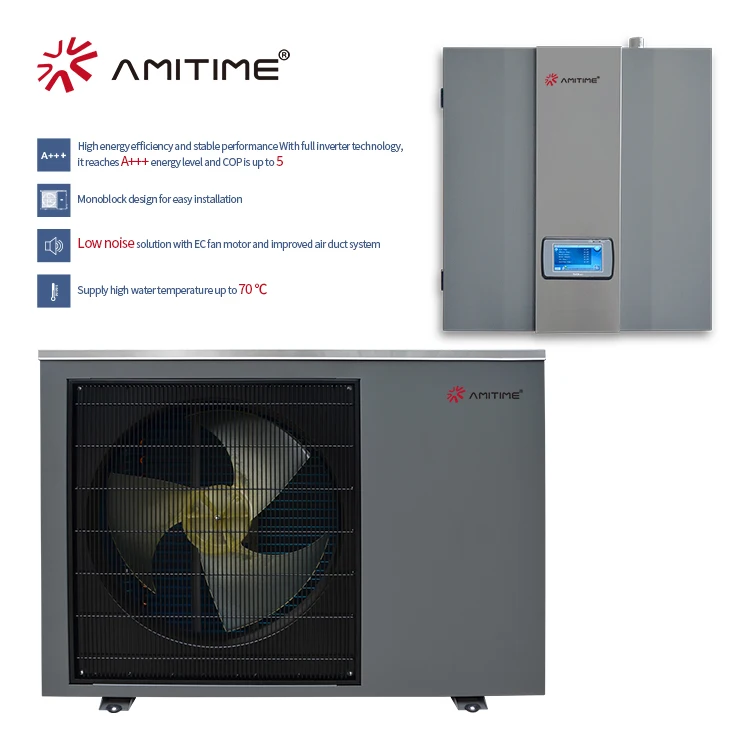

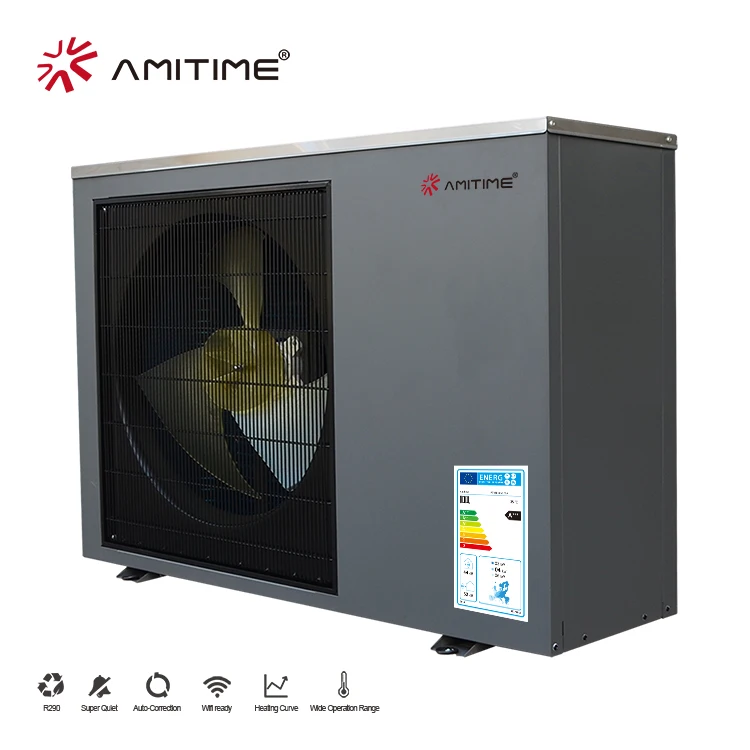

R290 Air to water Heating Cooling Hot Water monoblock dc inverter heat pump floor heating systems pump
- Category: Water Heaters >>>
- Supplier: Zhongshan Amitime Electric Co. Ltd.
Share on (1600628698911):
Product Overview
Description
Product Paramenters
Model | PAVH-08V1GMA01 | PAVH-12V1GMA01 | PAVH-15V4GMA01 | |||||||
Power Supply / Refrigerant | V/Hz/Ph | 220-240/50/1 - R290 | 220-240/50/1 - R290 | 380-400/50/1 - R290 | ||||||
Energy class （35℃ SCOP） | A+++ | A+++ | A+++ | |||||||
Max. Heating Capacity (1) | kW | 9.5 | 12 | 16.5 | ||||||
C.O.P (1) | W/W | 4.6 | 3.9 | 4.1 | ||||||
Heating Capacity Min./Max.(1) | kW | 3.1 / 9.5 | 4.0 / 12 | 5.0/16.5 | ||||||
Heating Power Input Min./Max.(1) | W | 610 / 2065 | 800 / 3065 | 980/4025 | ||||||
C.O.P Min./Max.(1) | W/W | 4.6 / 5.1 | 3.91/ 5.0 | 4.1/5.1 | ||||||
Max. Heating Capacity(2) | kW | 9 | 11 | 15.6 | ||||||
C.O.P (2) | W/W | 3.75 | 3.28 | 3.4 | ||||||
Heating Capacity Min./Max.(2) | kW | 2.9 /9.0 | 3.8 / 11.0 | 4.8/15.6 | ||||||
Heating power input Min./Max.(2) | W | 725 / 2400 | 1000 / 3350 | 1200/4580 | ||||||
C.O.P Min./Max.(2) | W/W | 3.75 / 4.0 | 3.28/3.8 | 3.4/4.0 | ||||||
Max. Cooling Capacity (3) | kW | 8 | 10.5 | 14.2 | ||||||
E.E.R (3) | W/W | 3.8 | 3.64 | 3.8 | ||||||
Cooling Capacity Min./Max.(3) | kW | 2.5 / 8.0 | 3.7/10.5 | 4.8/14.2 | ||||||
Cooling Power Input Min./Max.(3) | W | 625 / 2100 | 925/2880 | 1170/3740 | ||||||
E.E.R Min./Max.(3) | W/W | 3.80 / 4.0 | 3.64/4.0 | 3.80/4.1 | ||||||
Max. Cooling Capacity (4) | kW | 6 | 8 | 11.2 | ||||||
E.E.R (4) | W/W | 3 | 2.95 | 2.8 | ||||||
Cooling Capacity Min./Max.(4) | kW | 2.0 /6.0 | 3.2/8.0 | 4.0/11.2 | ||||||
Cooling Power Input Min./Max.(4) | W | 665 /2000 | 1060/2710 | 1310/4000 | ||||||
E.E.R Min./Max.(4) | W/W | 3.0 / 3.3 | 2.95/3.2 | 2.80/3.05 | ||||||
Workable Ambient Temperature Range | ℃ | -25~45 | -25~45 | -25~45 | ||||||
Max. System Water Temperature (Heating) | ℃ | 70 | 70 | 70 | ||||||
Min. System Water Temperature (Cooling) | ℃ | 7 | 7 | 7 | ||||||
Noise Level (sound power) | Indoor/Outdoor | dB(A) | 30/52 | 30/52 | 30/59 | |||||
Note: (1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; | ||||||||||
(2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; | ||||||||||
(3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB 35℃/WB 24℃; | ||||||||||
(4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB 35℃/WB 24℃; | ||||||||||
(5) The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit. | ||||||||||
