Набор манометров для трубопроводов HVAC R32, подходит для рефрижераторов R134A R22 и R32 для обслуживания автомобильных кондиционеров кондиционера

Набор манометров для трубопроводов HVAC R32, подходит для рефрижераторов R134A R22 и R32 для обслуживания автомобильных кондиционеров кондиционера

Category: Pressure Gauges >>>
Supplier: Wenling,Yangyi,Mechanical,And,Electrical,Products,Co.,Ltd.

Price:18,00 $ - 25,00 $

Price in USD:Details

Quantity:

Product Overview

Description

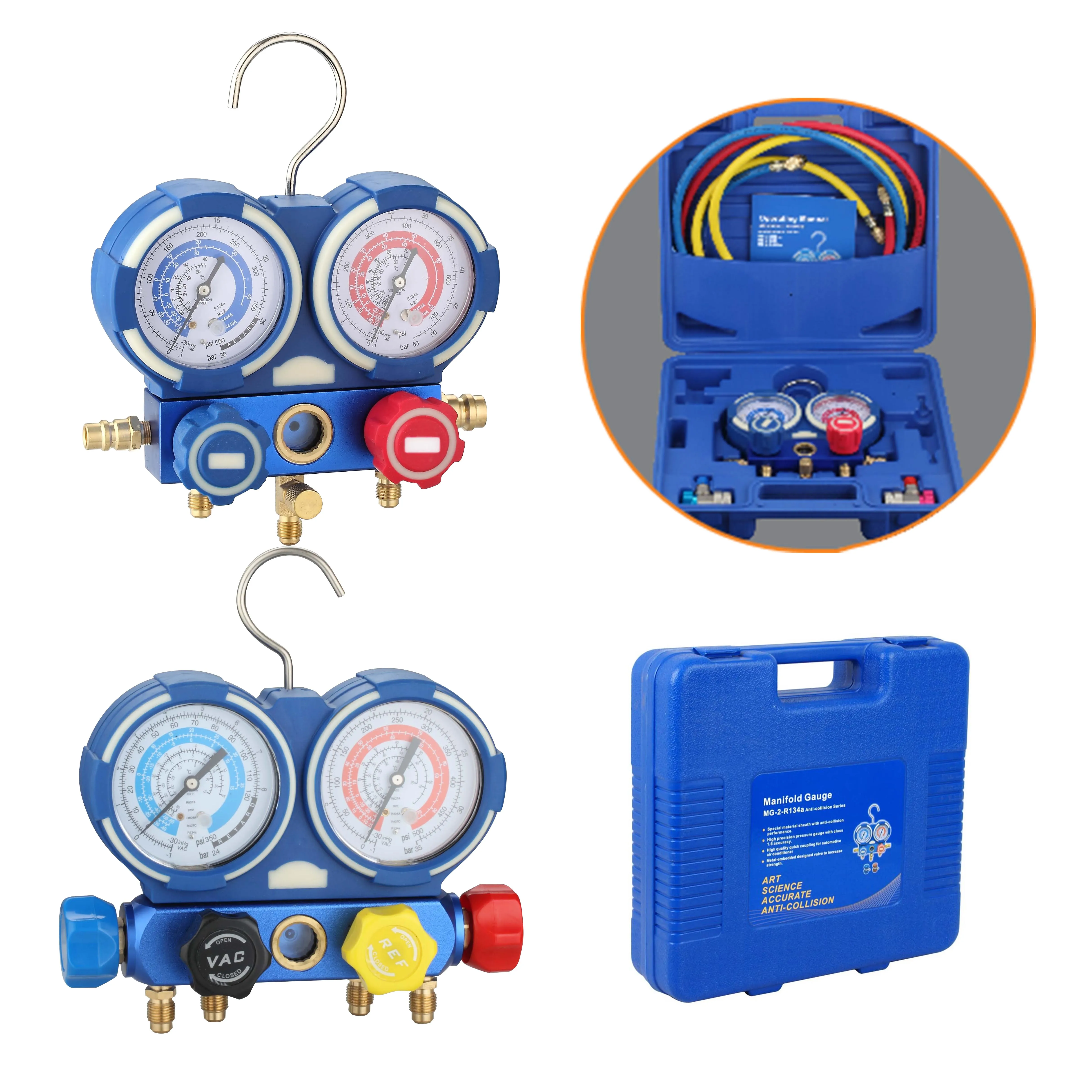

Products Show

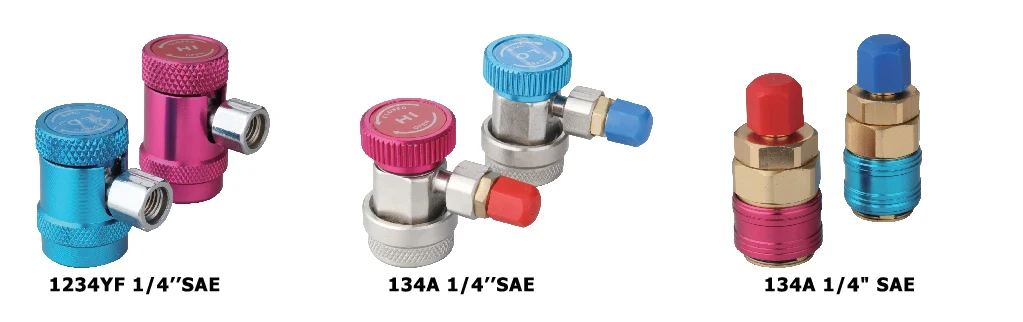

Transition Adapter

YY-1101
Male thread 1/4" SAE to female thread 5/16" SAE

YY-1102
Male thread 5/16" SAE to female thread 1/4" SAE
YY-1103
Male thread 1/4" SAE to female thread 1/2" ACME
YY-1104
Male thread 1/2" ACME to female thread 1/4" SAE

Technical Parameter

Model	MG-2-R410A	MG-2-R32	MG-2-R134a	MG-2-R22
Refrigerants	R410A R404A	R32,R410A	R134a R22	R22 R134a
Pressure Range	0~800psi, -30~50psi	0~800psi, -30~50psi	0~400psi,0~140psi	0~400psi,0~140psi
Charging Hose	red:1/4".5/16", yellow:1/4",1/4", blue:1/4",5/16"	red:1/4".5/16", yellow:1/4",1/4, blue:1/4",5/16"	red:1/4,1/4", yellow:1/4,1/4", blue:1/4,1/4",	red:1/4,1/4", yellow:1/4,1/4", blue:1/4,1/4",
Hose Pressure	800~4000 psi	800~4000 psi	600~3000psi	600~3000psi
Quick Coupler	without	without	with Quick Coupler	without

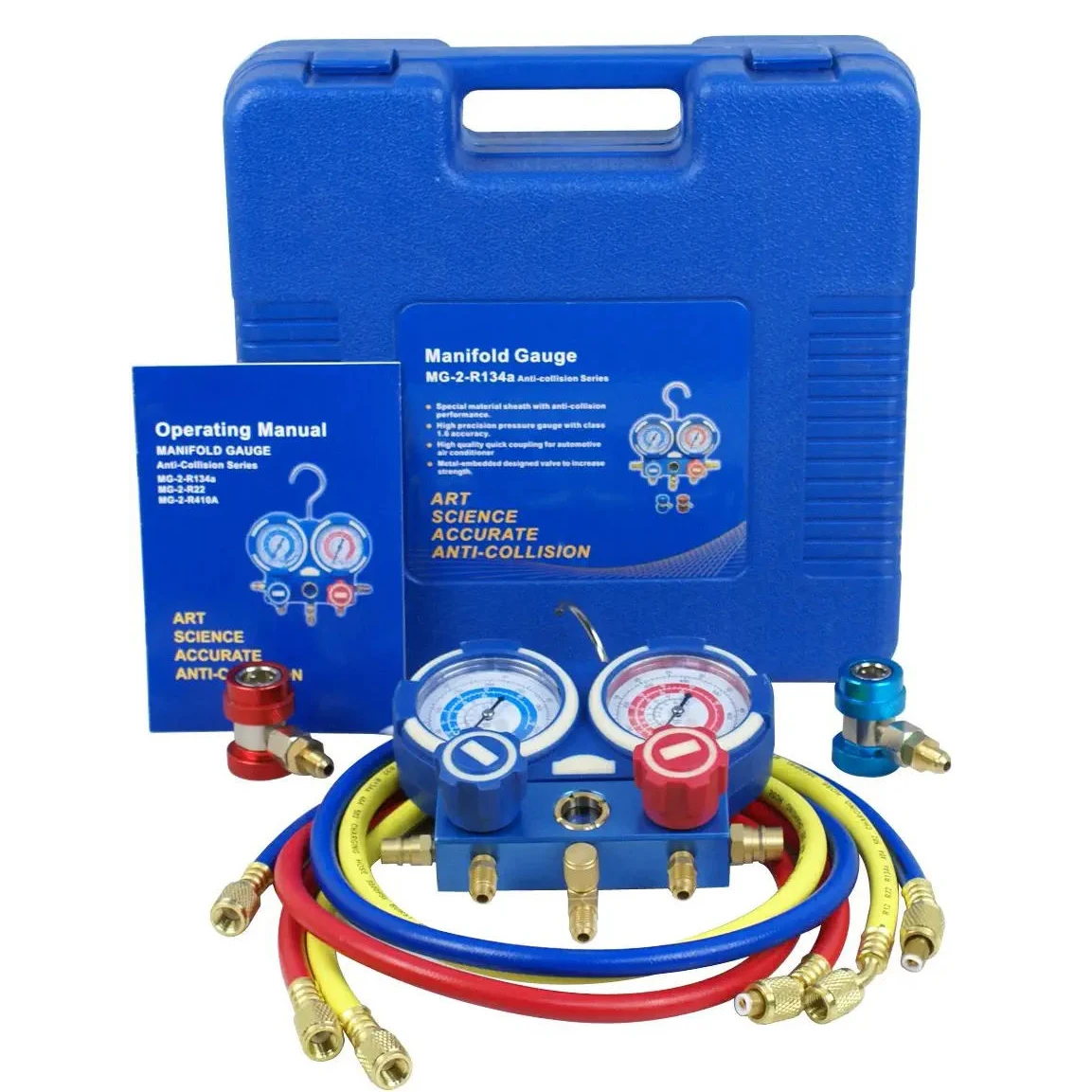

Product Details

No.	Name	No.	Name
1	Hook	9	Low pressure gauge
2	High pressure gauge	10	Sheath
3	Cap	11	Blue hose
4	Zero adjusting screw	12	Yellow hose
5	High pressure valve	13	Red hose
6	Sight glass	14	Blue quick coupling
7	Low pressure valve	15	Red quick coupling
8	Connection

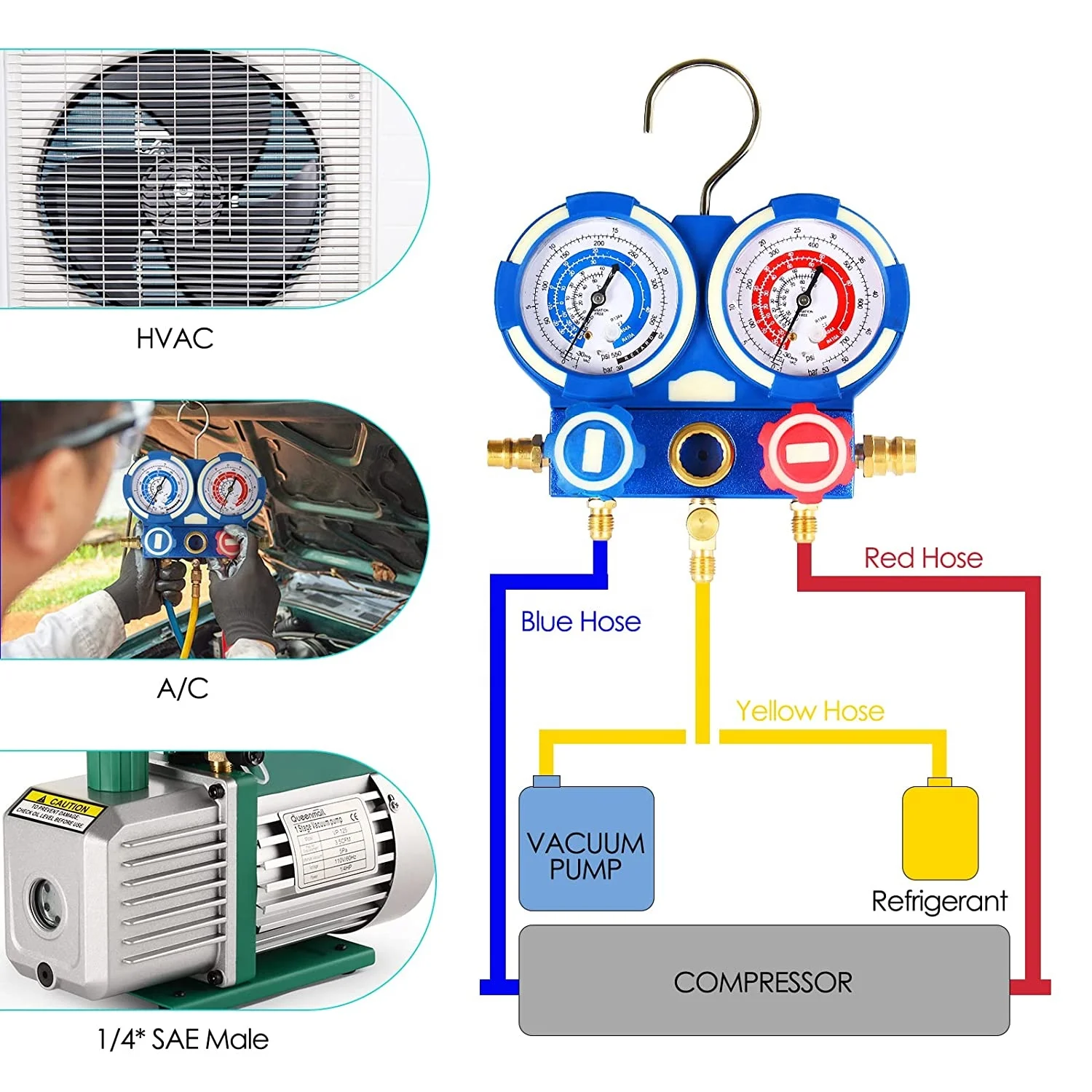

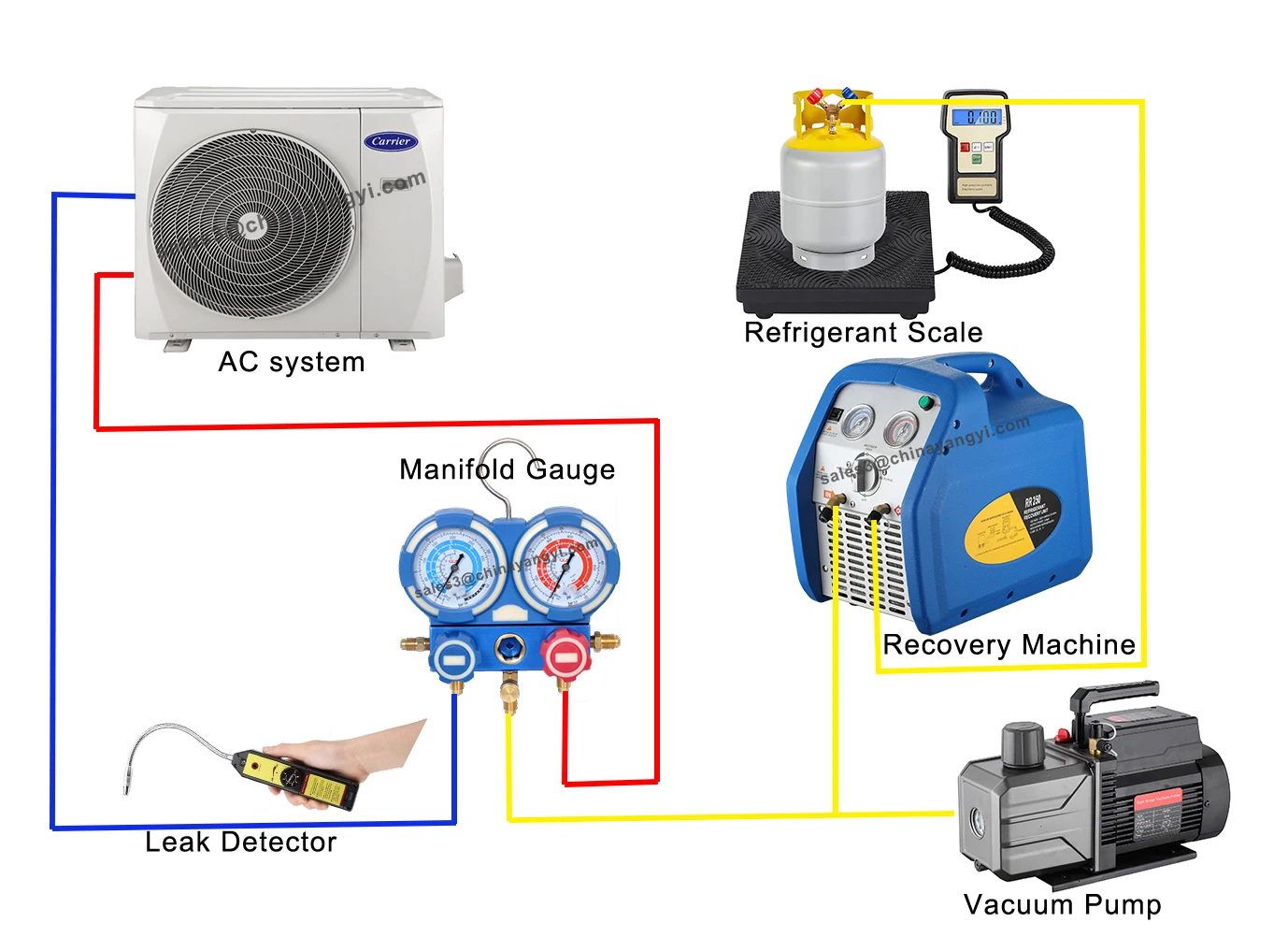

Installation Instructions

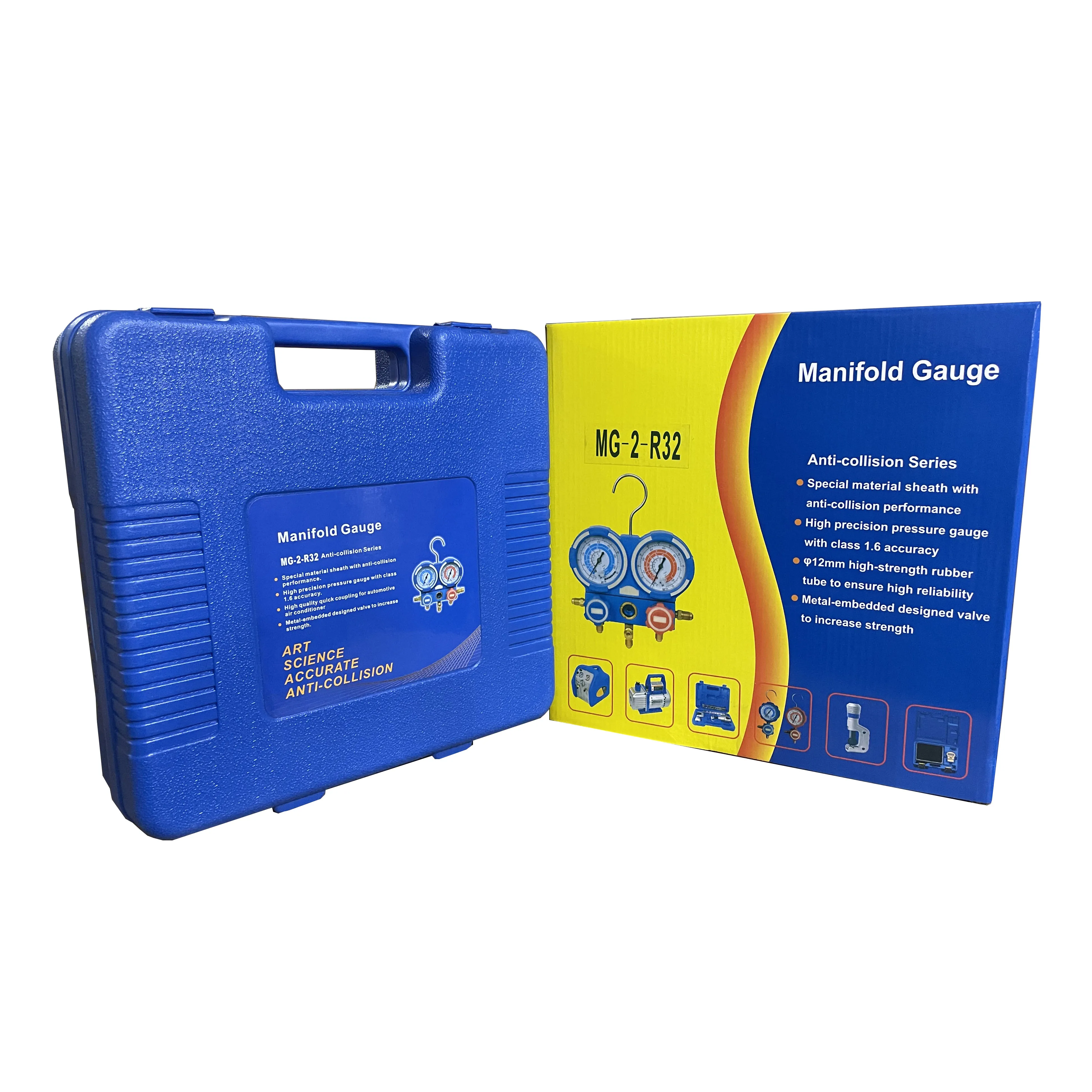

Packing and Shipping

For Packing:

Each machine is under carefully packing.

We can pack the goods into quality carton box, pallets or wooden box with shipping mark.

For Shipping:

International Express Shipping：DHL, UPS, FedEx and TNT are widely used in our shipping, it is door-to-door delivery service, transit time is as followed picture.

Air Cargo：Cost-effective for you to ship your goods over at least 100kgs. The transit time is around 3~10 business days. The shipping cost is lower than international express, but you have to pick up the goods nearby your airport and manage the customs clearance all by yourself. Import duties and taxes may be imposed, but unfortunately we have no idea how much they will cost.

Sea Cargo：Ocean shipping is the most cost-effective way to ship your bulky and un-urgent orders. The shipping time varies from 15~25 business days depending on the season and destination you ship to.
