China manufacturer pressure switch water treatment system ro water flow control switch
- Category: >>>
- Supplier: Zhejiang Lefoo Controls Co. Ltd.
Share on (1600628740855):
Product Overview
Description
Product Details
Product Description

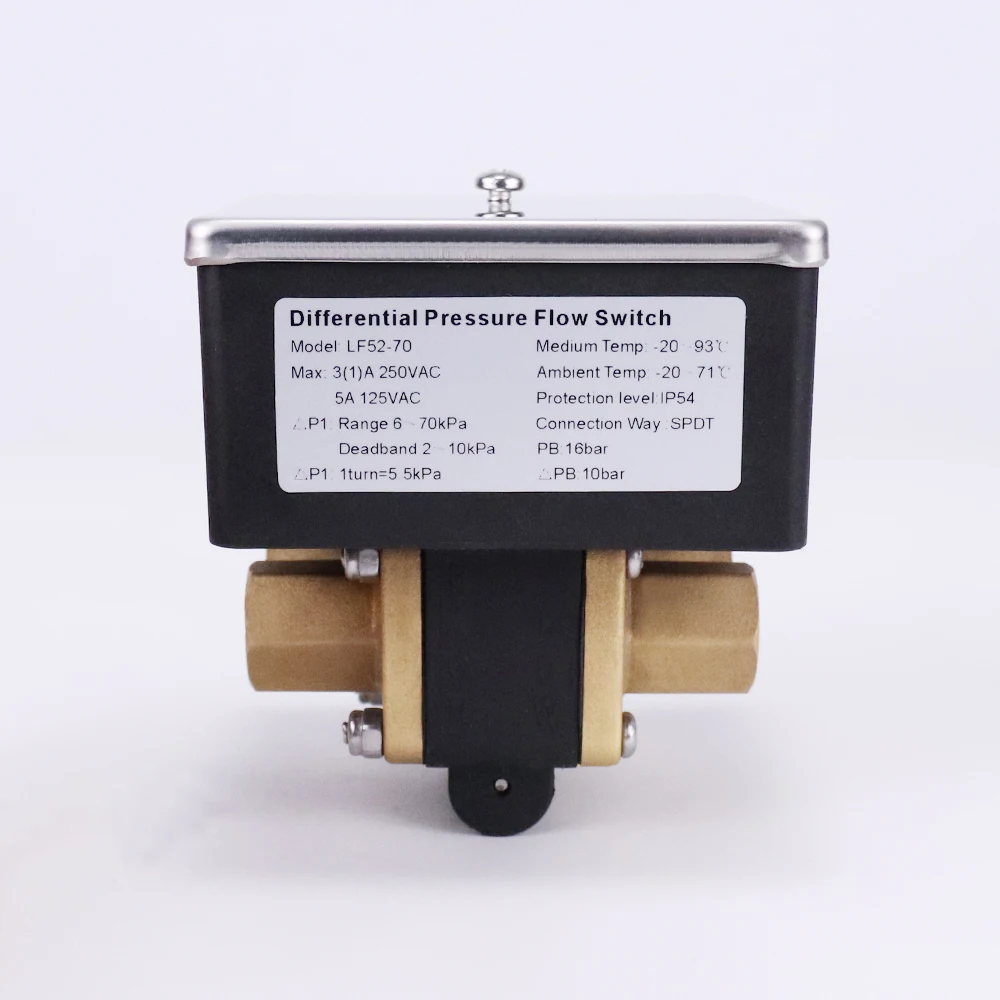

This adjustable differential pressure switch LF52 is eveloped for sparingly using in different differential value requirements. It is widely applied for detecting the differential of water filter, pump, heat exchanger, chillers and its coil units.
When the water flowing (differential) decrease or increase to the setting point, there will be an alarm or cut off output signal for the self-controlling system. It's also available for indicating the status of pump or water filter. Double differential settings pressure switch can take the replacement of the vane flow switch and avoid changing the vane flow switch from chillers each year.
Product Specification
Adjustable | Model | Differential pressure adjustable range kPa | Differential | Lap increment |
Single Set Point Working Pressure range | 52-15 | 5—15 | 1—3 | 1 |
52-30 | 5—30 | 1—3 | 2.2 | |
52-70 | 6—70 | 3—5 | 5.5 | |
52-100 | 6—100 | 3—5 | 6.5 | |
52-200 | 10—200 | 5—7 | 16 | |
52-300 | 20—300 | 6—9 | 25 | |
52-400 | 30—400 | 6—12 | 38 | |
Dual Set Point Working Pressure range | 52-30/100 | 5—30/6—100 | 1—3/3—5 | 2.2/6.5 |
52-70/100 | 6—70/6—100 | 3—5/3—5 | 5.5/6.5 | |
52-100/100 | 6—100/6—100 | 3—5/3—5 | 6.5/6.5 | |
52-100/200 | 6—100/10—200 | 3—5/5—7 | 6.5/16 | |
52-200/200 | 10—200/10—200 | 5—7/5—7 | 16/16 | |
52-300/300 | 20—300/20—300 | 6—9/6—9 | 25/25 | |
52-400/400 | 30—400/30—400 | 6—12/6—12 | 38/38 |
Technical Parameters
Media | Non hazardous media such as water, air, oil etc… |
Contact arrangement | One/two sets of SPDT (microswitch) |
Electrical rating | 3A 250VAC 5A 125VAC |
Storage temperature | -29~82℃ |
Ambient temperature | -20~71℃(fluid) |
Media temperature | -20~93℃(fluid) |
High and low pressure connections | 7/16"UNF single connector(Male thread) ;G1/4 single connector(female thread); G1/4 double connector (female thread) |
Maximum static pressure | 16bar |
Maximum differential | 10bar |
Setting repeatability tolerance | ±1% |
Degree of protection | Ip54 |
Accessories are optional (if there is no requirement, the default is selected) | Converted capillary, plastic/metal/rubber/line card, manual in Chinese/English |
Company Profile
ABOUT LEFOO
LEFOO was founded in 1995, over the past 25 years LEFOO has grown to a professional group company and international manufacturer that has 3 subsidiaries with 3 production bases, which total area is 45,000 square meters. LEFOO Group has 700 employees, includesmore than 80 technical R&D and engineers team.
LEFOO is a National High-tech Enterprise passed the authoritative certification of TUV ISO9001:2008 quality system and ISO14001 environmental system. The main products are compliant with CE,RoHS, REACH, CQC and other certifications.
25+YEARS OF EXPERIENCE
More than 25 years experience of
pressure control
HUGE STORAGE
With a production base of 50,000 square meters and above and more than 1,000 Strength team
HIGH-QUALITY
120+ certifications and patents
